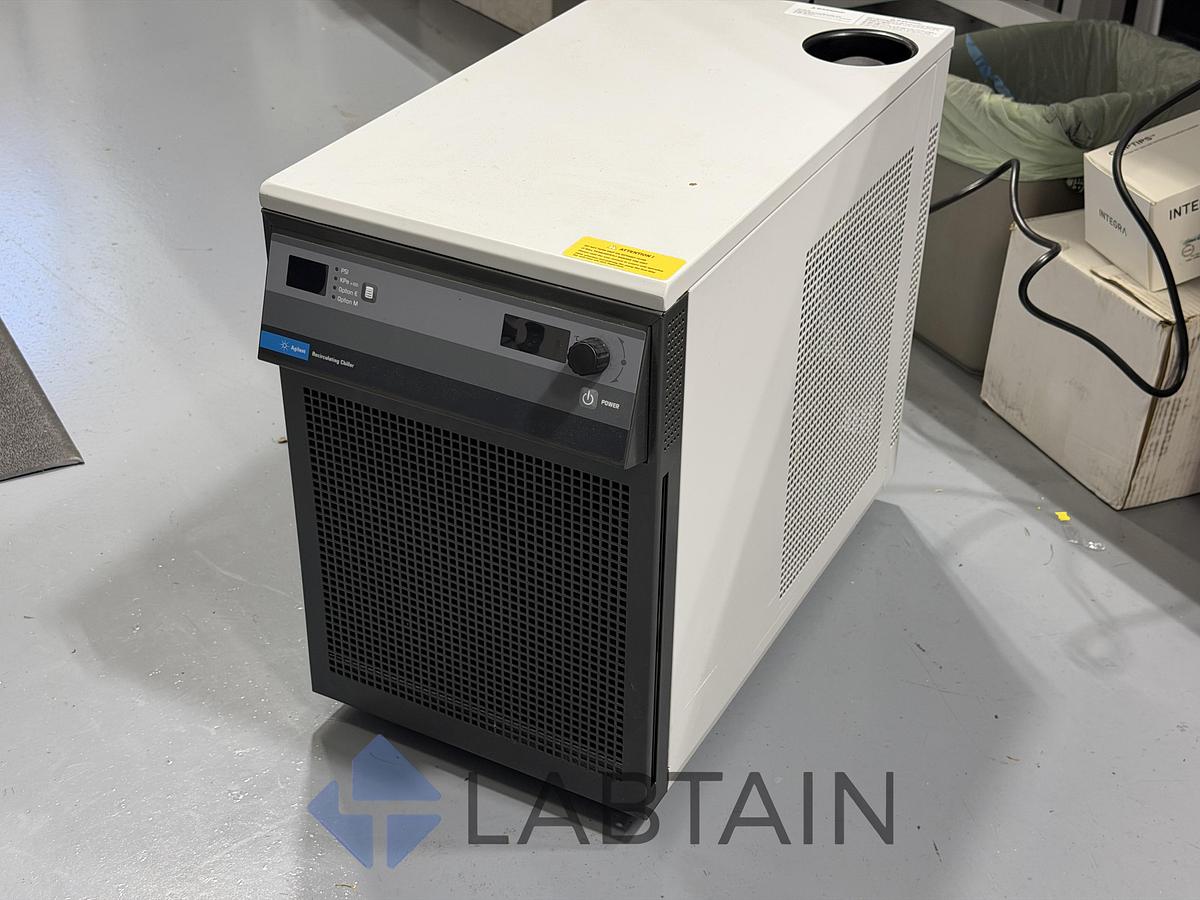

Agilent G3292A Recirculating Chiller for ICP-MS, P/N G3292-80201 (PolyScience 6150T, 1 HP) — 240 V / 50 Hz, Used

This is the chiller Agilent lists as the preferred cooling system for its 7700, 7800/7900 and 8900 ICP-MS. PolyScience builds it for Agilent on its 1 HP, turbine-pump 6100-series platform. It delivers roughly 2.7 kW of cooling at 20 °C with ±0.1 °C stability, enough to carry an ICP-MS cooling load with margin or to serve other water-cooled lab instruments. This is the 240 V / 50 Hz version, a direct fit for Europe, the UK, Asia-Pacific and other 50 Hz regions.

Electrical: rated 240 V, 50 Hz, 12.2 A. This is not the 60 Hz version, so North American sites will need a frequency converter.

Condition: Used / Inspected

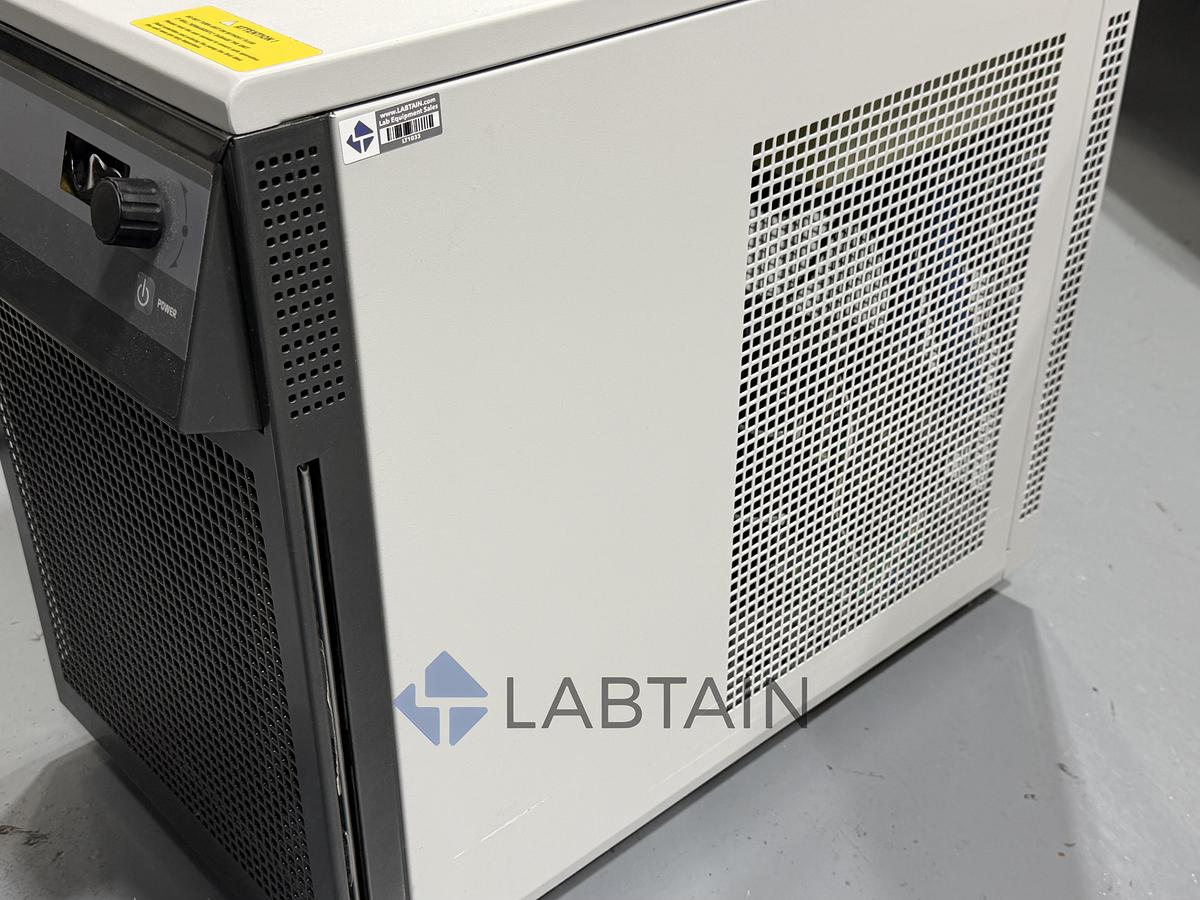

Clean cosmetic condition with light signs of use on the top cover and panels.

Technical Specifications

• Model: Agilent G3292-80201 (G3292A chiller, 240 V / 50 Hz version)

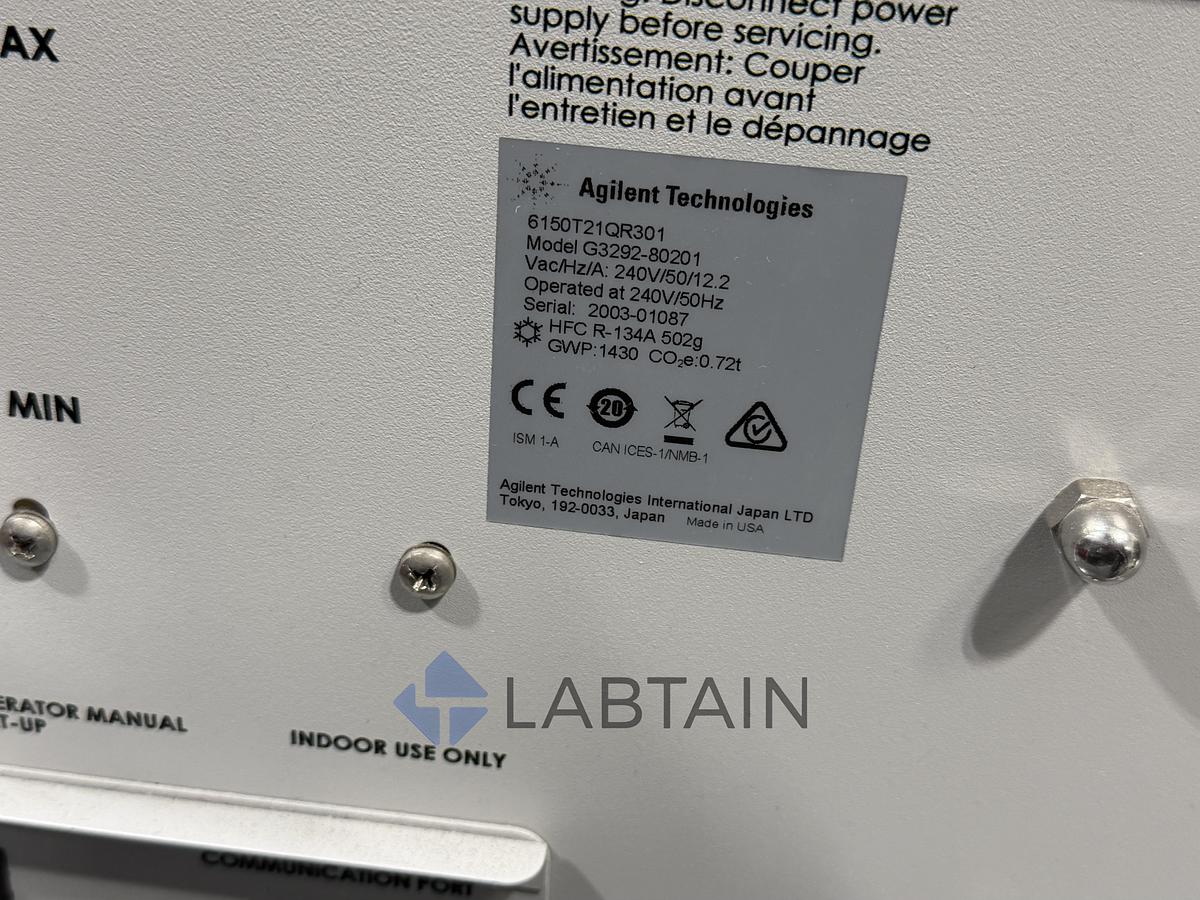

• OEM: PolyScience, model code 6150T21QR301 (6100 series, 1 HP, turbine pump)
• Serial number: 2003-01087
• Temperature range: −10 to +40 °C; stability ±0.1 °C
• Cooling capacity: approx. 2.7 kW at 20 °C
• Pump: turbine, up to 11 L/min
• Reservoir: 4.2 L, rear level indicator
• Refrigerant: R-134a, 502 g
• Electrical: 240 V, 50 Hz, 12.2 A; max. power 2,900 W

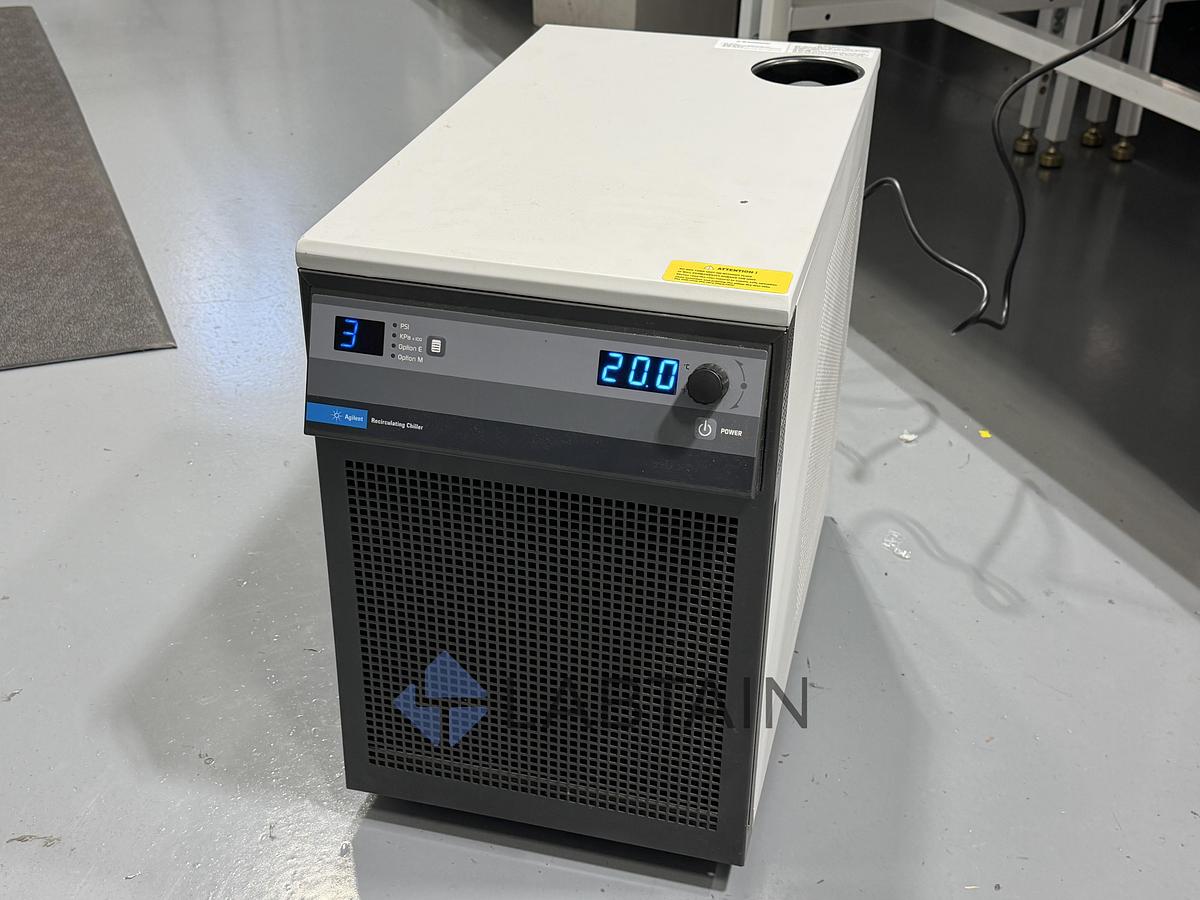

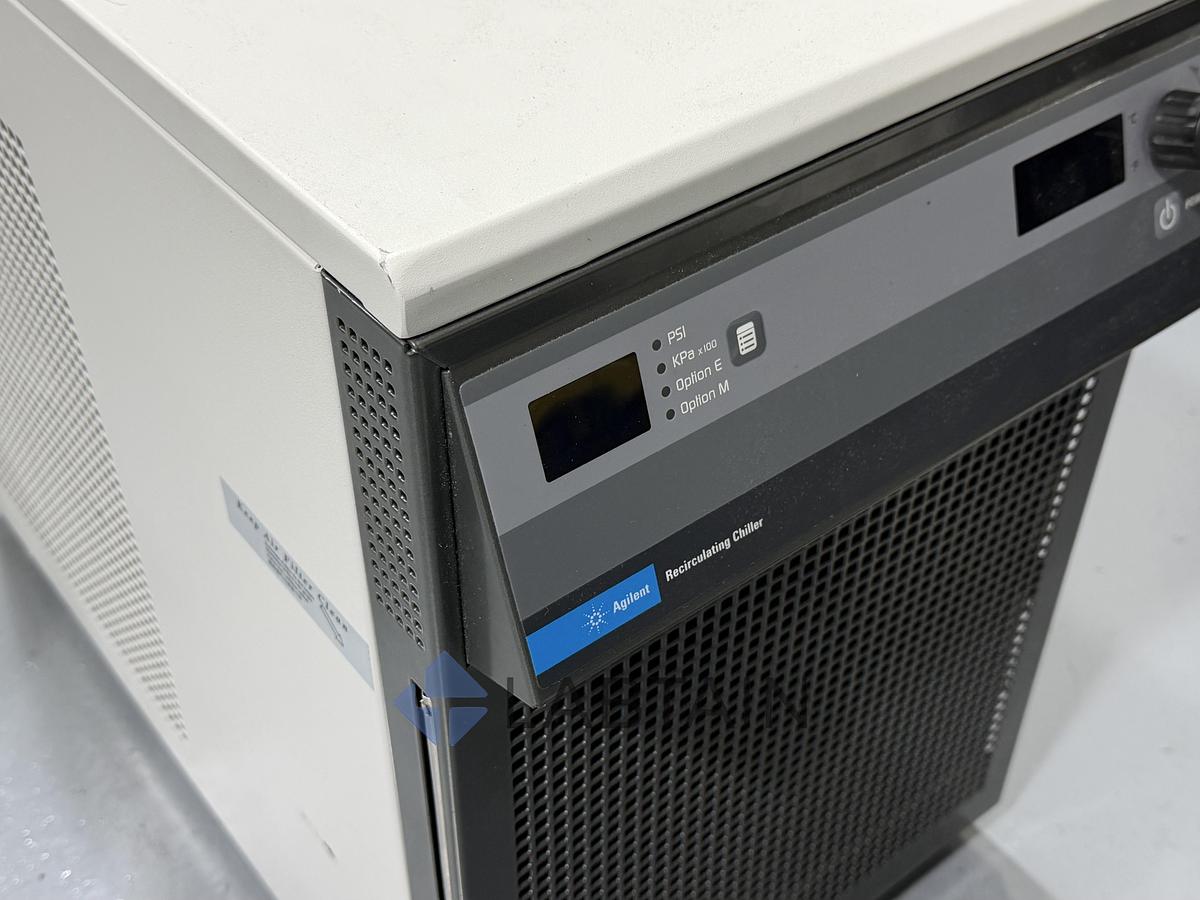

• Controls: dual LED displays (temperature and pump pressure in PSI/kPa)

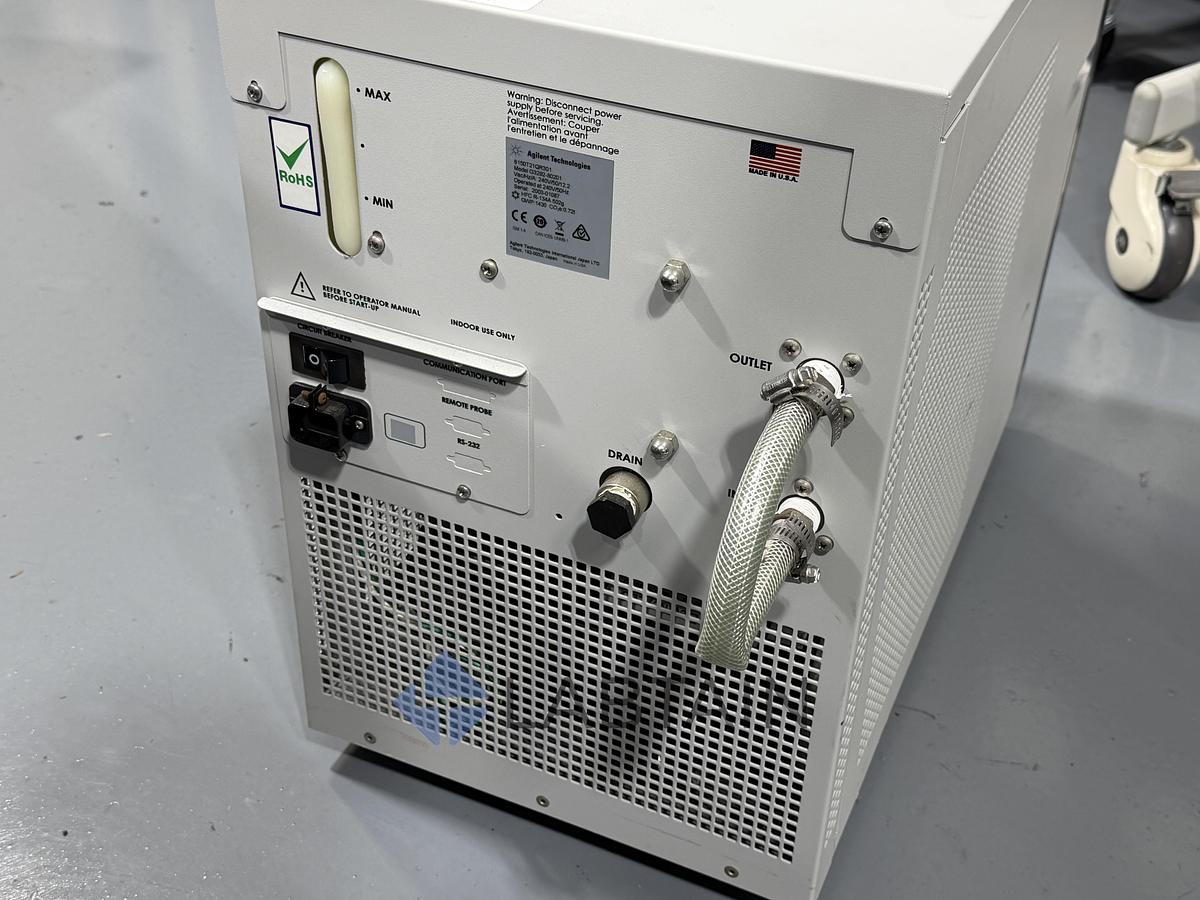

• Rear panel: inlet/outlet hose-barb fittings, drain, circuit breaker; optional communication, remote-probe and RS-232 ports not fitted
• Dimensions: 36.8 W × 70.2 D × 57.6 H cm (14.5 × 27.6 × 22.7 in); weight 85 kg (188 lb)
• Made in USA

Included

• Agilent G3292-80201 recirculating chiller (S/N 2003-01087)
• Braided jumper hose with stainless clamps (outlet-to-inlet loop), as pictured

Not included: coolant (Agilent specifies Poly-Clear fluid, P/N G3292-80010), instrument supply/return hoses
