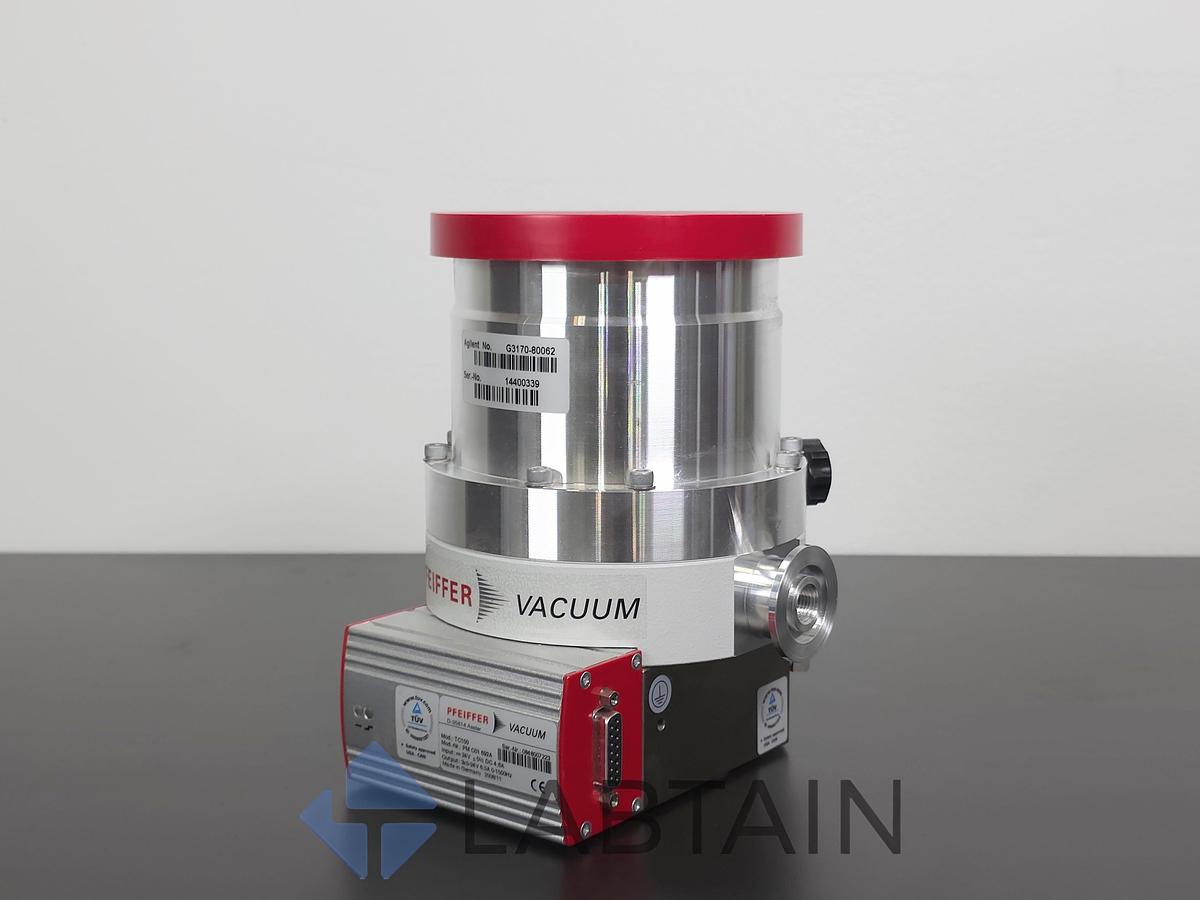

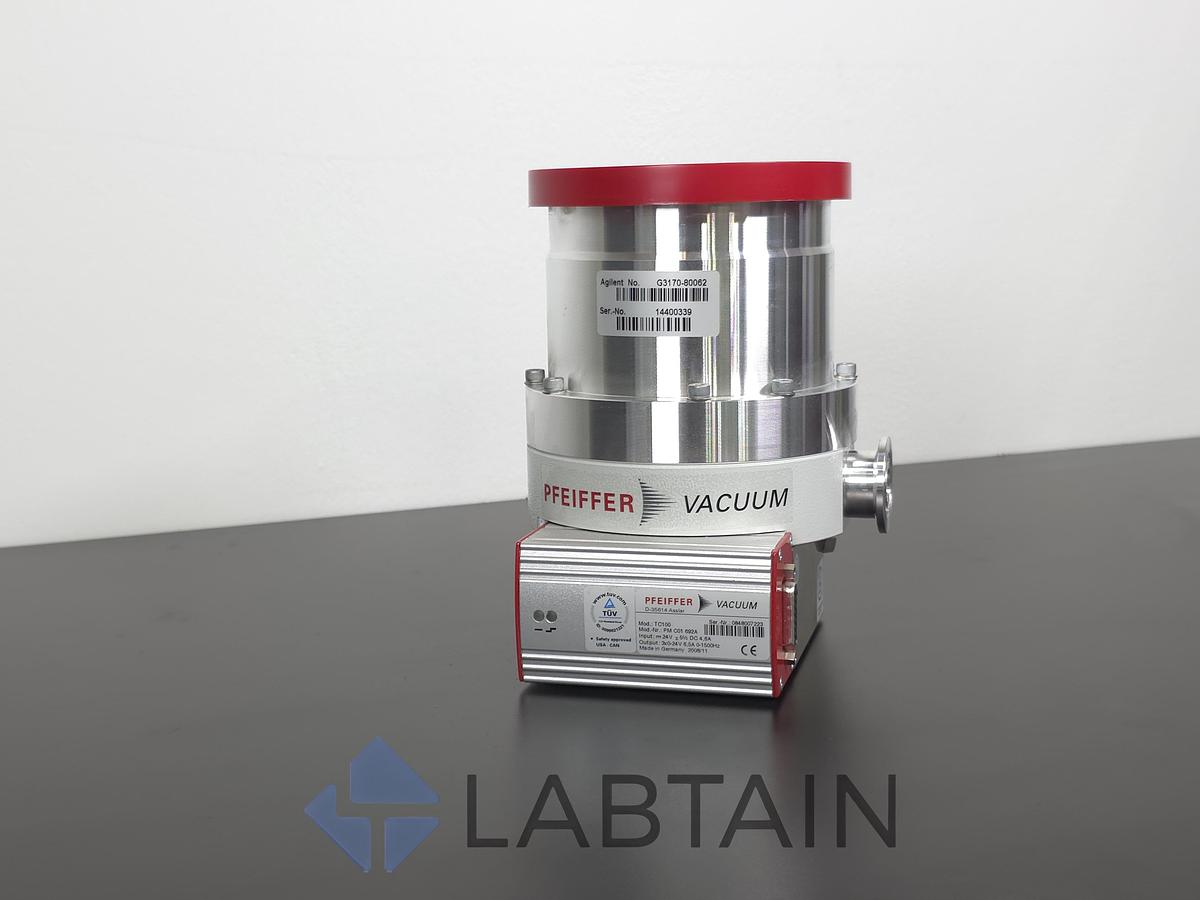

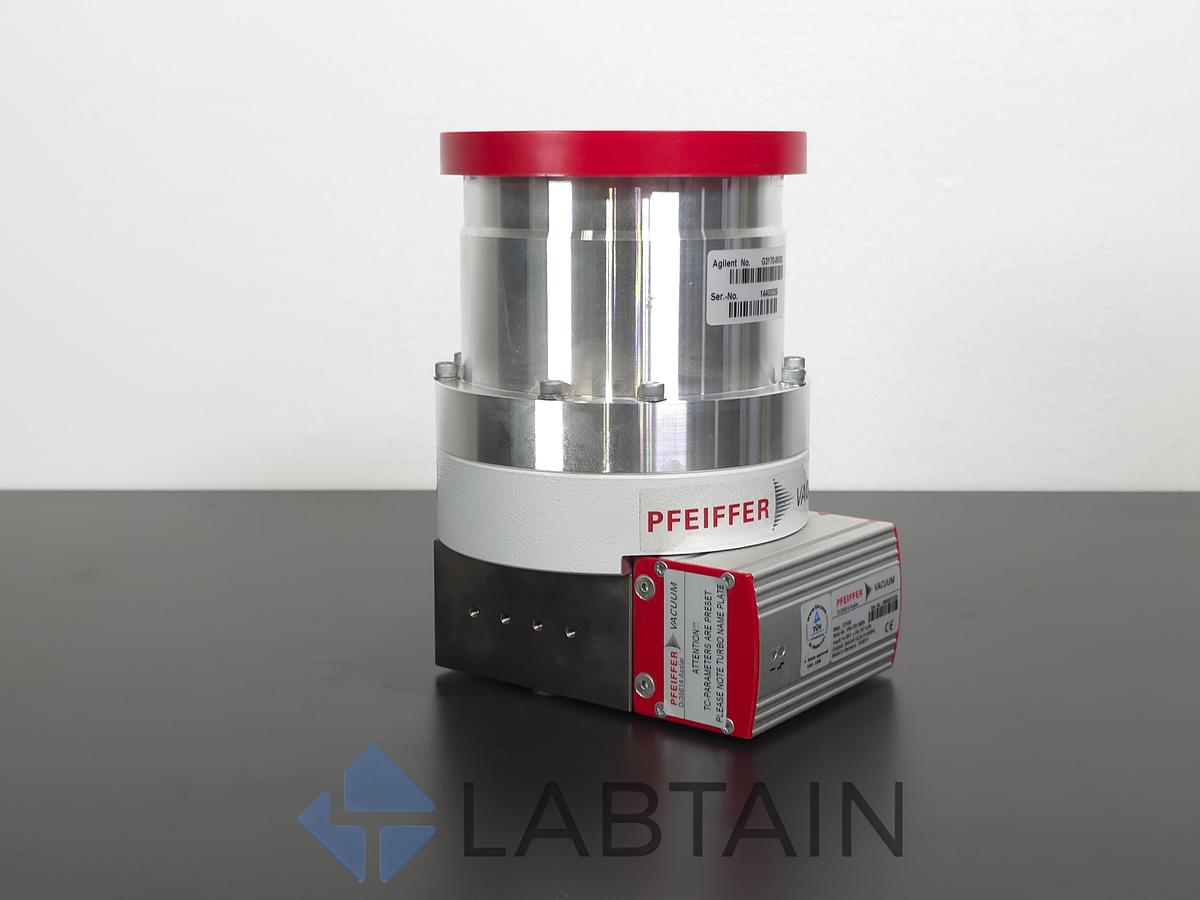

Pfeiffer Vacuum TMH 262 X S Turbomolecular Pump (PM P03 113) with TC 100 Controller – Agilent G3170-80062 for 5975 GC/MS

The Pfeiffer TMH 262 X S is the turbomolecular pump Agilent supplied as part G3170-80062 for its 5975A, 5975B and 5975C GC/MS systems. It has a DN 100 ISO-K inlet, a nominal nitrogen pumping speed of 210 l/s and a rotor speed of 60,000 rpm. Its hybrid bearing combines a wear-free permanent-magnet bearing on the high-vacuum side with an oil-lubricated ceramic ball bearing on the fore-vacuum side. This unit comes with its attached Pfeiffer TC 100 drive electronics. It is offered untested and as-is, as a repair or rebuild core, a parts source, or a candidate spare for labs running 5975-series MSDs.

Condition: Used

• Clean exterior with light handling marks. Nameplates are intact and legible

Technical Specifications

• Brand: Pfeiffer Vacuum

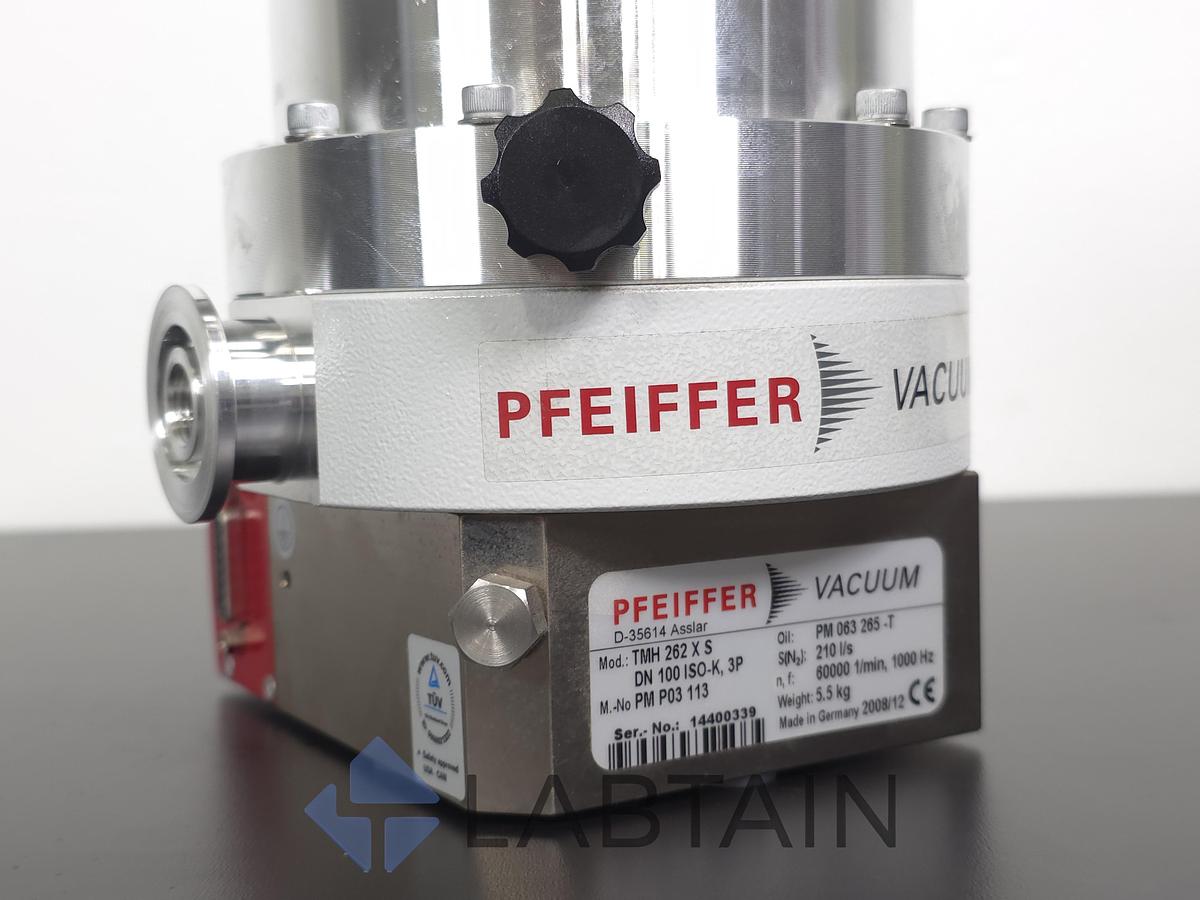

• Model: TMH 262 X S, DN 100 ISO-K, 3P
• Part numbers: Pfeiffer PM P03 113; Agilent G3170-80062
• Serial Number: 14400339 (Made in Germany, 2008/12)
• Compatible with: Agilent 5975A, 5975B and 5975C GC/MS
• Inlet flange: DN 100 ISO-K
• Fore-vacuum flange: DN 25 ISO-KF with G 1/4" thread
• Pumping speed: N₂ 210 l/s, He 220 l/s
• Compression ratio (N₂): > 1 × 10⁹
• Rotational speed: 60,000 rpm (1,000 Hz)
• Bearing: hybrid (permanent-magnet bearing on the high-vacuum side, oil-lubricated ceramic ball bearing on the fore-vacuum side)
• Bearing oil: PM 063 265 -T (per nameplate)
• Venting: manual venting screw
• Weight: 5.5 kg (per nameplate)

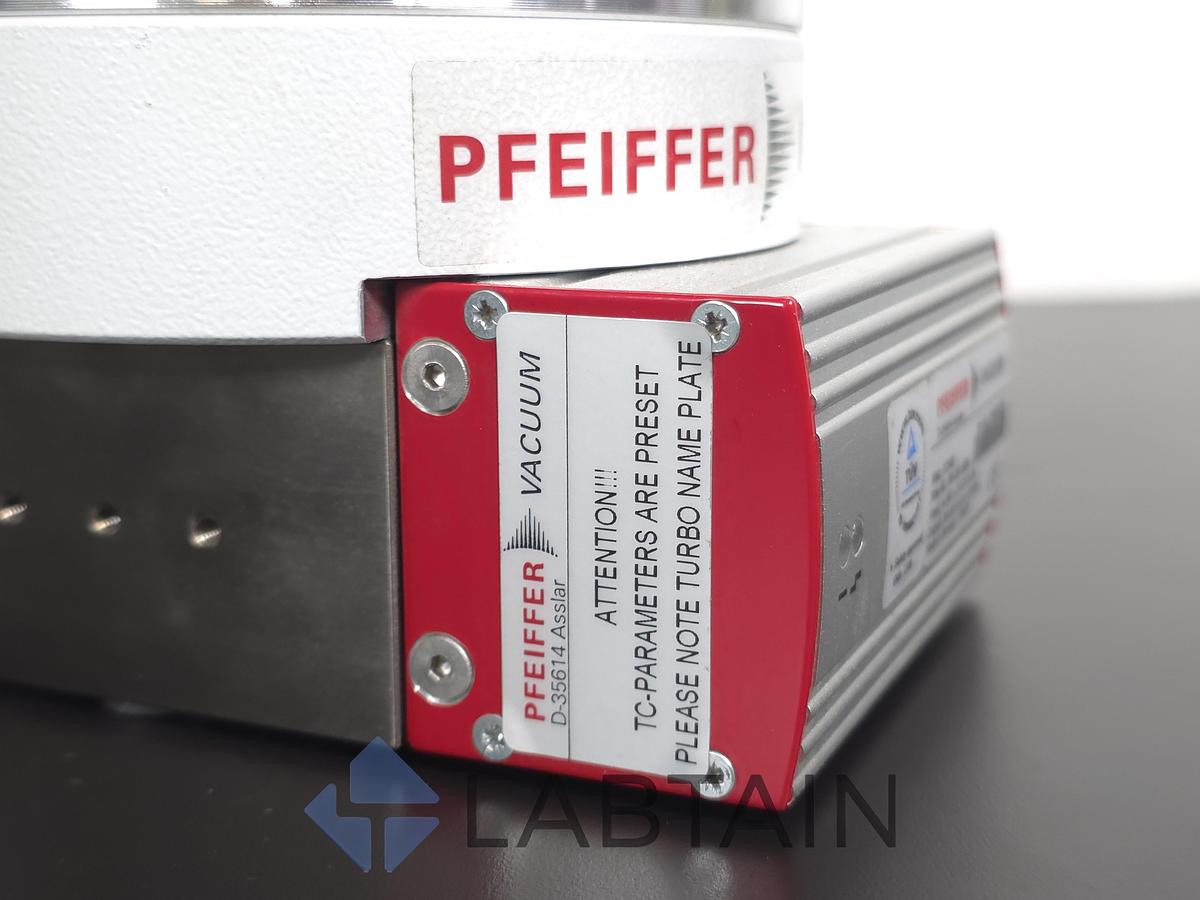

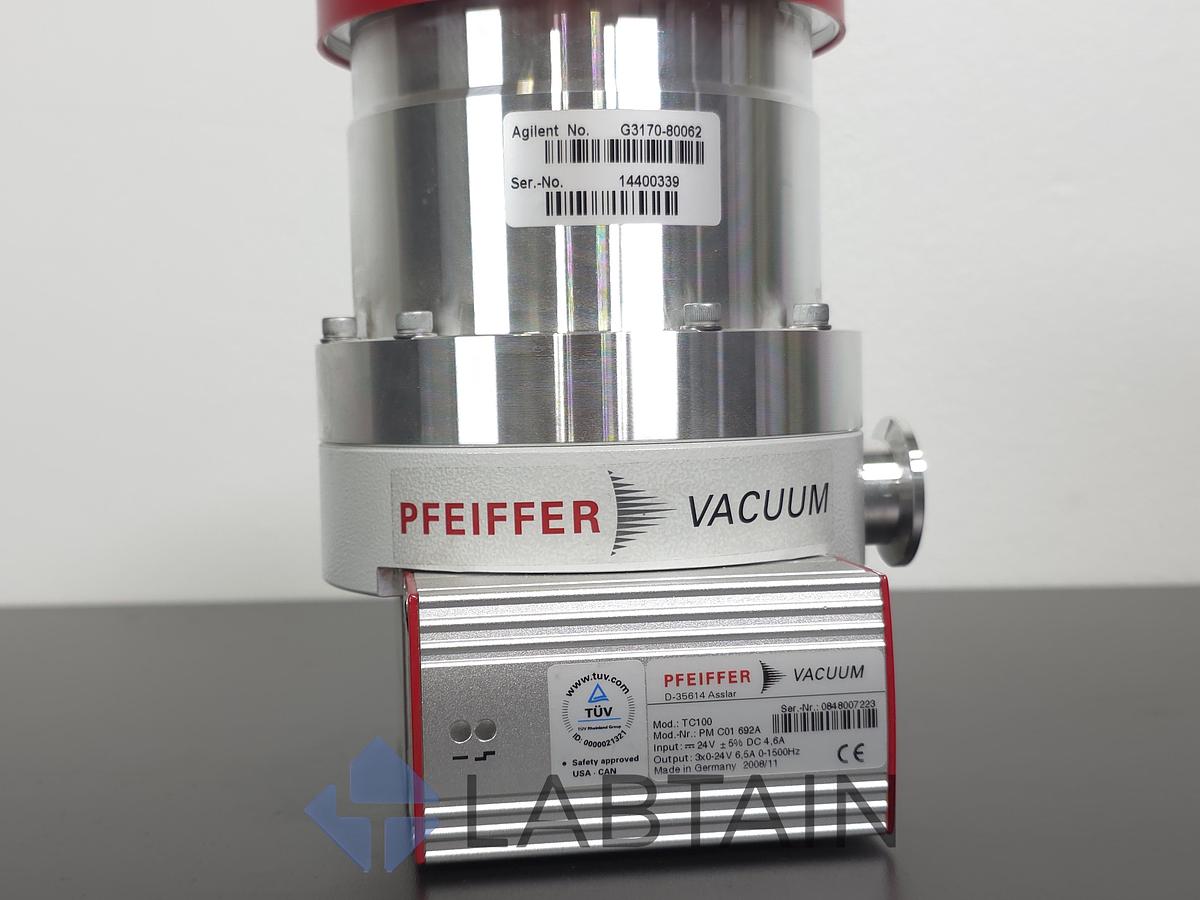

• Drive electronics: Pfeiffer TC 100, Mod.-Nr. PM C01 692A, S/N 0848007223 (2008/11)
• TC 100 input: 24 V DC ±5%, 4.6 A
• TC 100 output: 3 × 0–24 V, 6.5 A, 0–1,500 Hz

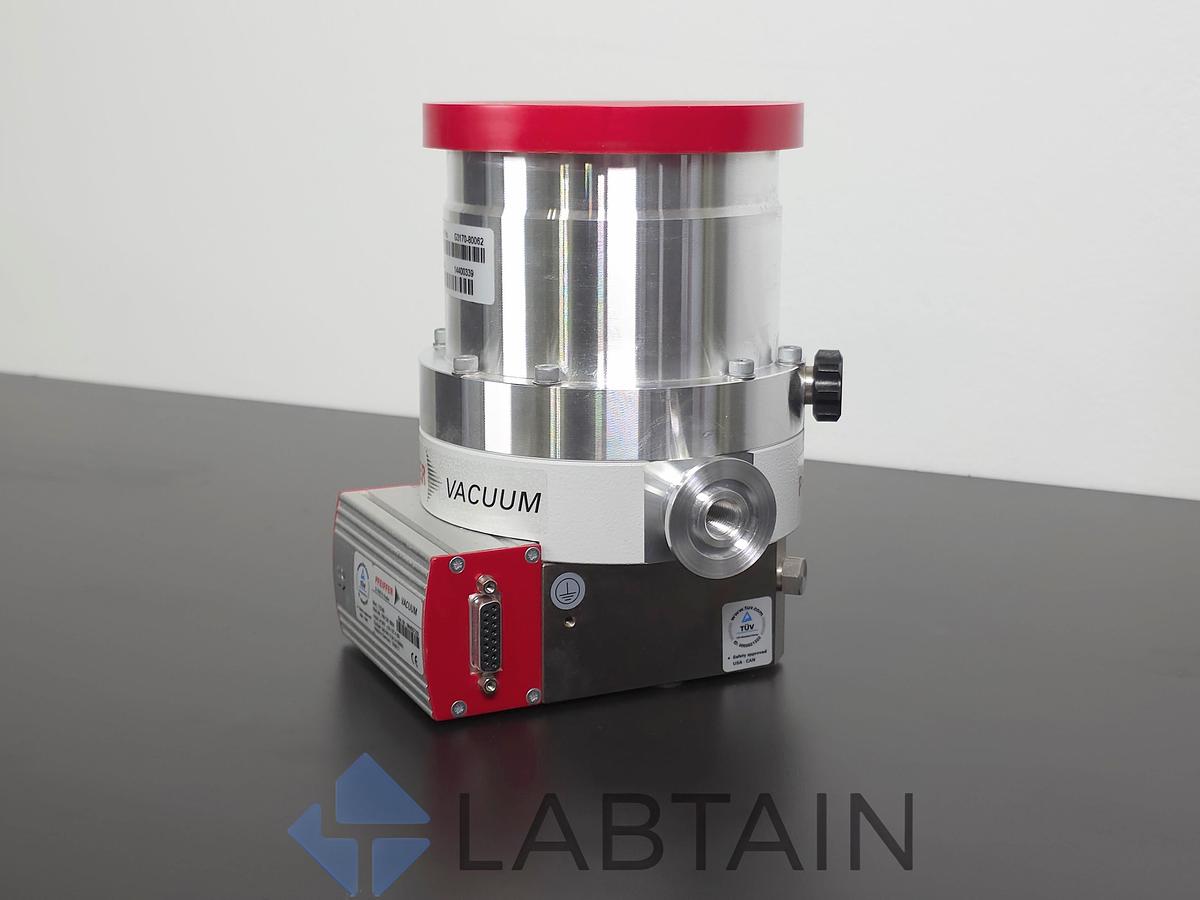

• Interface: 15-pin D-sub on the TC 100
• Approvals: CE; TÜV safety approved USA/CAN

Included

• Pfeiffer TMH 262 X S turbomolecular pump (PM P03 113)
• Pfeiffer TC 100 drive electronics (PM C01 692A), attached to the pump
