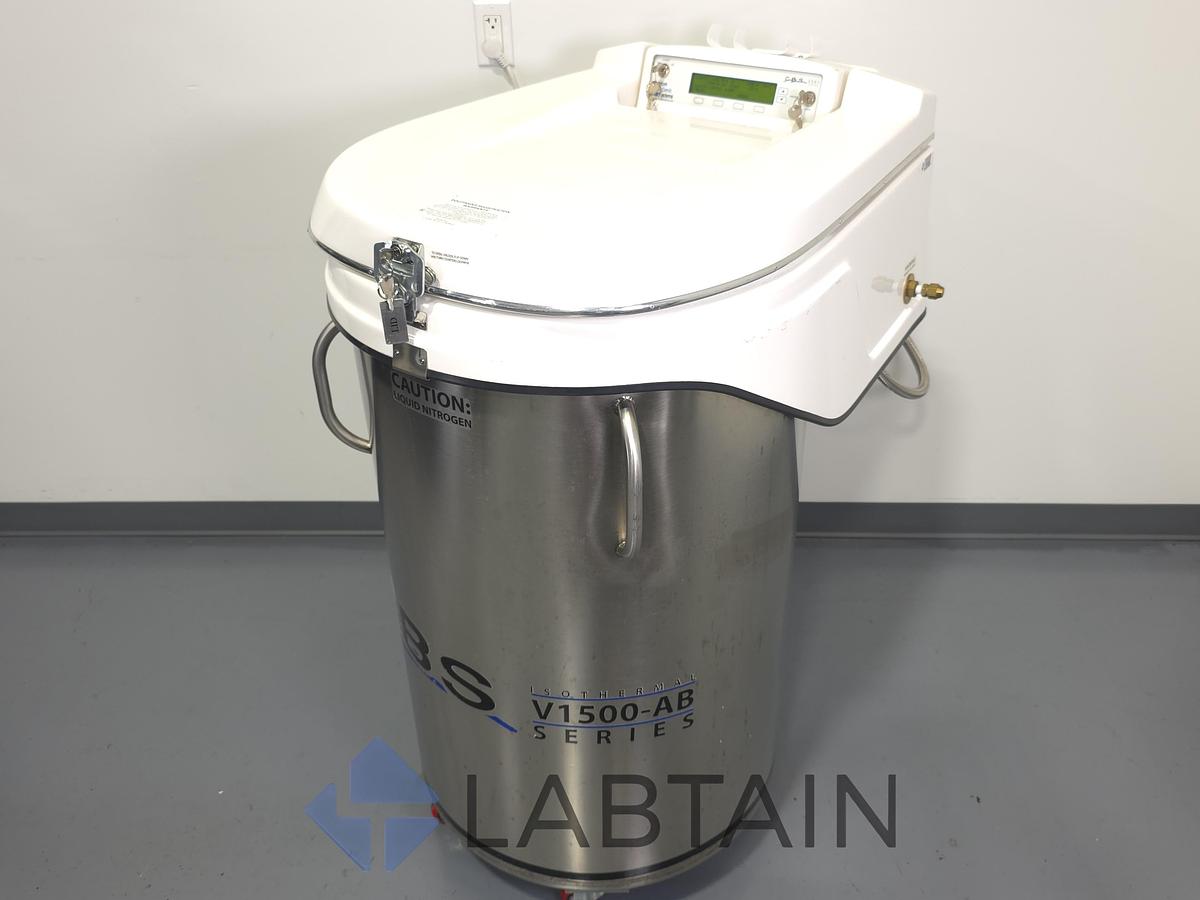

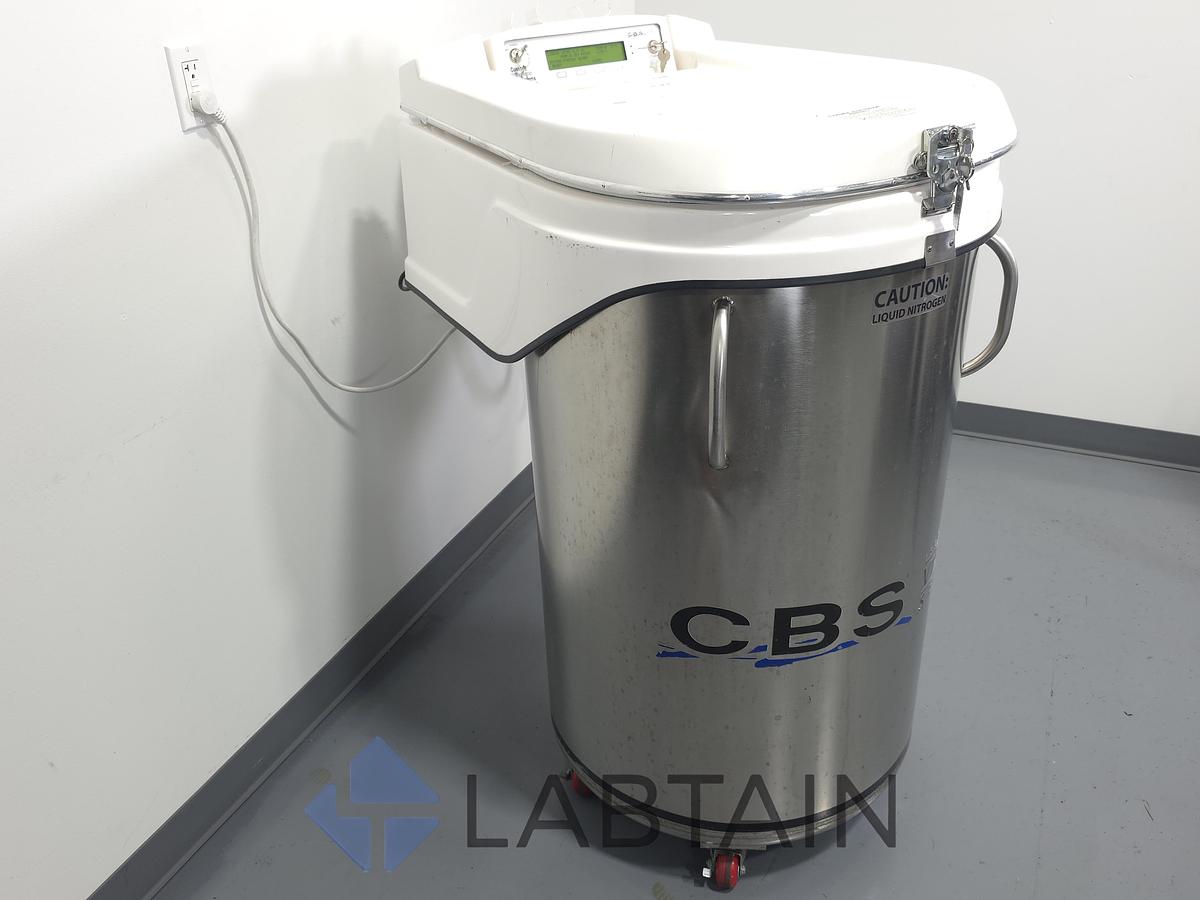

BioGenic Systems (CBS) Isothermal V1500-AB Liquid Nitrogen Freezer with 2301 Series Controller & 7 Racks – 9,100 x 2 mL Vials – Used

The CBS Isothermal V1500-AB keeps samples at liquid nitrogen temperature with no liquid nitrogen in the sample space. The LN2 is held in a jacket inside the vessel wall, so the whole chamber is dry storage. That means no cross-contamination through the liquid and no splashing when racks are pulled. CBS rates the storage area at an average of about -193 °C, and the 21" neck gives open, top-down access to the full rack set. This unit has a CBS 2301 Series controller designed to fill the jacket automatically between programmable level set points. It comes with seven numbered stainless steel racks, and the freezer holds up to 9,100 x 2 mL vials. It suits biorepositories, cell banks and research labs that need contact-free cryogenic storage in a mobile unit on casters.

Condition: Used / Inspected

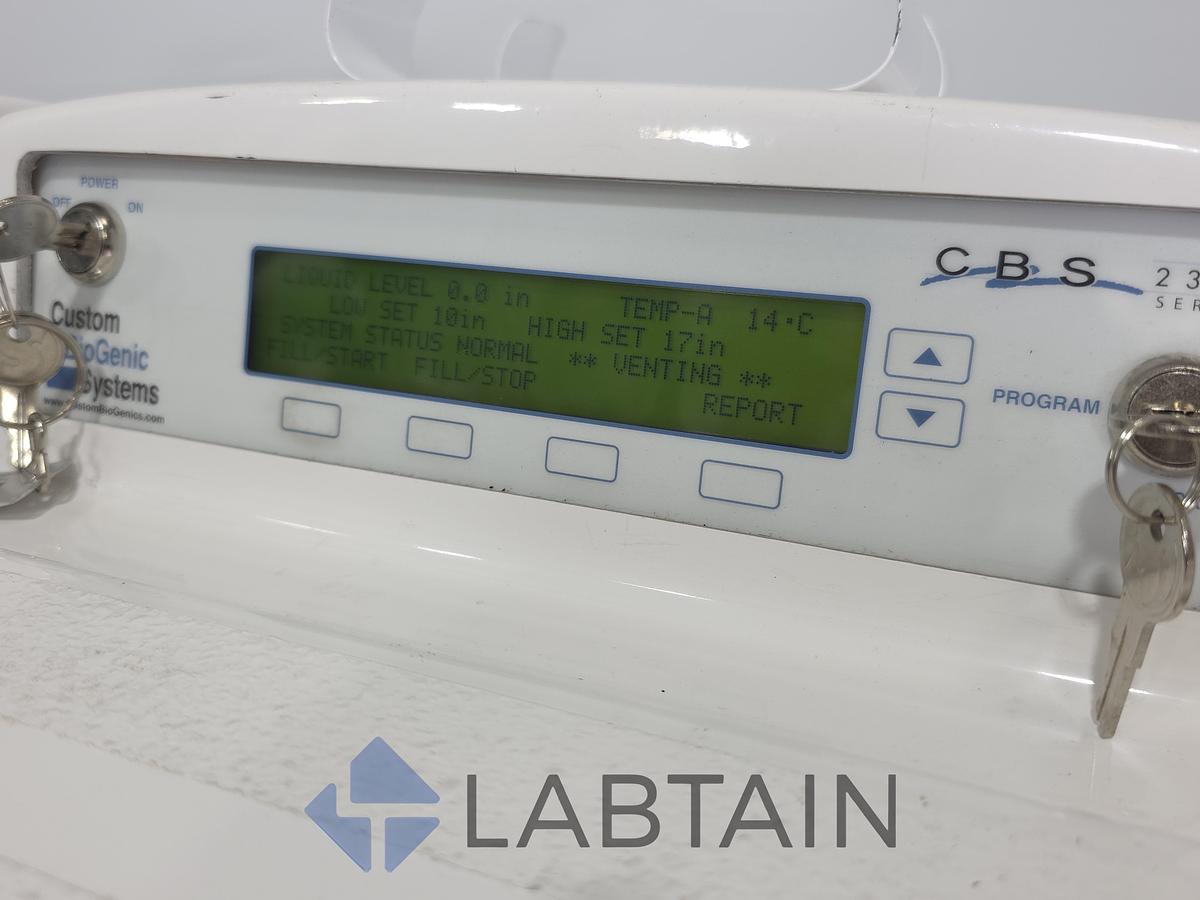

• The unit is empty and at room temperature (display reads 0.0 in, 14–15 °C).
• Good working condition

Technical Specifications

• Brand: Custom BioGenic Systems (CBS)
• Model: V-1500 AB (Isothermal V1500-AB Series)
• Serial Number: B140310AG-1

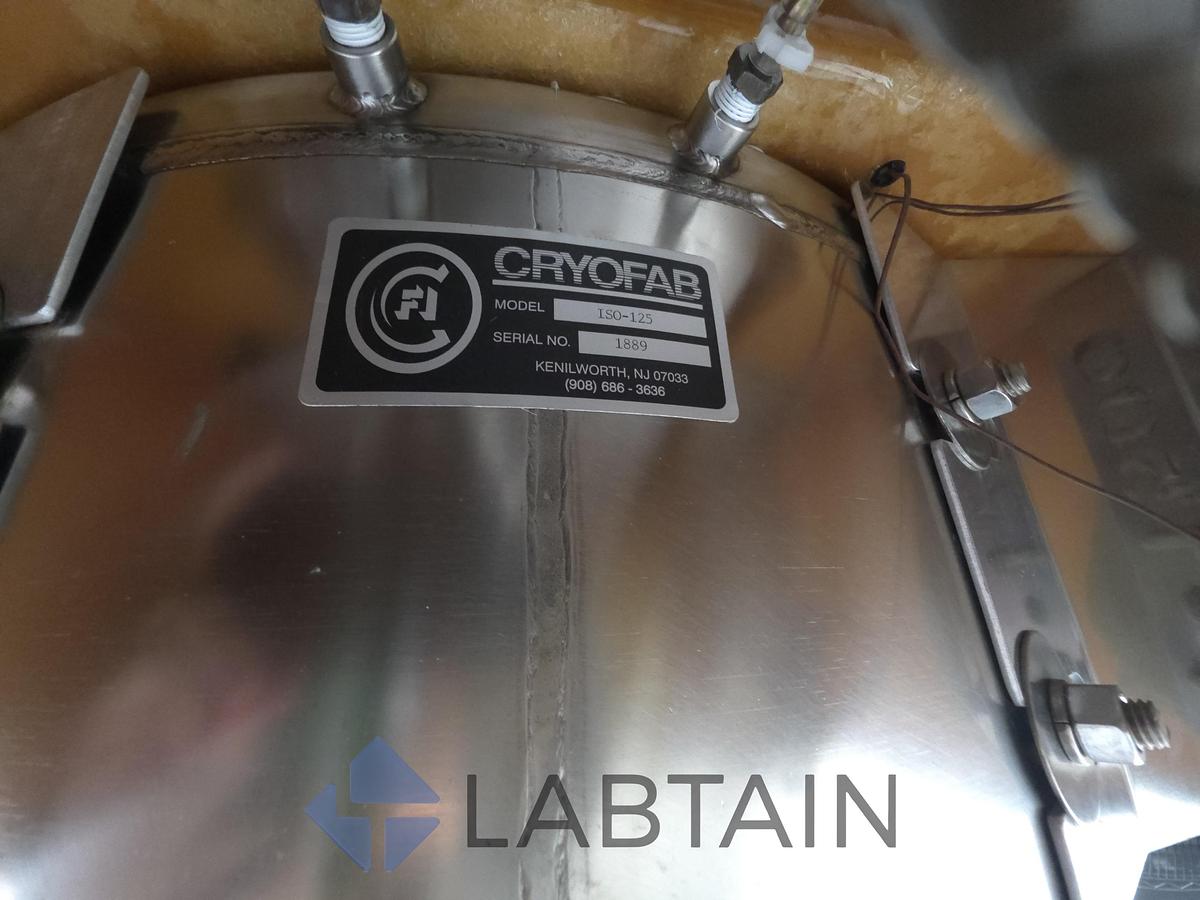

• Vessel: Cryofab ISO-125, S/N 1889
• Controller: CBS 2301 Series, 4-line LCD, keyed power and program switches

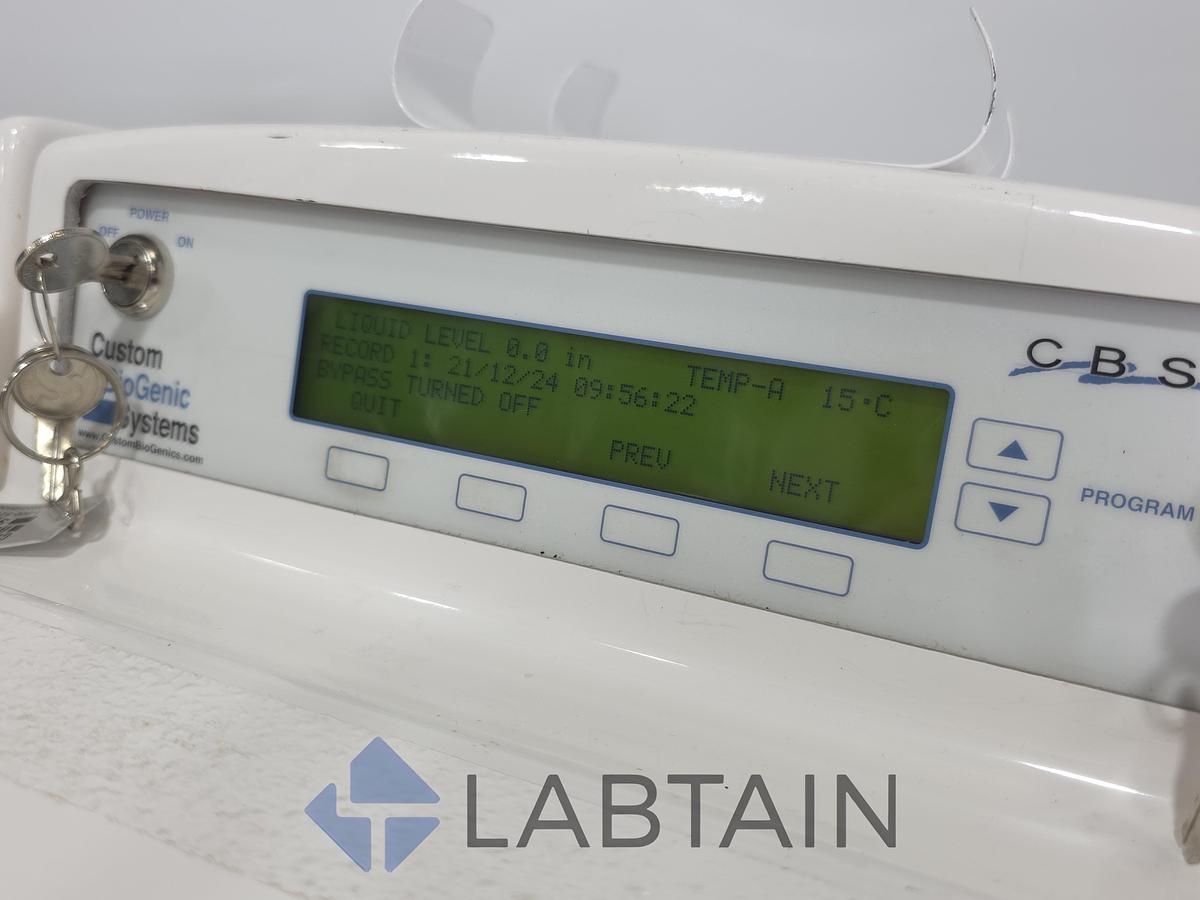

• Controller functions: liquid level and Temp A readouts, programmable low/high fill set points (currently 10 in / 17 in), fill start/stop, event log
• Storage: dry storage with LN2 held in the vessel-wall jacket; storage area averages about -193 °C (CBS rating)
• LN2 capacity: 30 L
• Sample capacity: up to 9,100 x 2 mL vials or 434 x 50 mL blood bags; 7 racks x 13 two-inch boxes (91 boxes)
• Neck opening: 21 in
• Usable interior: 29 in H x 21 in dia. (736 x 534 mm)
• Exterior: 26 W x 37 D x 45 H in (660 x 939 x 1,143 mm)

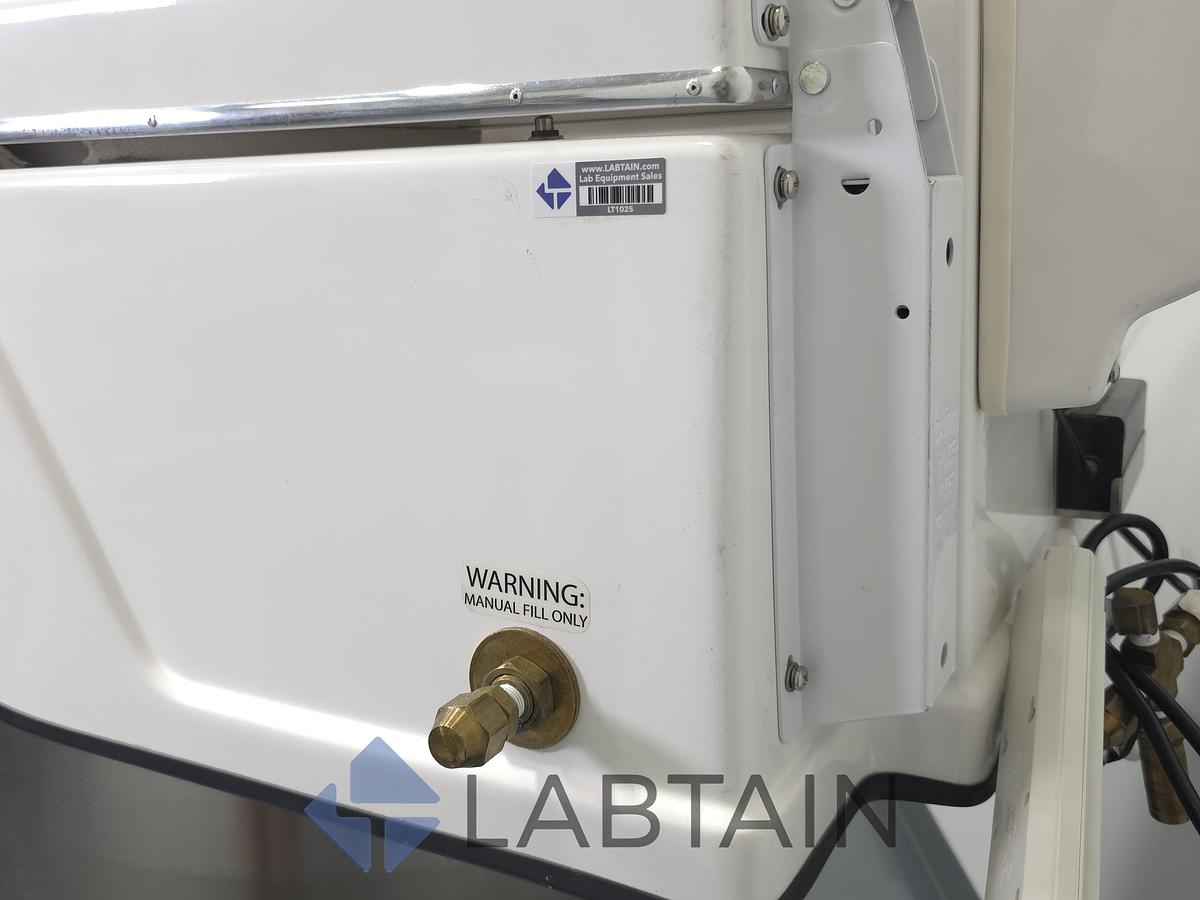

• LN2 supply inlet: 22 psi (1.52 bar) max, per inlet label
• Power: 24 V DC, 2 A, via external AC adapter

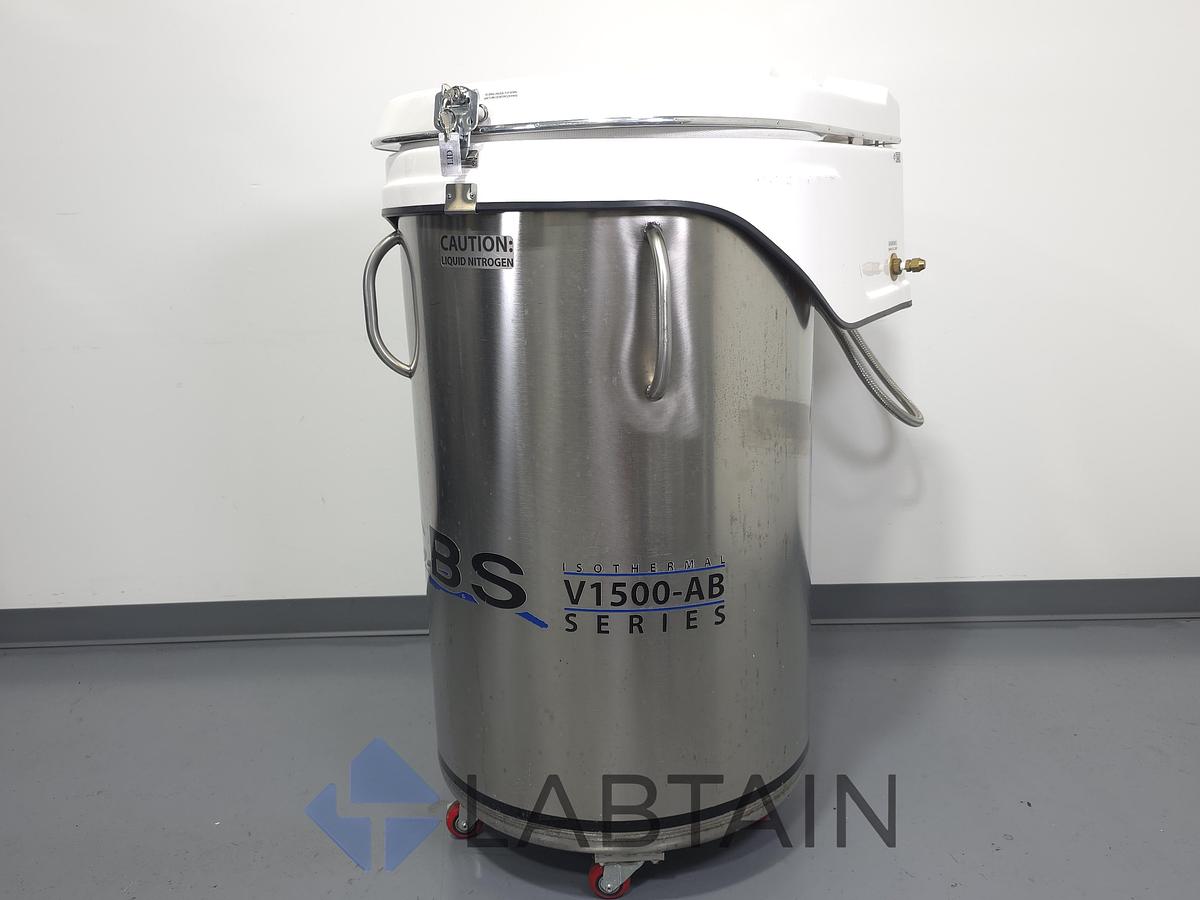

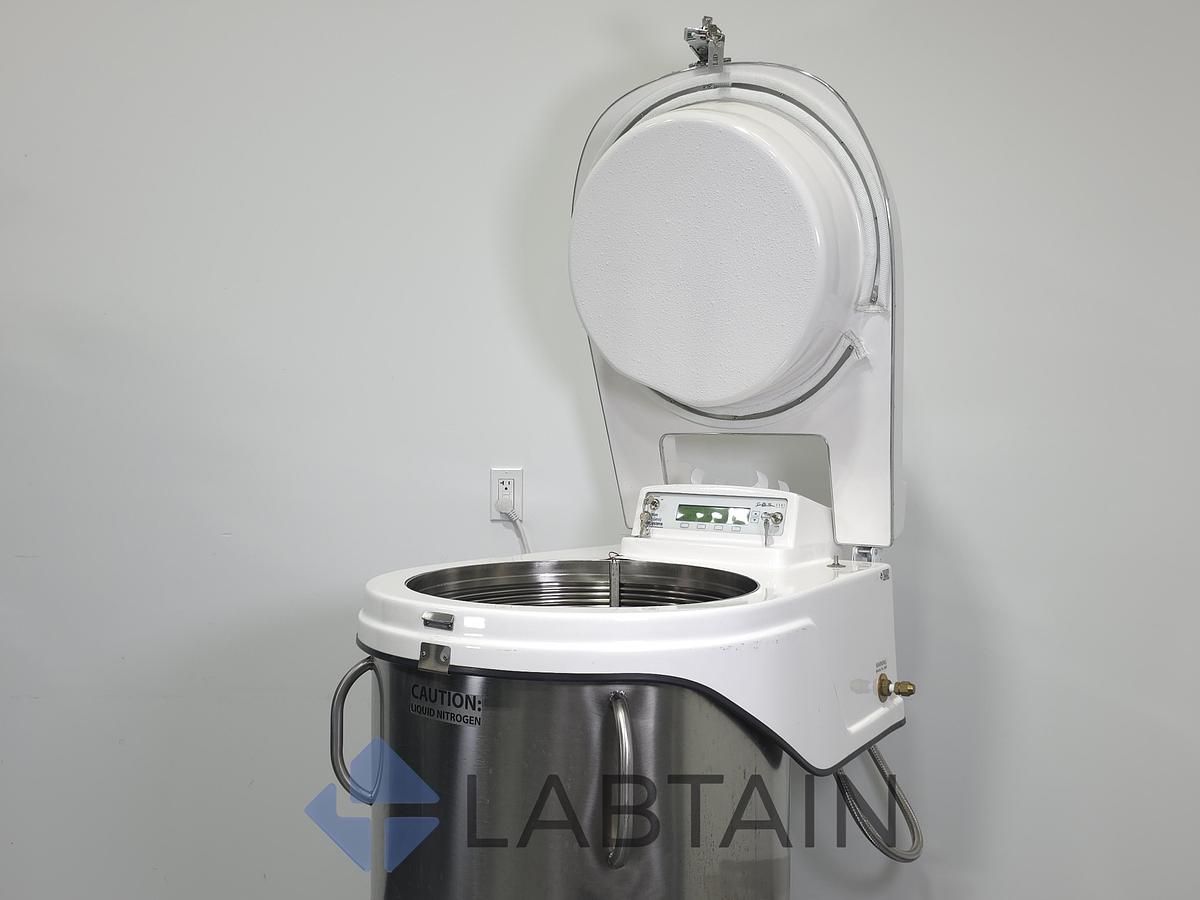

• Lid and base: counterbalanced lockable lid with woven gasket; stainless steel body on casters

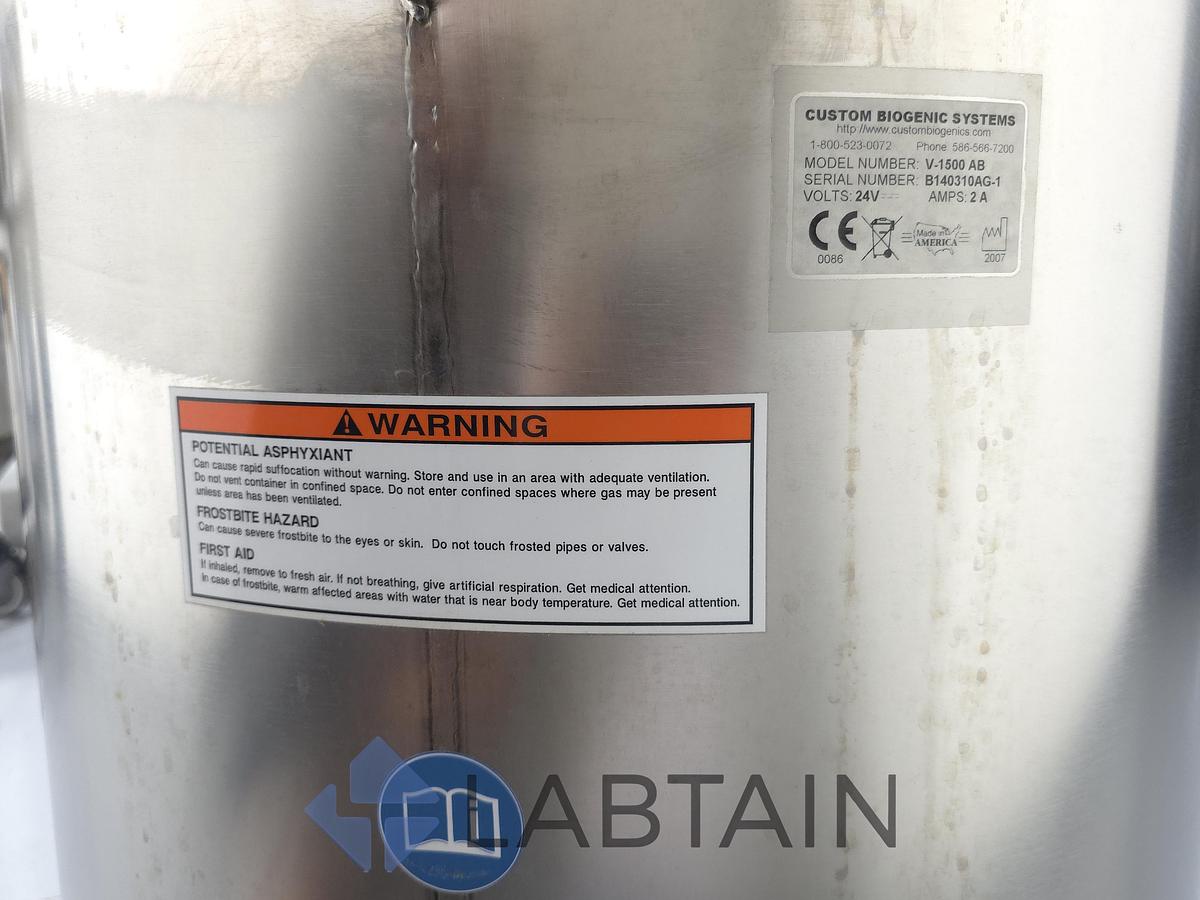

• Data plate: CE 0086, Made in America, year marked 2007

Included

• CBS Isothermal V1500-AB freezer with CBS 2301 Series controller

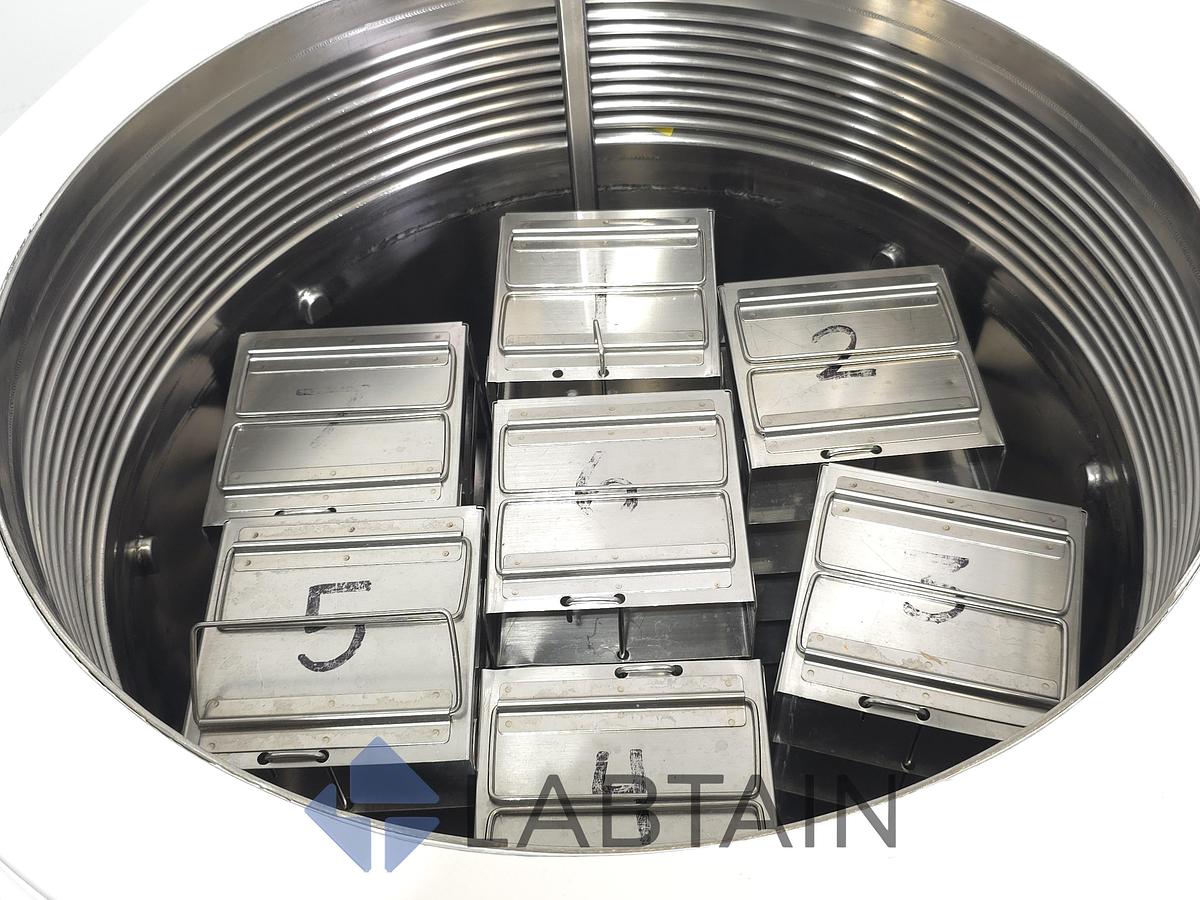

• 7 stainless steel racks

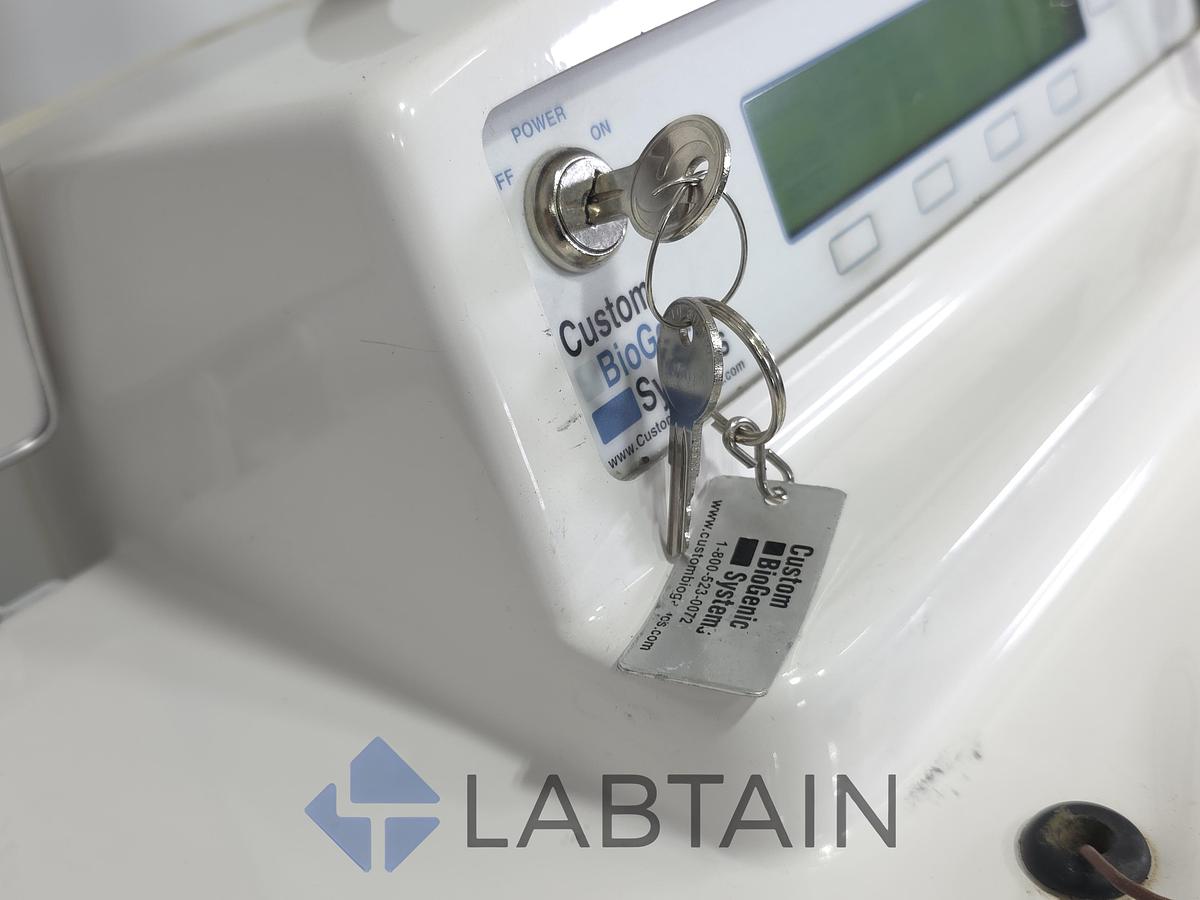

• Keys for the power switch, program switch and lid lock
• External 24 V DC power adapter (in rear bracket) with AC cord

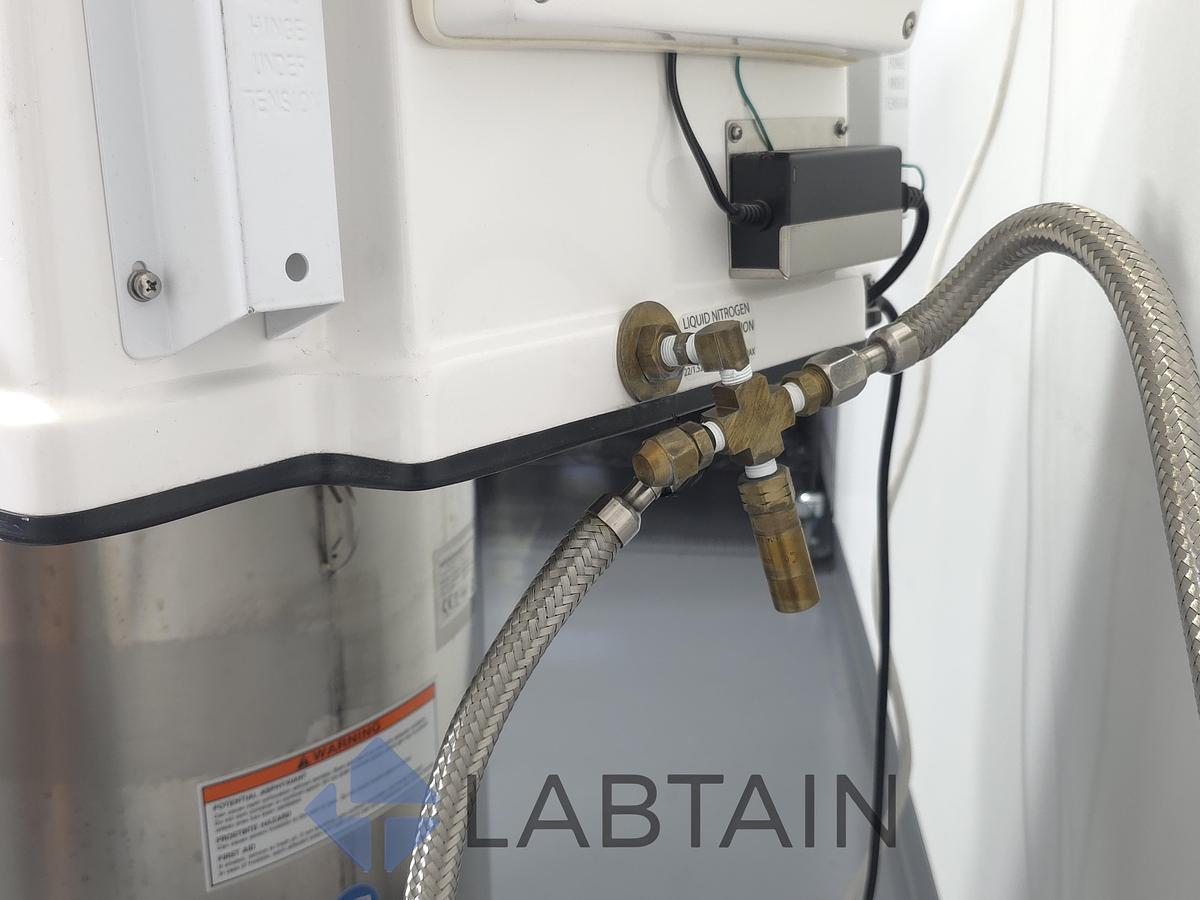

• Two braided stainless steel LN2 hoses with brass cross fitting and pressure relief valve, connected at the rear inlet
