CWE TC-1000 Homeothermic PID Temperature Controller w/ Probe & Heating Pad Used

The CWE TC-1000 keeps anesthetized small animals (mouse/rat) at a stable body temperature during surgery, imaging, and electrophysiology. It heats with low-voltage DC and PID proportional control, so it doesn't produce the electrical switching transients that on/off controllers do. That makes it a strong fit for ephys and other noise-sensitive recordings. This unit comes as a complete working setup with a thermistor probe and a silicone heating pad.

Condition: Used / Inspected

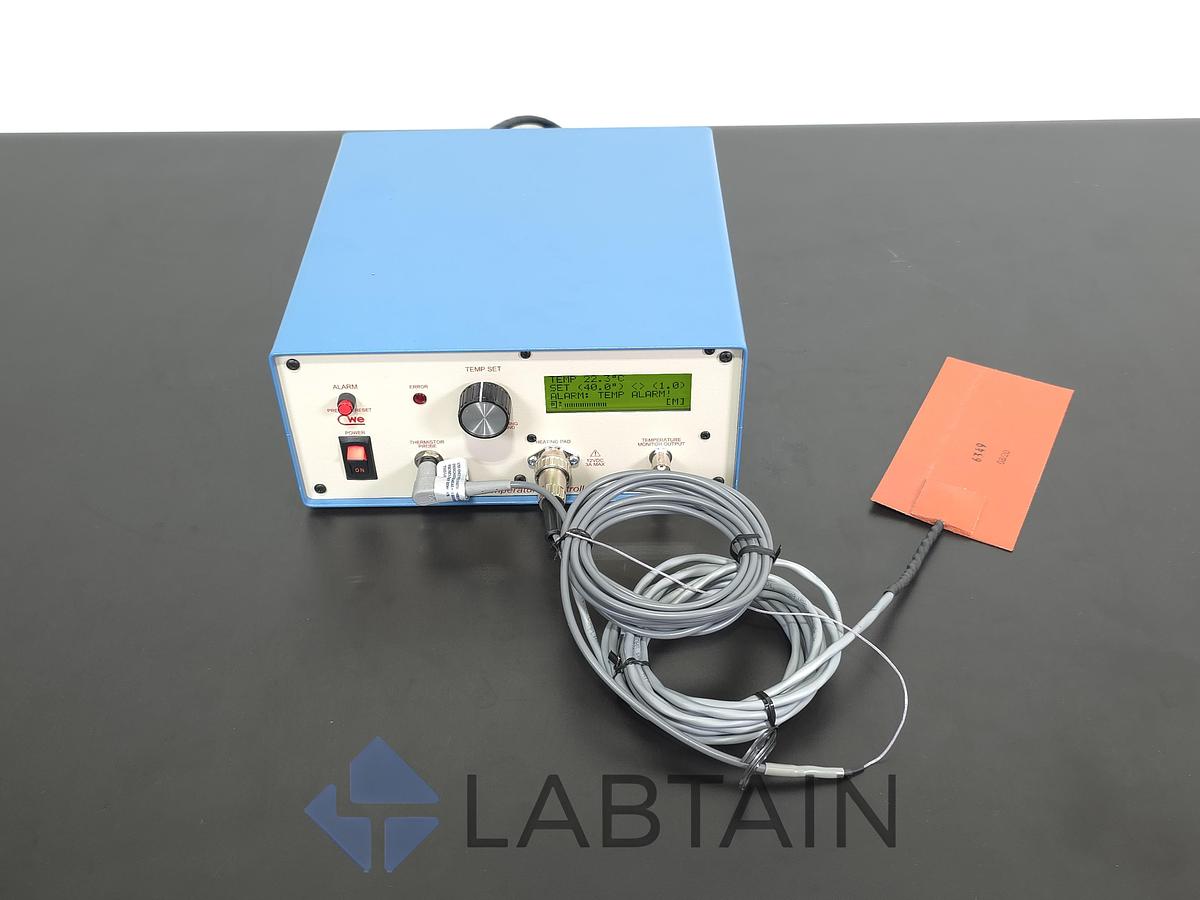

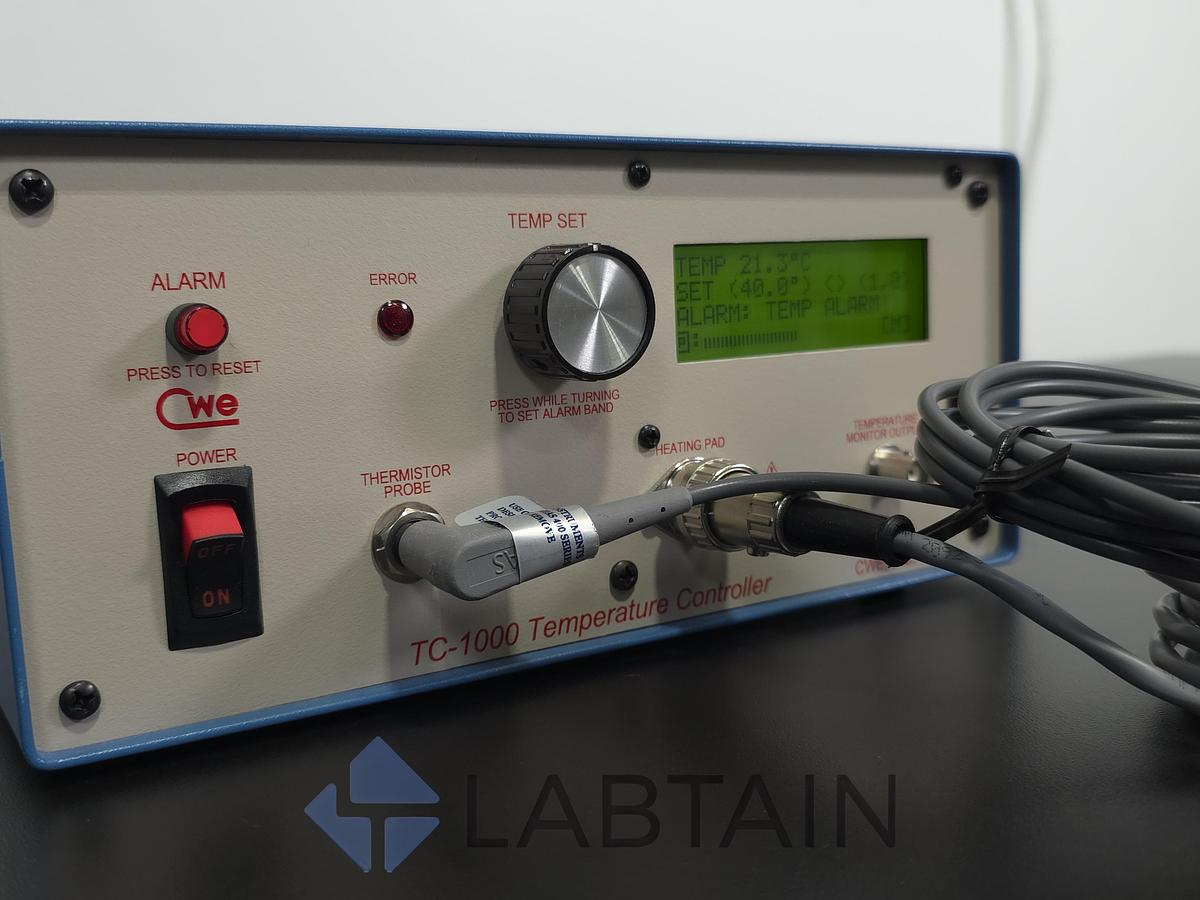

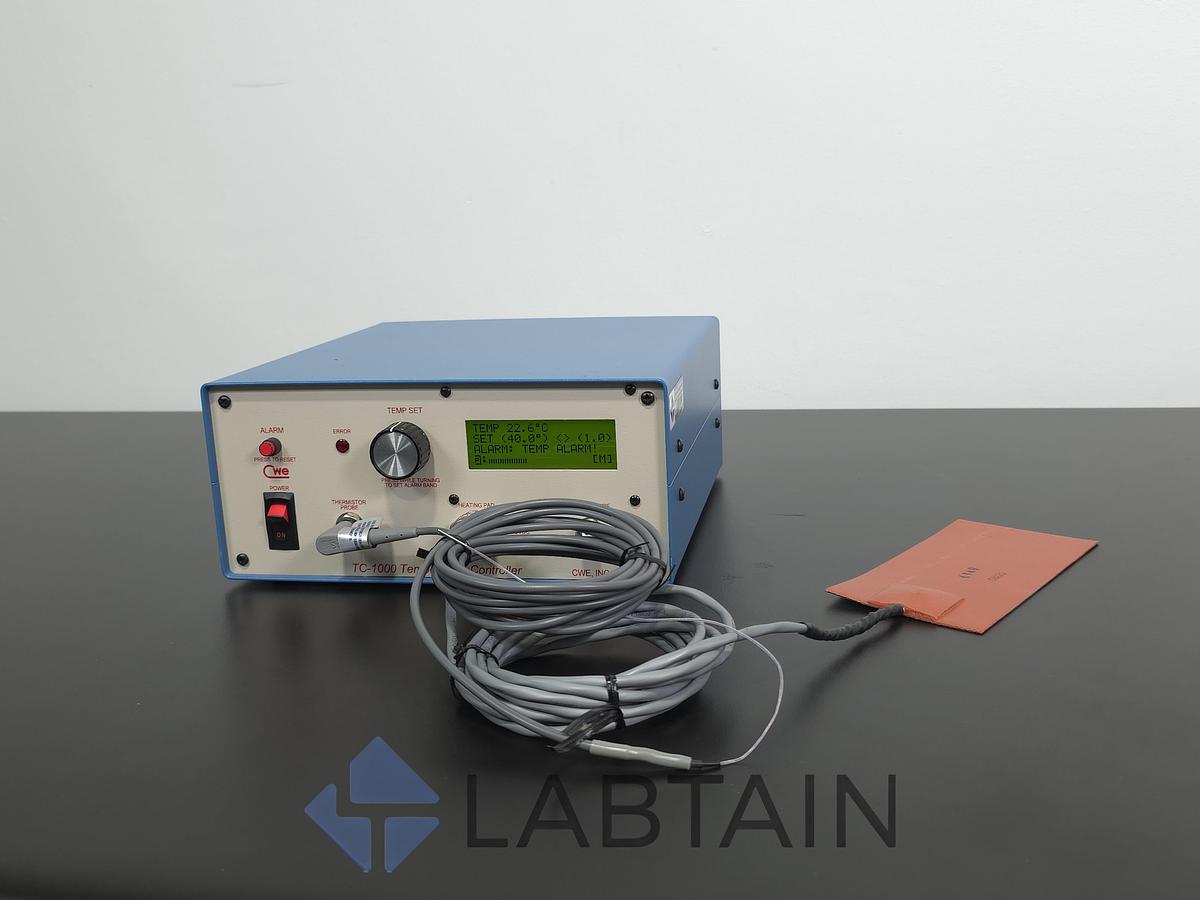

The unit powers on. The LCD, the Temp Set knob, and the alarm indicator all respond, and the probe reads ambient temperature correctly (about 21–22 °C). The "TEMP ALARM" message in the photos is normal: the probe is at room temperature, which is outside the alarm band around the 40.0 °C set point. The enclosure is clean, with only light cosmetic wear.

Technical Specifications

• Control range: 25–45 °C, 0.1 °C resolution
• Control type: PID, low-voltage DC proportional
• Probe input: YSI-400 series thermistor, 1/4" phone jack
• Heater output: 12 VDC @ 3 A max, 5-pin locking DIN connector
• Analog temperature output: 100 mV/°C (BNC)
• Adjustable over/under temperature alarm with fault detection for probe and pad
• Power: 120/240 VAC switchable, 50/60 Hz, 75 VA
• Dimensions: 9.4 x 4.5 x 8 in (24 x 11.5 x 20.5 cm)

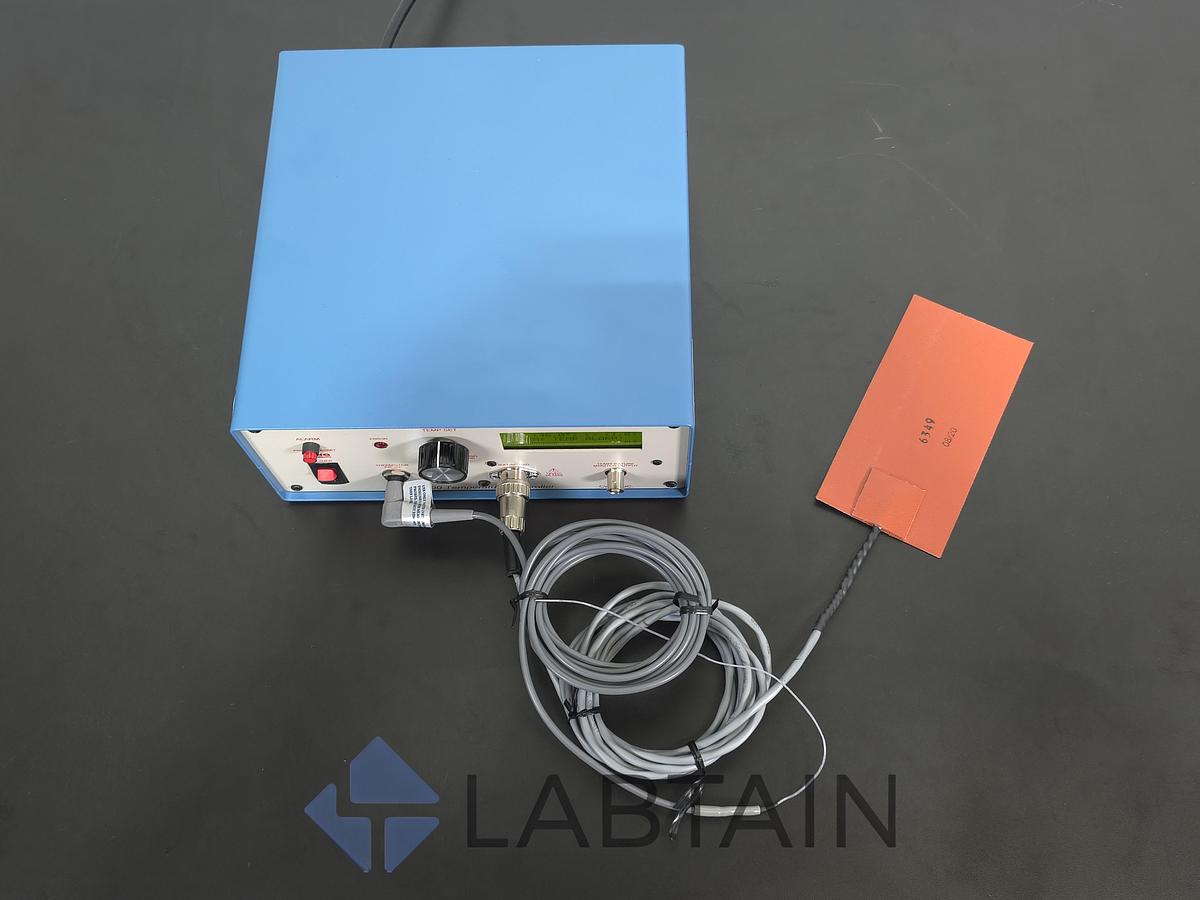

Included

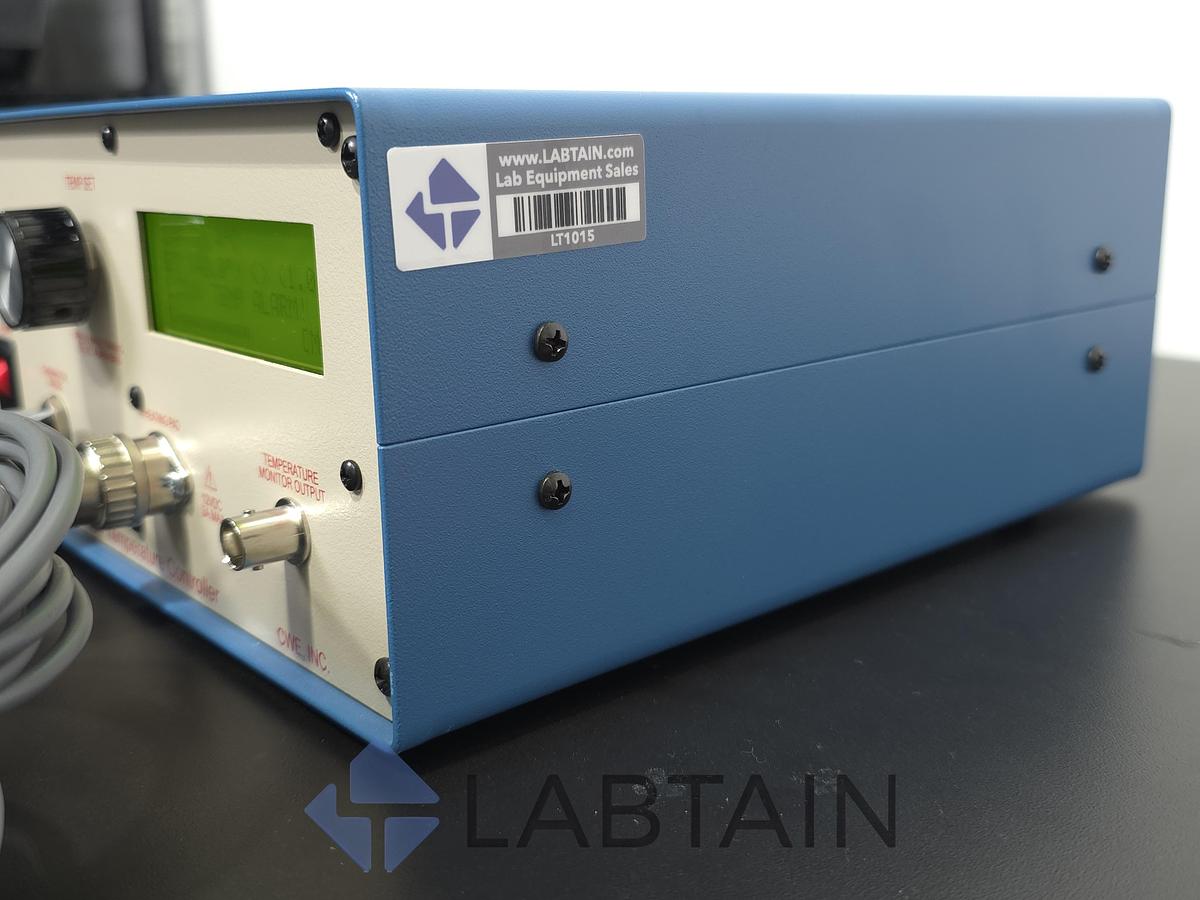

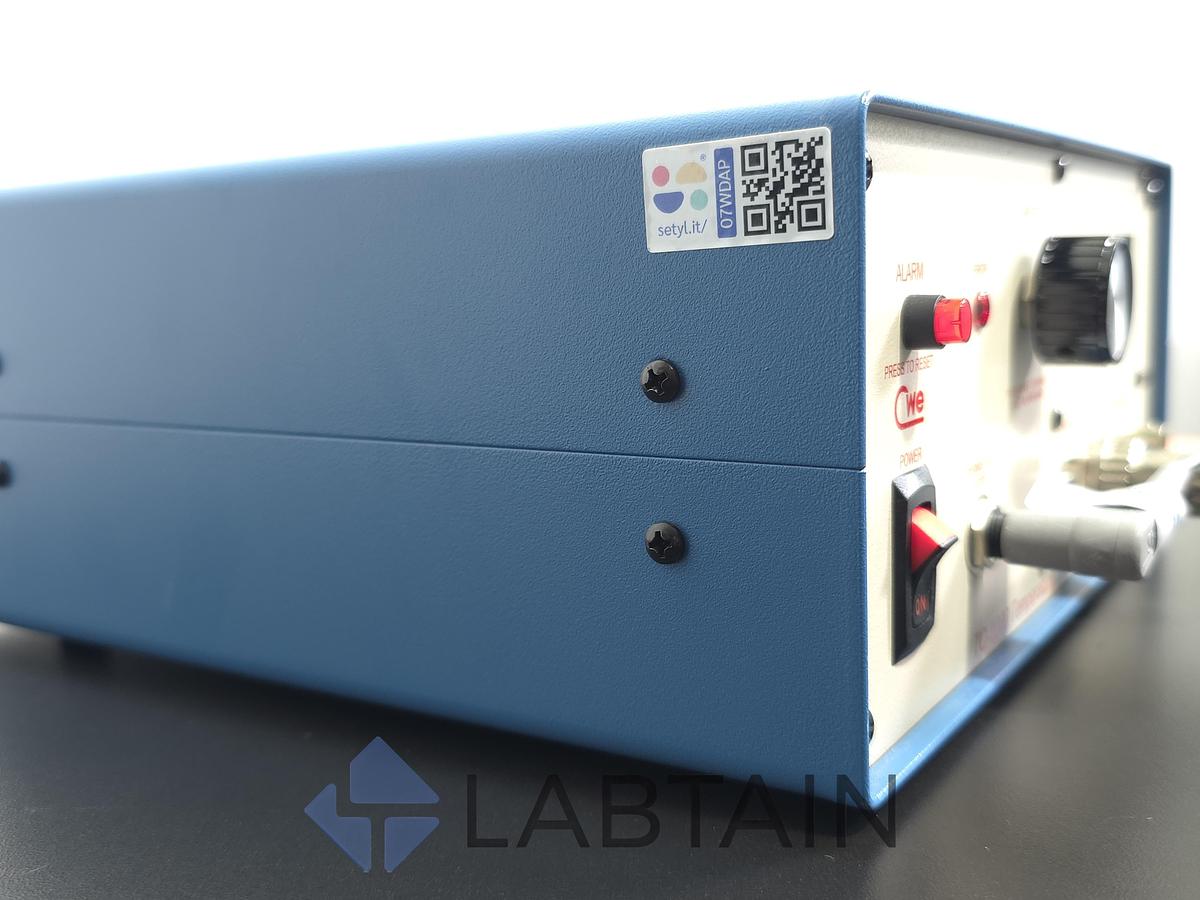

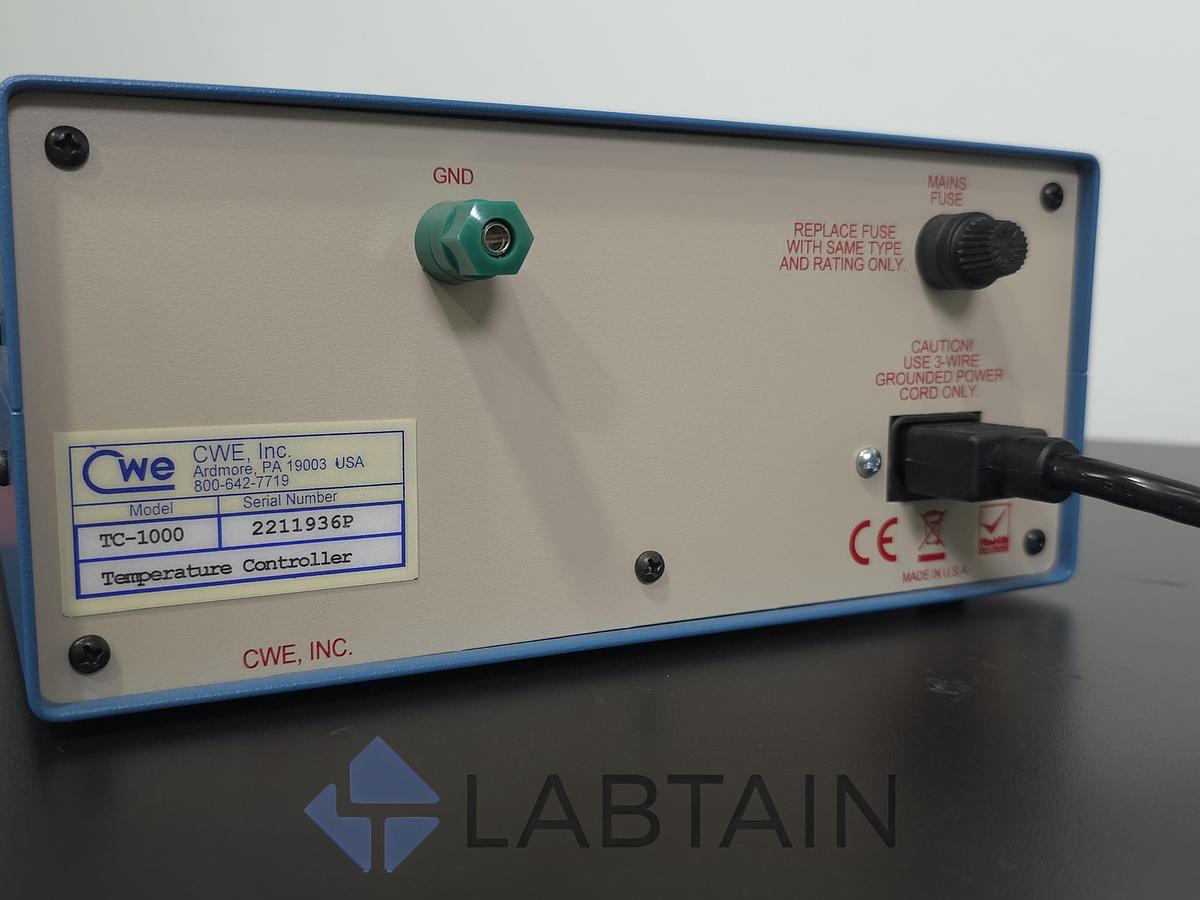

• CWE, Inc. TC-1000 Temperature Controller, main unit (S/N 2211936P)
• MEAS (Measurement Specialties) YSI-400 series thermistor probe, Model: YSI-451 (mouse, 1 mm), CWE P/N 10-09012

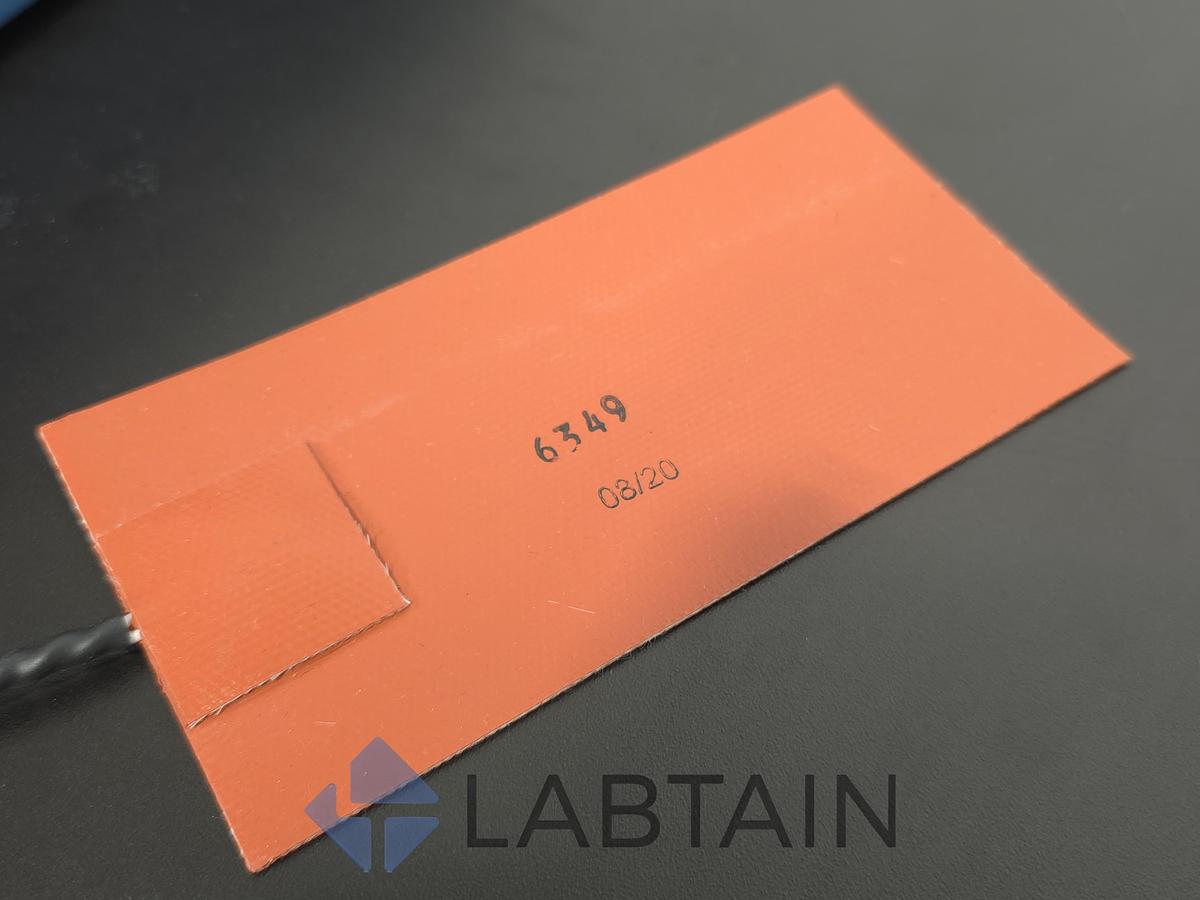

• CWE, Inc. Heating Pad Mouse, P/N 08-13013, silicone rubber, 3 x 6 in, with locking DIN cable
• AC power cord
