YHCHEM YMD-5S Stainless Steel Wiped Film Molecular Distillation System with Heat Circulators & Vacuum Package — Used

Skid-mounted short-path wiped film distillation system for continuous separation and purification of heat-sensitive, high-boiling materials under deep vacuum. Feed spreads into a thin film across the heated evaporator wall by a rotating wiper; light and heavy fractions condense and discharge continuously through independent metering pumps. Suited to essential oils, botanical extracts and distillates, nutraceuticals and fish oil, fatty-acid fractionation, and solvent recovery.

CONDITION

Used. Full working order, with all components present and functioning, relatively low operating hours, and no major wear. Original investment reported by the seller at over $200,000. Model designation per the manufacturer documentation supplied with the machine. Inspection prior to purchase is welcome and encouraged.

FEATURES

• Stainless steel construction throughout on a stainless skid with tube guard framing, casters and leveling feet

• Vertical wiped film evaporator with top-mounted gear-motor wiper drive

• Jacketed stainless feed vessel with insulated thermal-fluid lines

• External condenser and cold trap columns

• Stainless collection vessels on tri-clamp sanitary fittings with sight glasses

• Gear metering pumps for feed and fraction discharge

• On-board vacuum package: rotary vane roughing pump and diffusion pump with stainless bellows, isolation valves and vacuum gauge

• Control panel with four independent variable-frequency drives and main disconnect — feed rate, wiper speed and both discharge rates tune separately during a run

INCLUDED

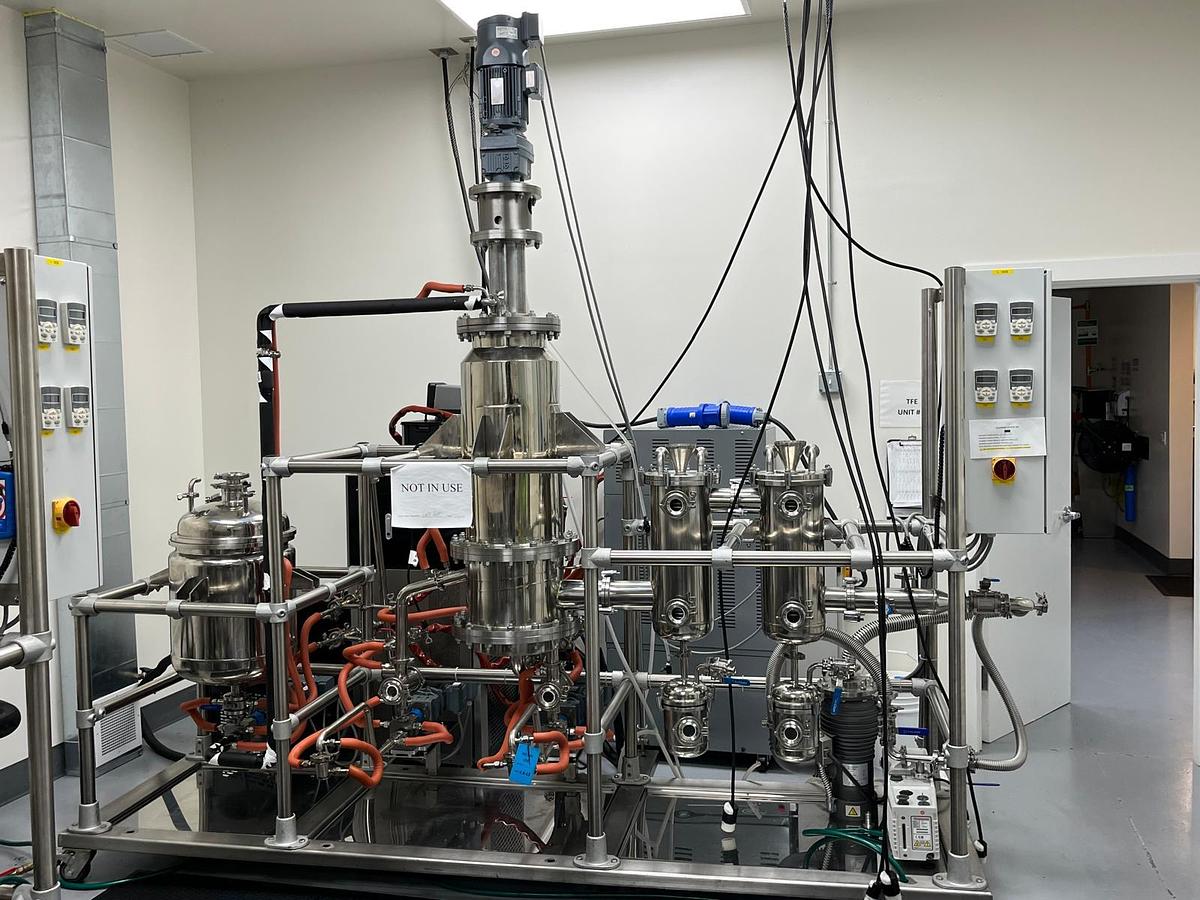

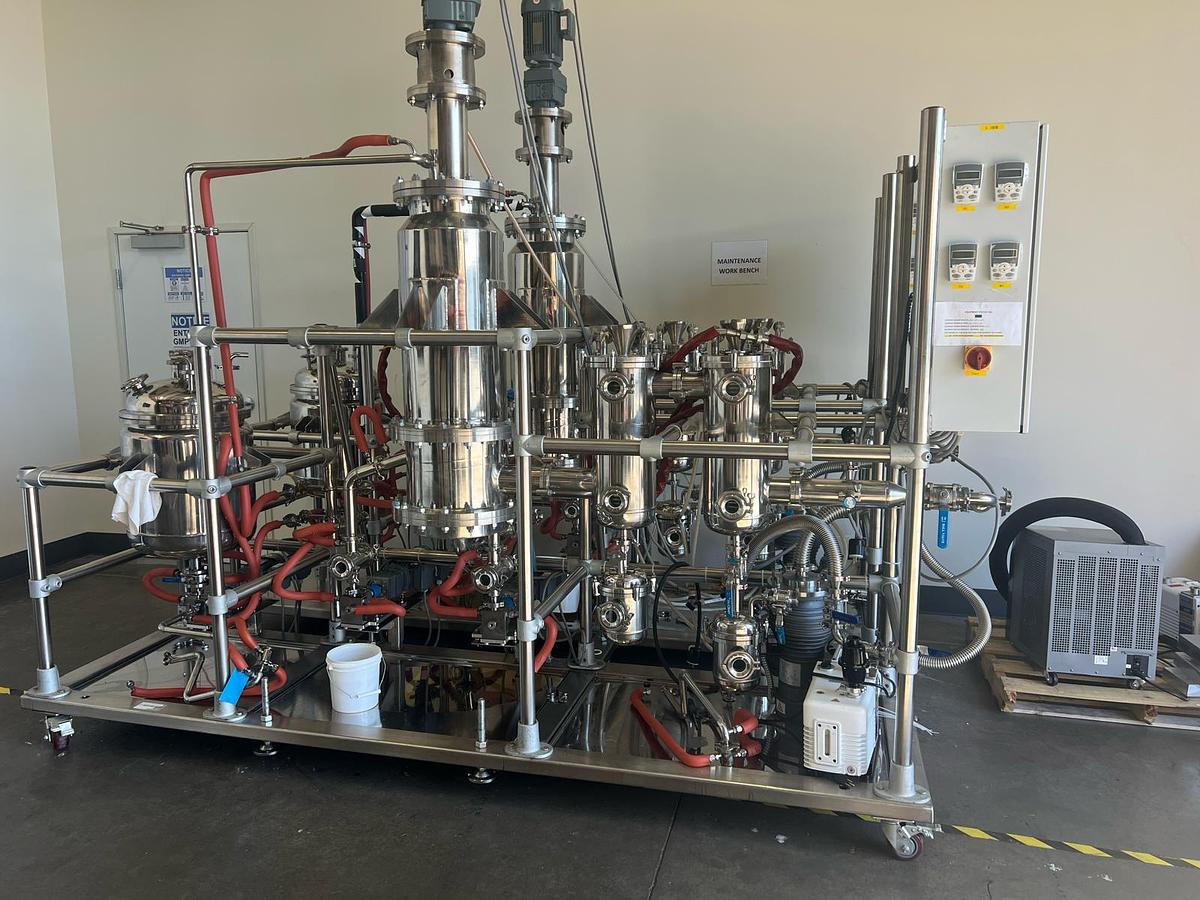

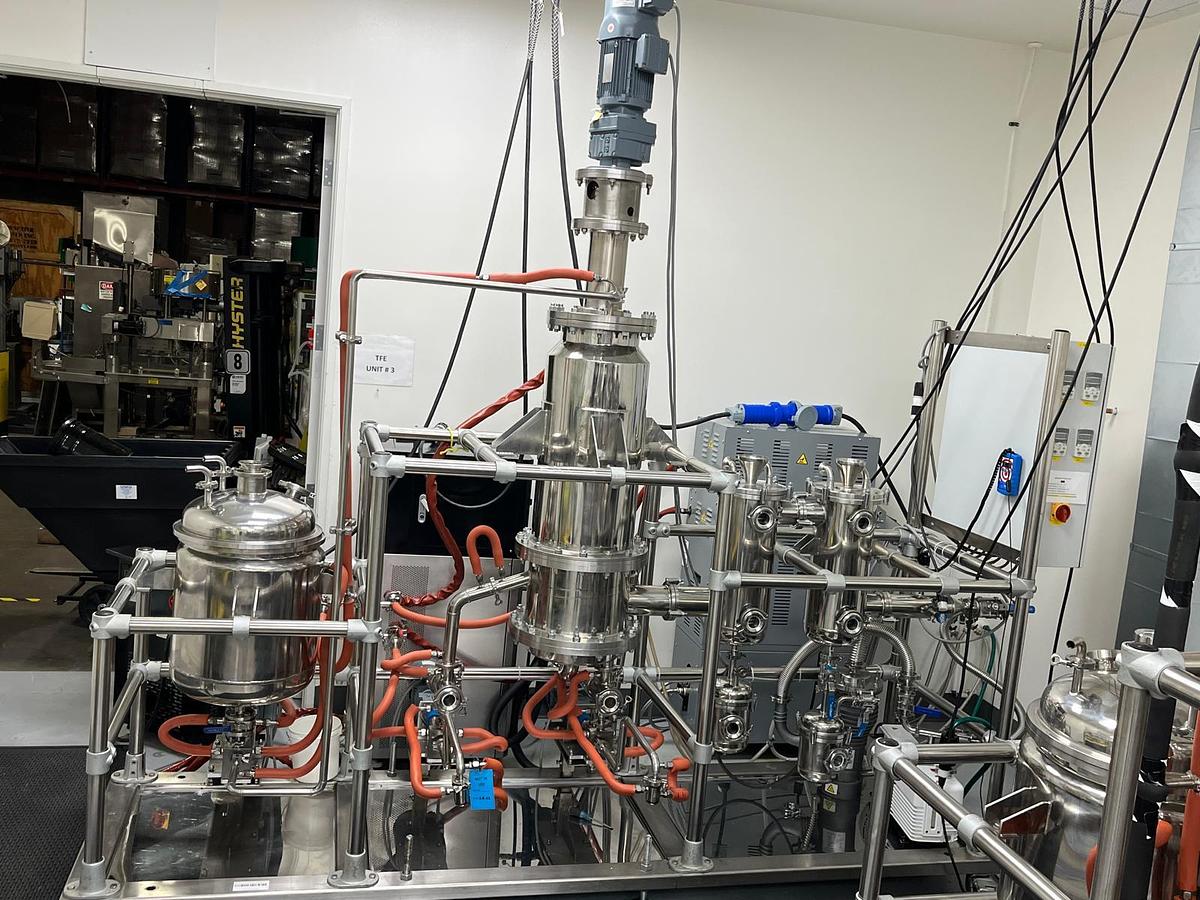

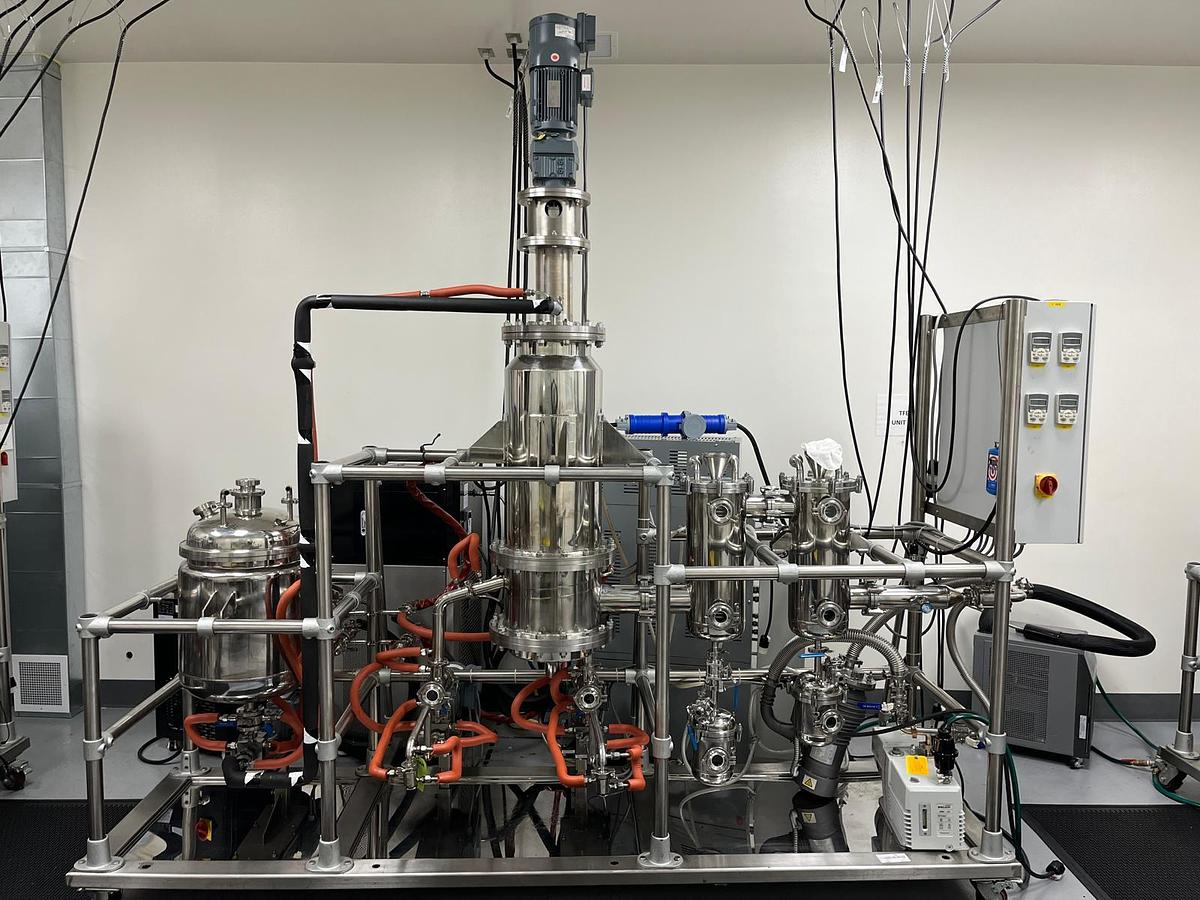

• YHCHEM YMD-5S distillation skid as photographed

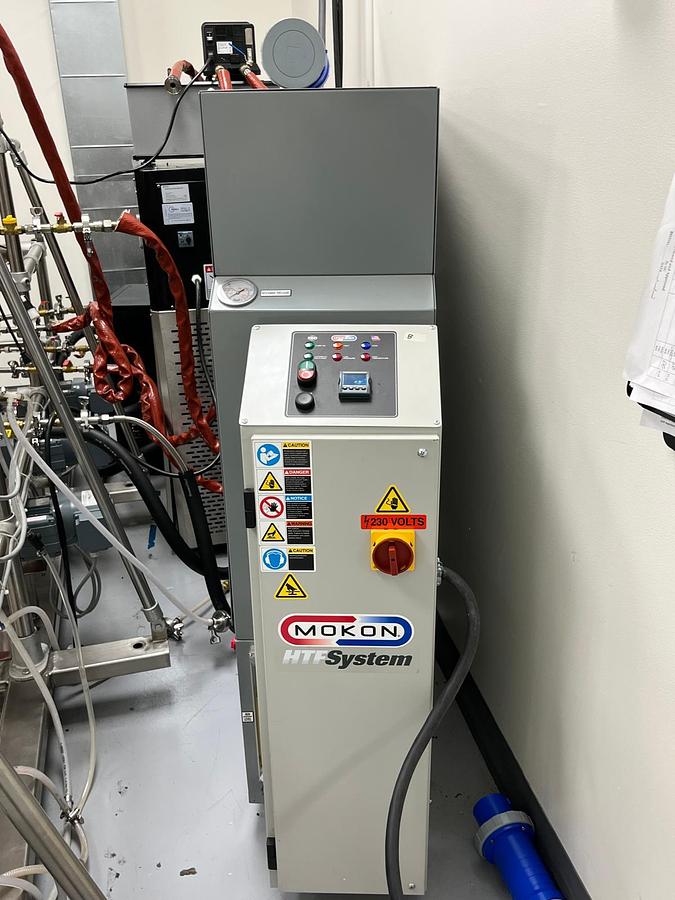

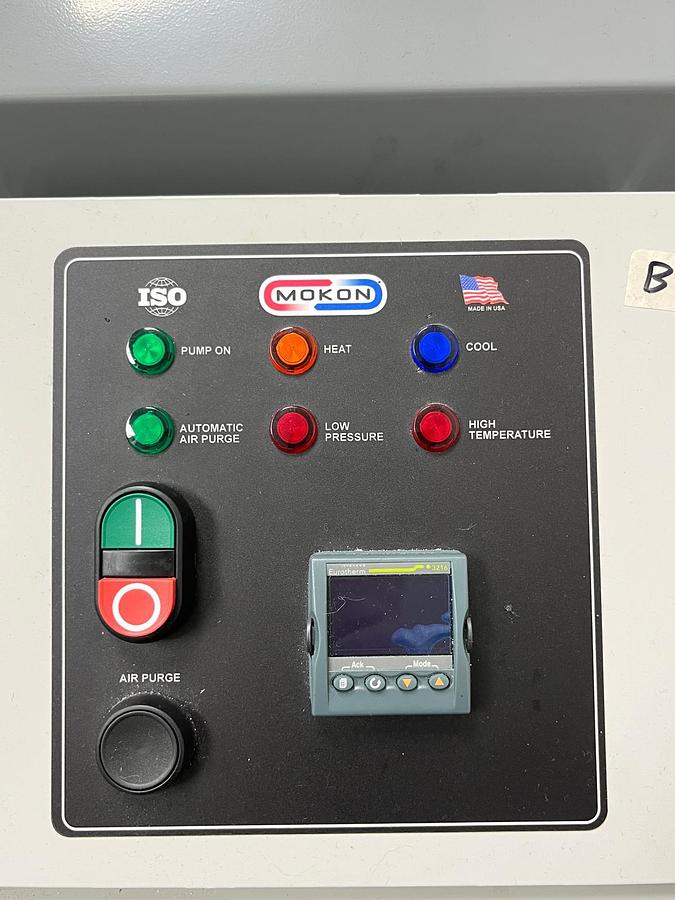

• Mokon HTF System temperature control unit, 230 V, US built, Eurotherm controller — serves the evaporator jacket

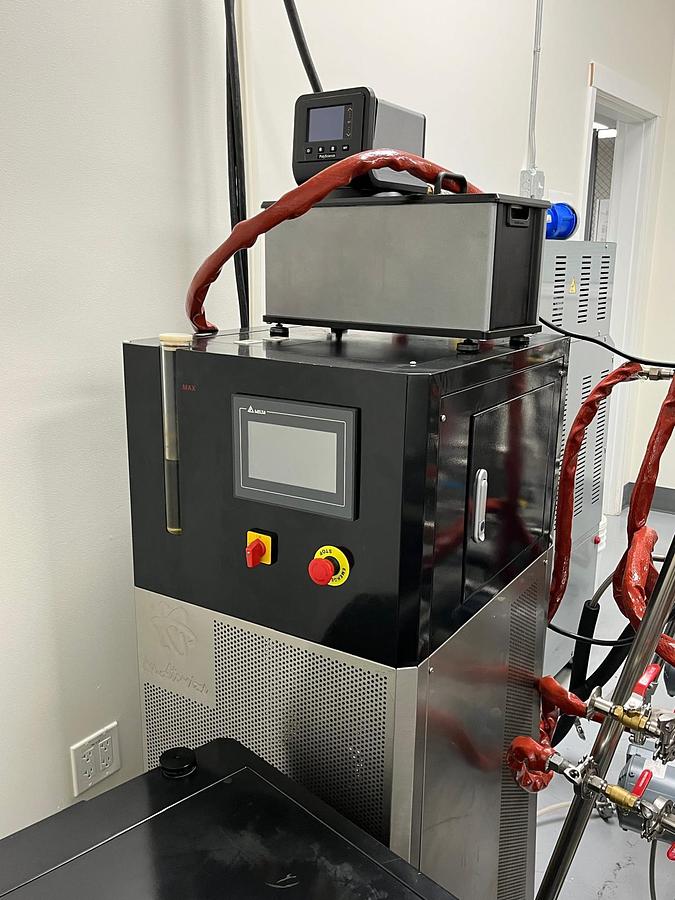

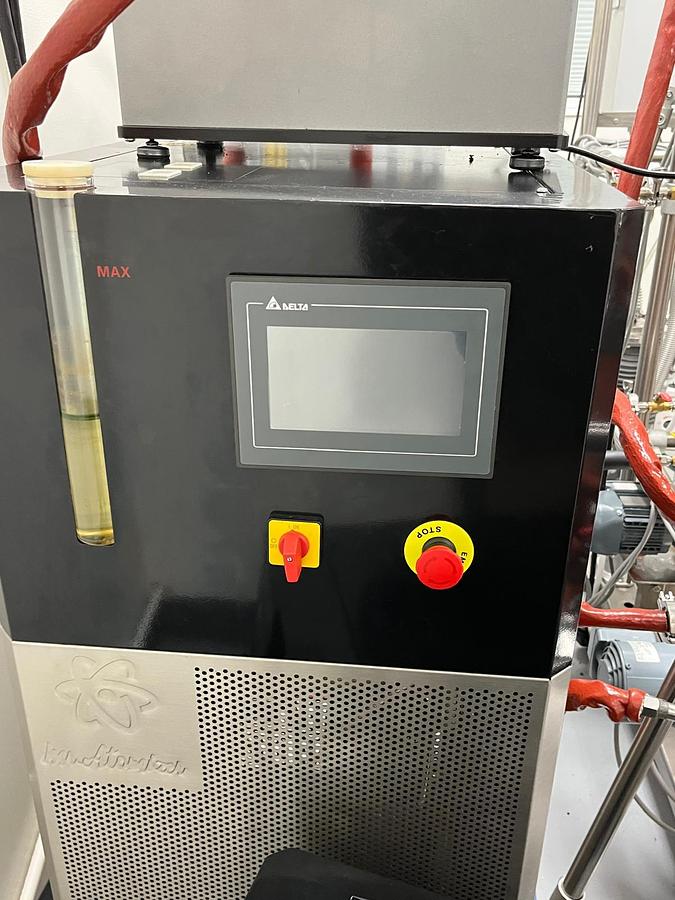

• Heating/cooling circulator with colour touchscreen — serves the condenser

• PolyScience circulator
