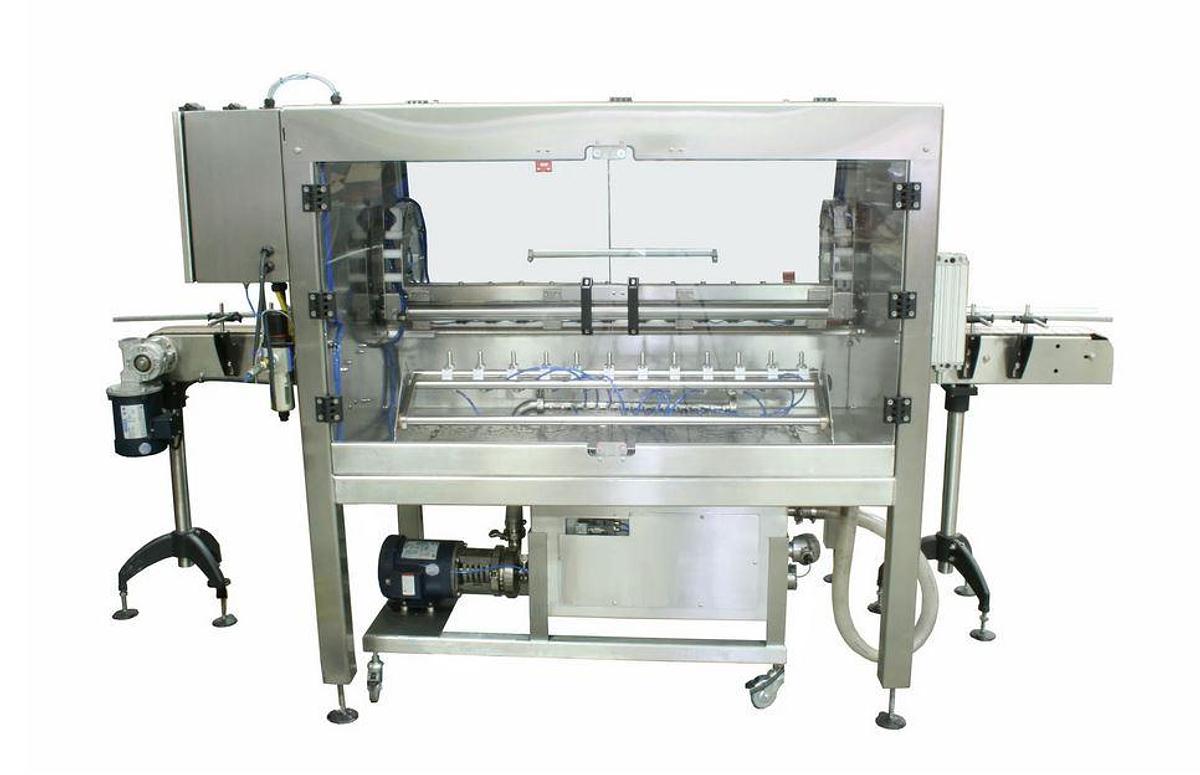

Acasi BR-15 Automatic Inline Bottle Cleaner / Rinser — Wet Rinse, 304 Stainless, Omron PLC & HMI — Used

Automatic inline bottle cleaning and rinsing machine built by Acasi Machinery Inc. of Miami, Florida. The BR-15 sits directly ahead of a filler in a bottling line: it grips each container individually, inverts it through a heavy-duty pneumatic rotary actuator, rinses through the spray manifold, and returns it upright to the discharge conveyor — all under PLC control with no bottle, no cycle logic.

This machine solves the problem every liquid packager eventually runs into: particulate, glass dust, and manufacturing residue in incoming empty containers. Removing it inline, immediately before filling, is the difference between a clean batch and a rejected one — and it does so without adding a manual wash step or a second operator. Because the BR-15 needs no change parts to move between container types and adjusts by calibrated guide, changeovers are minutes rather than hours.

Well suited to pharmaceutical and nutraceutical tinctures, essential oils, liquid supplements, cosmetics, beverages, and specialty chemicals. Works with plastic or glass containers. Acasi still manufactures and supports this model from its Miami facility, so spare parts, change parts, and technical support remain available directly from the OEM.

CONDITION

Used. Seller reports R&D and testing hours only — under 40 hours total run time.

CONSTRUCTION

• 304 stainless steel heavy-duty welded frame

• All product-contact parts stainless steel, sanitary, Teflon and Viton

• Hinged acrylic guard panels with gas-spring assist and safety interlock

• Mounted on leveling feet; tank and pump skid on casters

• Integral infeed and discharge conveyor sections with gear-motor drives and adjustable side guide rails

RINSE SYSTEM

• Wet rinse configuration with stainless recirculation tank

• 1 HP, 96 GPM stainless centrifugal pump

• Adjustable spray manifold with swivel nozzle tubes and independent angle adjusters

• Rinse pressure, cleaning time and drying time all set from the HMI

BOTTLE HANDLING

• Individual bottle hold for reliable, repeatable positioning

• Bottle inversion via heavy-duty SMC pneumatic rotary actuator

• Polyurethane bottle grippers and pusher tubes

• Container height adjustment from 1½ in to 12 in

• Entry and exit gating cylinders adjustable sideways, up and down, and inside and outside

• Container spacing controlled by flow controls on the gating cylinders

• Calibrated guide for fast height changeovers — no change parts required between container types

CONTROLS

• Omron CP1L PLC, 12 input / 8 output, 100–240 VAC

• 5.7 in Omron HMI for all machine functions, delays and timing

• Frequency-control drives for conveyor speed, acceleration and deceleration (1 HP and ½ HP)

• Omron fiber-optic sensors for container gating

• No bottle, no cycle — PLC controlled

• Front-panel Start and Emergency Stop; main disconnect switch

• Air filter-regulator and safety lockout valve included

UTILITIES

• Electrical: 220V, 60Hz, single phase, 10A

• Compressed air: 20 CFM @ 80 PSI

INCLUDED

• Acasi BR-15 automatic inline bottle cleaner / rinser

• Stainless recirculation tank with 1 HP centrifugal pump

• Infeed and discharge conveyor sections

• Acrylic safety guarding

• OEM exploded parts drawings with full part numbers

NOT INCLUDED

Air compressor, water supply plumbing, upstream or downstream equipment, rigging
