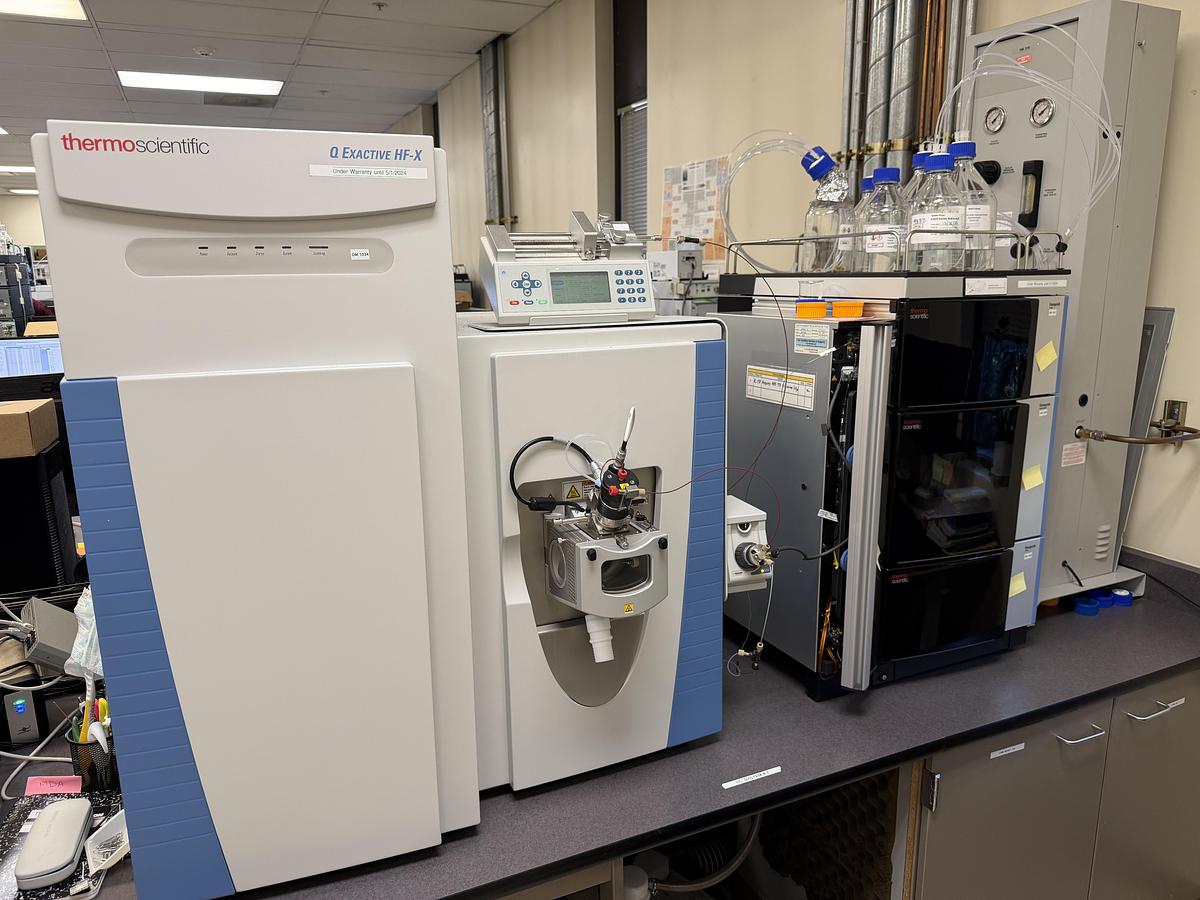

Thermo Scientific Q Exactive HF-X Hybrid Quadrupole-Orbitrap Mass Spectrometer

Lighly used Used System in complete condition.

Q Exactive HF-X Mass Spectrometer

The Thermo Scientific Q Exactive HF-X is a high performance benchtop quadrupole

Orbitrap system that combines a high capacity transfer tube capillary, an electrodynamic

ion funnel, and the most advanced quadrupole technology with a high field Orbitrap mass

analyzer and features high-resolution accurate mass analysis, with and without HCD

fragmentation.

The instrument contains the following:

• An Ion Max API H-ESI II probe with dual desolvation zone and 60° interchangeable ion

probe orientation. The H-ESI II ion source includes one HESI spray insert.

• A High Capacity Transfer Tube and an Electrodynamic Ion Funnel to capture and

efficiently focus ions in a tight beam.

• An Advanced Active Beam Guide to reduce noise by preventing neutrals and high-

velocity clusters from entering the quadrupole mass filter.

• A segmented quadrupole mass filter in front of the curved ion trap (C-Trap) with a

hyperbolic surface, which provide excellent peak shape and transmission with a minimum

resolution of 0.4 FWHM.

• A high-field Orbitrap Mass Analyzer with enhanced FT transient processing resulting in

resolving power of up to 240,000 FWHM at m/z 200 and isotopic fidelity, m/z range of

50-6000 (up to 8,000 with Biopharma option), with up to 40 Hz acquisition speed.

• A quadrupolar higher-energy collisional dissociation cell for HCD fragmentation.

The Thermo Scientific Q Exactive HF-X takes productivity analysis to the next level with

increased performance.

Options: # 0726060 BioPharma Option Q Exactive HF/HF-X factory installed

Enhance applications from confident proteomics towards characterization of intact

proteins and monoclonal antibodies.

INCLUDED:

• H-ESI II probe

• Chemyx Fusion 100 Syringe pump with full data system control, Part number: 1245740;

• Switching valve 6-port from Rheodyne - Switching Valve MXT 715-00, Part number:

1239650;

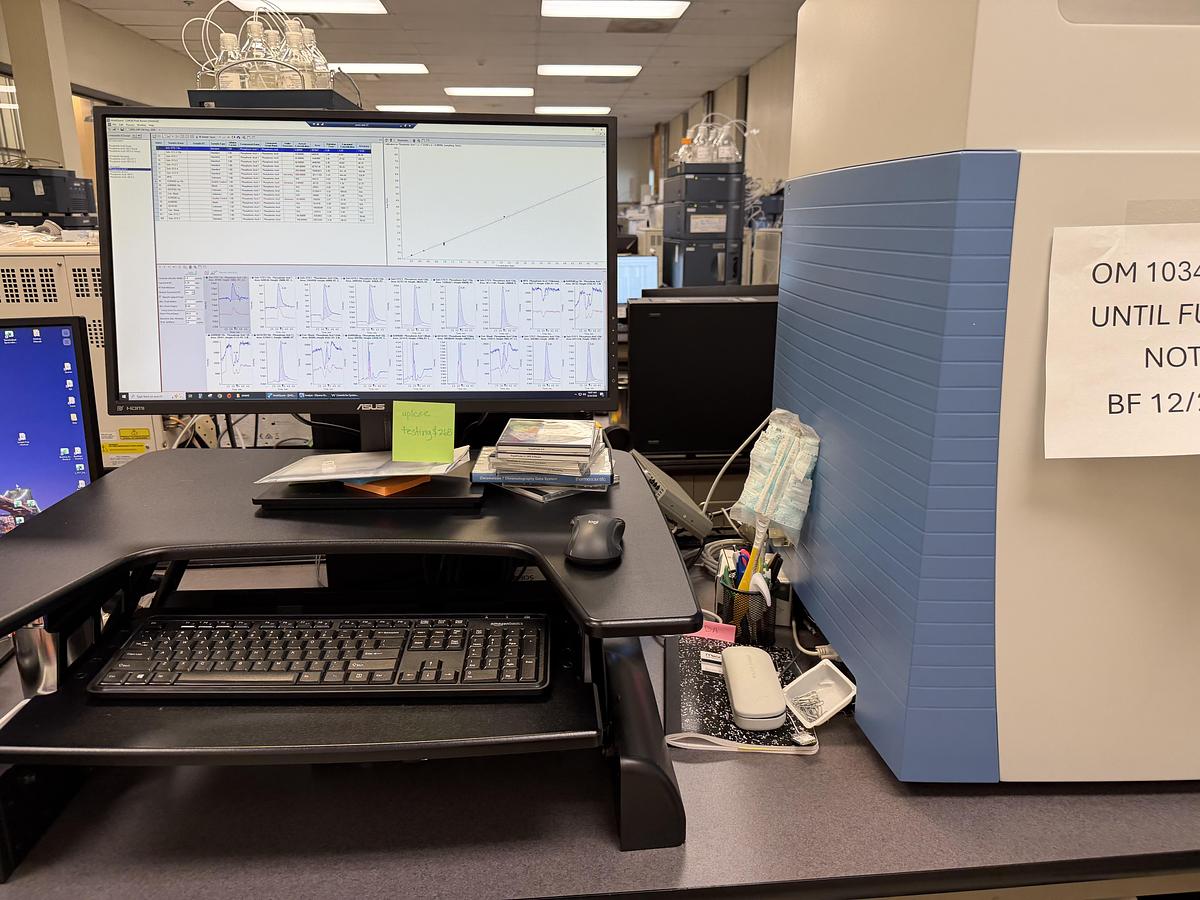

• Windows 7 computer

• Windows OS

• License for Xcalibur software

• 22’ monitor

• Rough pumps

Used unit in good working condition.

Used Items May shows signs of prior use.

May Have Scuffs, Scratches, Tape residue, Staining.
