Sartorius Stedim SARTOFLOW Advanced Benchtop TFF Crossflow System, 10 L SS Vessel, 0.1–2.1 m², Used/Inspected

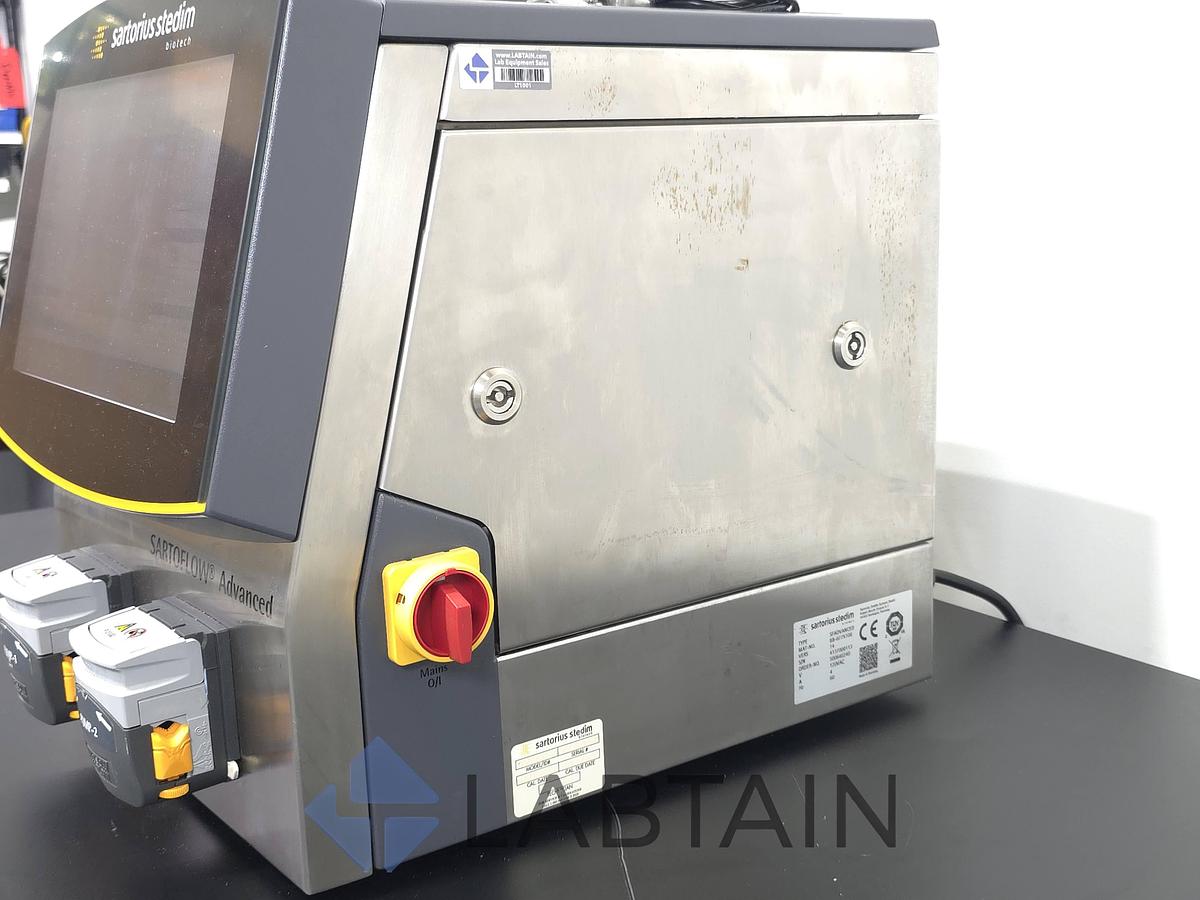

The Sartorius Stedim SARTOFLOW® Advanced is a highly automated, modular benchtop crossflow (TFF) system engineered for ultrafiltration, microfiltration, and diafiltration in downstream bioprocessing — concentration, buffer exchange, and purification of monoclonal antibodies, recombinant proteins, vaccines, and viral vectors. It bridges process development and small-scale cGMP production in a single skid: a 316L stainless recirculation vessel, fully instrumented feed/retentate/permeate lines, and automated transmembrane-pressure (TMP) control driven from a large color touchscreen. Predefined phase sequences (concentration, UF/DF, flushing, CIP, filling, draining, harvest) let operators run reproducible, hands-off protocols, while the ultra-low ~200 mL loop volume maximizes yield on small and precious batches. The system accepts both Sartocon® Slice and full-size Sartocon® cassettes, giving a wide 0.1–2.1 m² membrane-area range on one platform. This unit is a 2018 build and runs on 120 VAC / 60 Hz — no step-up transformer required for North American installation.

CONDITION — Used / Inspected

• Cosmetically clean; stainless product path and frame in very good condition.

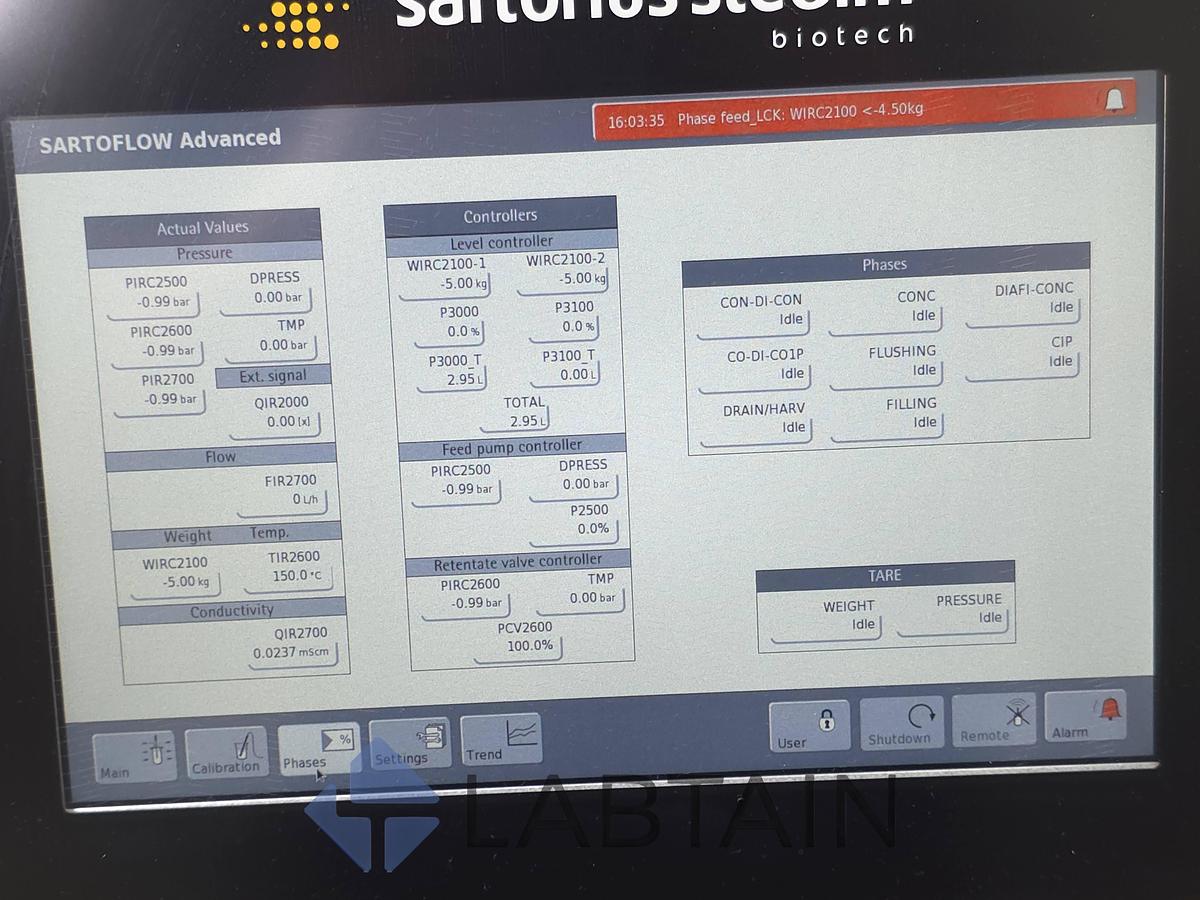

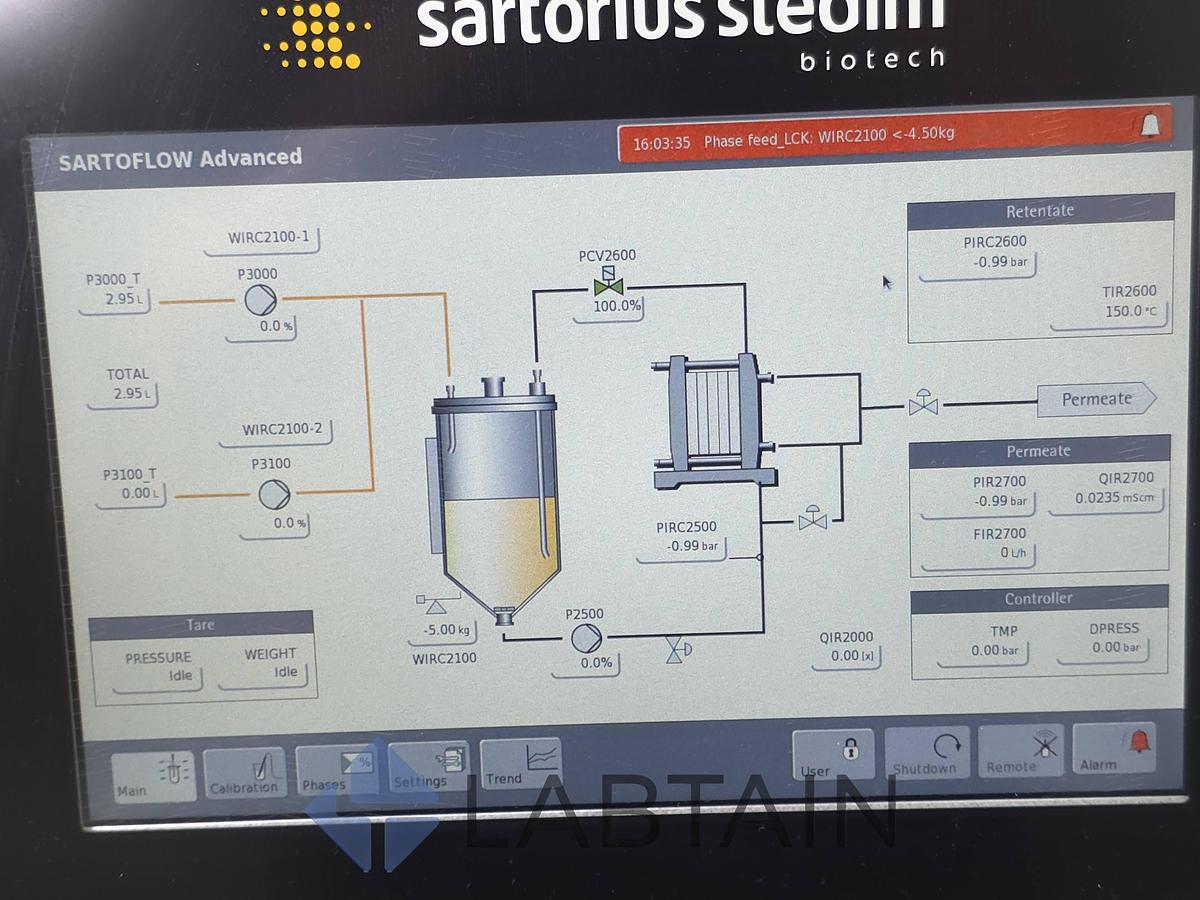

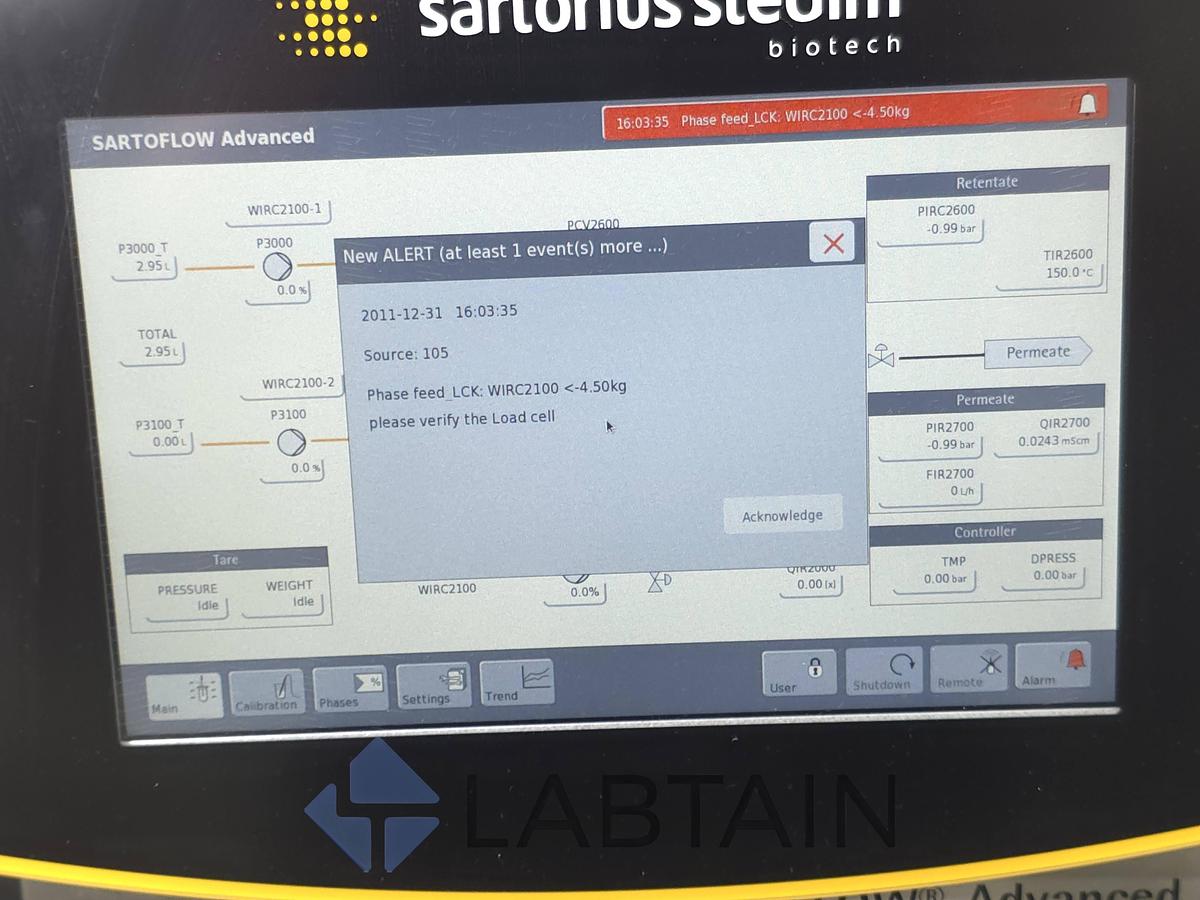

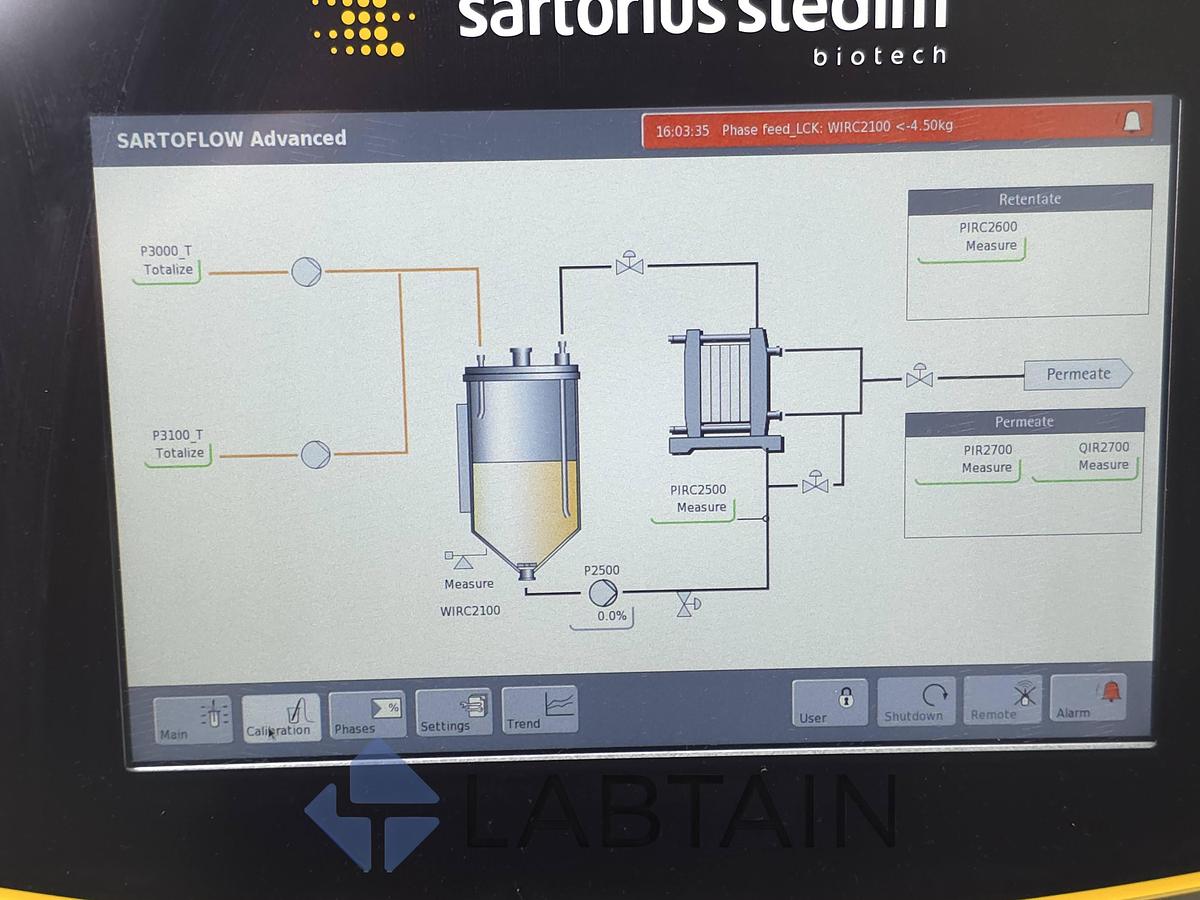

• Powers on and boots to the SARTOFLOW Advanced control software; HMI navigates through all Main, Actual Values, Phases, Alarm, Settings, and Calibration screens (documented in photos).

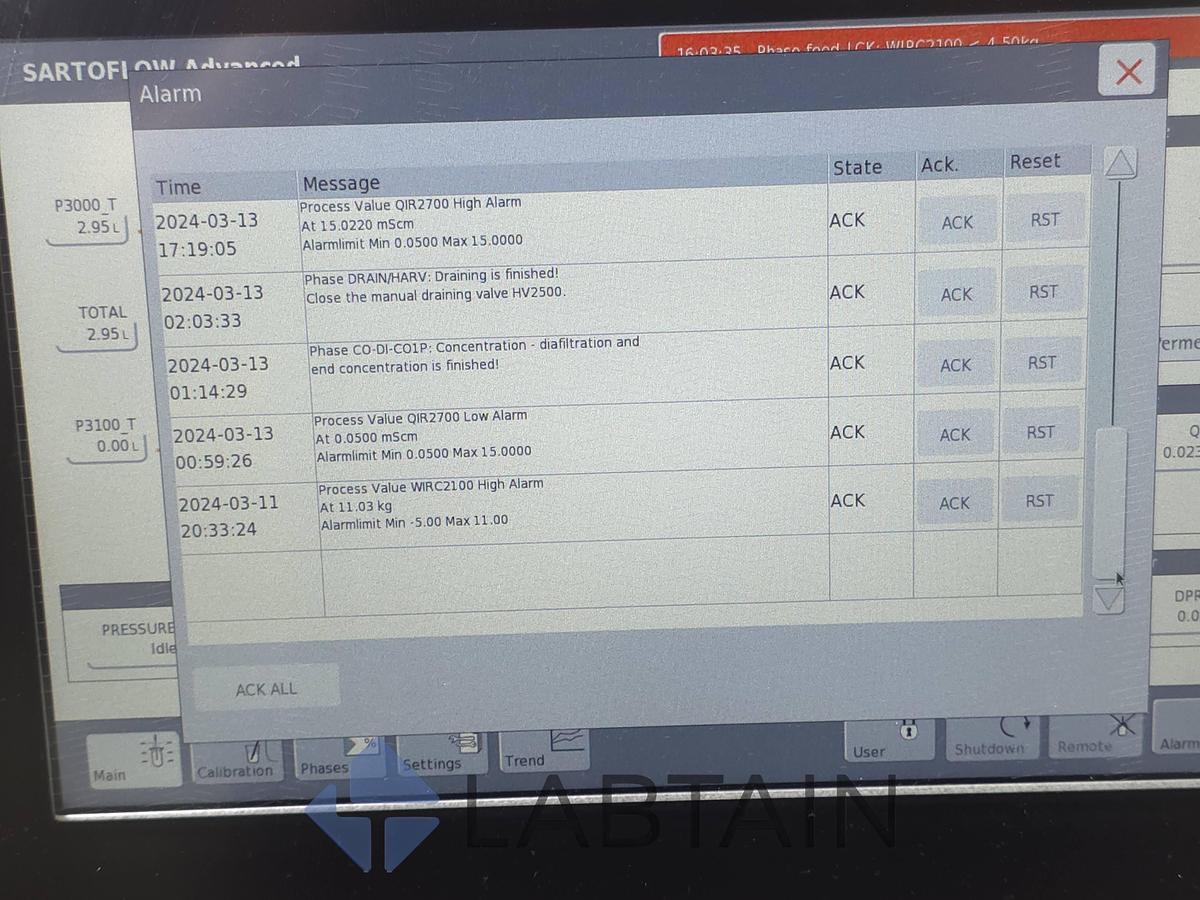

• On-board alarm history confirms completed production UF/DF runs (concentration/diafiltration) dated March 2024.
• No membrane cassettes, tubing kit, or process fluids included (consumables). Buyer to supply cassettes and validate before GMP use.

KEY SPECIFICATIONS

• Manufacturer / Model: Sartorius Stedim SARTOFLOW® Advanced (Type SFADVANCED)
• Process: Tangential flow filtration — UF / MF / DF (crossflow)
• Membrane area: 0.1 – 2.1 m² (accepts Sartocon® Slice and full-size Sartocon® cassettes)
• Compatible membranes: Hydrosart® UF (2–100 kD MWCO) and PESU UF (1–300 kD + albumin) — cassettes not included
• Recirculation vessel: 10 L, 316L (1.4404) stainless, conical bottom, sight glass; single-wall

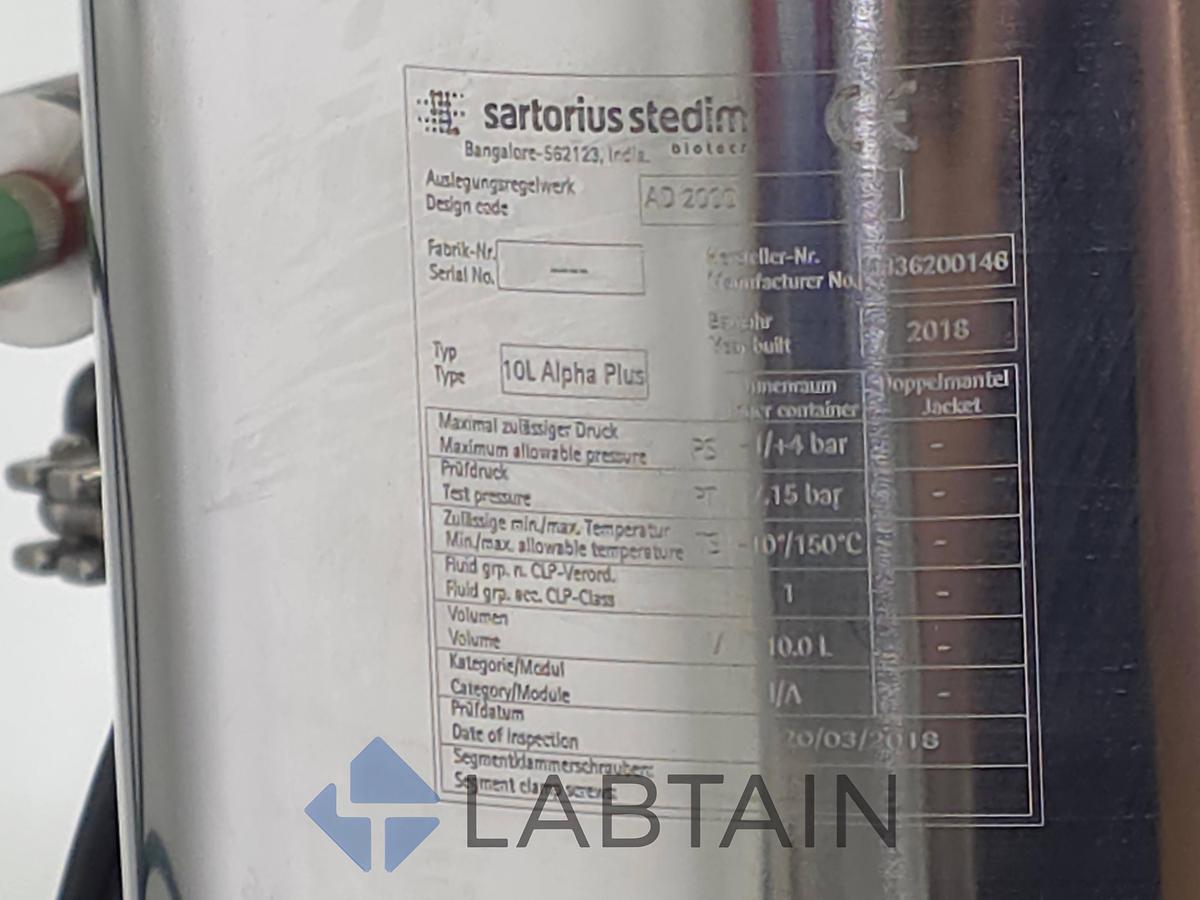

• Vessel rating: –1 / +4 bar; test pressure 7.15 bar; –10 to 150 °C (Type "10 L Alpha Plus," built 2018)
• Loop volume: ultra-low ~200 mL for small-batch concentration

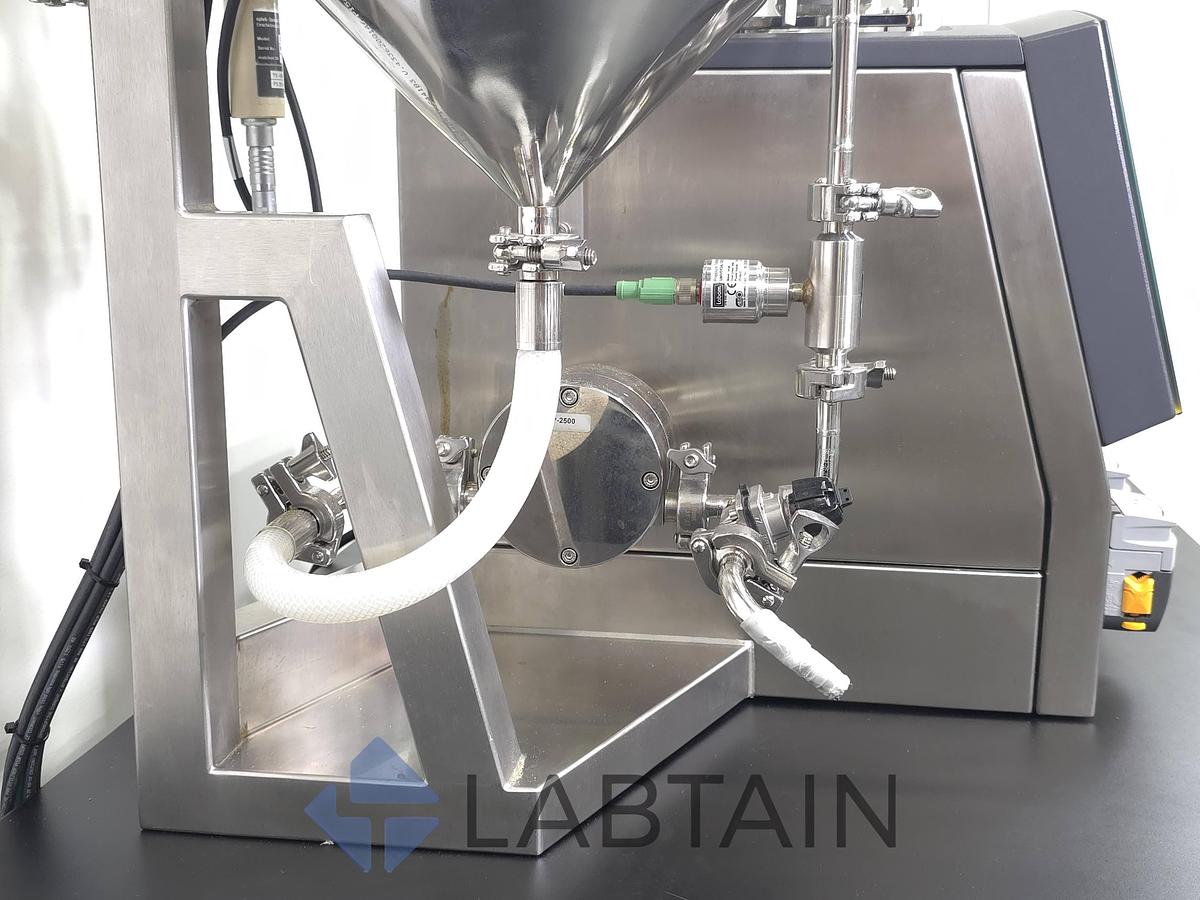

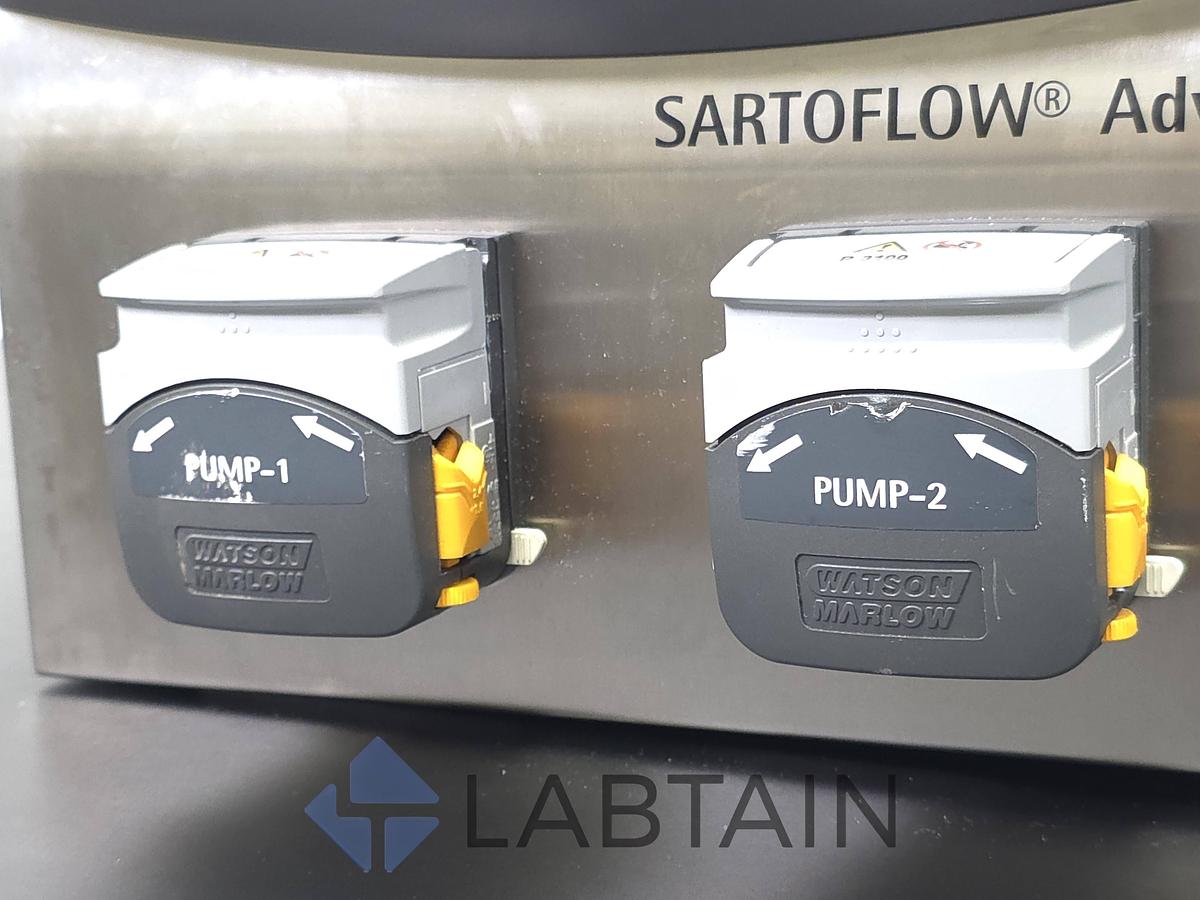

• Pumps: two front-panel peristaltic pumps for feed (P3000) and diafiltration/buffer addition (P3100), plus integrated sanitary recirculation/feed pump (P2500)
• Automated control: full TMP control; level control via load cell; retentate pressure control valve
• Instrumentation (see components list): dual pressure transmitters, electromagnetic permeate flow meter, inline temperature, permeate conductivity, load-cell weight

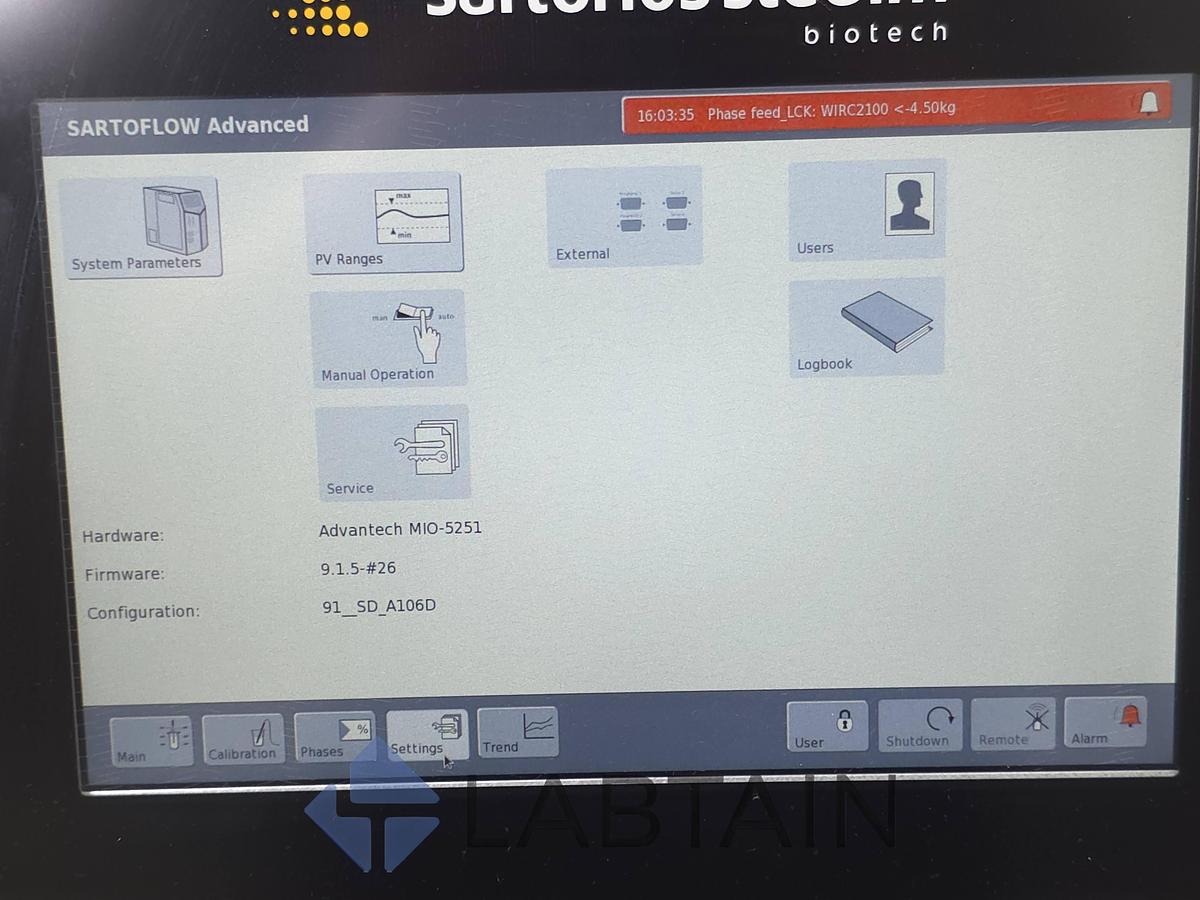

• Control system: large color touchscreen HMI; Advantech MIO-5251 controller; firmware 9.1.5-#26; SCADA-ready (BioPAT® Biobrain® Supervise)
• Available process phases: CONC, CON-DI-CON, DIAFI-CONC, CO-DI-CO1P, FLUSHING, CIP, DRAIN/HARV, FILLING
• Electrical: 120 VAC, 4 A, 60 Hz
• Certifications: CE; TÜV SÜD (C-US); 3-A sanitary components
• Origin: Made in Germany (Sartorius Stedim Systems GmbH, Guxhagen)

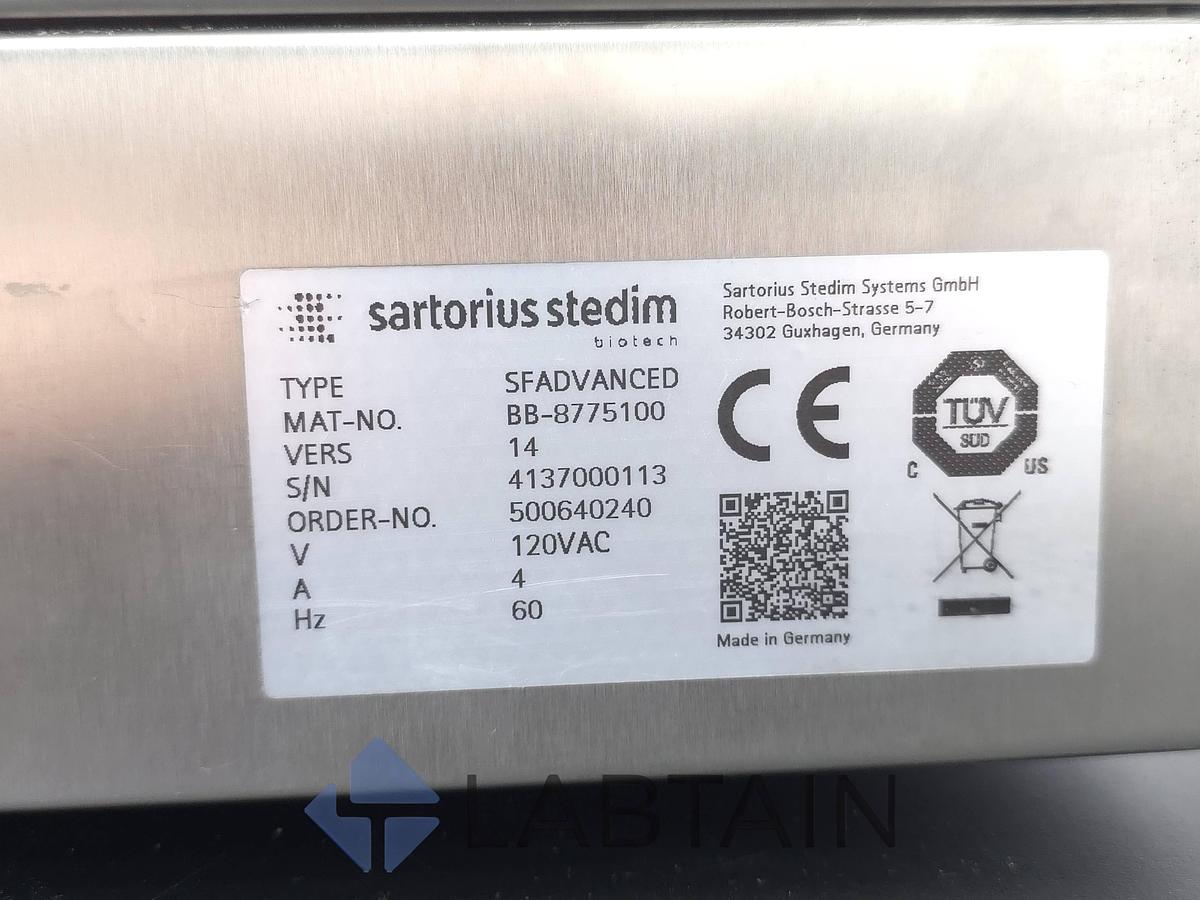

• S/N: 4137000113 · Mat-No. BB-8775100 · Order-No. 500640240 · Version 14

INSTALLED COMPONENTS (by nameplate — traceability)

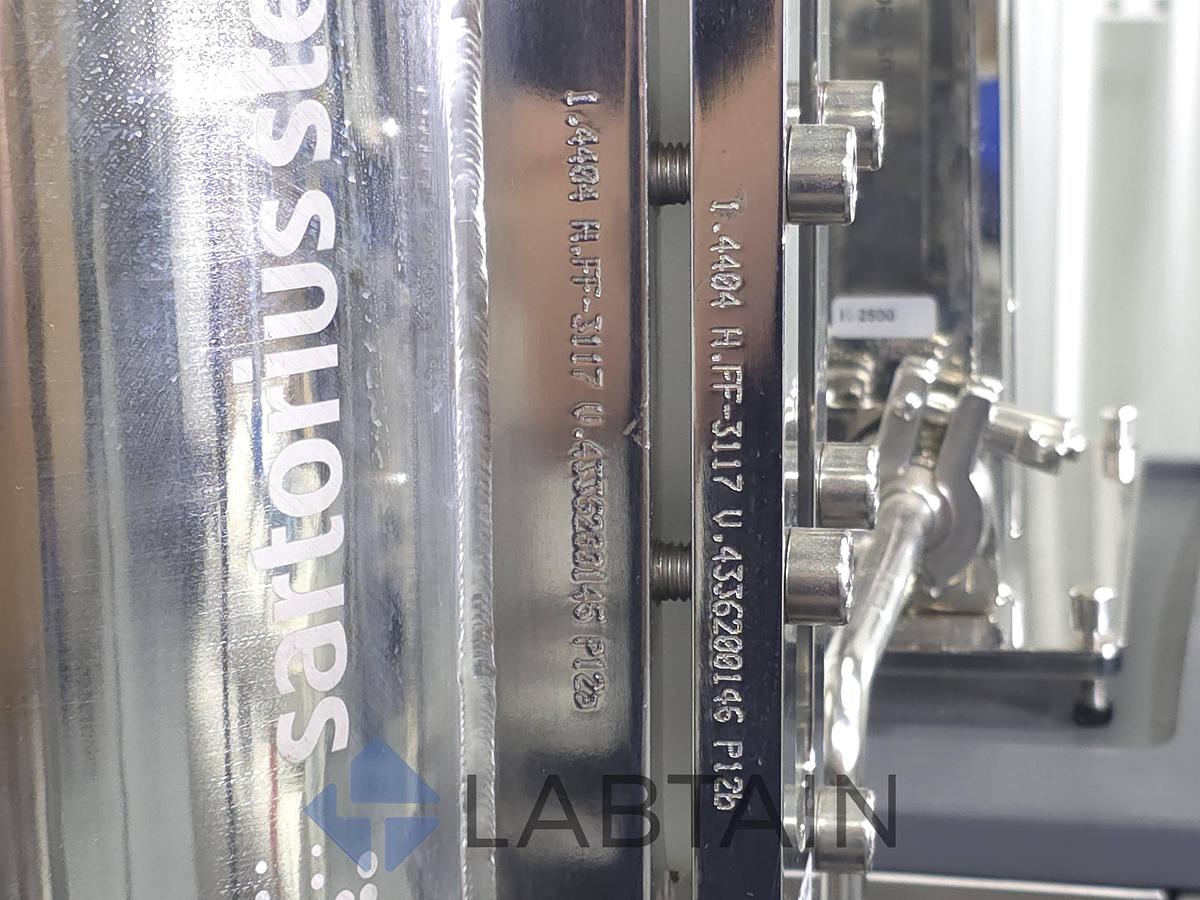

• Recirculation vessel: Sartorius Stedim 10 L "Alpha Plus," 316L, Mfr. No. 4336200146, built 03/2018

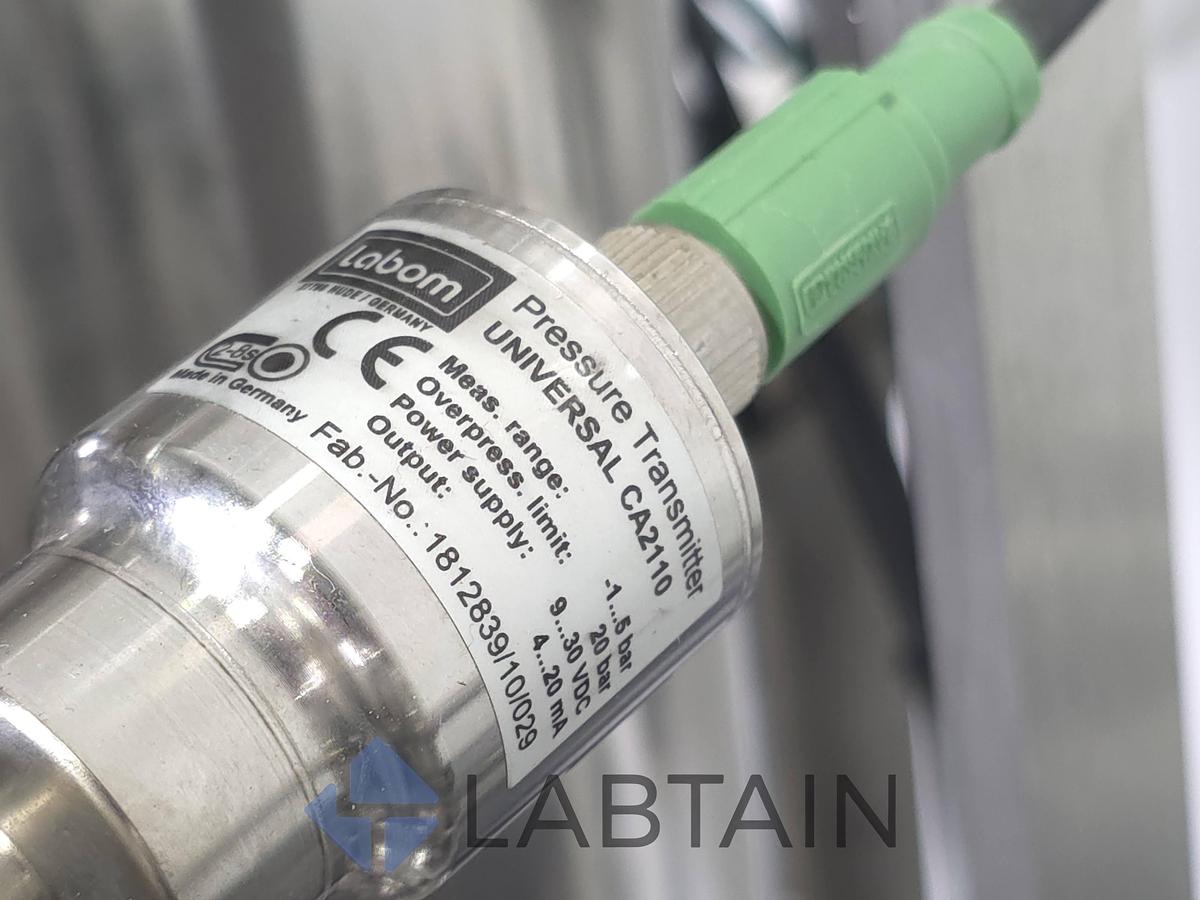

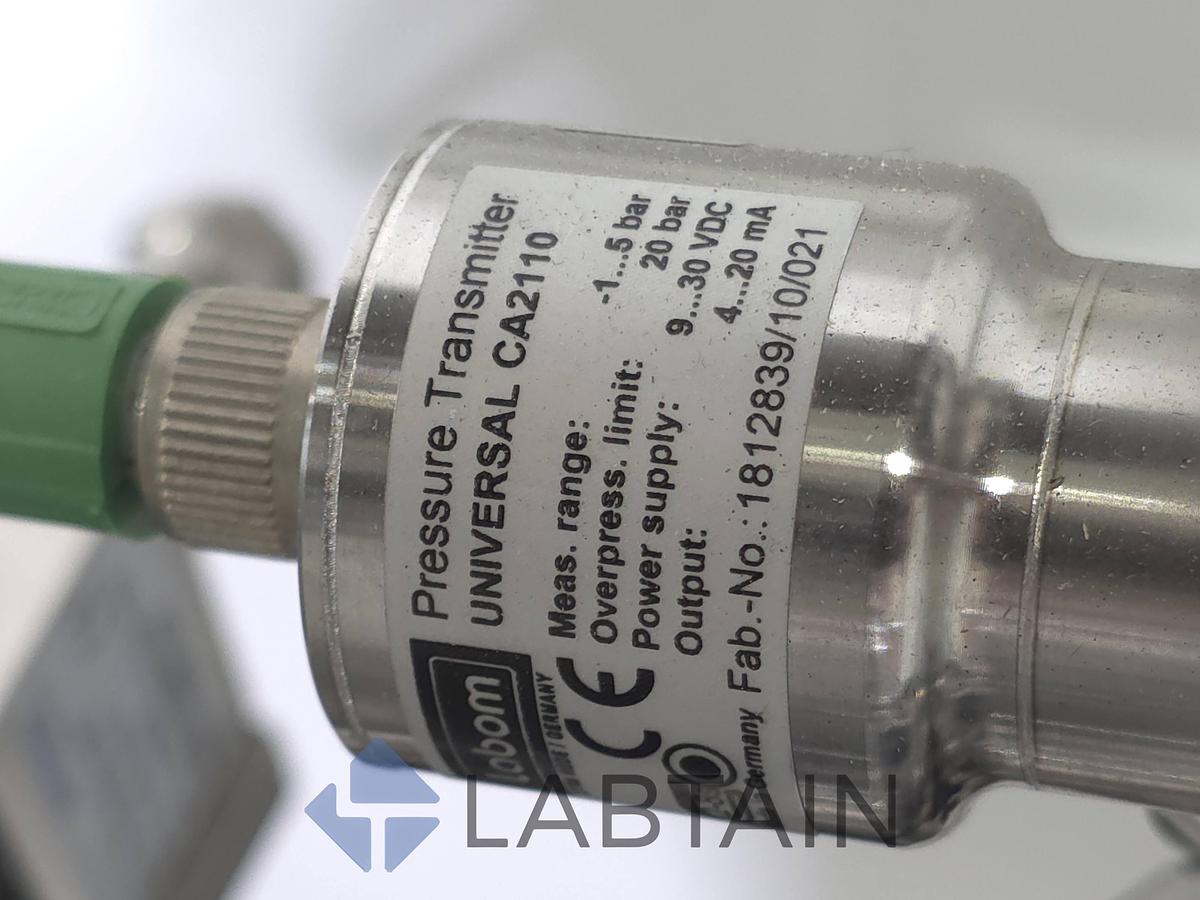

• Pressure transmitters (×2+): LABOM UNIVERSAL CA2110, –1…5 bar, 20 bar overpressure, 9–30 VDC, 4–20 mA (Germany)

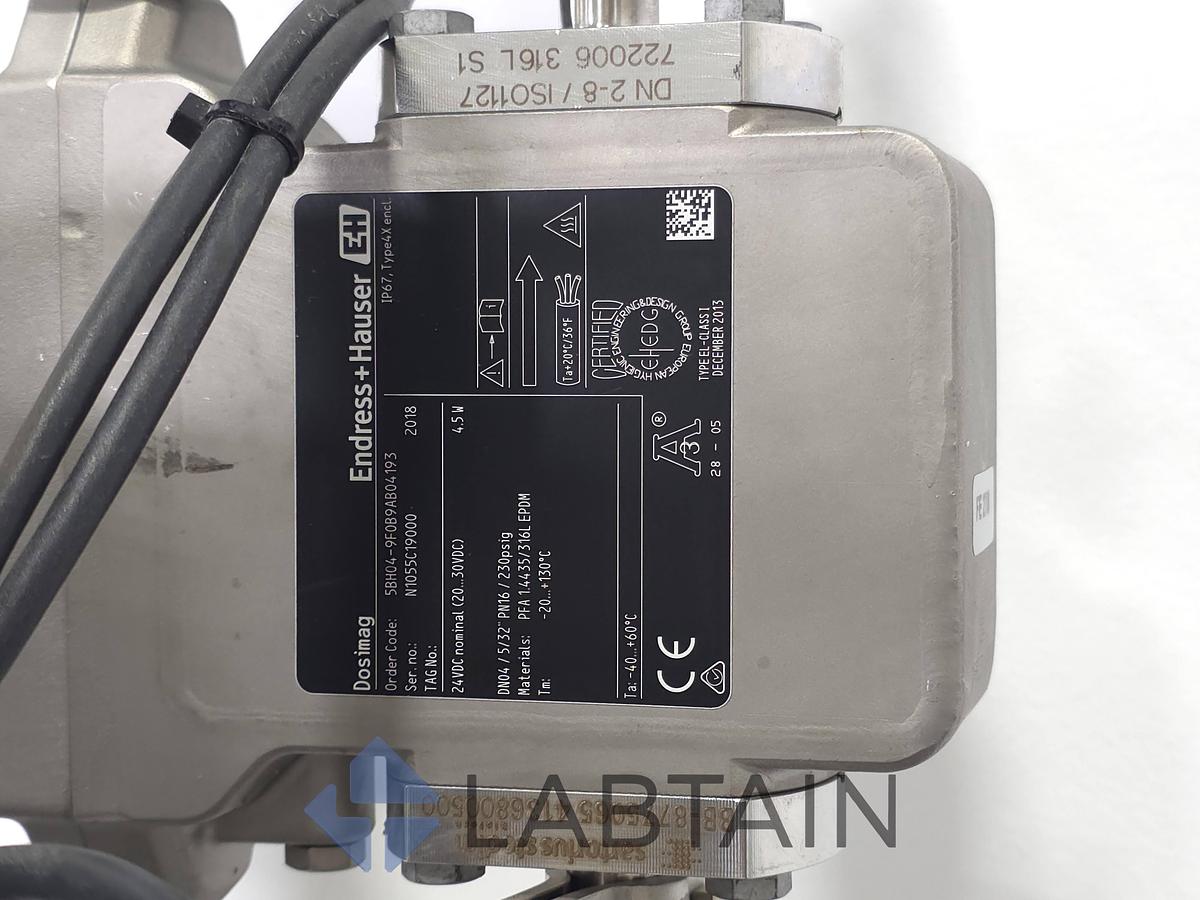

• Permeate flow meter: Endress+Hauser Dosimag electromagnetic, DN04 (5/32"), PN16/230 psig, PFA/316L/EPDM wetted, IP67, 3-A, built 2018 (Order 5BH04-9F0B9AB04193)

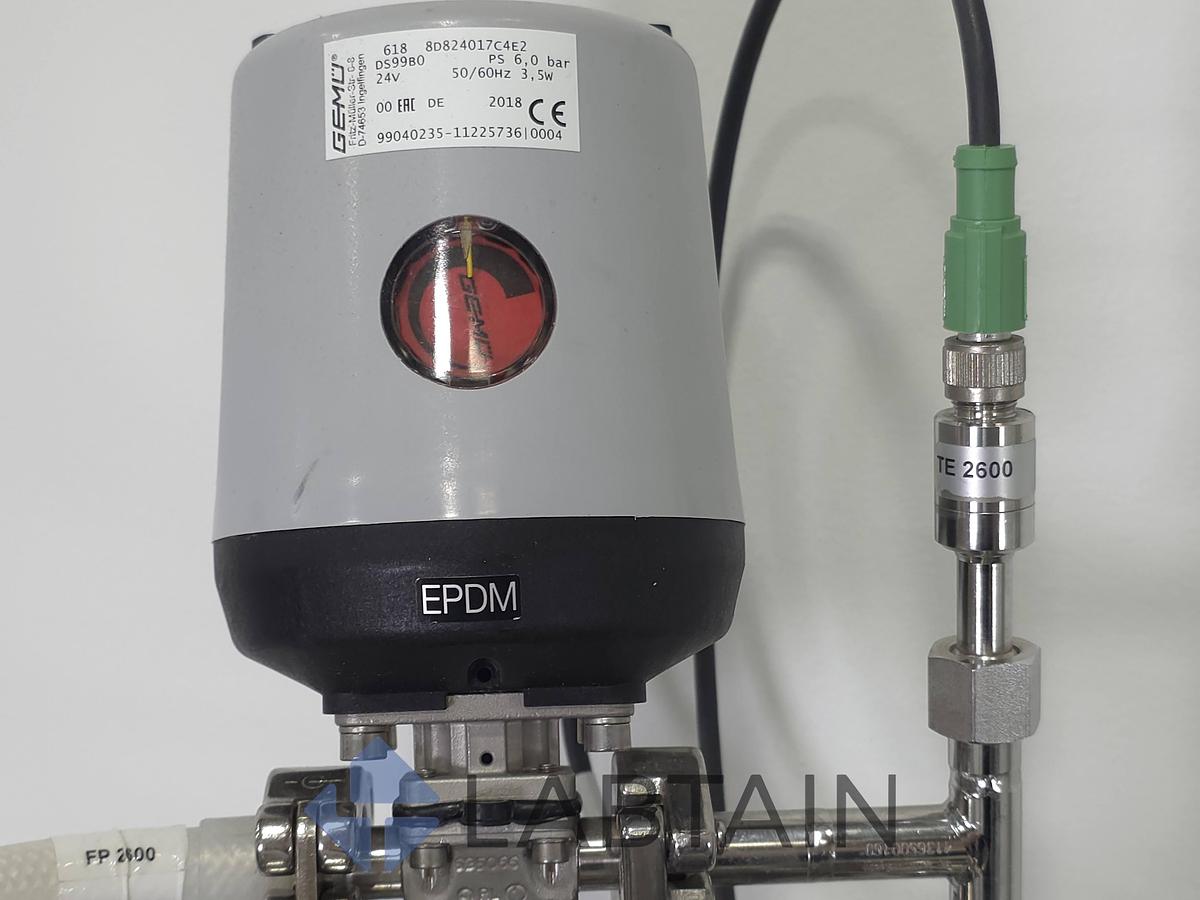

• Retentate control valve: GEMÜ 618 motorized diaphragm valve, EPDM, 24 V, PS 6 bar, built 2018

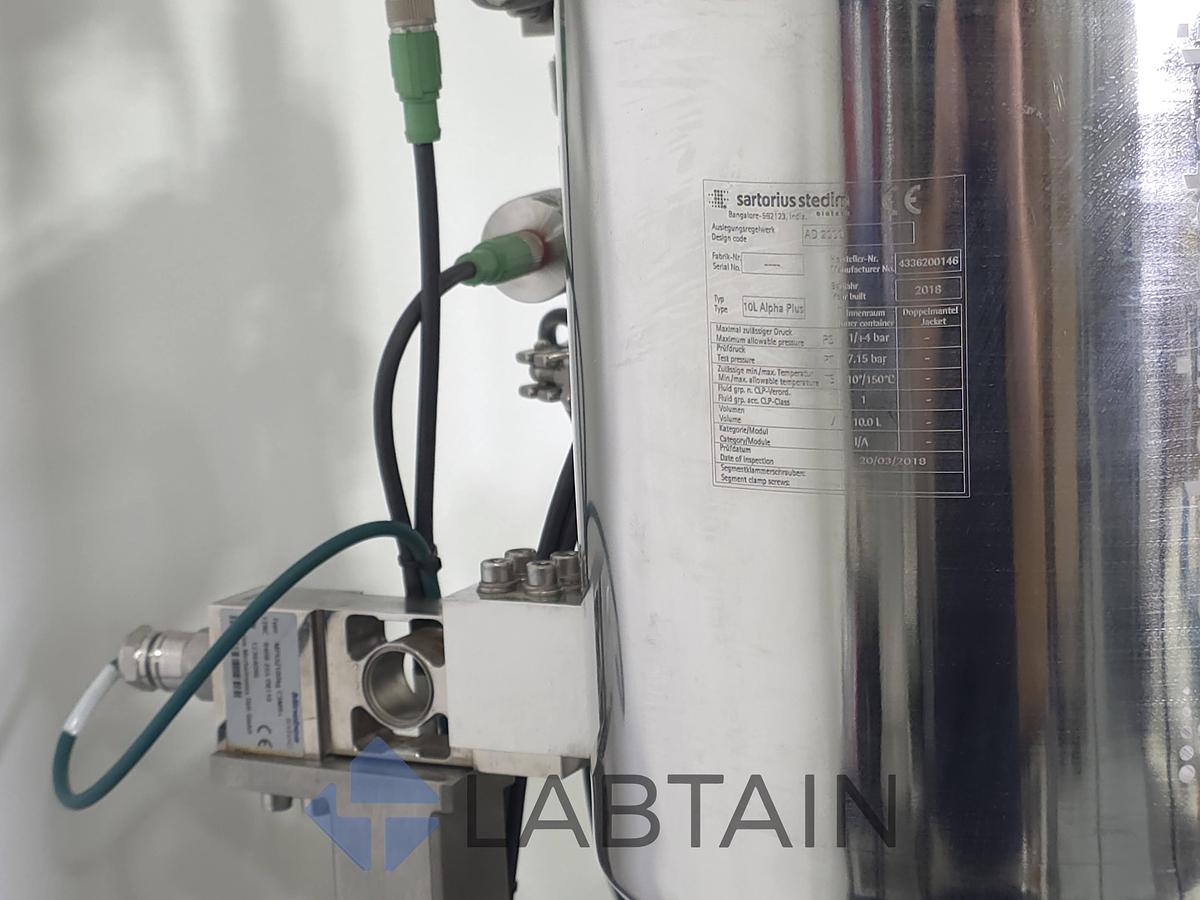

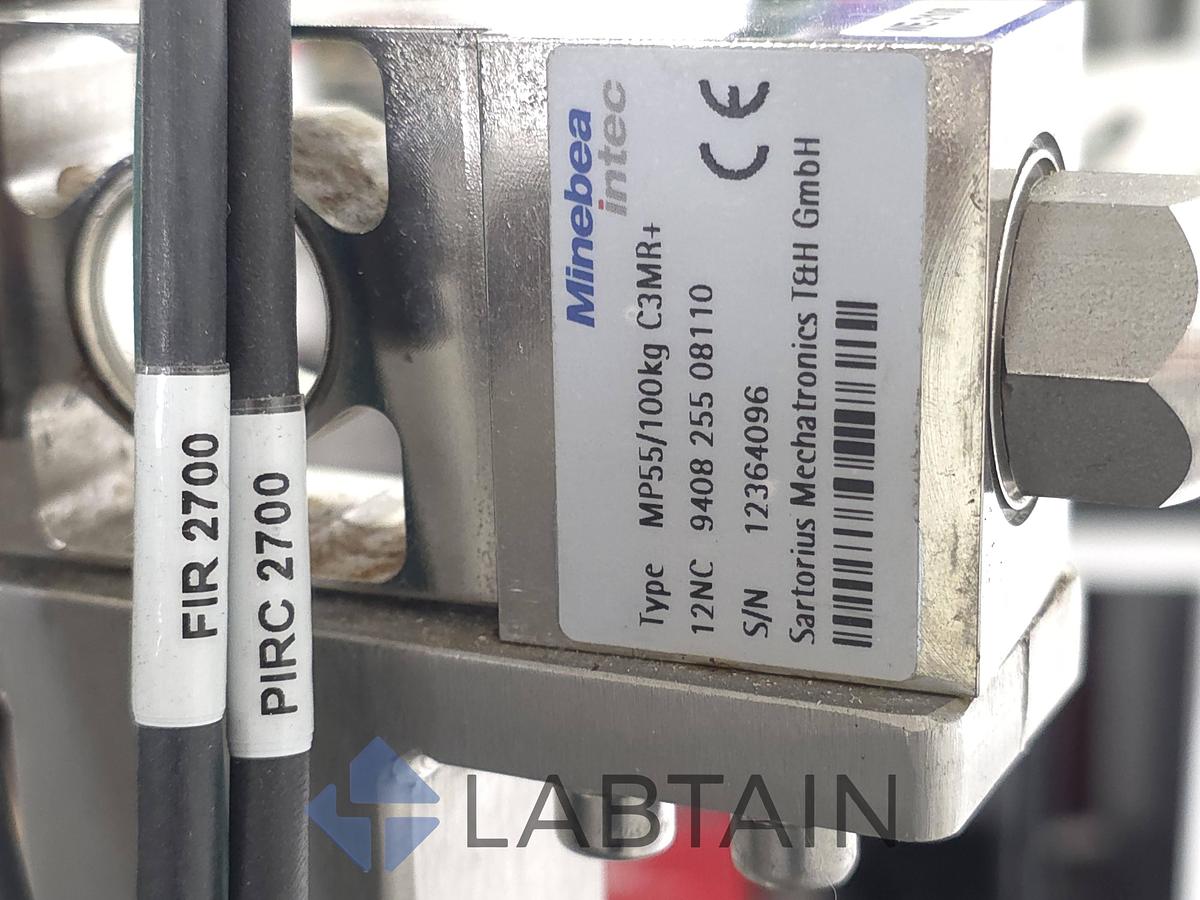

• Load cell (weight/level): Minebea Intec MP55/100 kg C3MR+, S/N 12364096
• Inline sensors: Pt100 temperature (TIR2600); conductivity (QIR2700)

INCLUDED

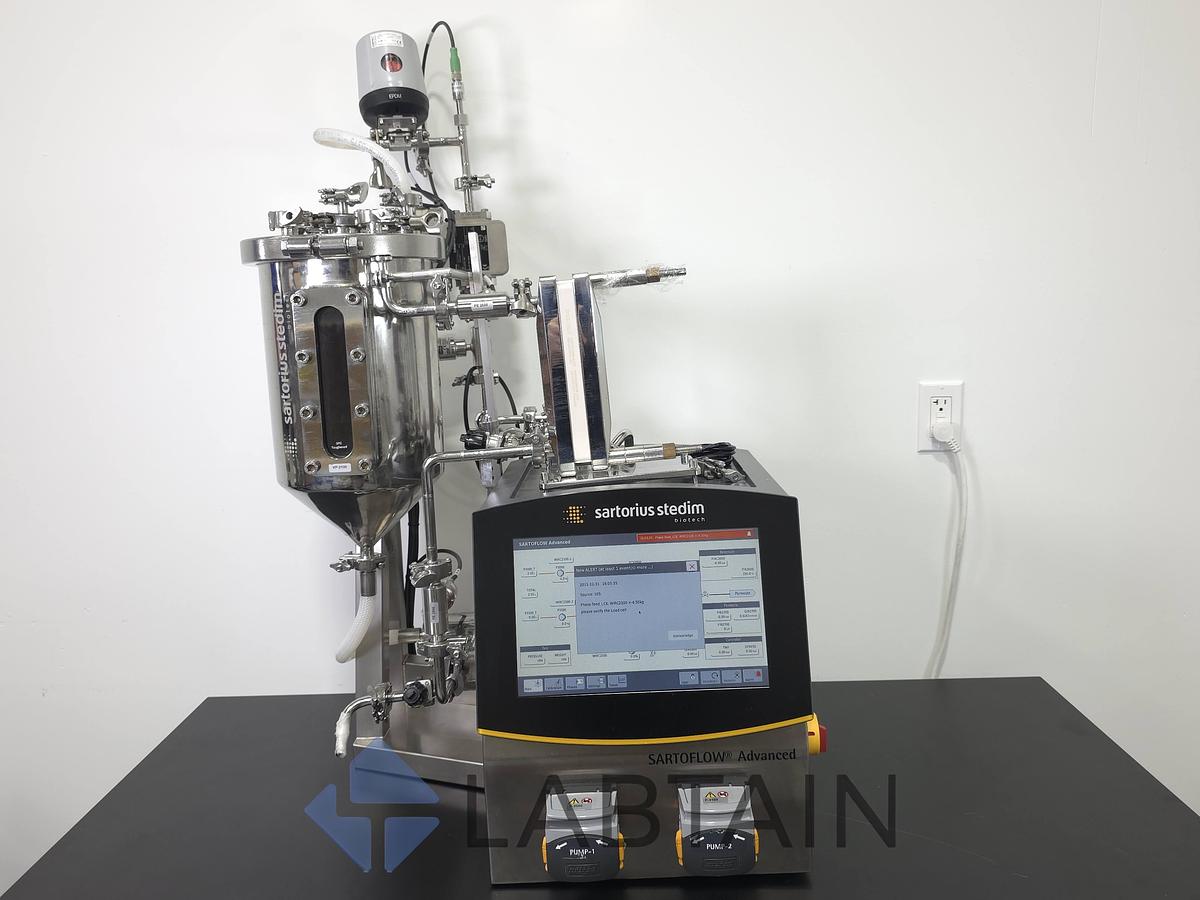

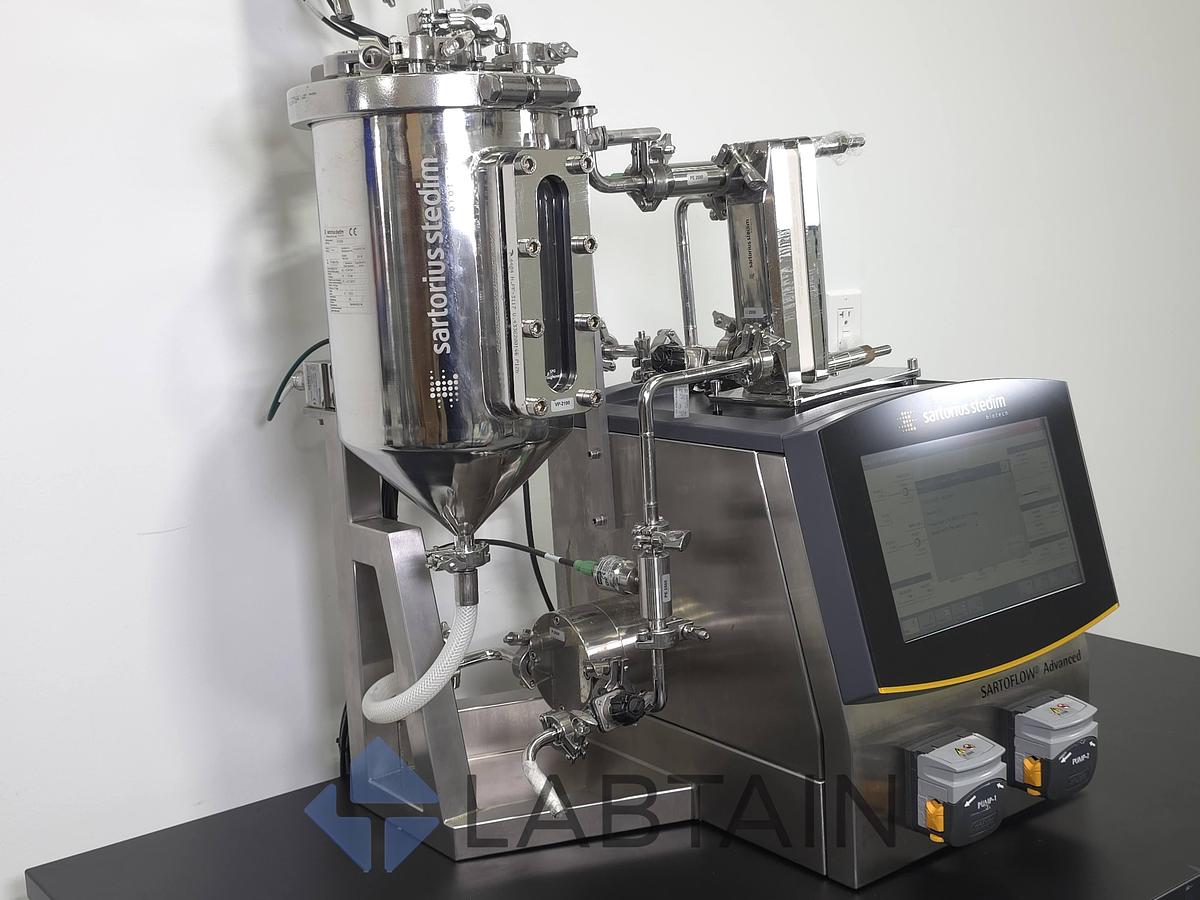

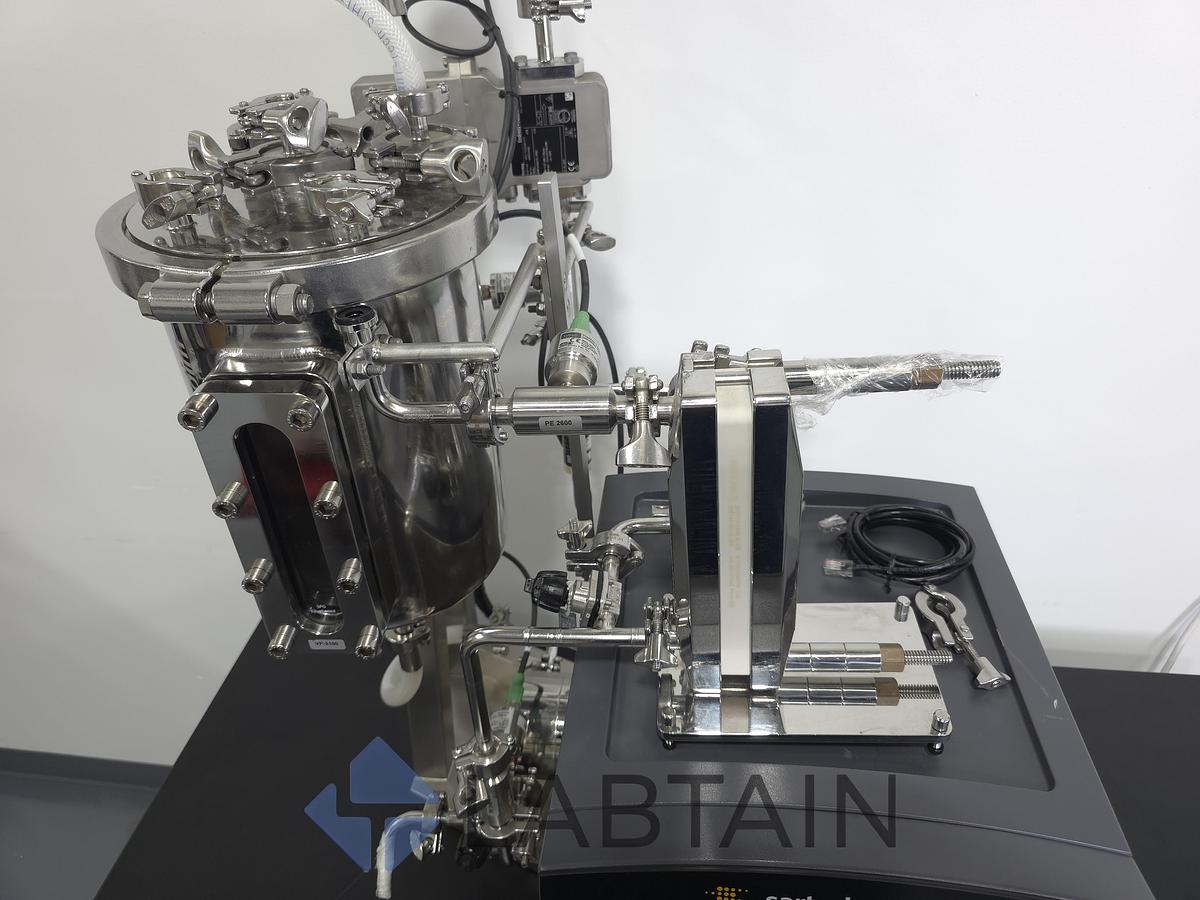

• (1) Sartorius Stedim SARTOFLOW Advanced TFF system with integrated 10 L 316L recirculation vessel, installed instrumentation, pumps, and touchscreen controller

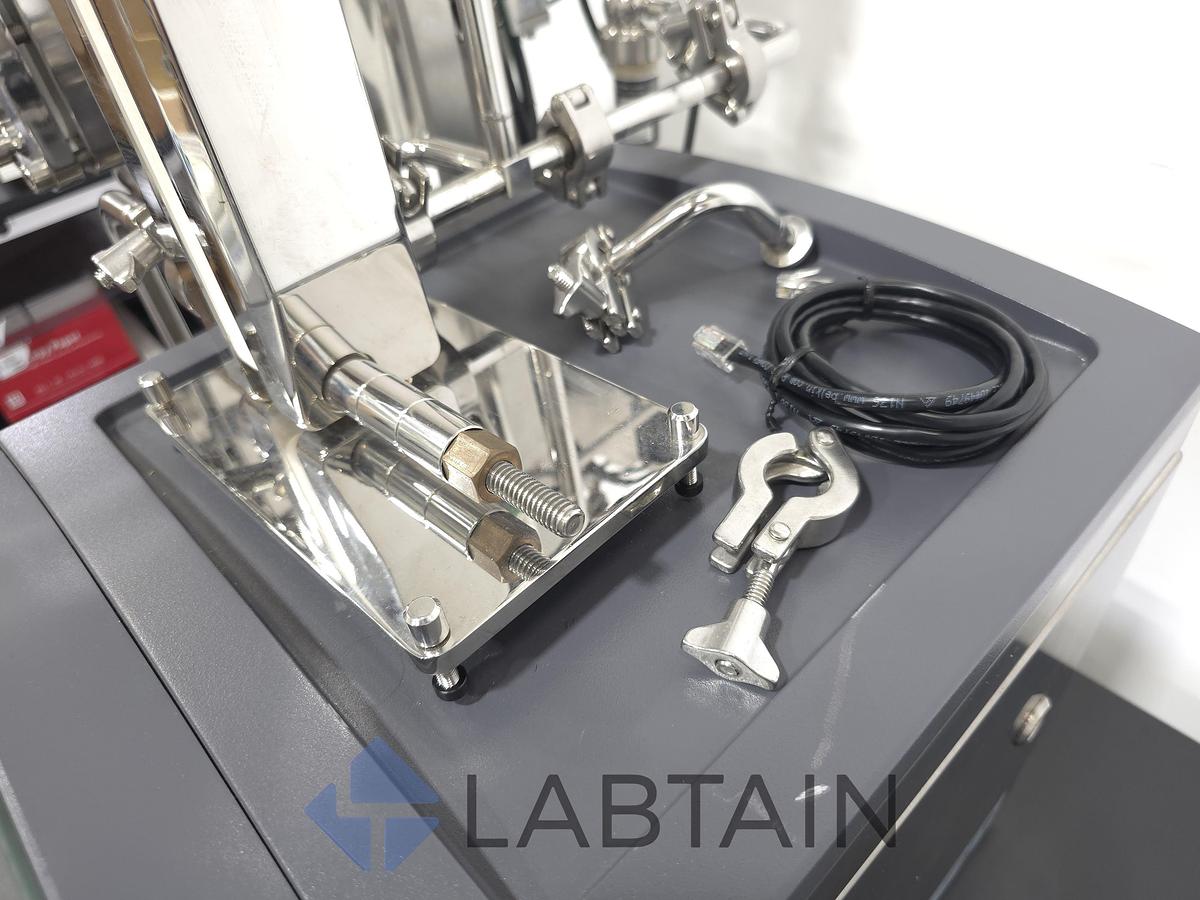

• Sartocon® cassette holder (plate-and-frame clamp)
• Sanitary tri-clamp fittings/clamps as pictured

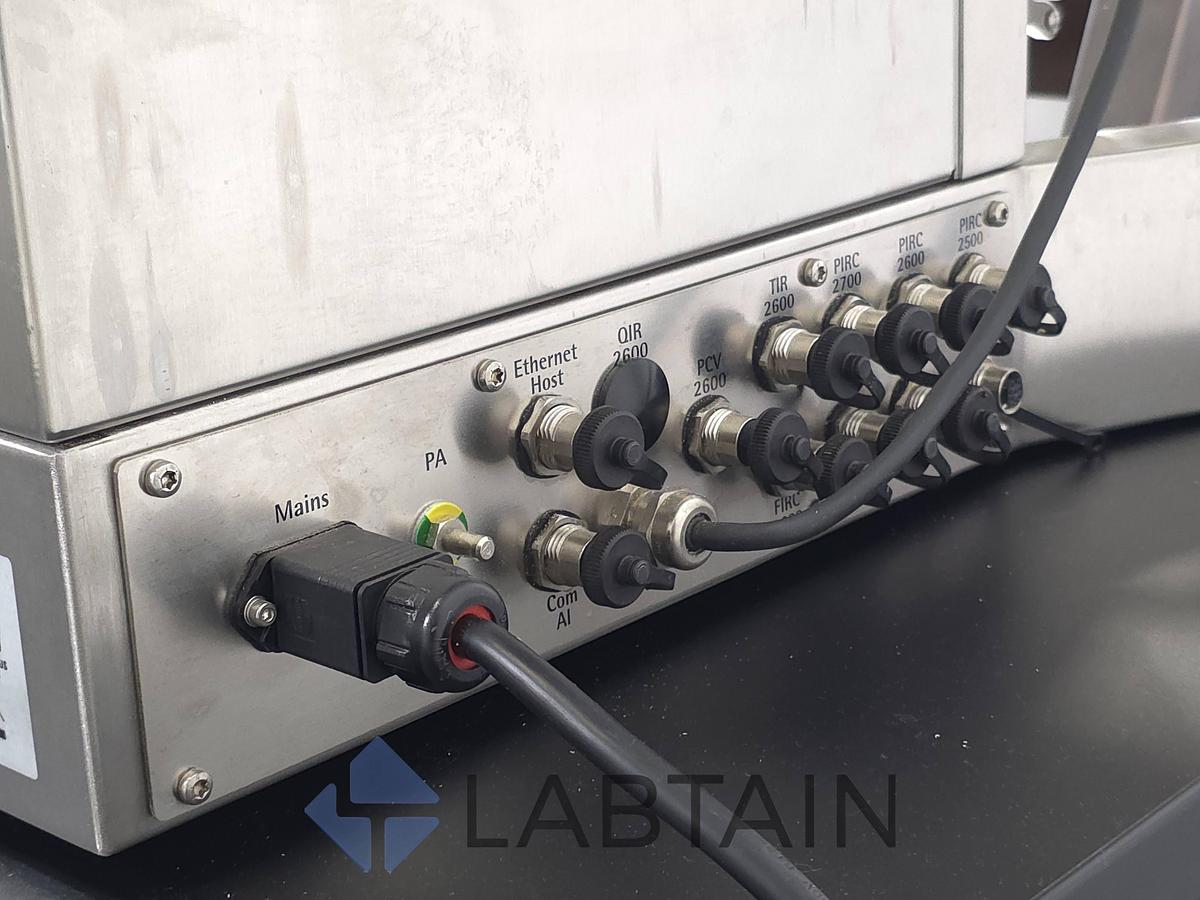

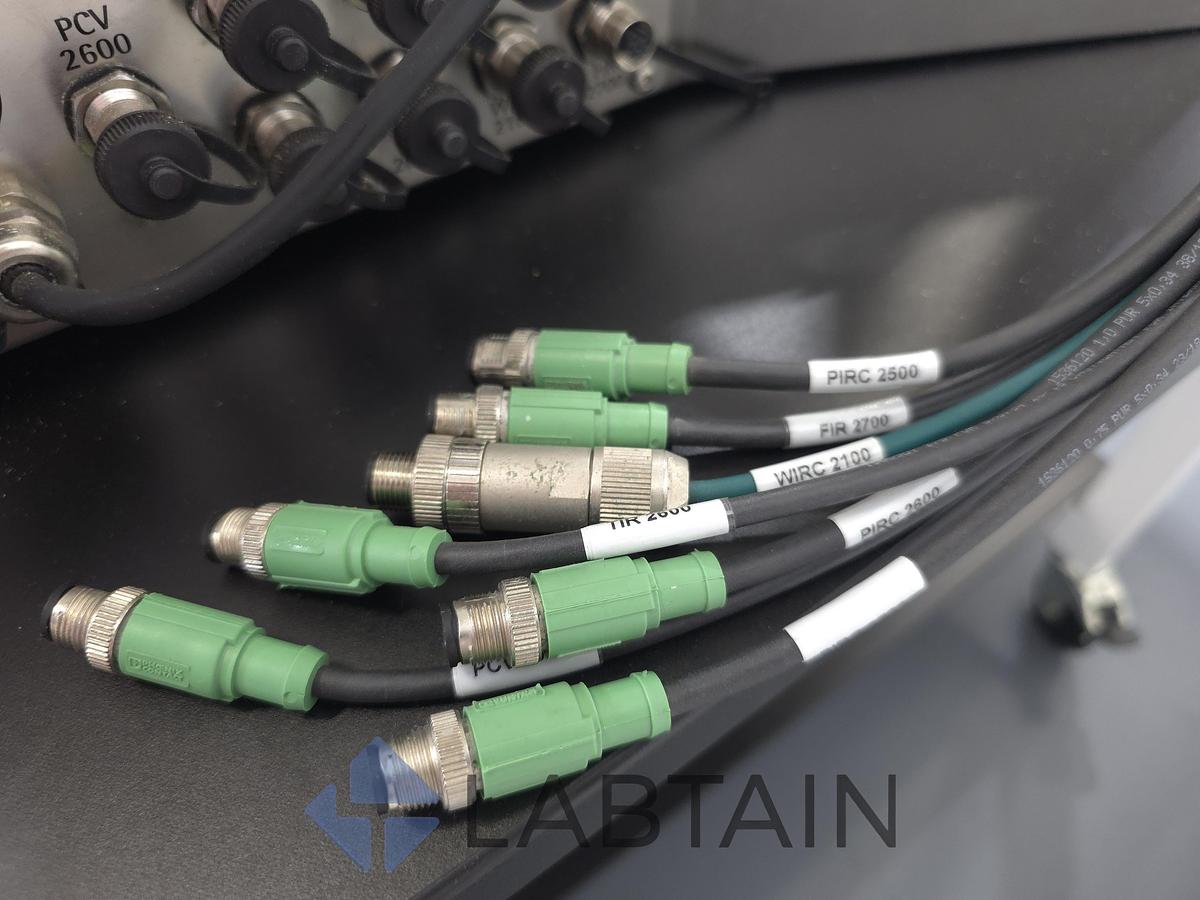

• RJ45 (Ethernet/data) cable and M12 sensor cabling as pictured
• Power cord
