Thermo Scientific KingFisher Flex 5400630 Automated DNA/RNA & Protein Purification System — 96 Deep-Well Head w/ Laptop & BindIt Software

The Thermo Scientific KingFisher Flex (Cat. No. 5400630) is a benchtop magnetic-particle processor that automates the extraction and purification of DNA, RNA, proteins, and cells for 24 or 96 samples per run. Instead of pipetting liquid between wells, the system moves tip combs and 96 magnetic rods through a sequence of plates on a rotating turntable, delivering highly reproducible bead-based purification (>95% particle collection efficiency) with minimal hands-on time. This configuration ships with the 96 deep-well magnet head (50–1000 µL processing range), and the interchangeable-head design lets a single instrument scale from low-volume PCR plates up to 5 mL deep-well formats simply by swapping heads. Protocols for common Thermo/Applied Biosystems MagMAX and other bead kits run from onboard memory or from a connected PC. It is offered as a complete, ready-to-commission package — instrument, installed magnet head, and a control laptop with Thermo Scientific BindIt software already loaded — a meaningful advantage over the bare instruments commonly sold with no PC or software, which are difficult to bring online from scratch.

Condition Notes

• Condition: Used / Inspected.
• Functional Status: Good working condition.

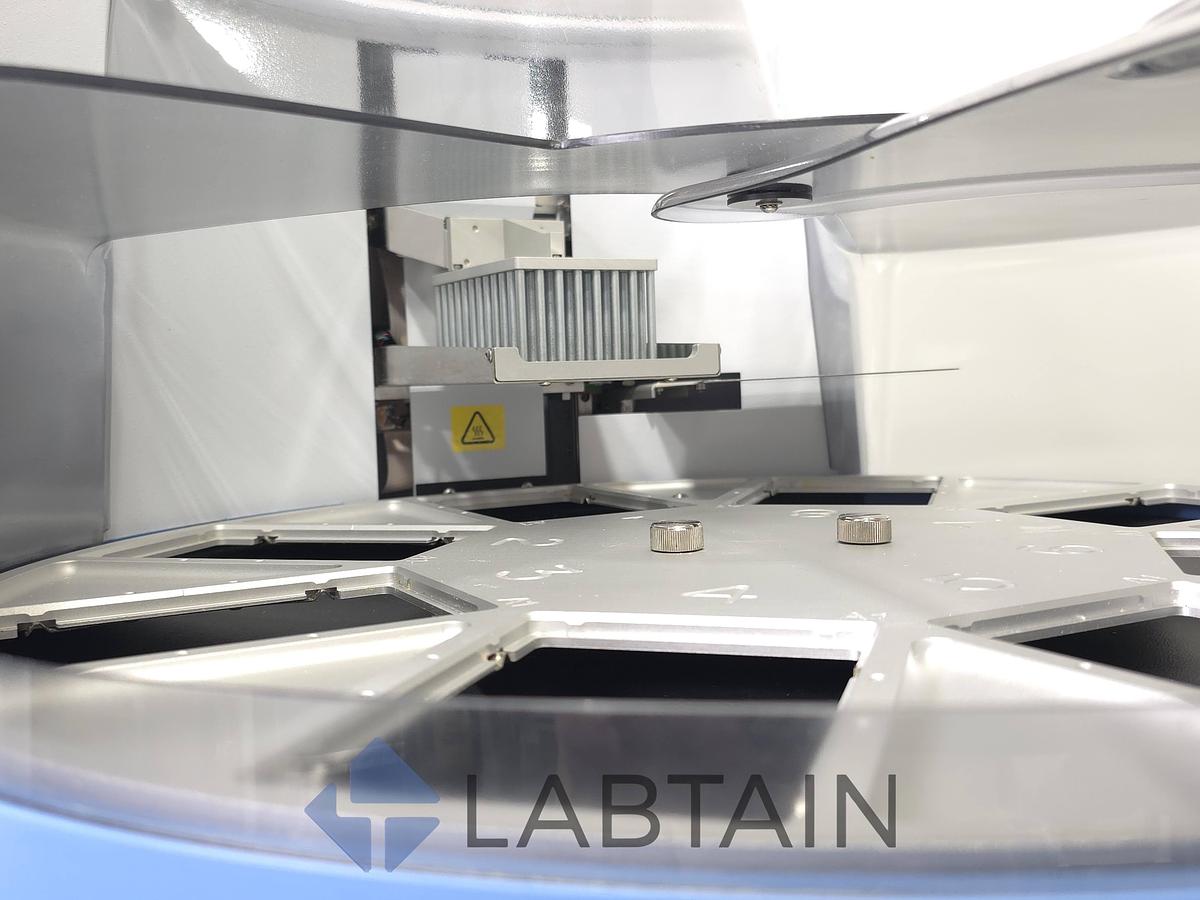

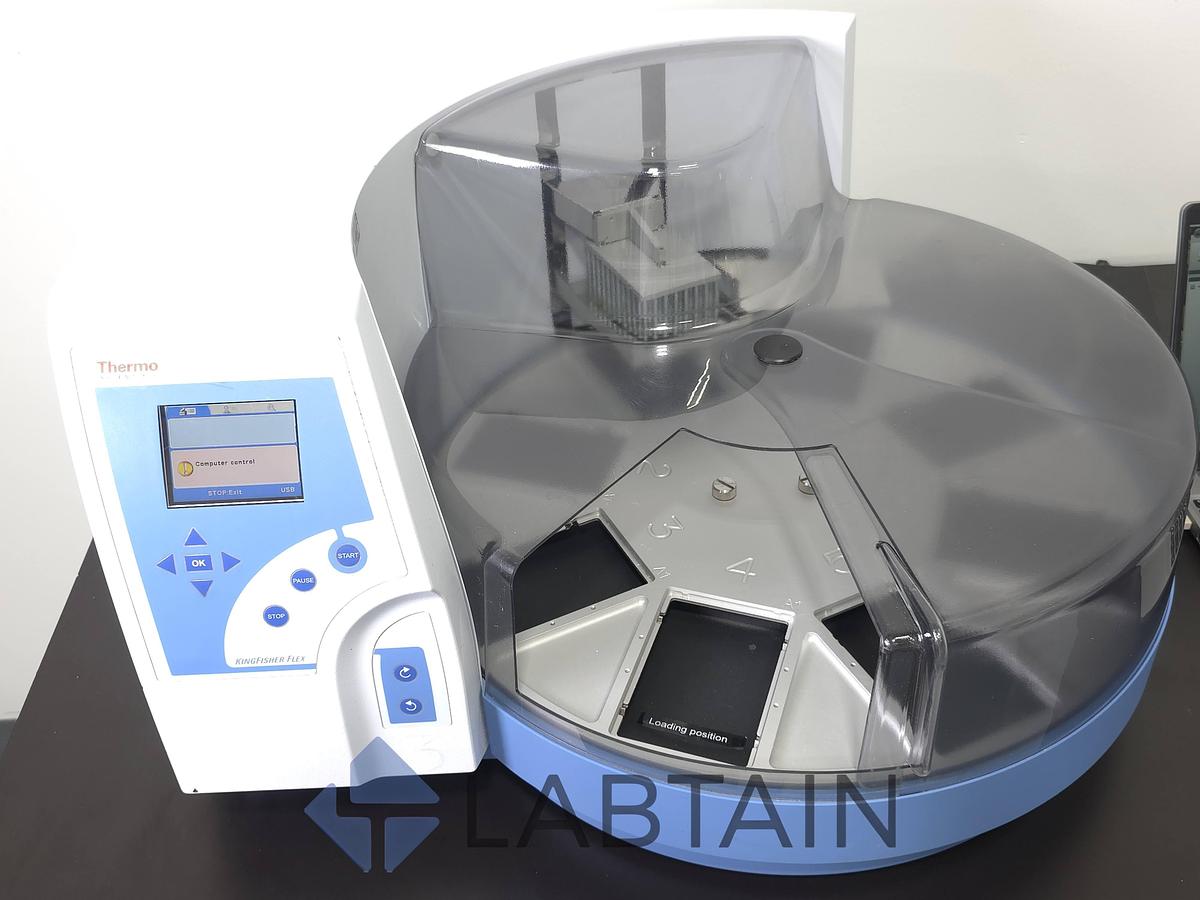

• Cosmetic Status: Good used condition consistent with lab service. White/blue housing is structurally sound with routine surface wear; the clear turntable lid and see-through cover are intact. Interior turntable, plate stations, and magnet-head carriage are clean and complete.

Technical Specifications

• Brand: Thermo Scientific (Thermo Fisher Scientific)
• Model: KingFisher Flex

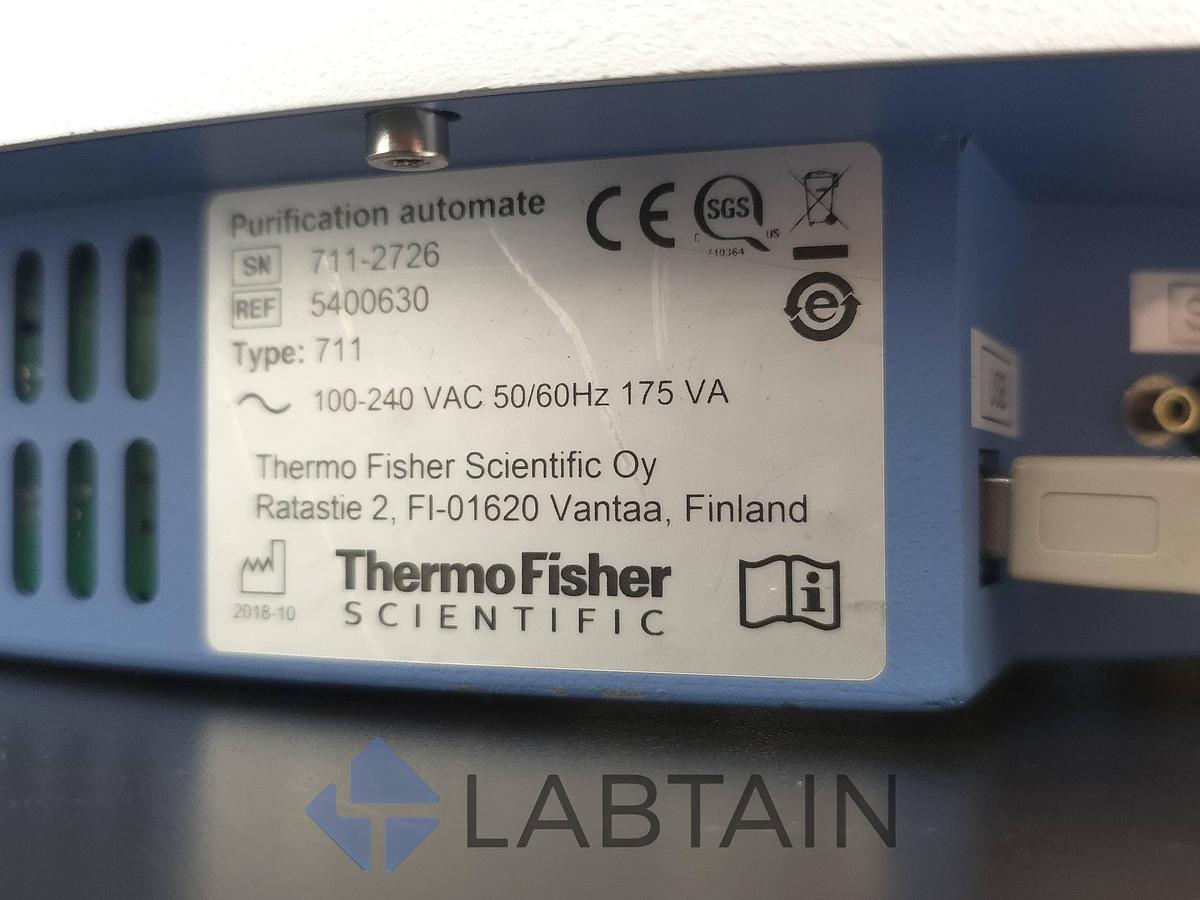

• Catalog / REF: 5400630 (Type 711)
• Equipment Type: Automated magnetic-particle processor / nucleic-acid & protein purification system
• Installed Head: 96 deep-well magnet head (96 magnetic rods; interchangeable)
• Sample Capacity: 24 or 96 samples per run
• Processing Volume: 50–1000 µL (96 DW head); platform also supports 20–100 µL PCR, 20–200 µL 96-well, and 200–5000 µL 24 DW plates with the respective heads
• Particle Collection Efficiency: >95%
• Heating Range: +5 °C above ambient to +115 °C
• Software: Thermo Scientific BindIt (installed on included laptop; v4.1 shown)
• Data / PC Interface: USB (RS-232C also supported)
• Power: 100–240 VAC, 50/60 Hz, 175 VA
• Dimensions (W×D×H): ~27 × 24 × 15 in (68.5 × 61 × 38 cm)
• Weight: ~62 lb (28 kg)
• Manufactured: October 2018 · Country of Manufacture: Finland

Included in this Package

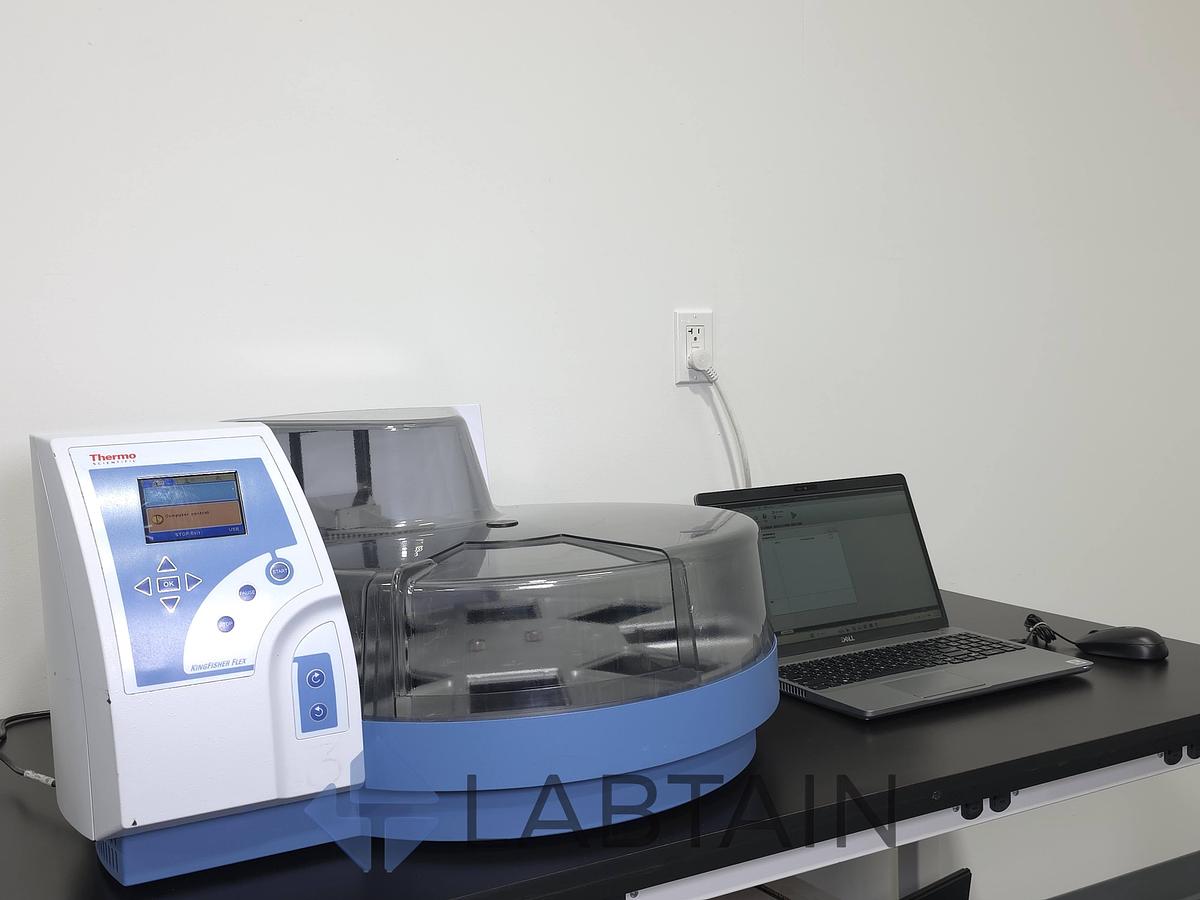

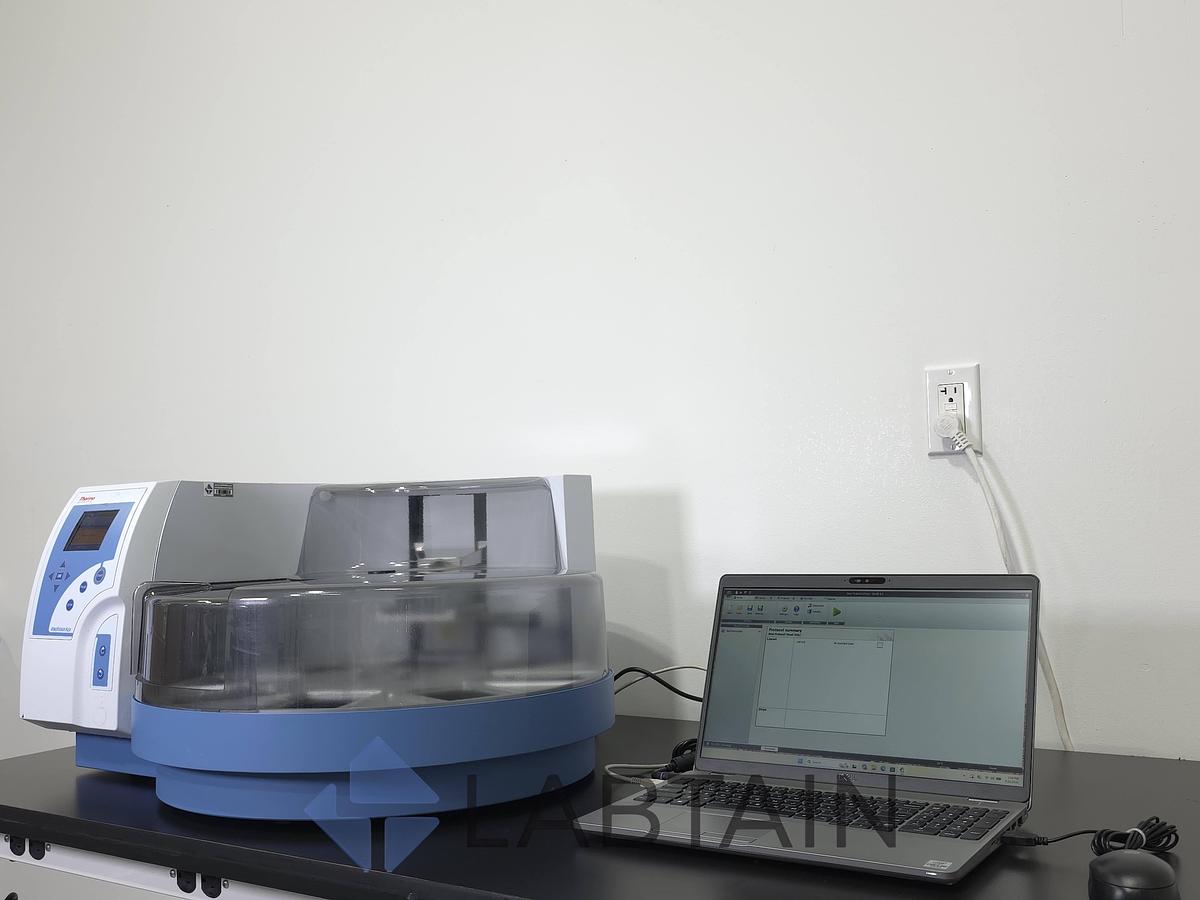

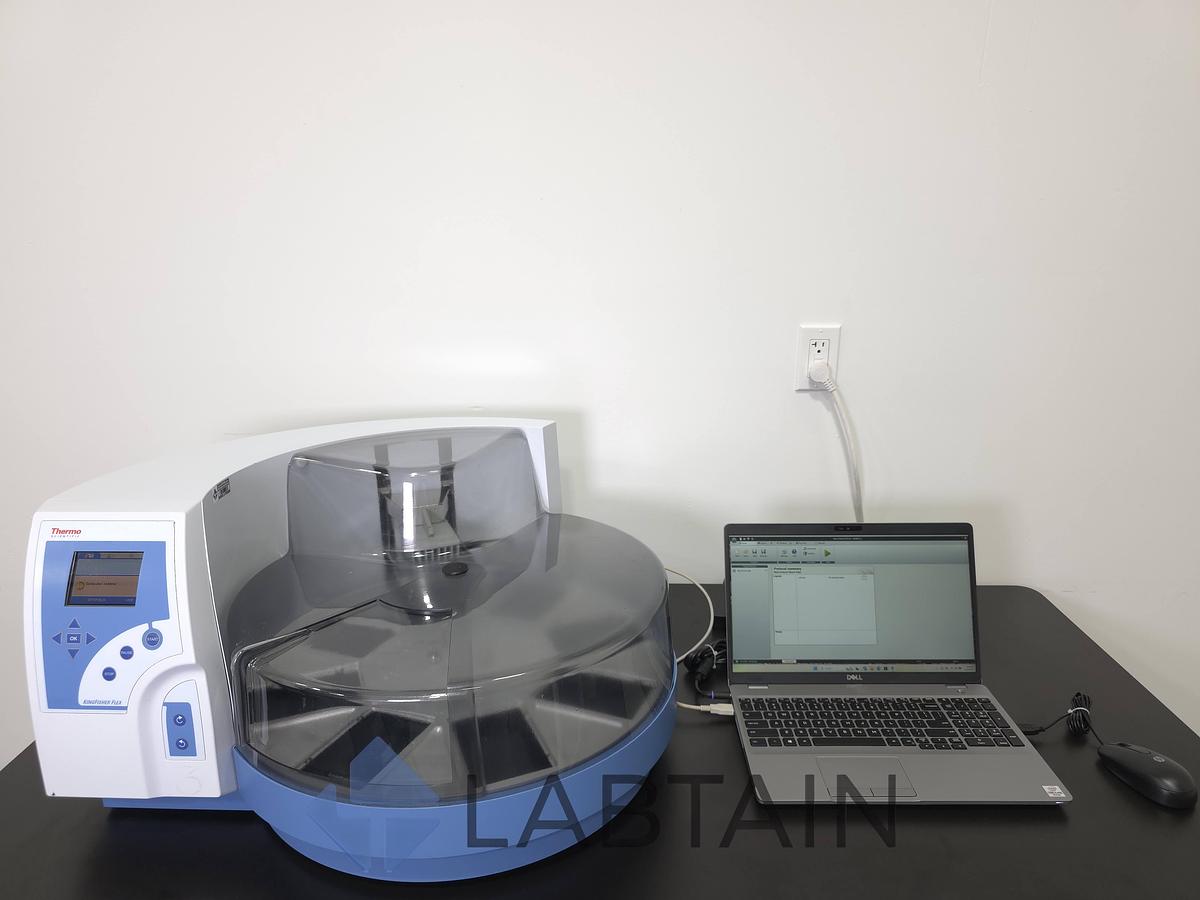

• (1) Thermo Scientific KingFisher Flex instrument (REF 5400630) with 96 deep-well magnet head installed
• (1) Control laptop (Dell) with Thermo Scientific BindIt software installed
• (1) USB interface cable
• (1) Instrument power cord
• (1) USB mouse

Not included: KingFisher plates, tip combs, and reagent/bead kits (consumables).
