USA Lab UC-20/20 Refrigerated Circulator Chiller (220V) Used

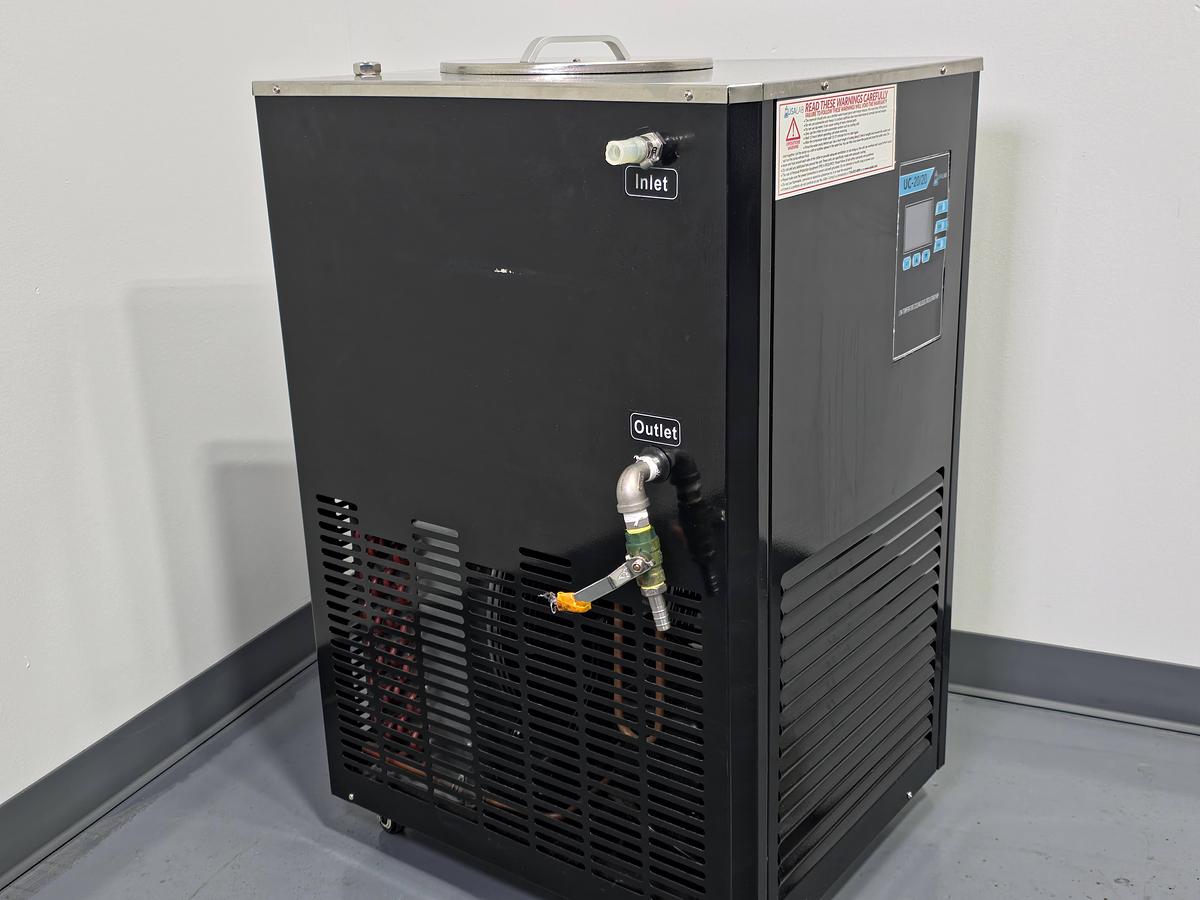

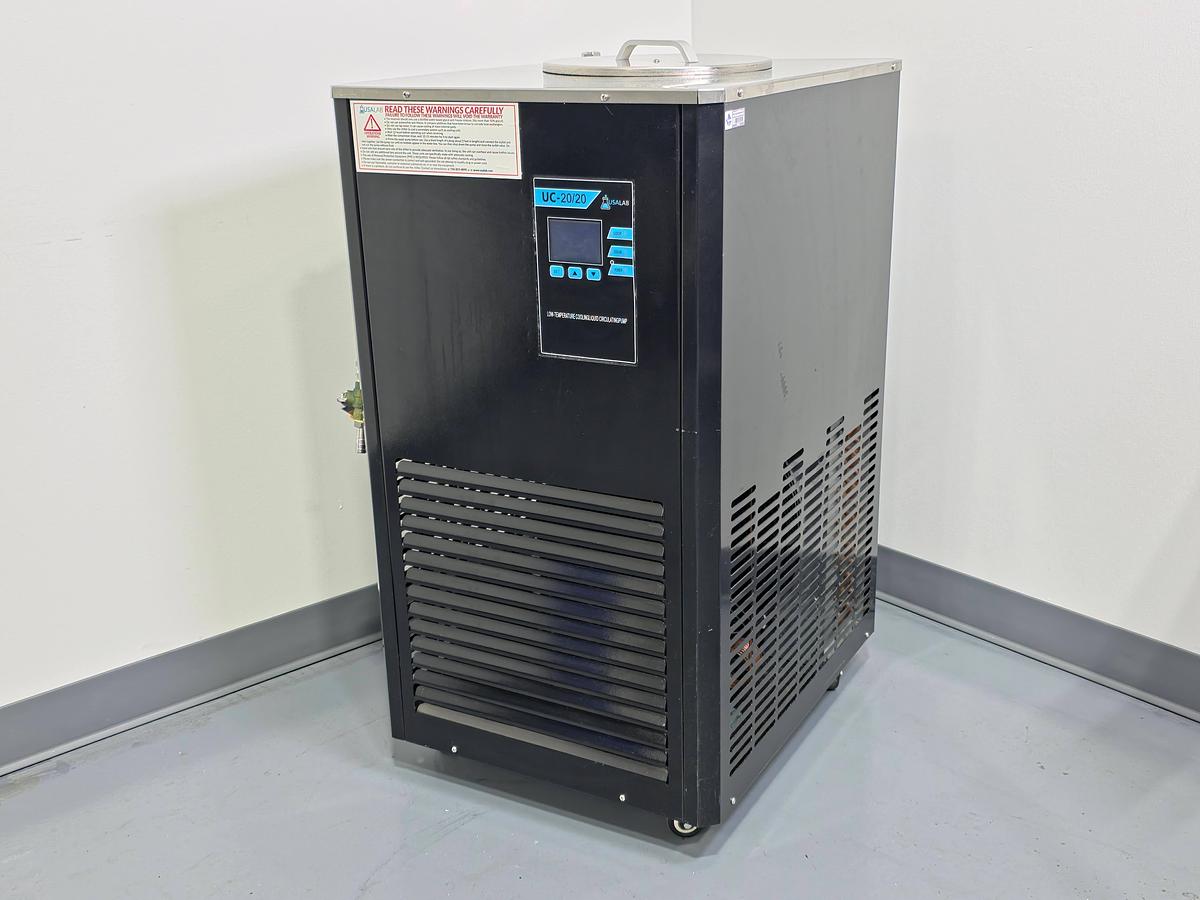

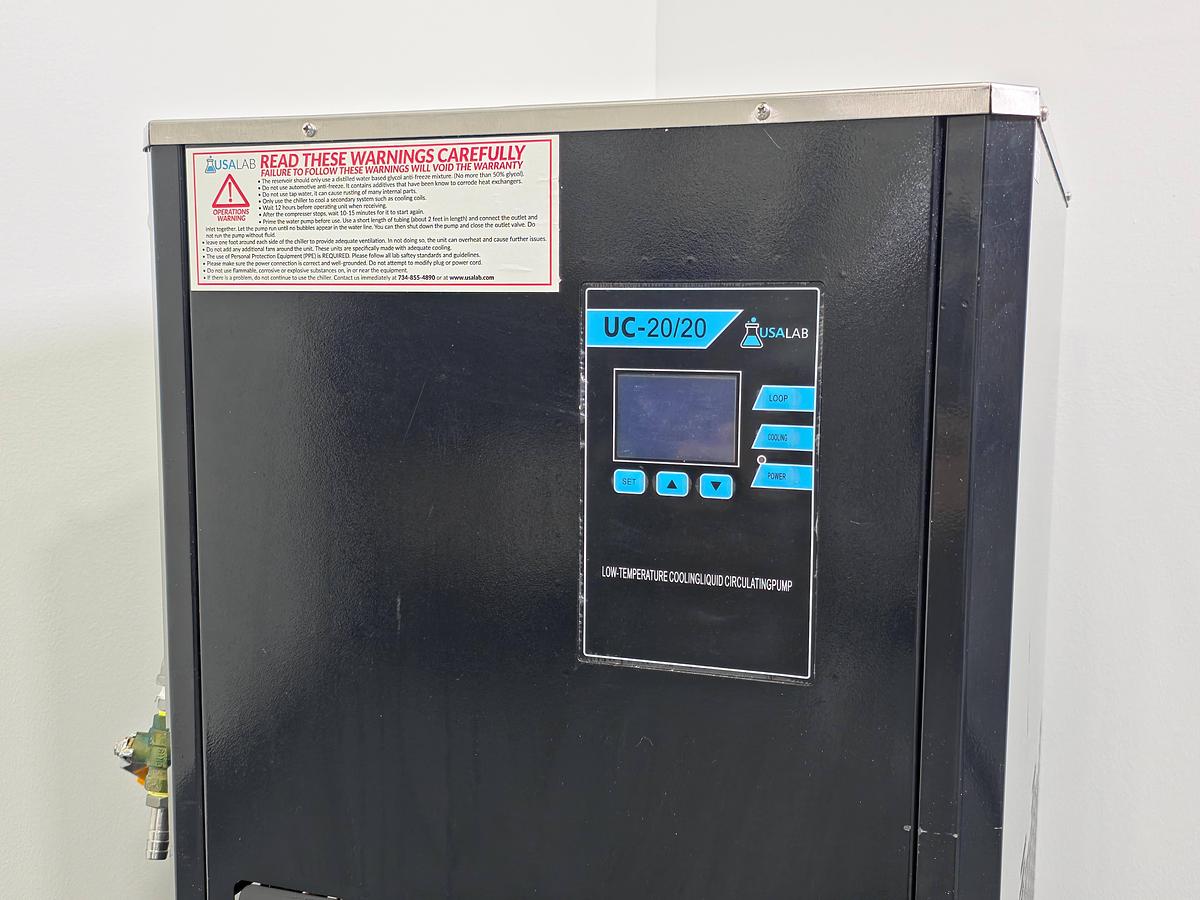

The USA Lab UC-20/20 is a high-performance, low-temperature liquid circulating chiller designed to support demanding laboratory and industrial processes. Operating on a robust 220V power supply, this unit delivers substantial cooling capacity (up to 3175W of refrigerating power) to efficiently manage exothermic reactions, rotary evaporators, jacketed reactors, or closed-loop extraction systems. It features an integrated LCD digital controller for precise temperature management, a heavy-duty stainless steel reservoir with tightly coiled internal cooling lines, and dedicated external inlet/outlet plumbing equipped with a manual ball valve for flow control.

Condition Notes

• Condition: Used / Visually Inspected.
• Functional Status: Visually inspected. The unit is fully intact, and the manufacturer's quality control tags indicate it passed factory testing ("TESTED 3/3/21"). Please note: Due to the 220V / 15A power requirement, we have not power-verified this specific unit on standard 120V benchtop outlets.

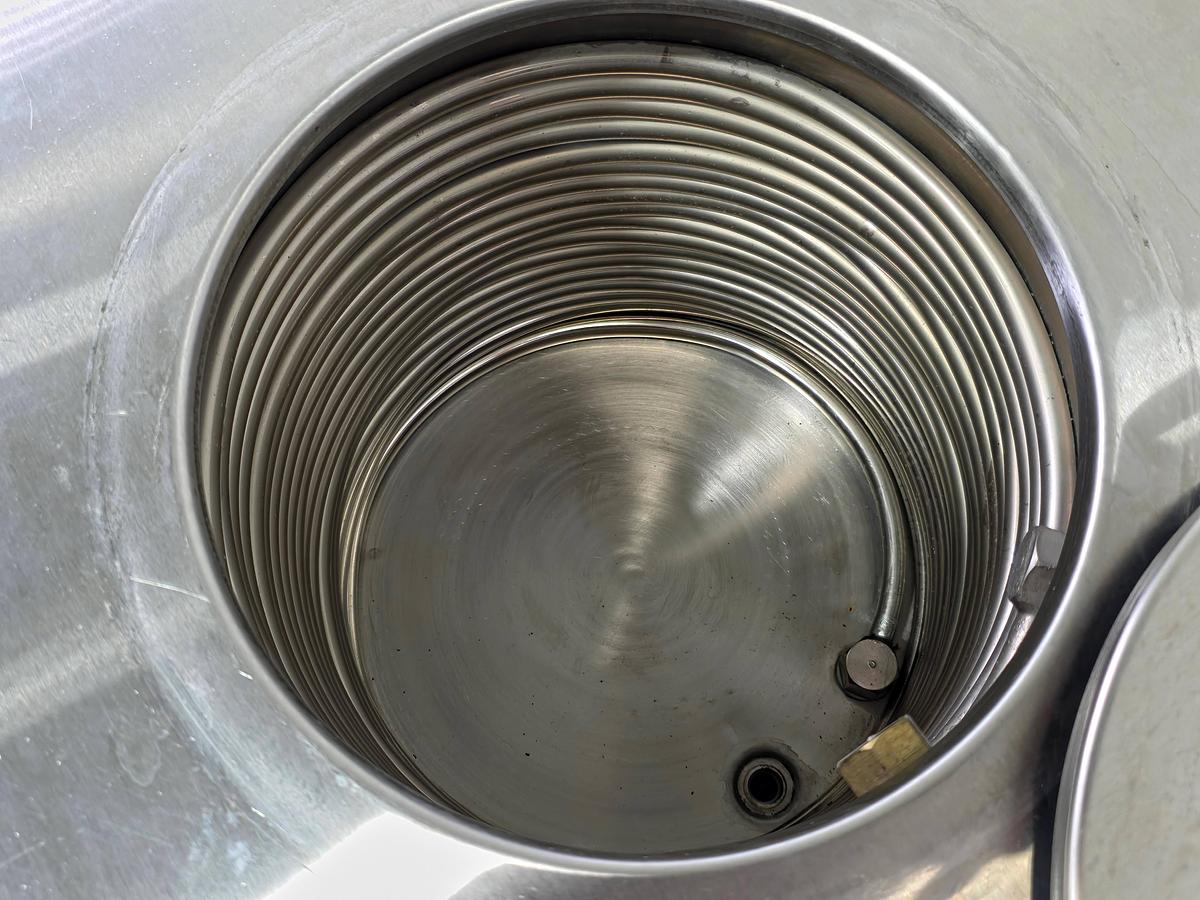

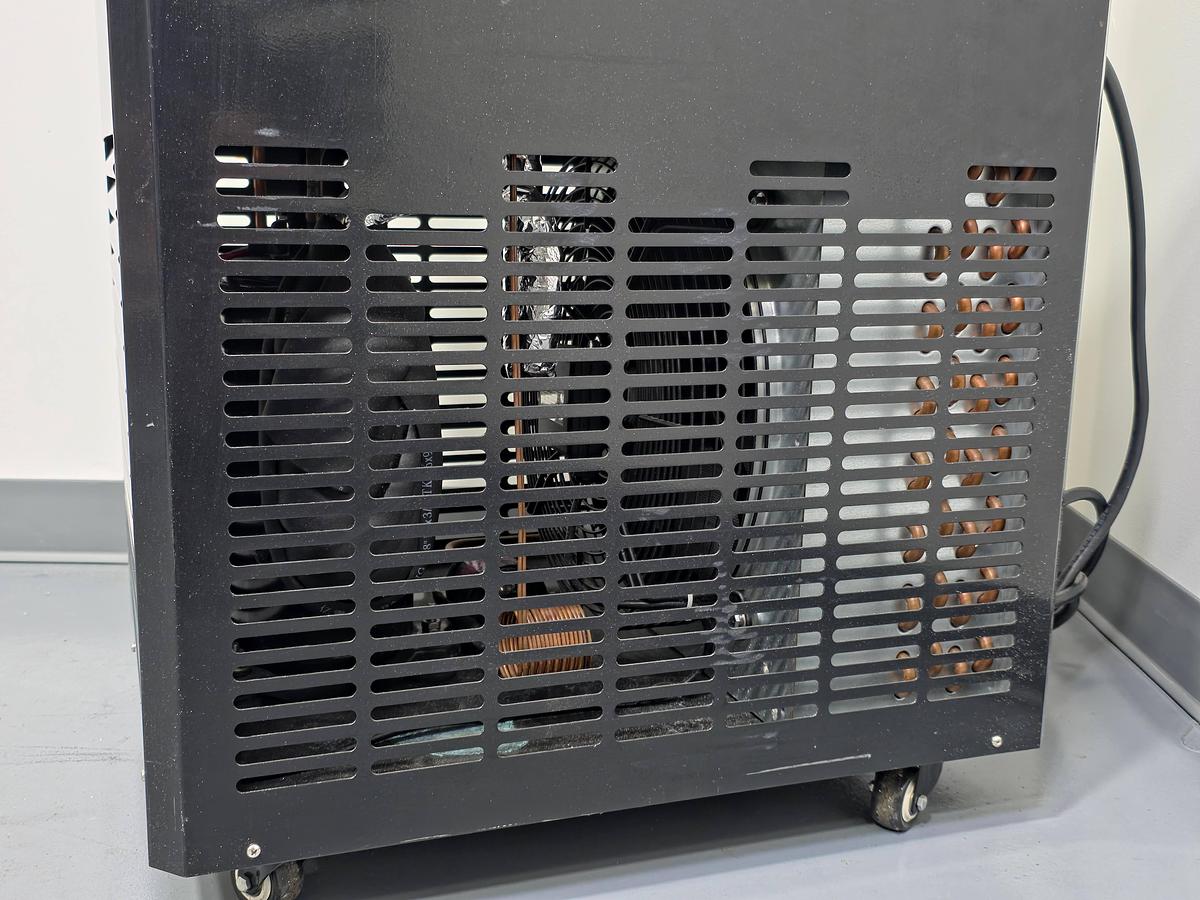

• Cosmetic Status: Good used condition. The black exterior housing is structurally sound, showing standard cosmetic wear, minor scuffs, and light scratches typical of industrial or floor-standing use. The internal stainless steel reservoir and heavy-duty cooling coils are exceptionally clean, showing no signs of scaling, heavy corrosion, or fluid degradation. The unit is mounted on four multi-directional casters for easy mobility.

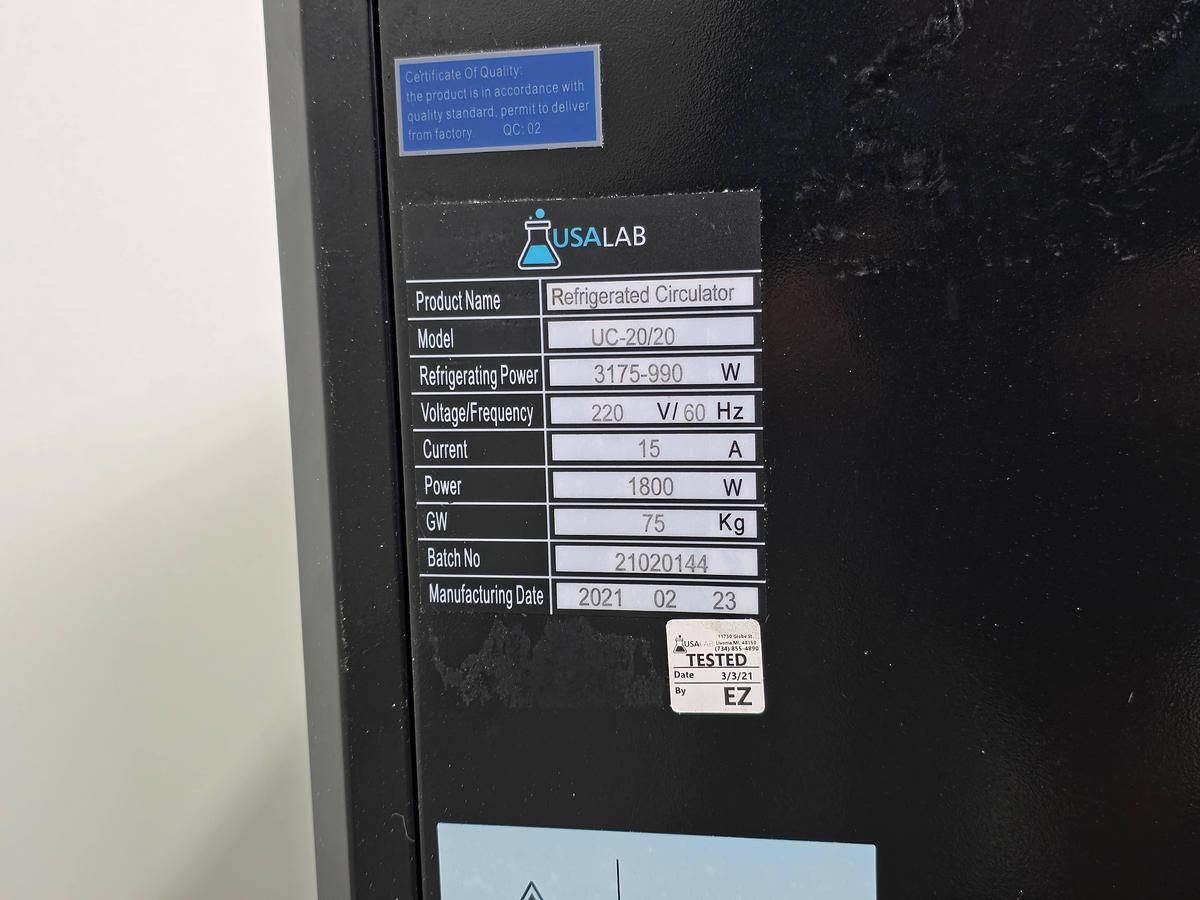

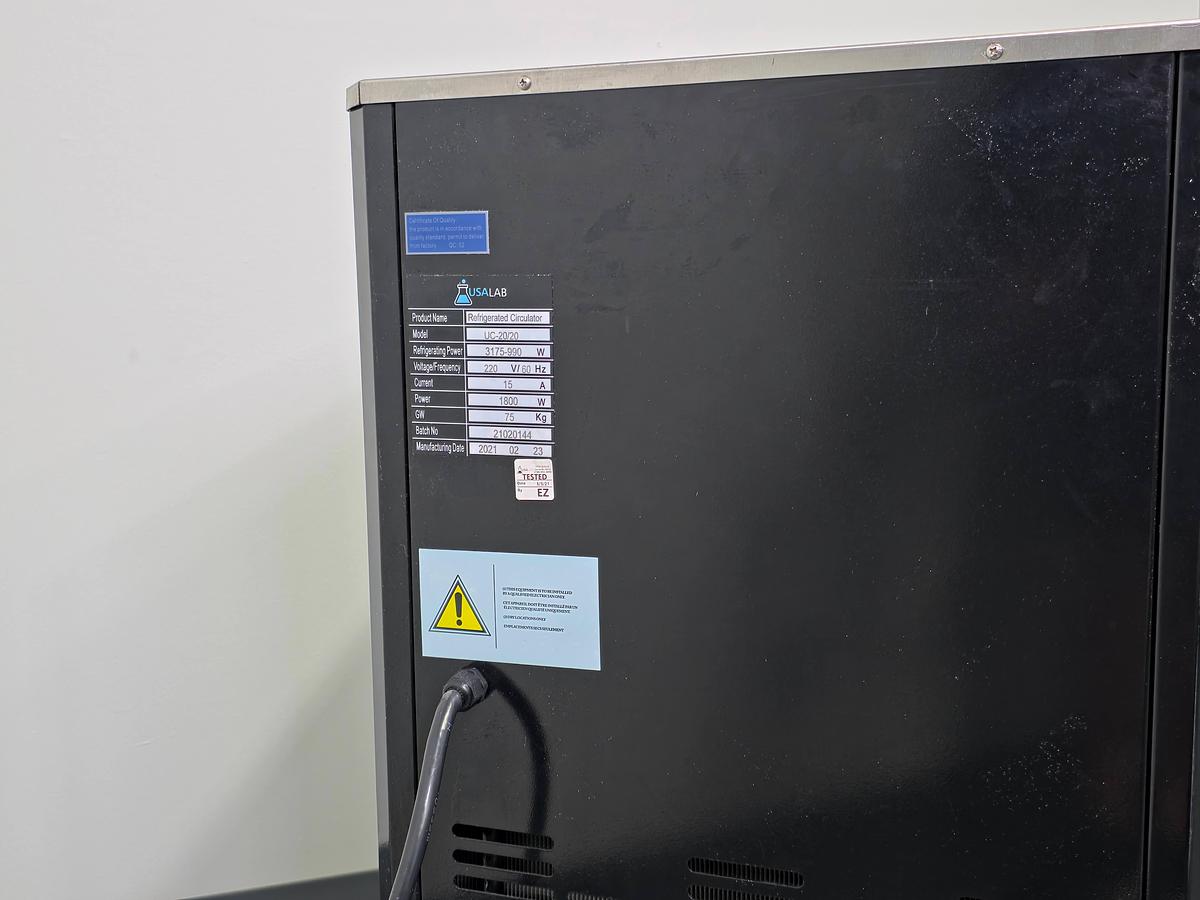

• Batch Number: 21020144
• Manufacturing Date: February 23, 2021

Technical Specifications

• Brand: USA Lab
• Model: UC-20/20
• Equipment Type: Low-Temperature Refrigerated Circulator
• Refrigerating Power: 3175 - 990 W
• Total Power Consumption: 1800 W
• Plumbing Connections: Inlet Barb / Outlet Barb with inline shut-off ball valve
• Power Requirements: 220 V | 60 Hz | 15 A | Single Phase
• Weight: 75 Kg (Gross Weight)

Included in this Package

• (1) USA Lab UC-20/20 Refrigerated Circulator Base Unit
• (1) Stainless Steel Reservoir Lid
• (1) Attached 220V Power Cord

LT969
