OEM Trinocular Compound Brightfield Microscope 40X-1000X (w/ Reticle Eyepiece)

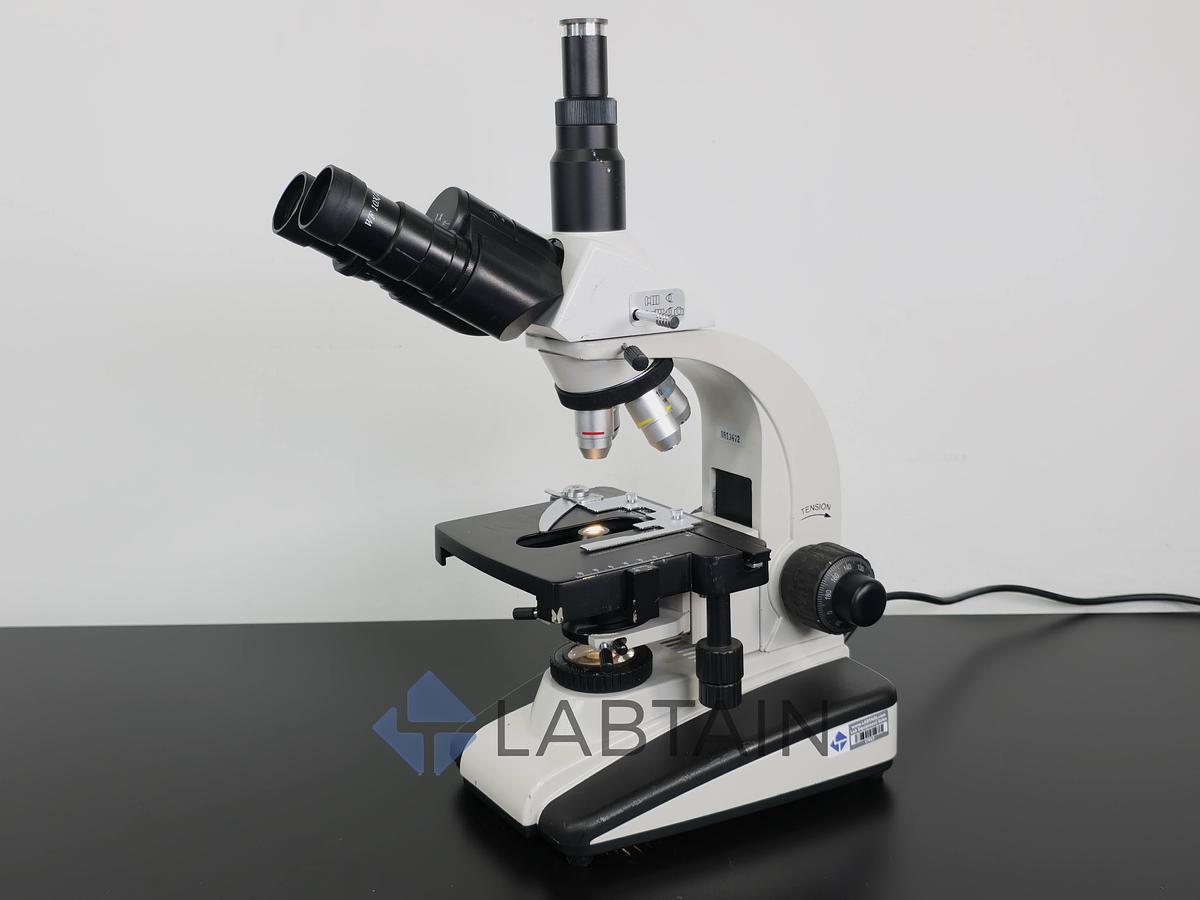

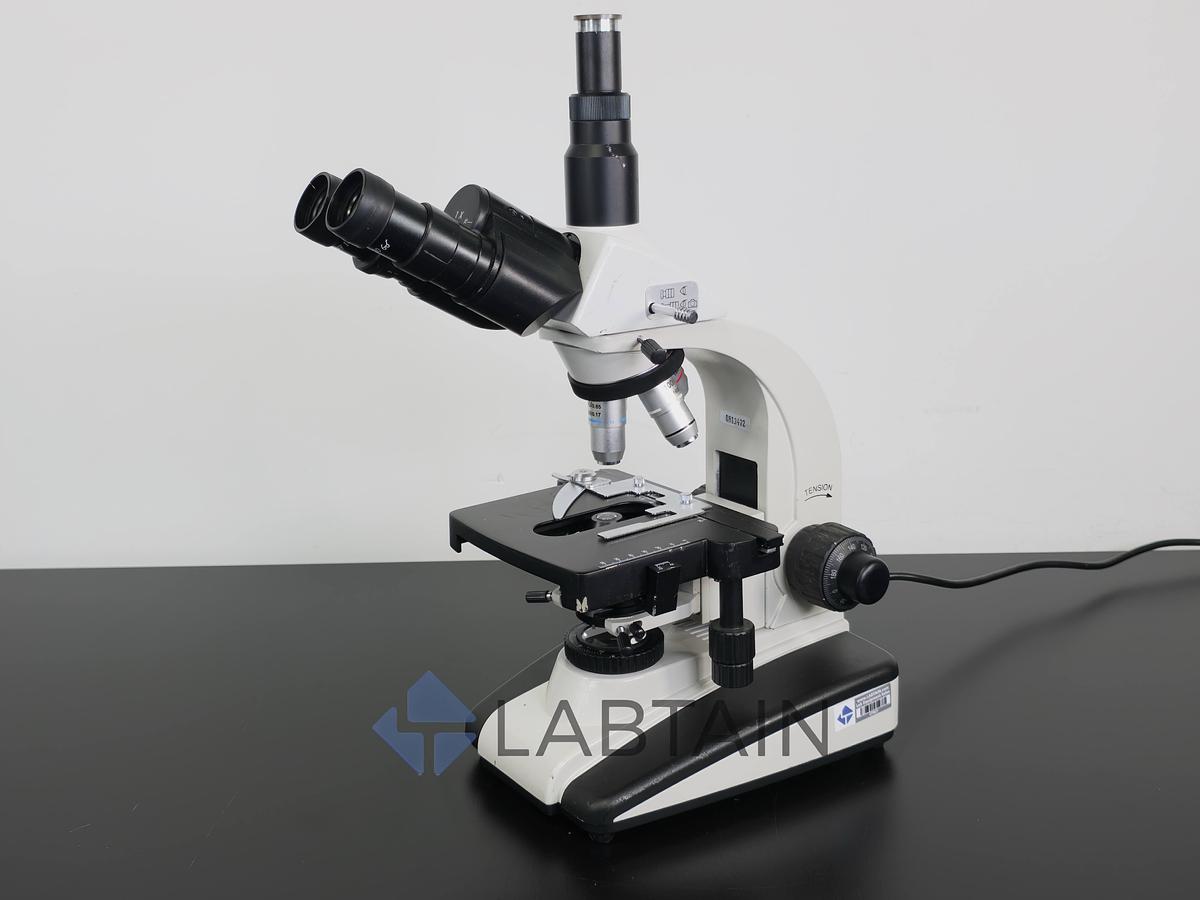

This is a robust, unbranded OEM trinocular compound microscope designed for brightfield applications. Built with a heavy cast-metal frame and a reliable coaxial coarse/fine focusing mechanism, it serves as an excellent workhorse for educational laboratories, veterinary clinics, or amateur microscopy. It features a dedicated trinocular port equipped with a 15X crosshair reticle eyepiece for targeting or measurement. The system utilizes industry-standard 160mm DIN achromatic objectives, an N.A. 1.25 condenser, and provides bright, adjustable halogen illumination.

Condition Notes

• Condition: Used / Inspected & Power-Verified.
• Functional Status: Visually and mechanically inspected. The unit successfully powers on, and the halogen illumination system is fully operational. The mechanical stage X-Y translation knobs and the coaxial coarse/fine focus knobs turn smoothly without binding.

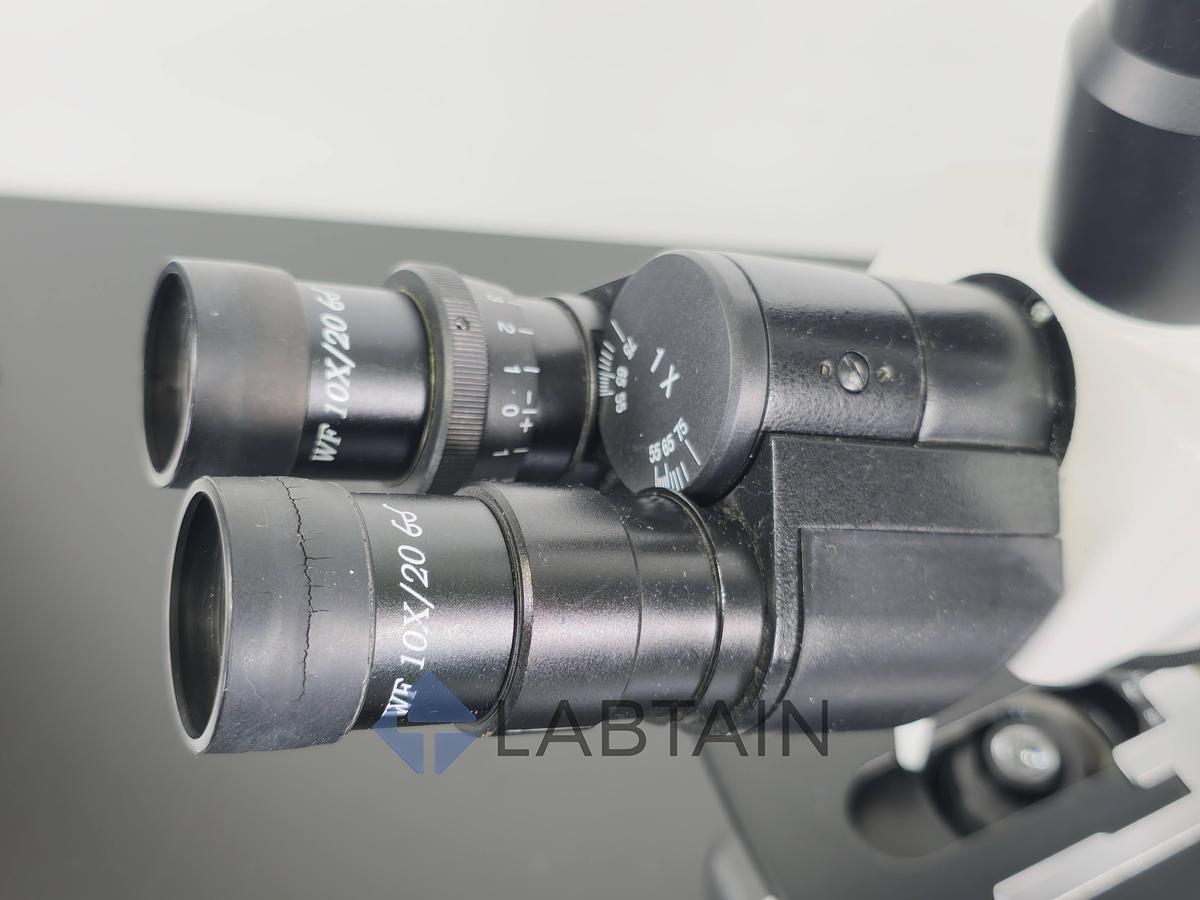

• Cosmetic Status: Good used condition. The white and black exterior casing shows standard cosmetic wear, including minor scuffs on the base and stage edges. Please note: The rubber eyecups on the two primary WF 10X/20 eyepieces are severely dry-rotted and cracked, though the glass optics remain clear.
• Serial Number: 0813472

Technical Specifications

• Brand: Unbranded / OEM
• Equipment Type: Trinocular Compound Microscope
• Optical System: Finite 160mm Mechanical Tube Length (DIN)
• Viewing Head: Trinocular (Adjustable interpupillary distance)
• Primary Eyepieces: Pair of WF 10X/20

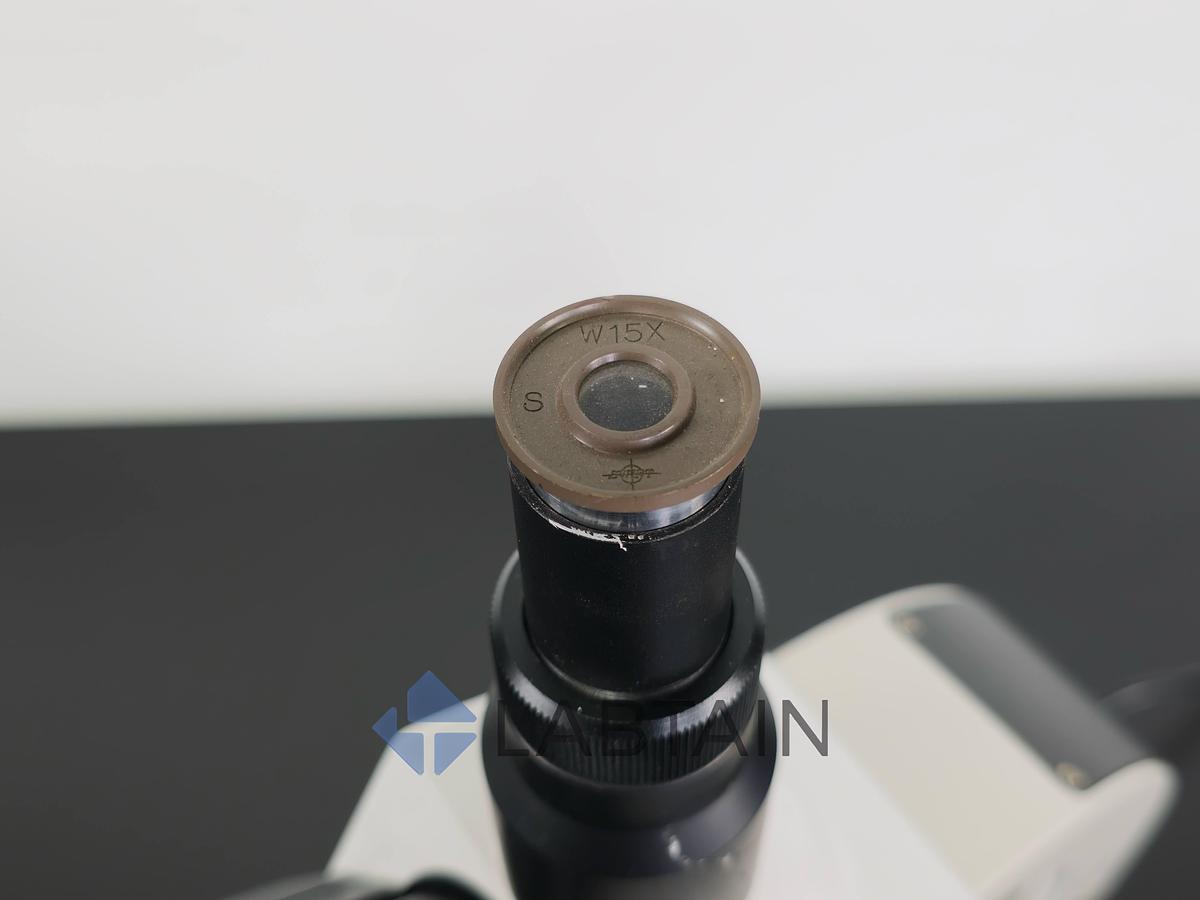

• Trinocular Eyepiece: W15X with crosshair reticle

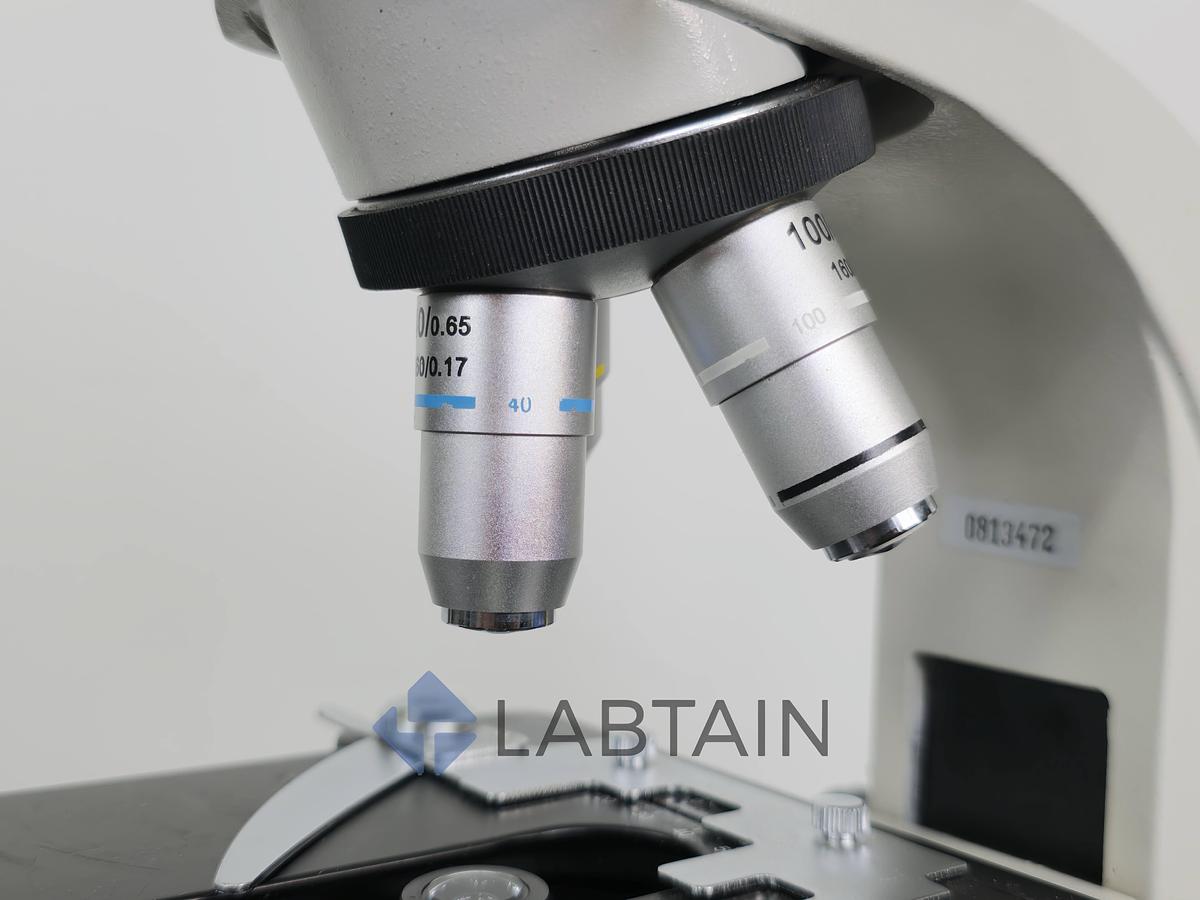

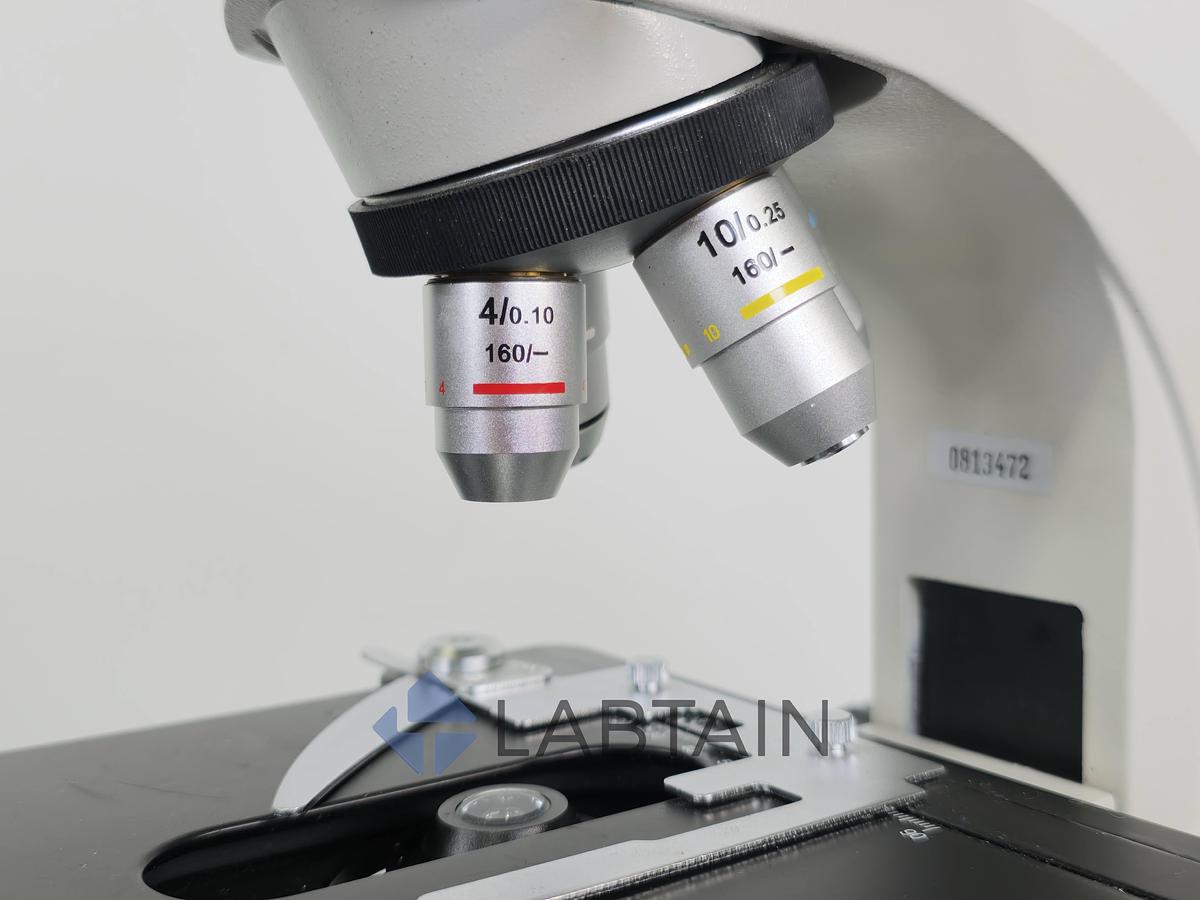

• Objectives: 4 Achromatic Lenses
• 4 / 0.10 (160/-)
• 10 / 0.25 (160/-)
• 40 / 0.65 (160/0.17)
• 100 / 1.25 Oil (160/0.17)

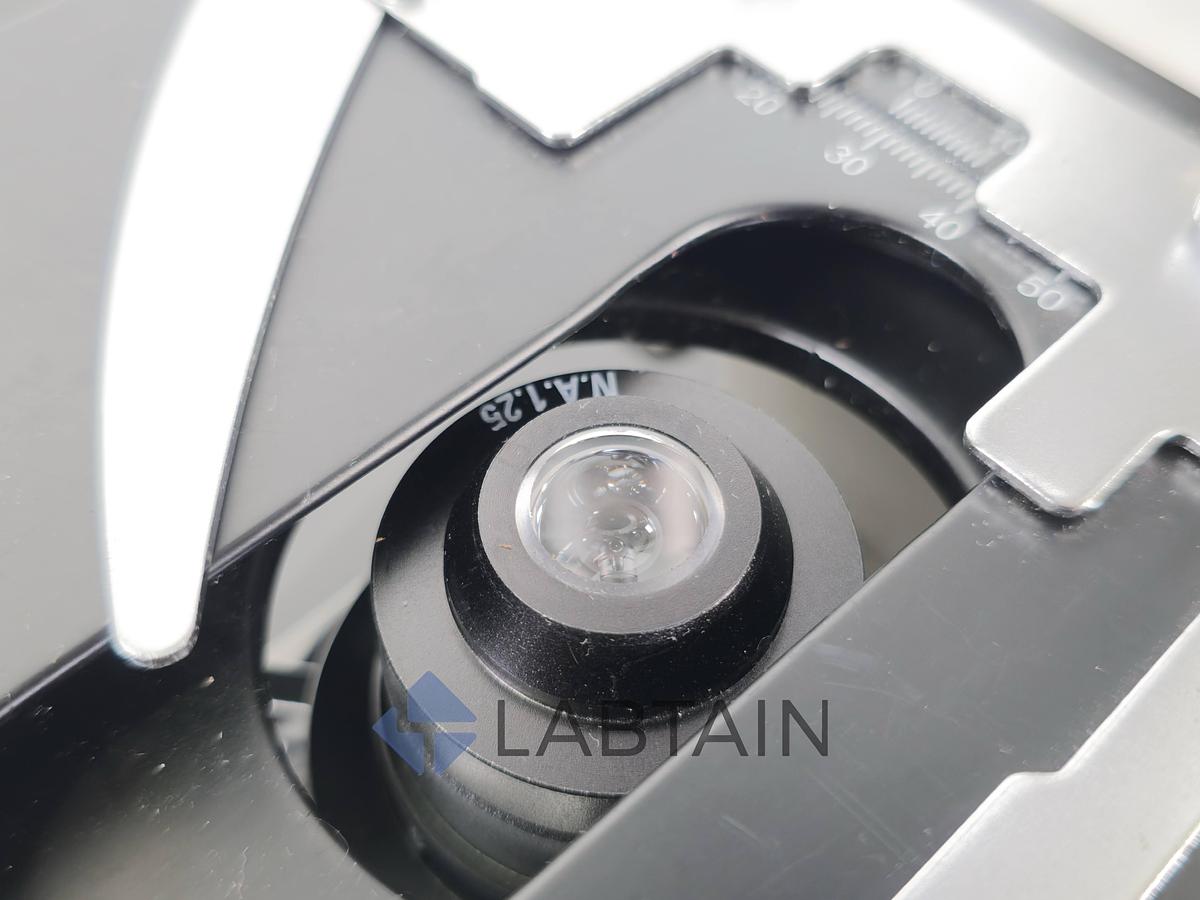

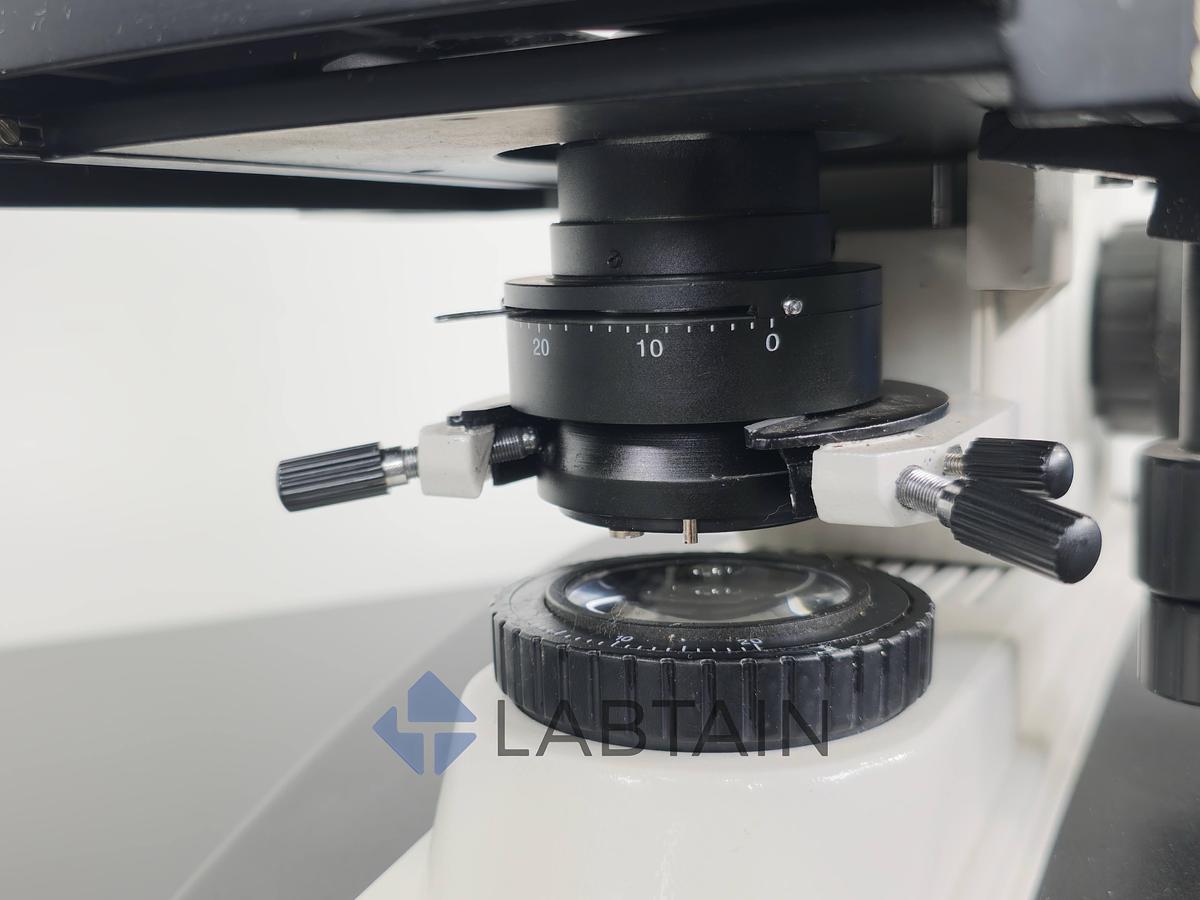

• Condenser: N.A. 1.25 with Iris Diaphragm

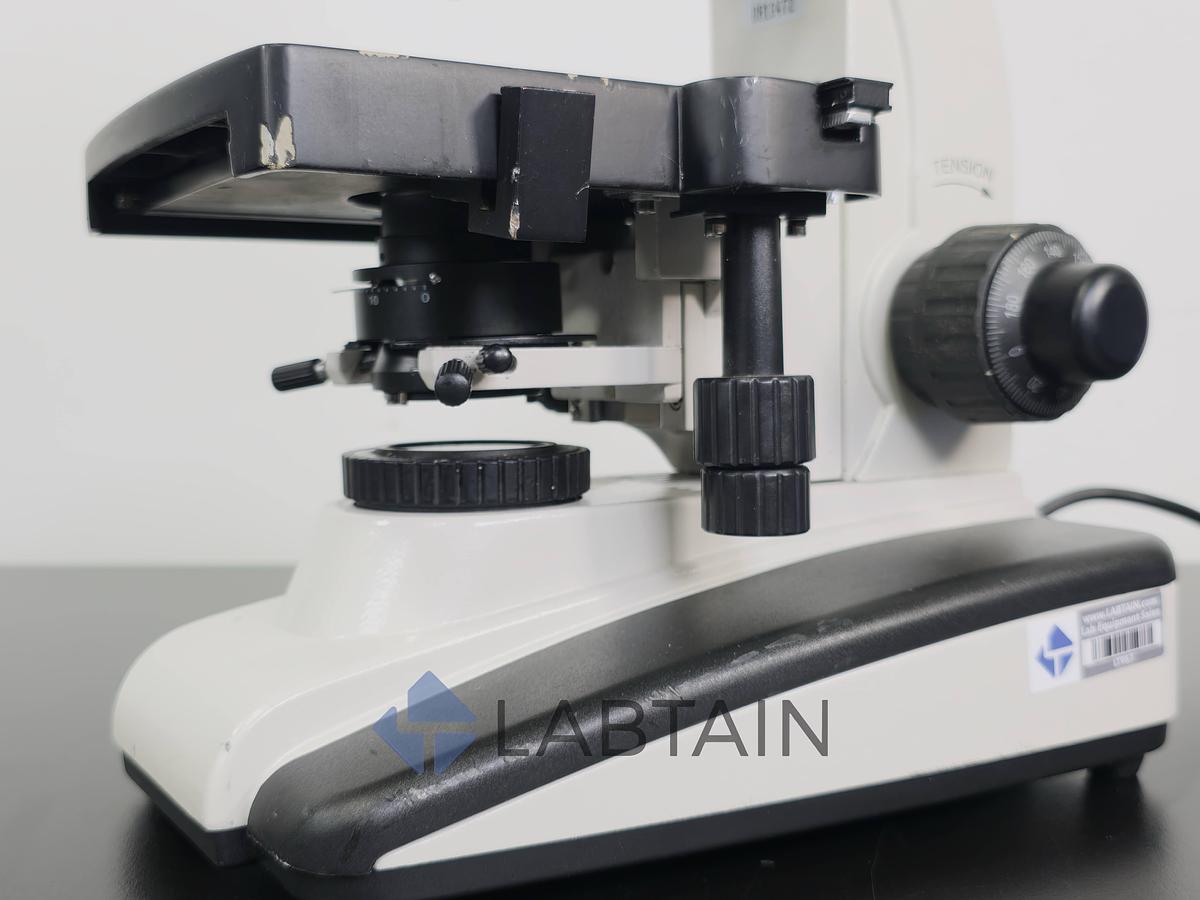

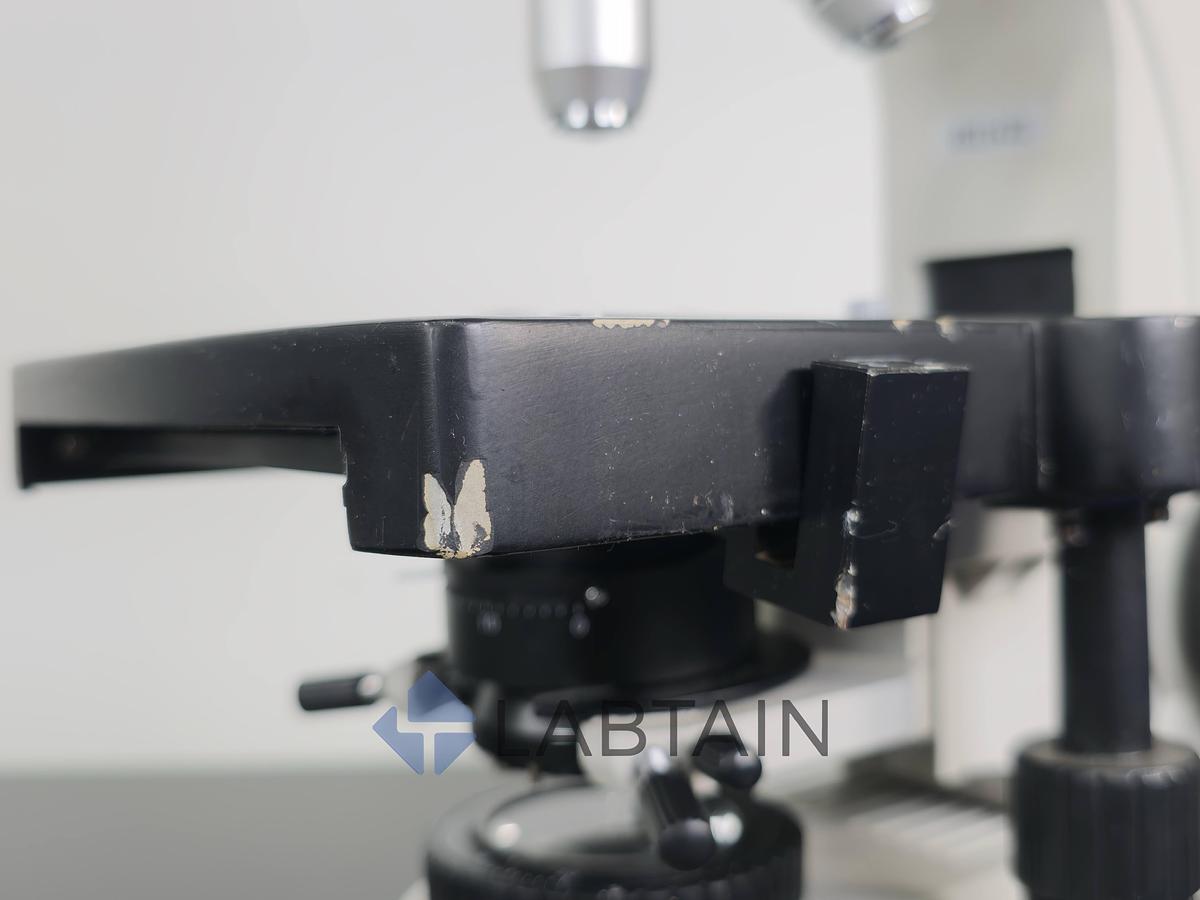

• Stage: Double-layer mechanical stage with slide holder

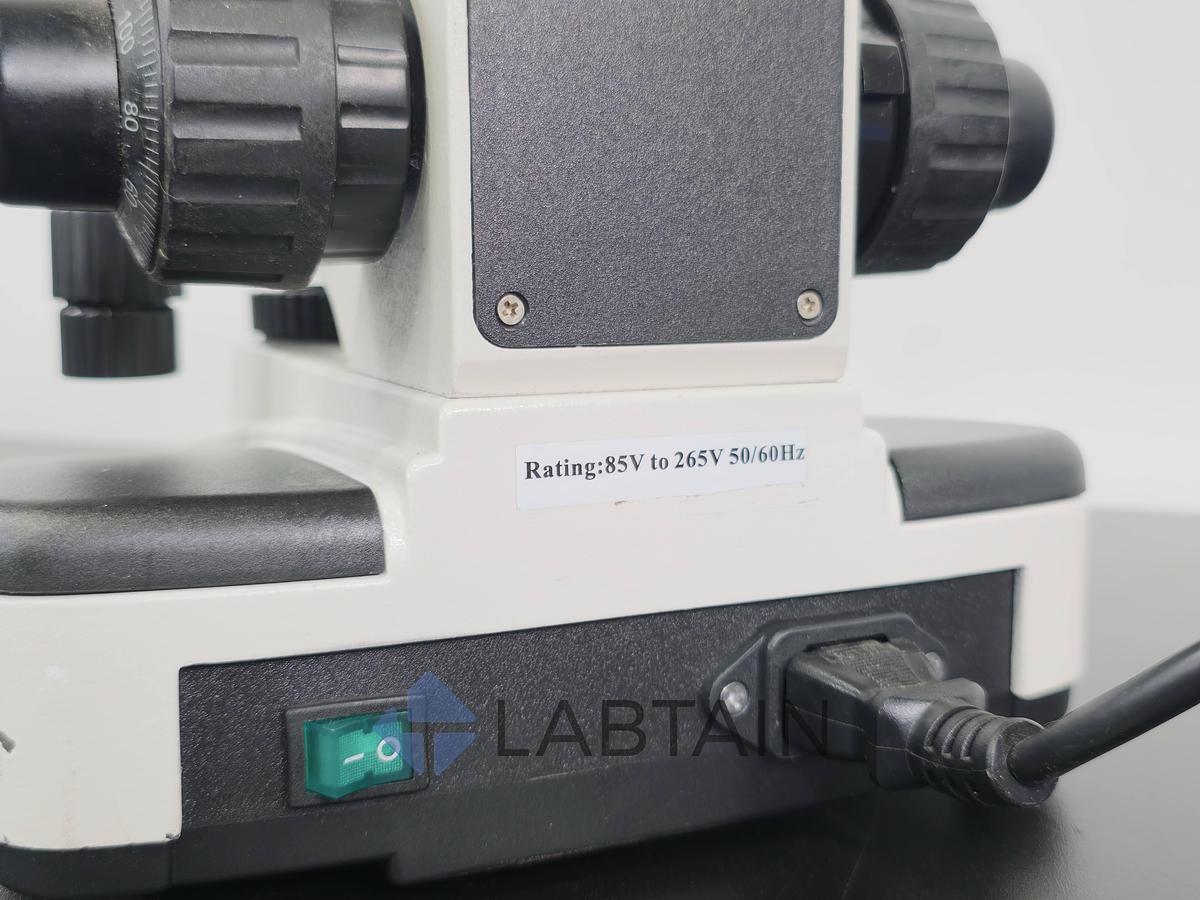

• Power Requirements: Universal 85V - 265V | 50/60Hz

Included in this Package

• (1) OEM Trinocular Compound Microscope Base
• (2) WF 10X/20 Eyepieces (Cracked eyecups)
• (1) W15X Reticle Eyepiece
• (4) DIN Achromatic Objectives (4x, 10x, 40x, 100x)

LT957-T8
