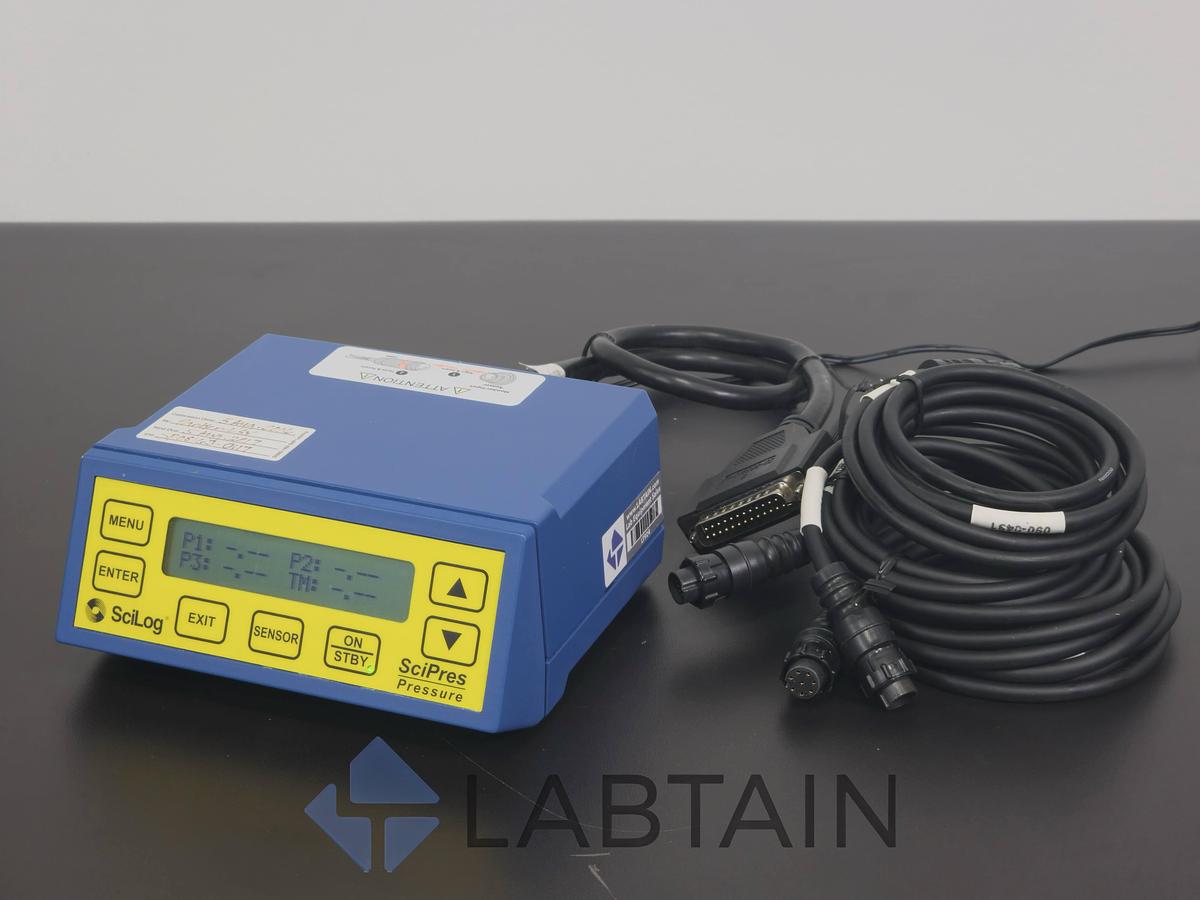

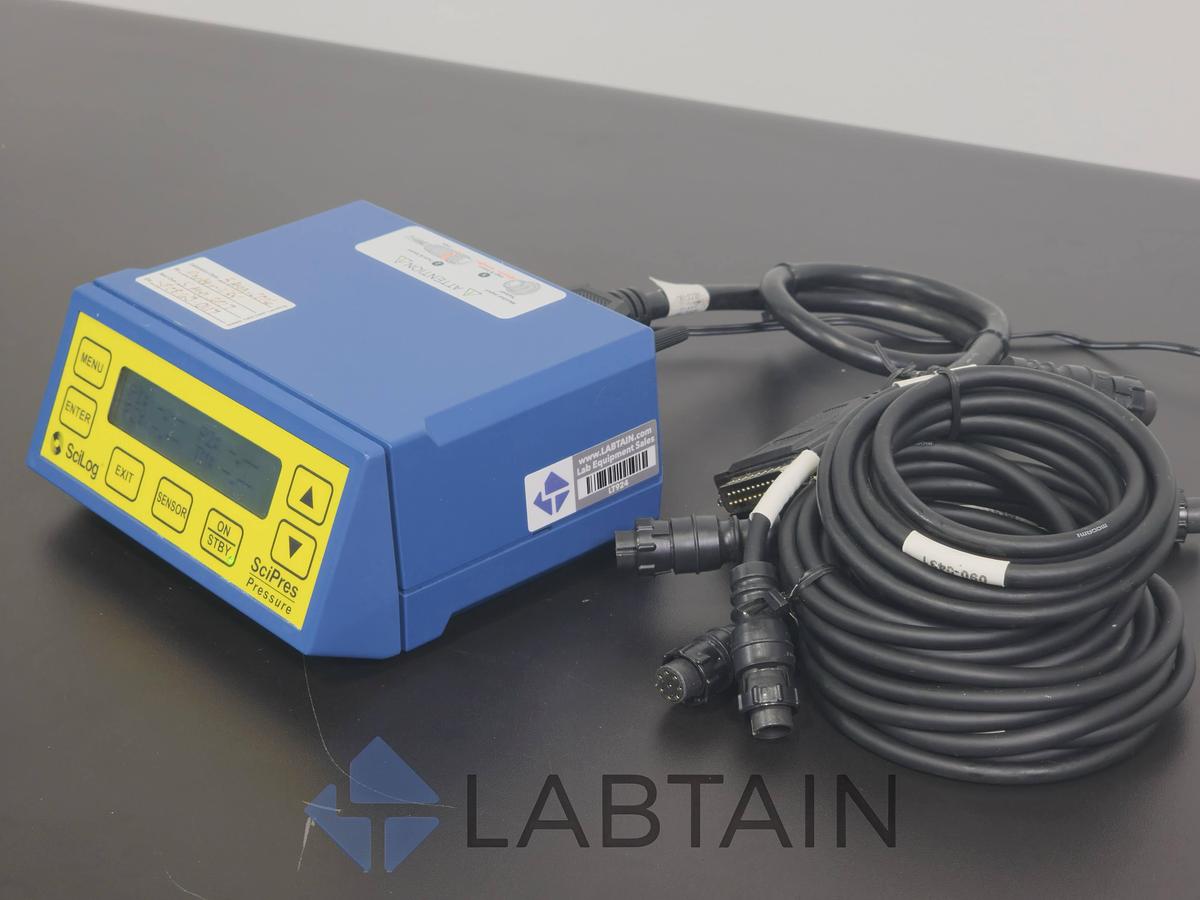

SciLog SciPres Tri-Channel Pressure Monitor System w/ Interface Cable

The SciLog SciPres (now part of Parker Hannifin) is a high-precision, medical-grade pressure monitor explicitly designed for bioprocessing, tangential flow filtration (TFF), normal flow filtration (NFF), and automated chromatography applications. It is capable of simultaneously monitoring up to three single-use pressure sensors (P1, P2, P3) in real time. The system features user-programmable alarms and limits, allowing it to safely interface with external pump systems to prevent over-pressurization and membrane ruptures. The rear panel is heavily equipped with communication ports, including RS-232, RS-485, and a multi-pin output, allowing for seamless integration into larger PLC networks or automated data logging systems.

Condition Notes

• Condition: Used / Inspected & Power-Verified.
• Functional Status: Visually and mechanically inspected. The unit successfully draws power, indicated by the illuminated green LED on the ON/STBY button. The front digital LCD screen illuminates clearly and displays standard null readings (P1: -.- P2: -.- P3: -.- TM: -.-), confirming the internal firmware is active and awaiting sensor input.
• Cosmetic Status: Very good used condition. The blue exterior housing and yellow membrane keypad are exceptionally clean and fully intact. The rear connection ports are undamaged, and the green RS-485 terminal block is present.

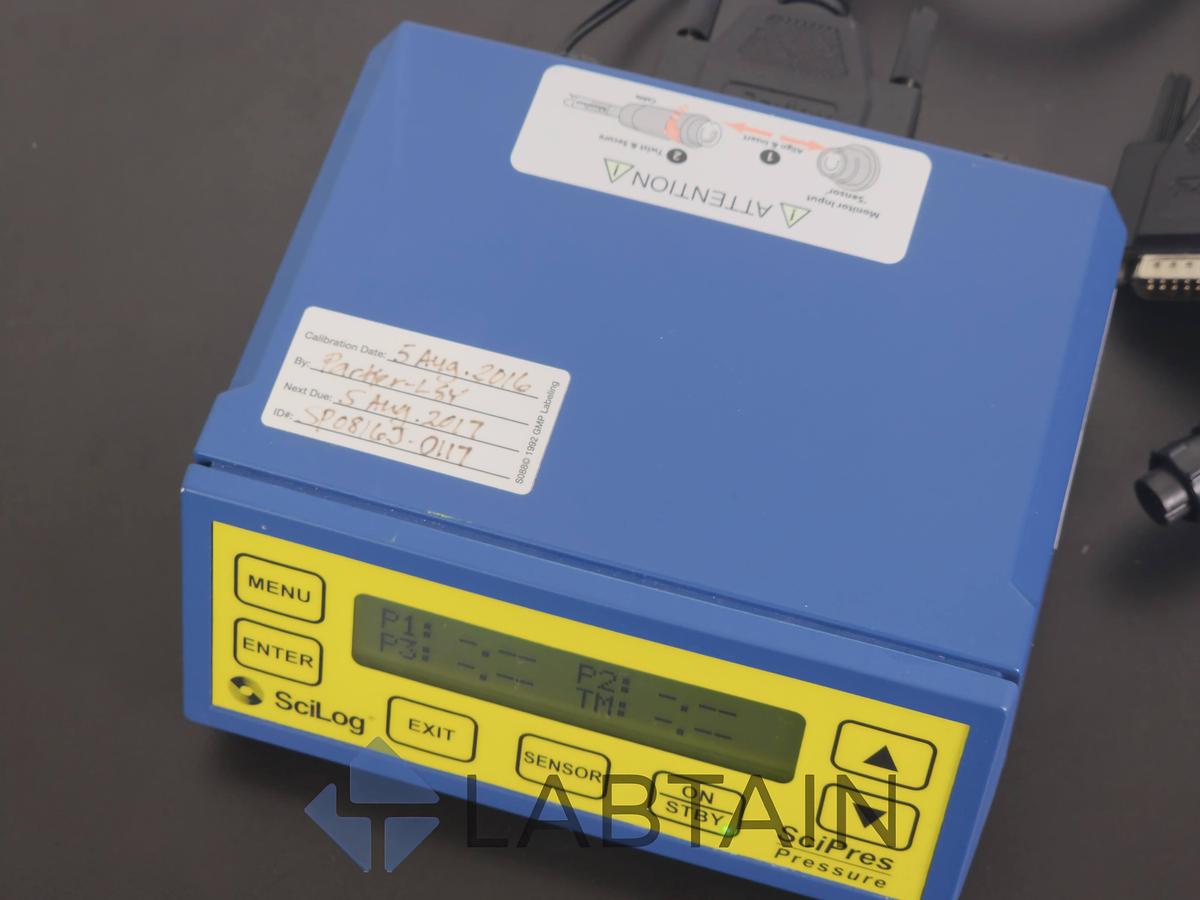

• Maintenance History: Features an expired GMP calibration sticker from Parker-LSG (Last Calibrated: Aug 5, 2016).

Technical Specifications

• Brand: SciLog (Parker Hannifin)
• Model: SciPres Pressure
• Equipment Type: Tri-Channel Bioprocessing Pressure Monitor
• Sensor Inputs: 3x Circular 8-Pin Ports (P1, P2, P3)

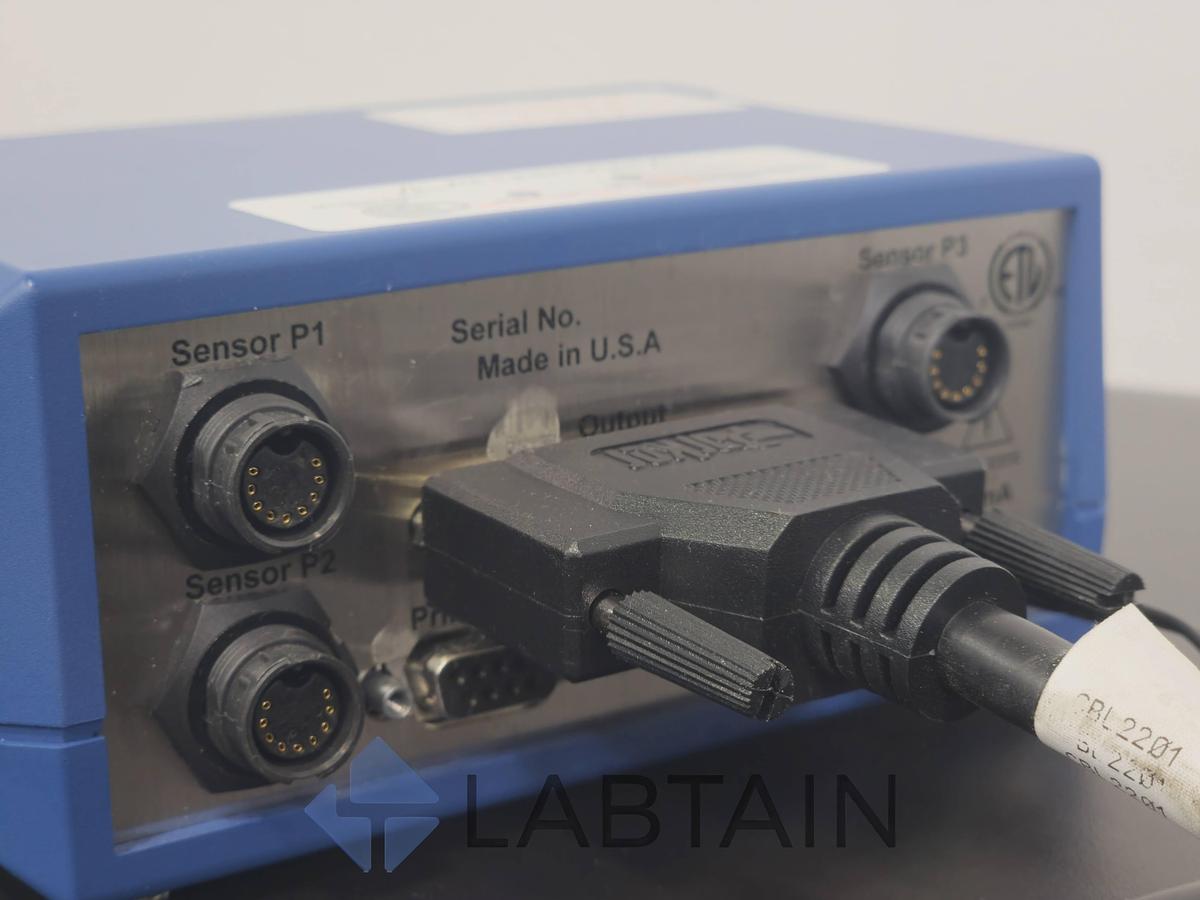

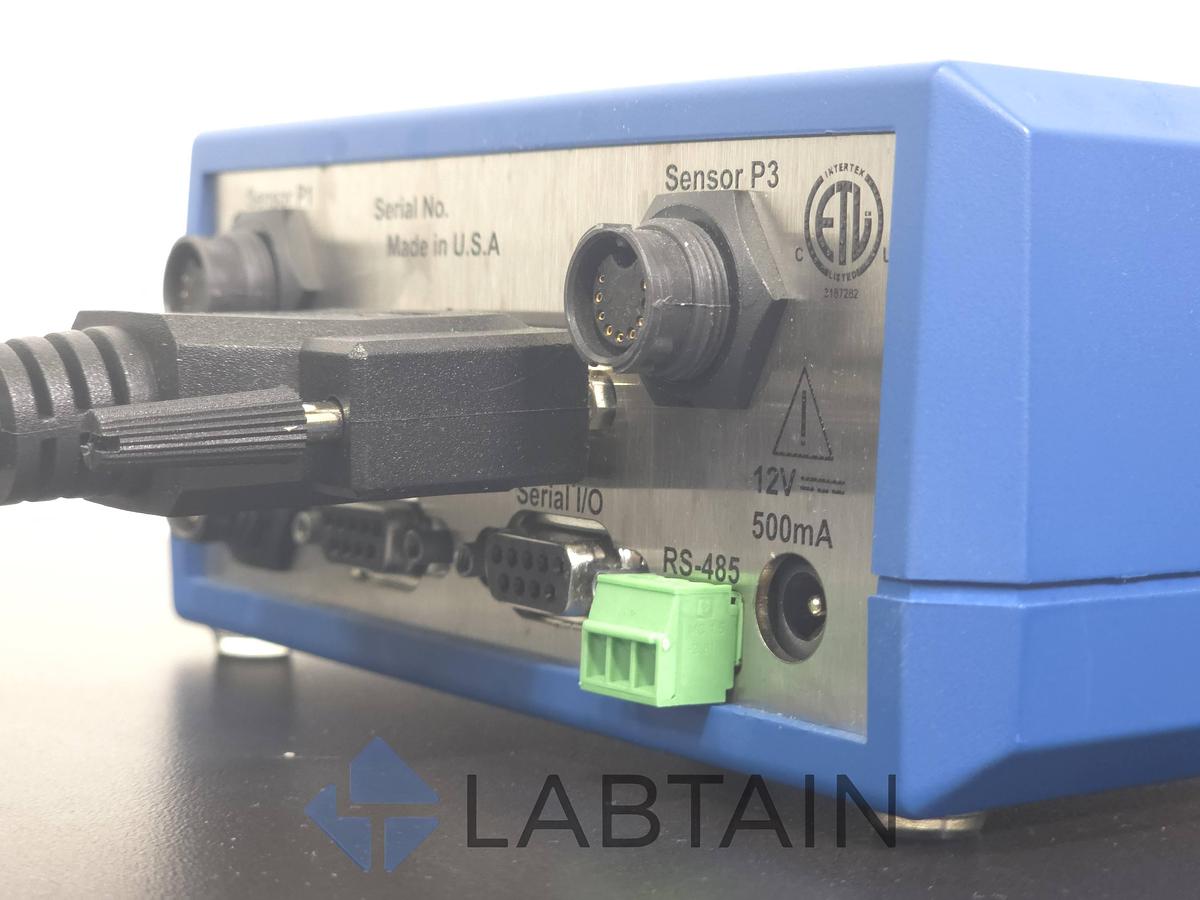

• Data Interfaces: Serial I/O (RS-232), Print Port, RS-485 Terminal Block, DB25 Output
• Power Requirements: 12V DC | 500mA
• Manufacturing Origin: Made in U.S.A.

Included in this Package

• (1) SciLog SciPres Tri-Channel Pressure Monitor

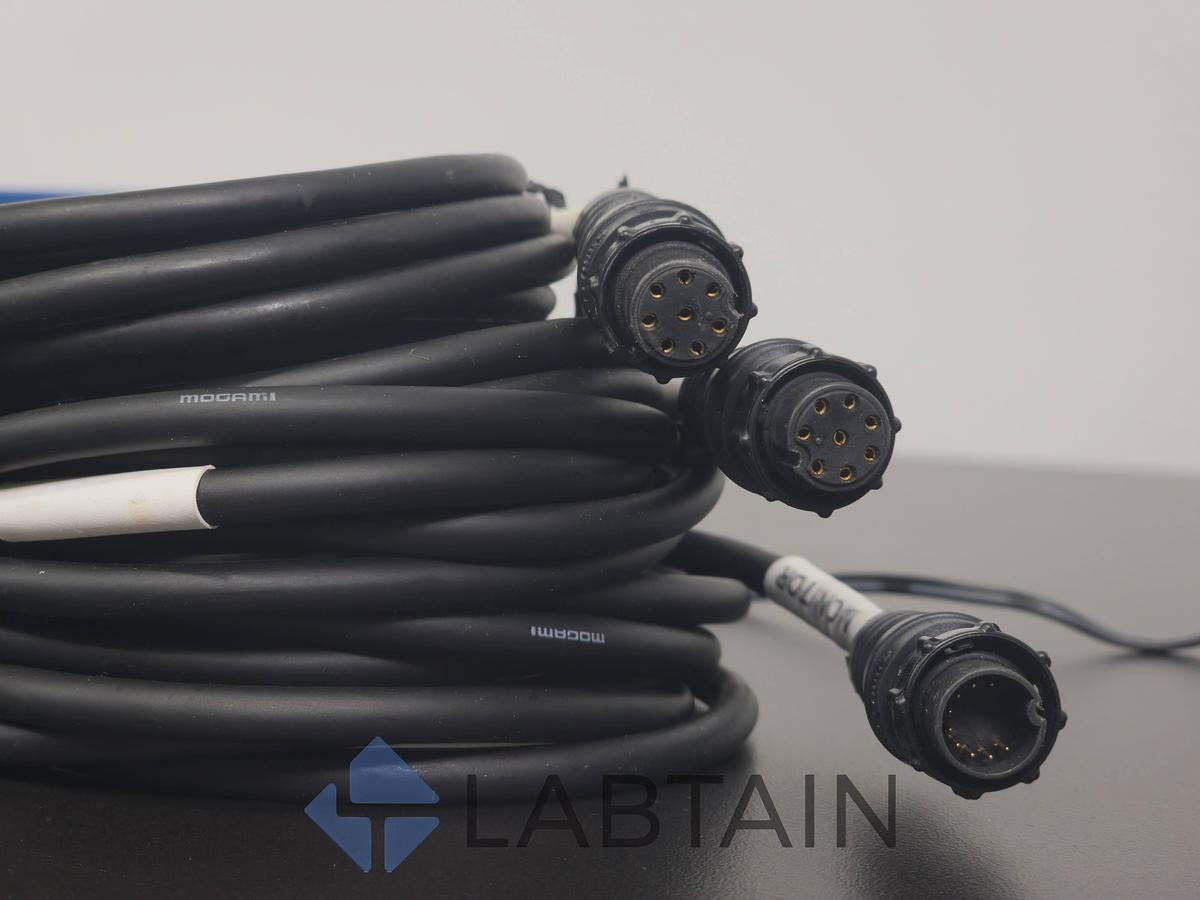

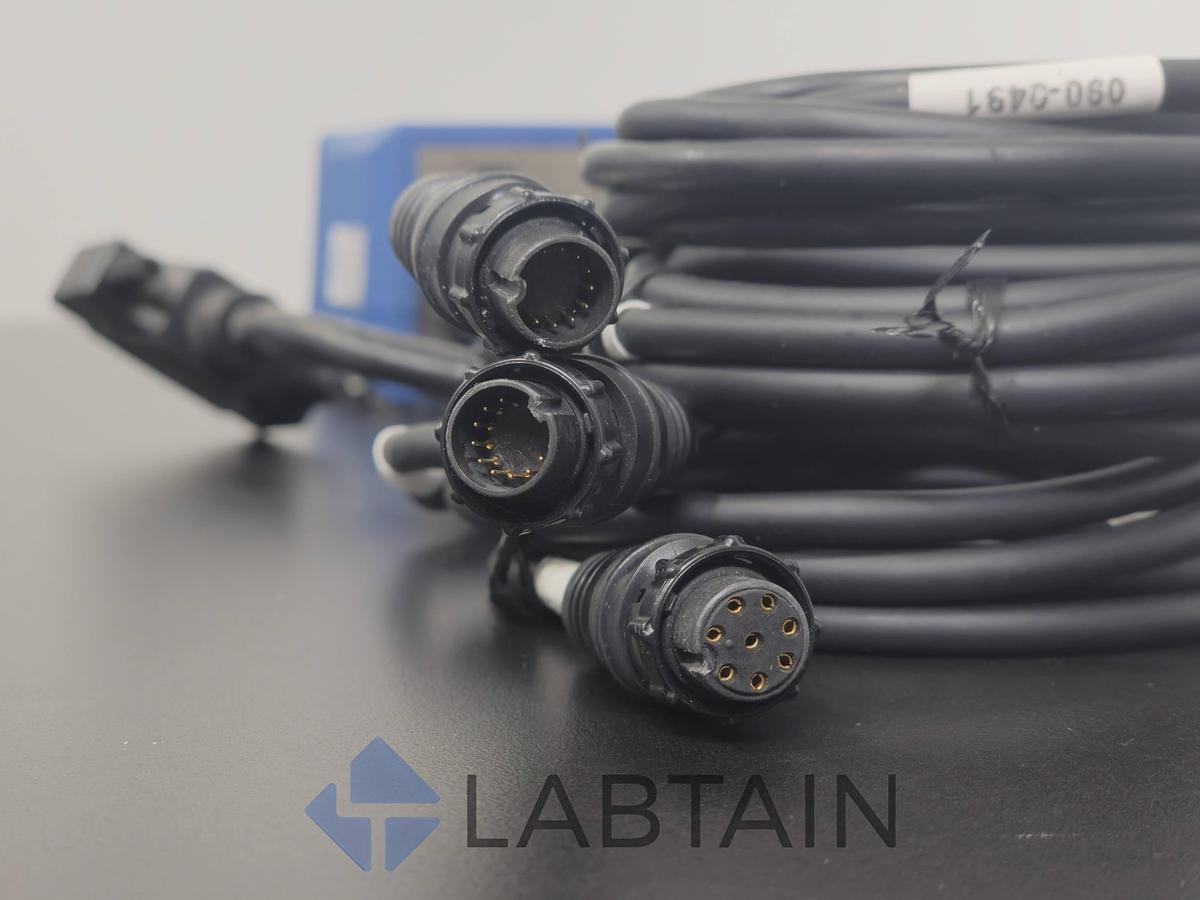

• (1) Heavy-Duty Mogami DB25 to Triple 8-Pin Interface Cable
• (1) Compatible 12V DC Power Supply
• (Note: Single-use pressure sensors and fluidic tubing are NOT included).

LT924-F16
