Keyence VHX-950F Digital Microscope System — VH-Z100R 100×–1000× Lens, VHX-S90F Motorized Free-Angle Stand (Used)

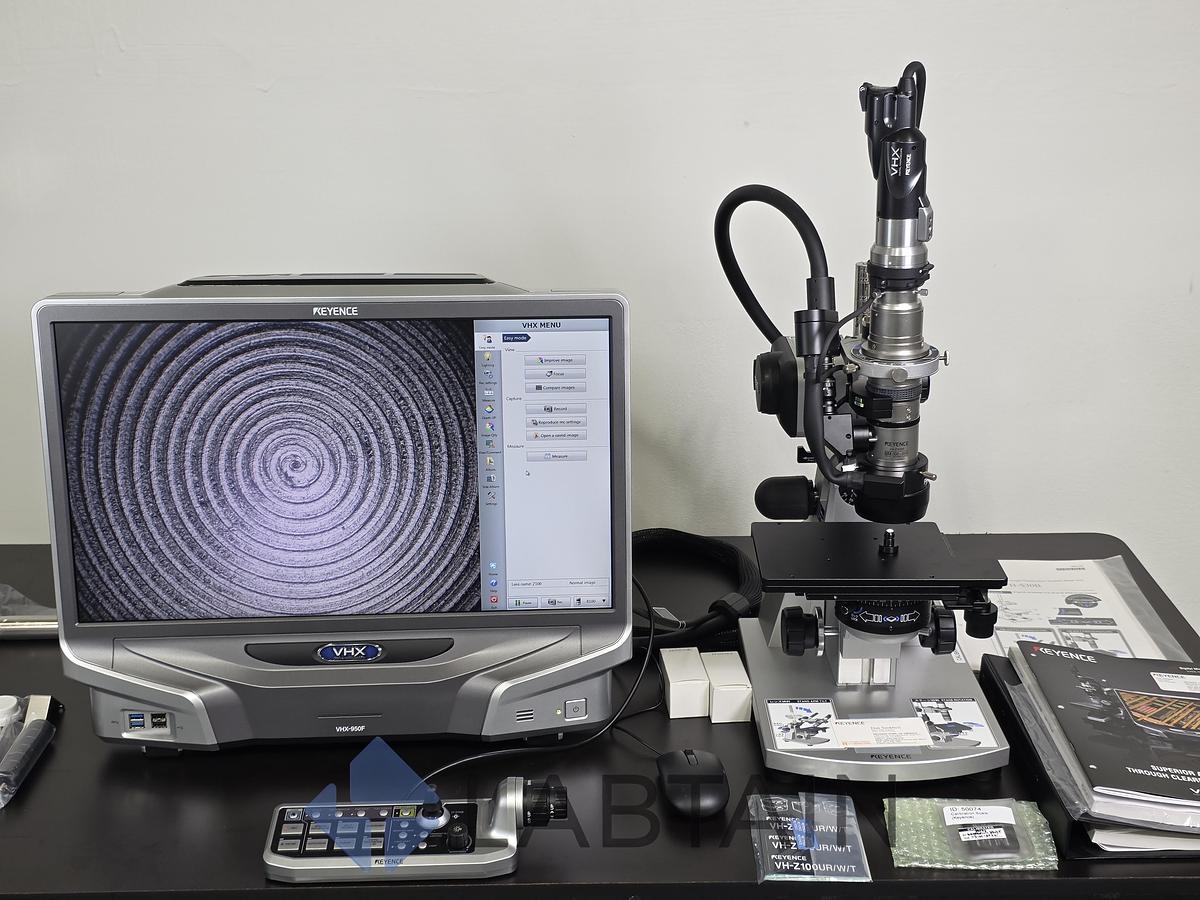

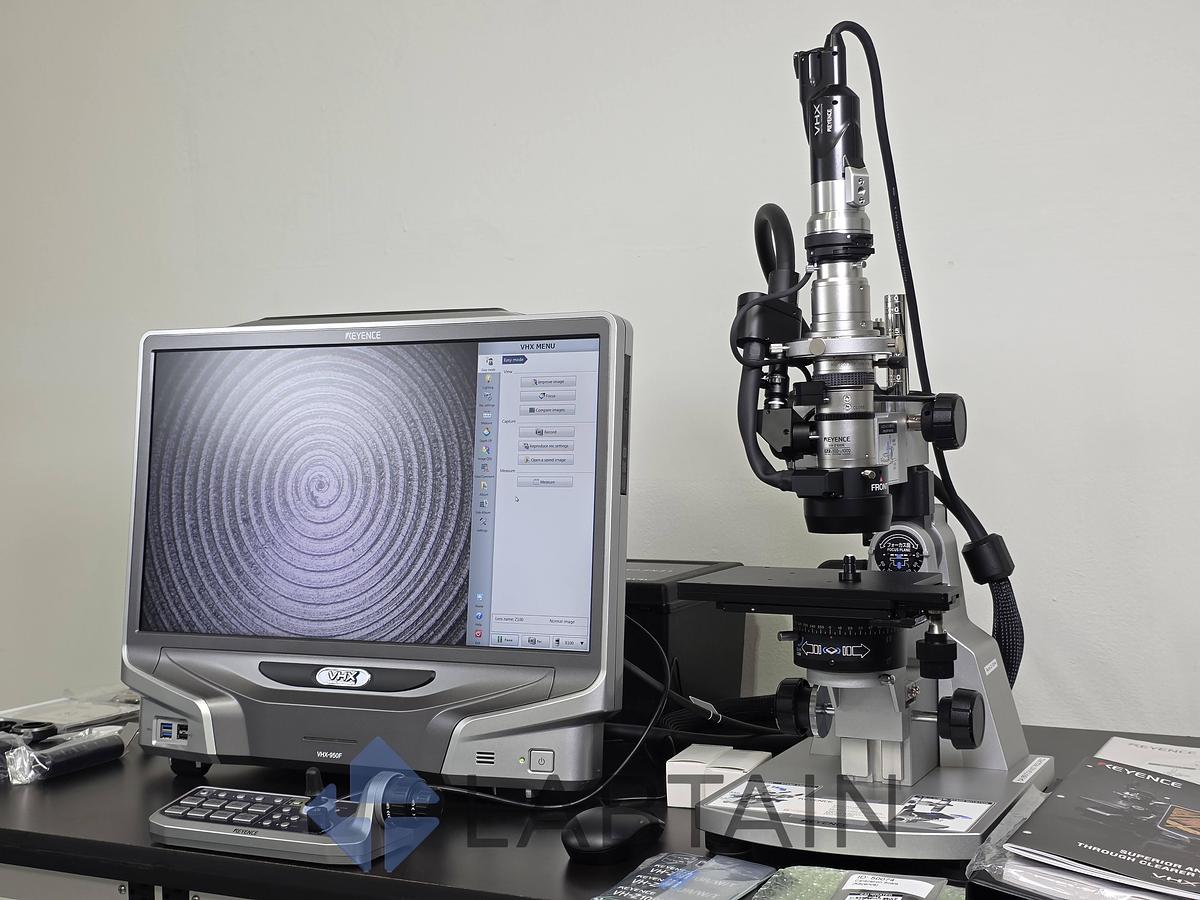

The Keyence VHX-950F is a high-resolution, all-in-one digital microscope that consolidates imaging, measurement, and reporting into a single self-contained station — no external computer required. It's a workhorse for quality control, failure analysis, R&D, and incoming inspection in electronics, semiconductor, metals, plastics, and medical-device environments.

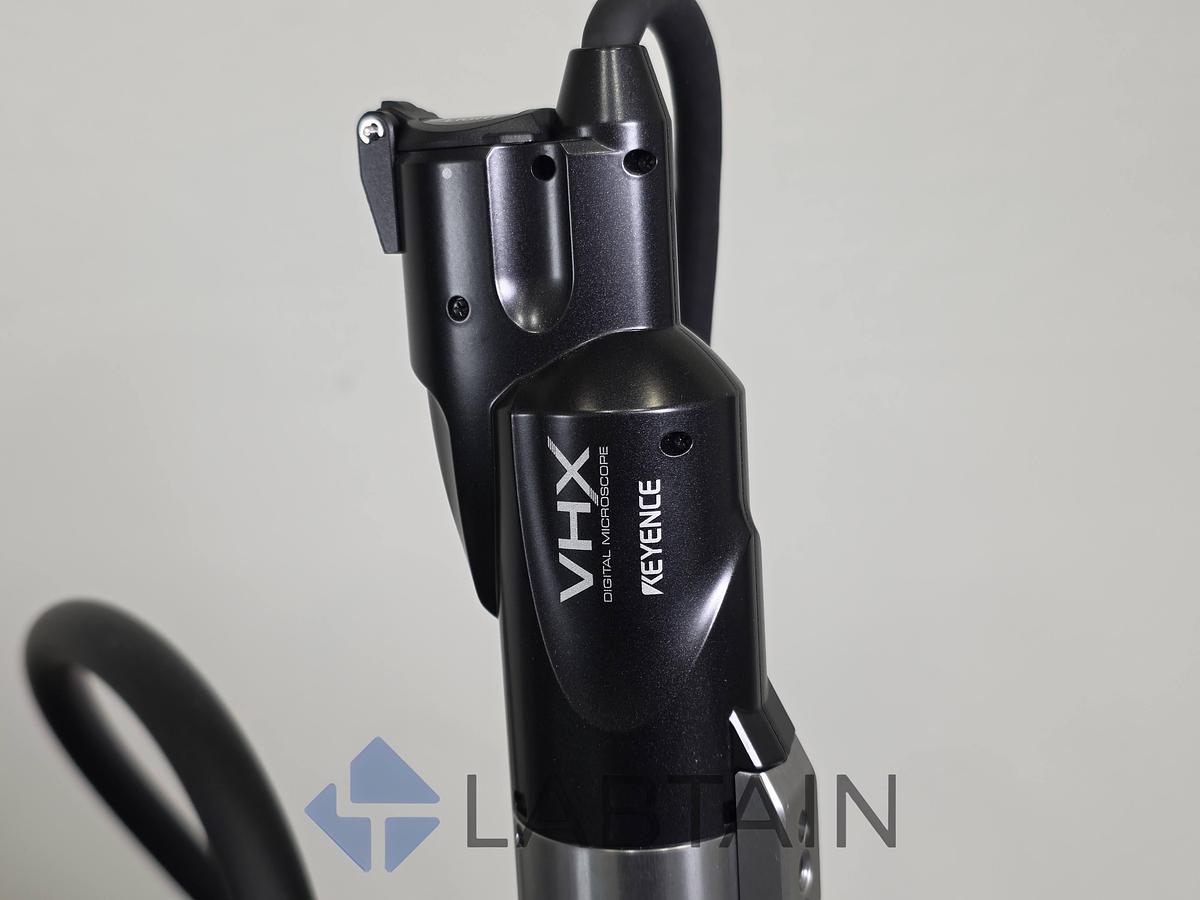

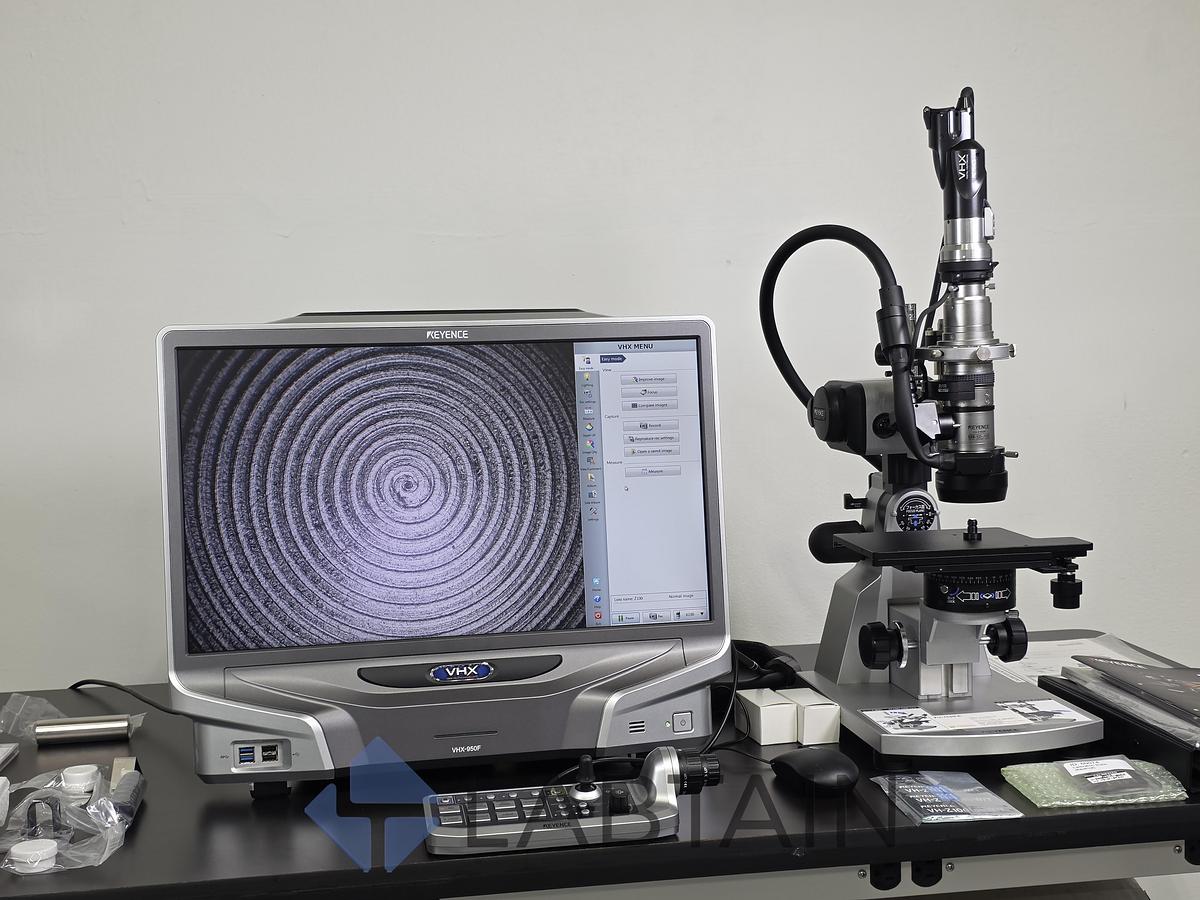

This system is configured with the VH-Z100R wide-range zoom lens (100×–1000×) and the VHX-S90F free-angle motorized stand, delivering eucentric multi-angle observation: the camera and lens tilt around the sample while the stage rotates, keeping the point of interest centered without re-fixturing. The motorized Z-axis enables repeatable focusing and Keyence's real-time depth composition, producing fully-focused images of subjects that conventional optics can only render in part. The camera/lens assembly also detaches for handheld inspection of oversized parts.

On the analysis side, the VHX-950F supports calibrated on-screen 2D measurement, 3D profile and height measurement, automated image stitching, glare removal, and side-by-side image comparison — with results exported over USB or LAN for documentation.

Technical Specifications

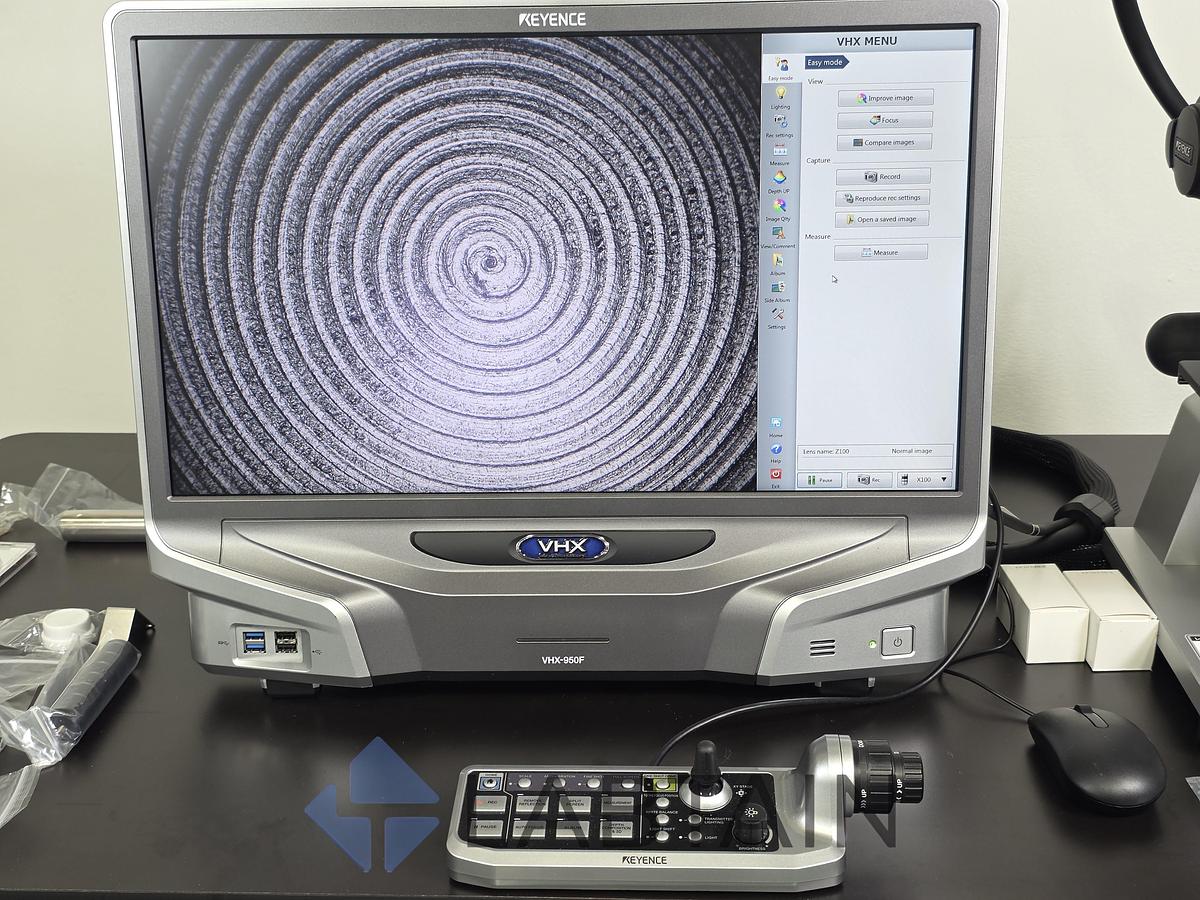

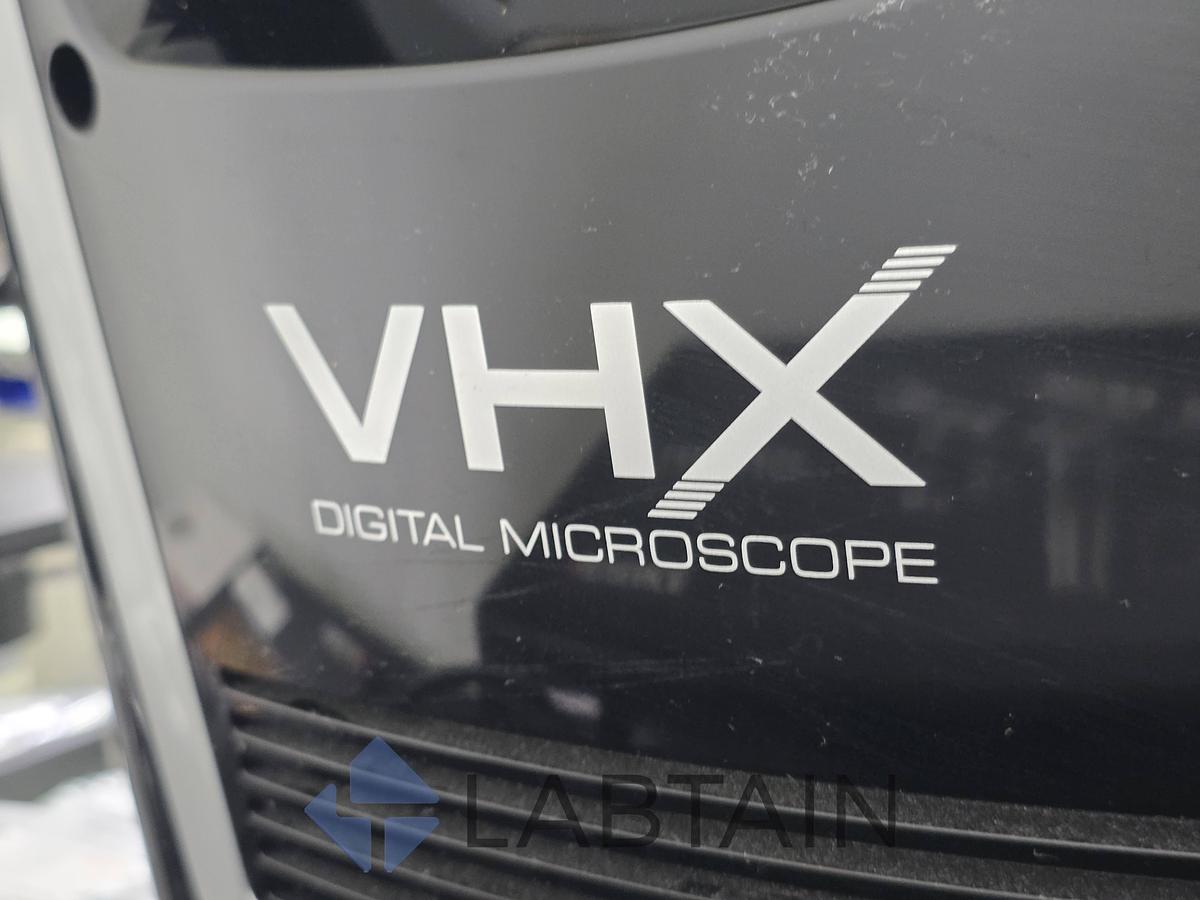

• Controller: VHX-950F, all-in-one with integrated 23″ LCD monitor
• Image sensor: 1/1.8″ CMOS, 1600 × 1200 pixels
• Frame rate: up to 50 fps

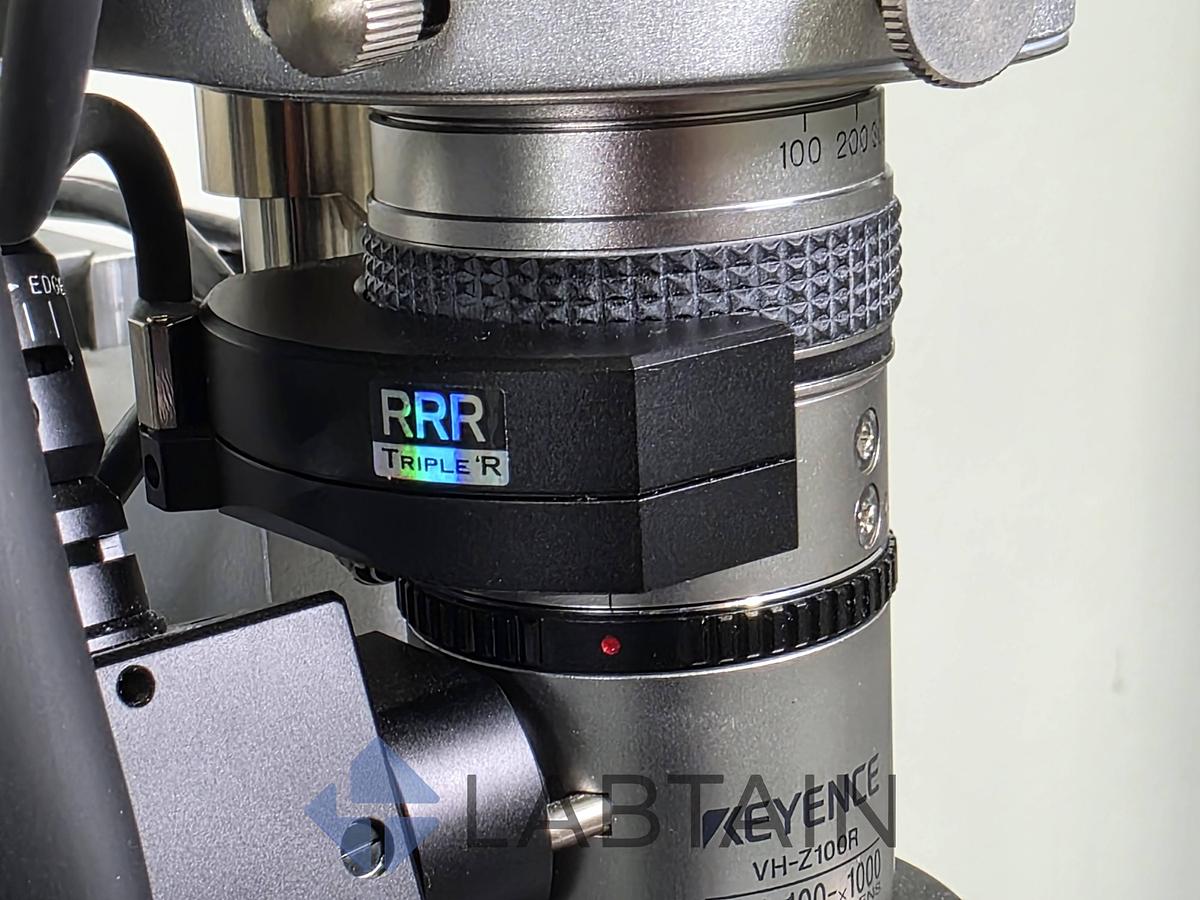

• Lens: VH-Z100R real-zoom, 100×–1000× (lens-rated on 15″ reference monitor); working distance 25 mm
• Illumination: LED, multiple modes (ring/coaxial), transmitted-light capable

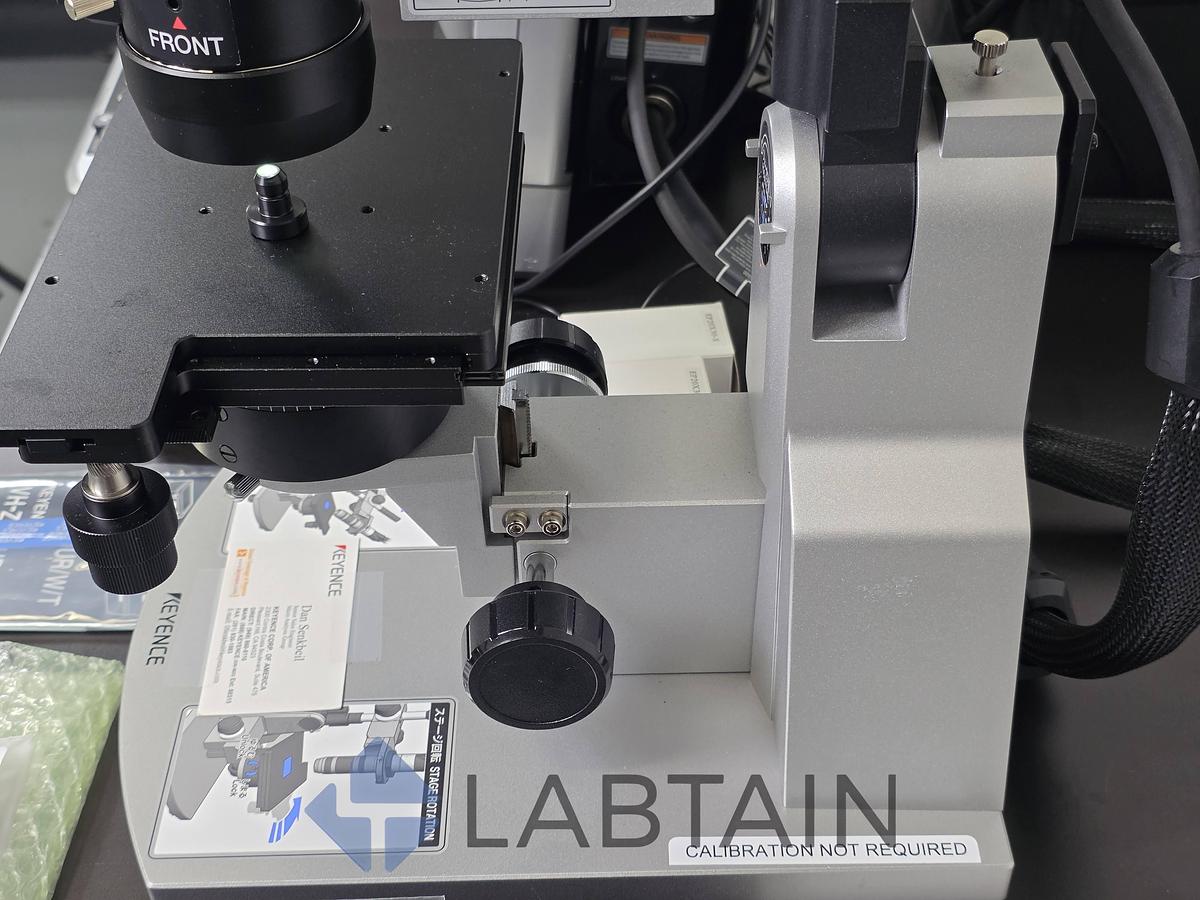

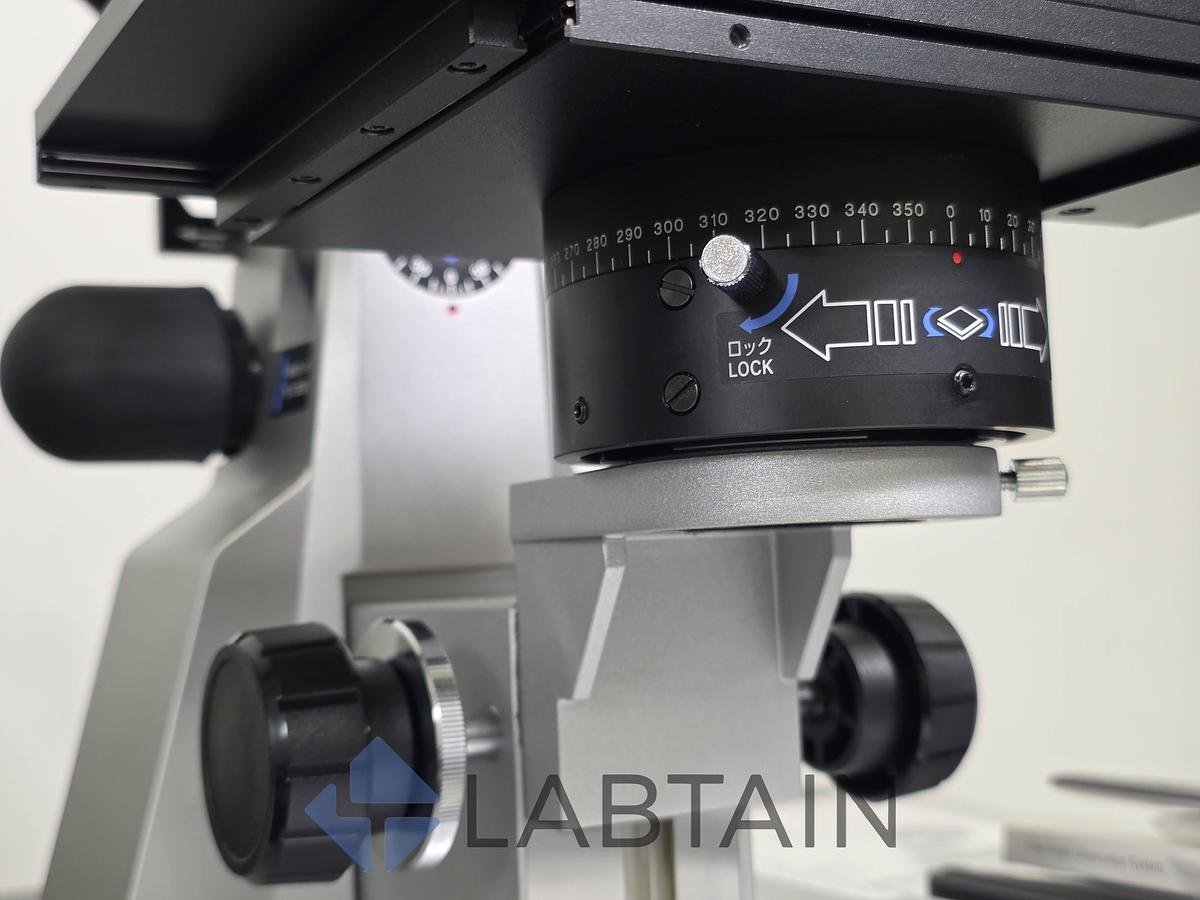

• Stand: VHX-S90F free-angle observation system with Z-axis motorized stage, stage rotation, and eucentric camera/lens tilt

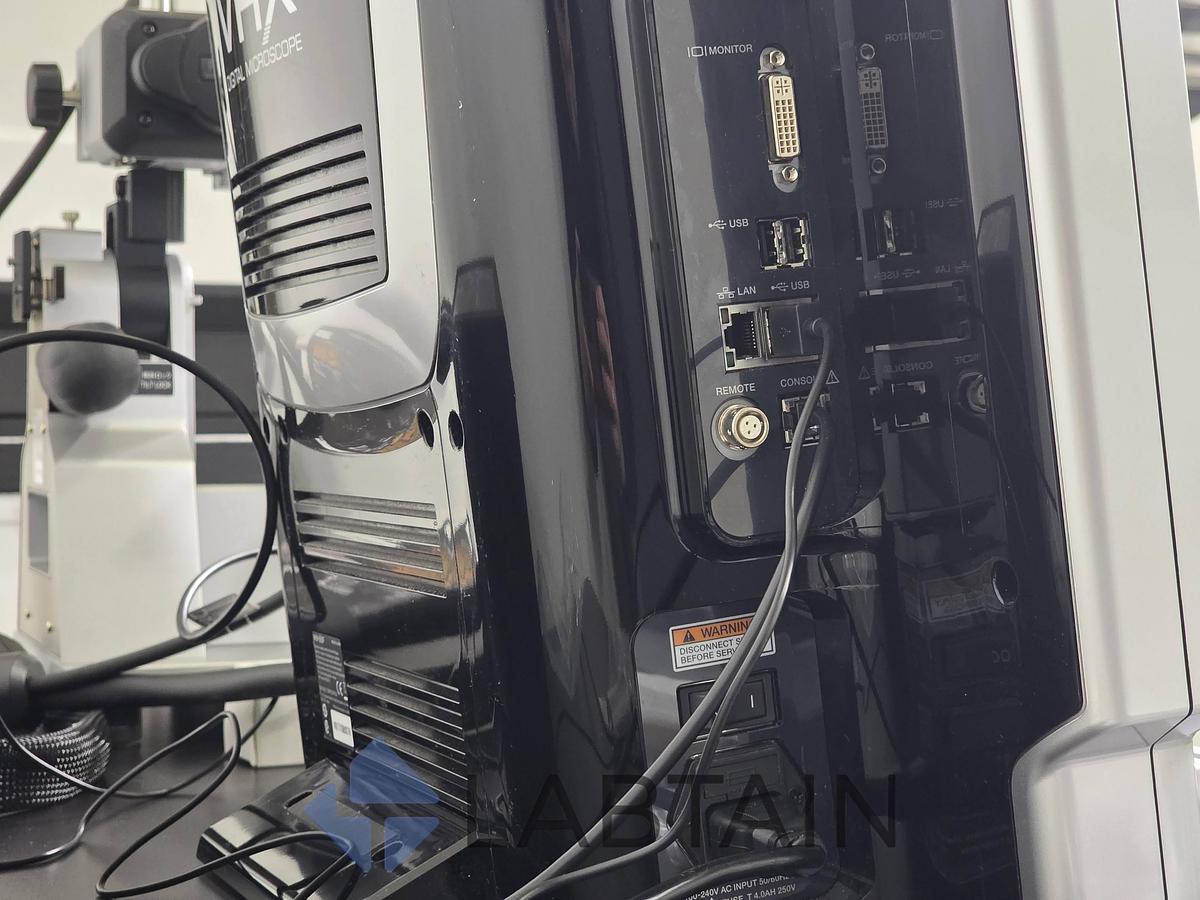

• Connectivity: USB, LAN, DVI-I
• Measurement: on-screen 2D, 3D profile/height, depth composition, image stitching

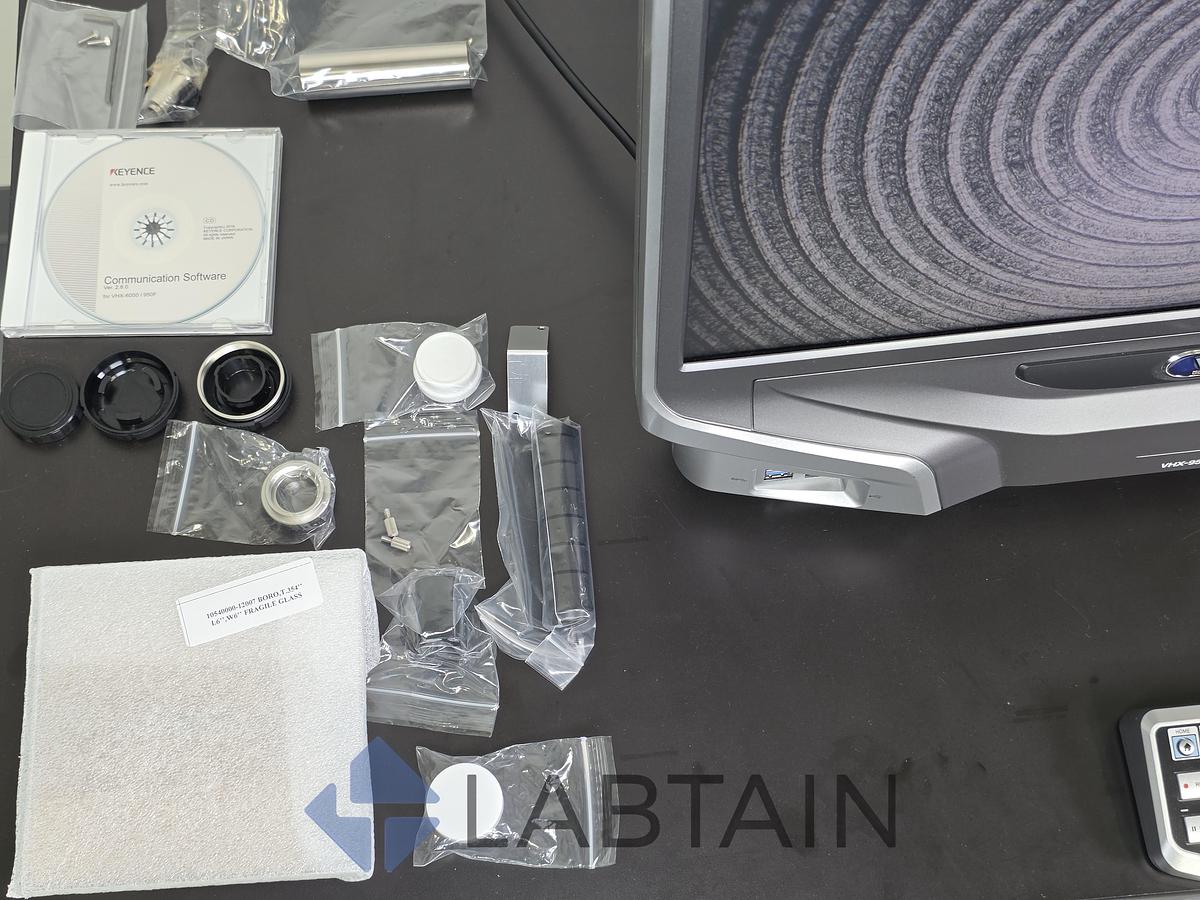

What's Included

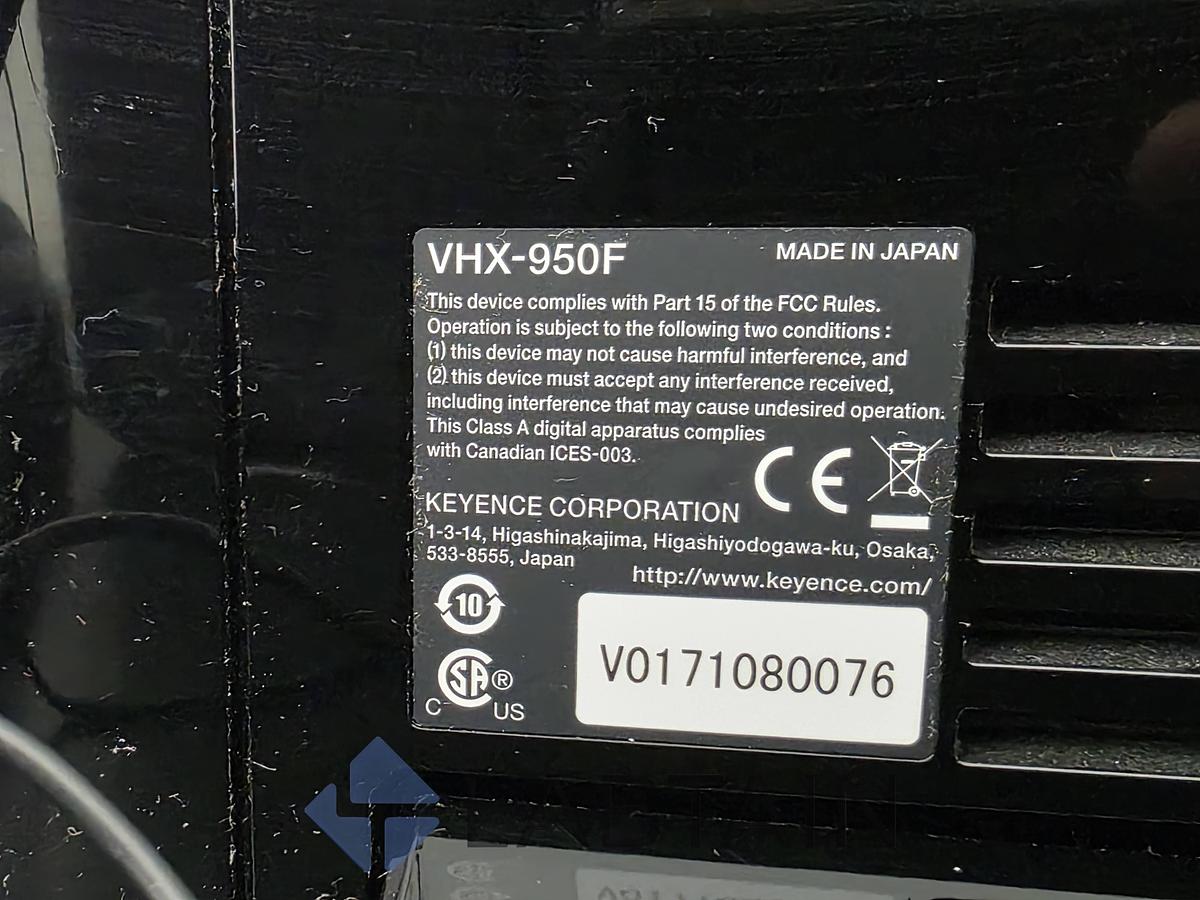

• VHX-950F controller (integrated 23″ monitor)

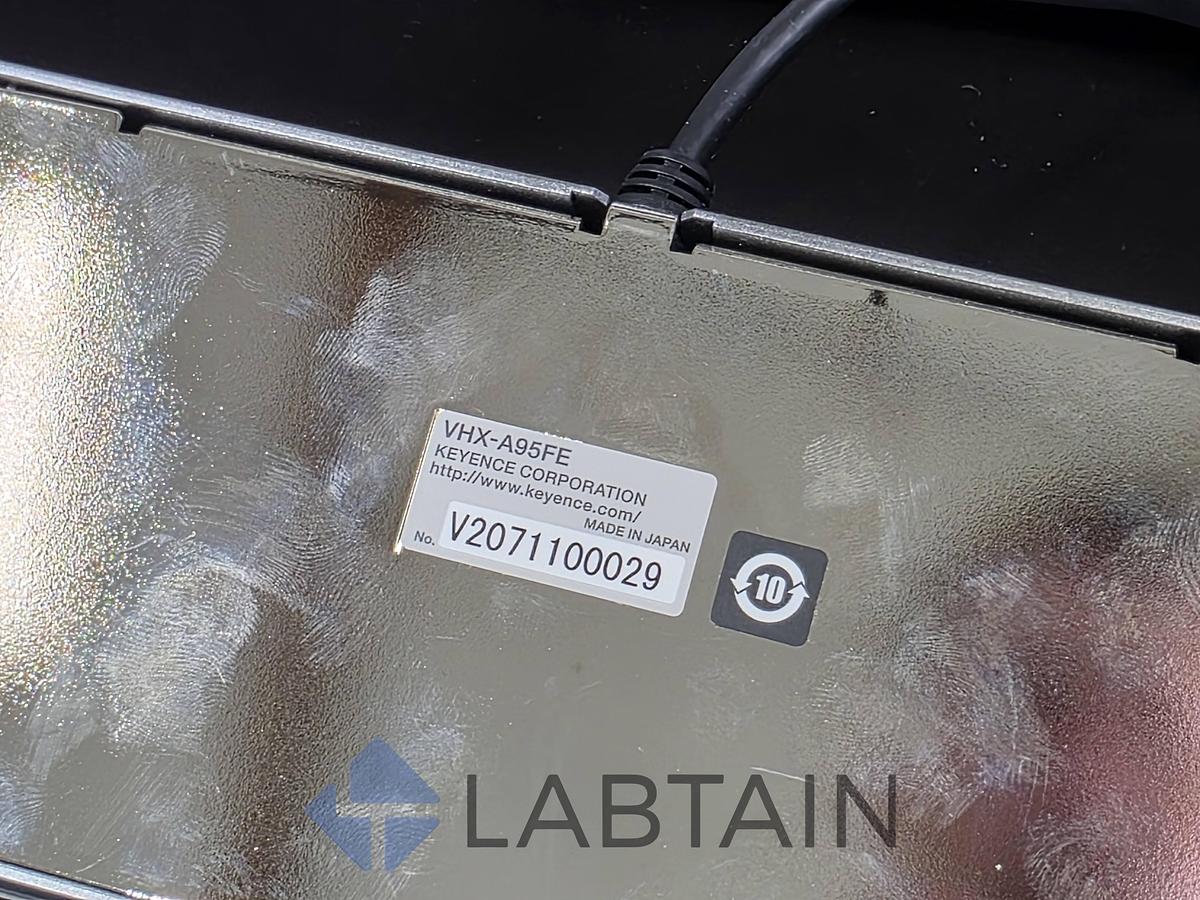

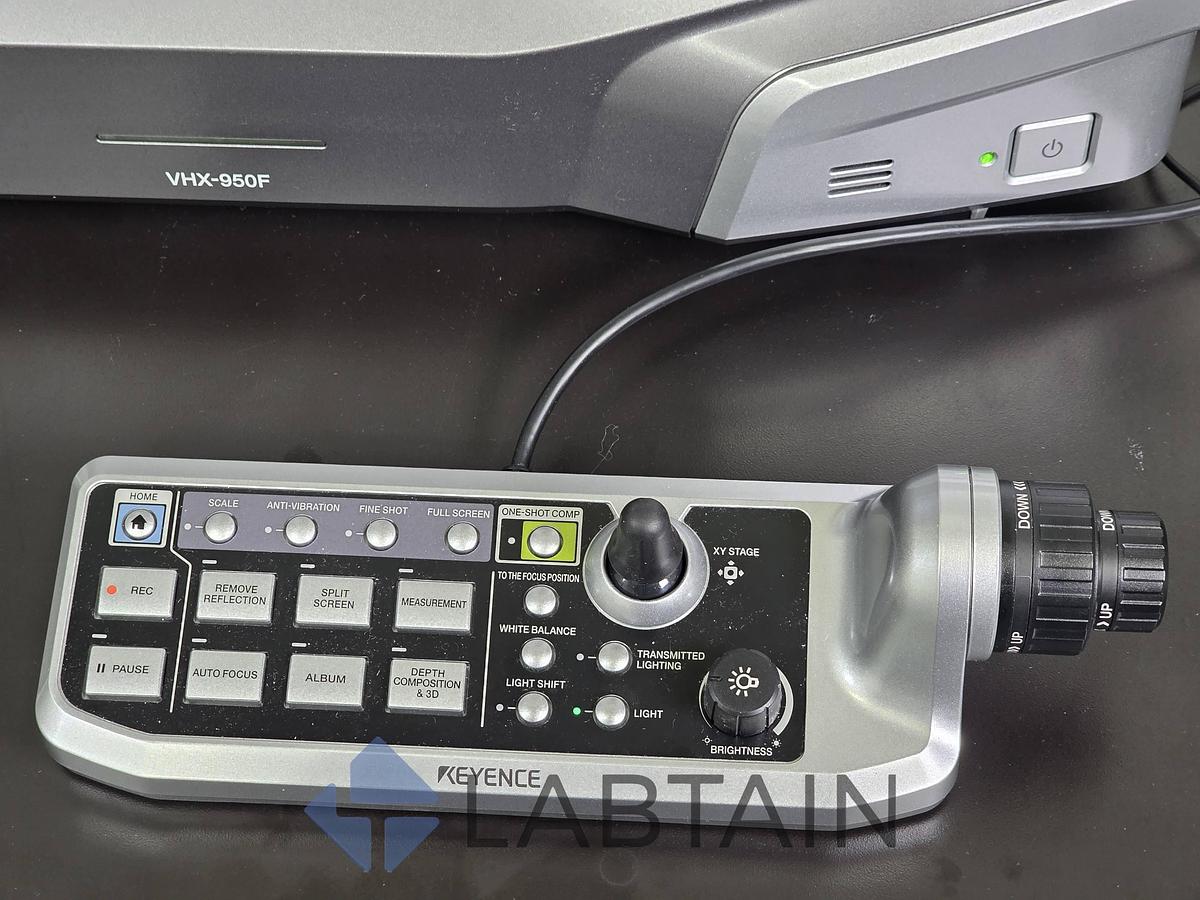

• VHX-A95FE control console

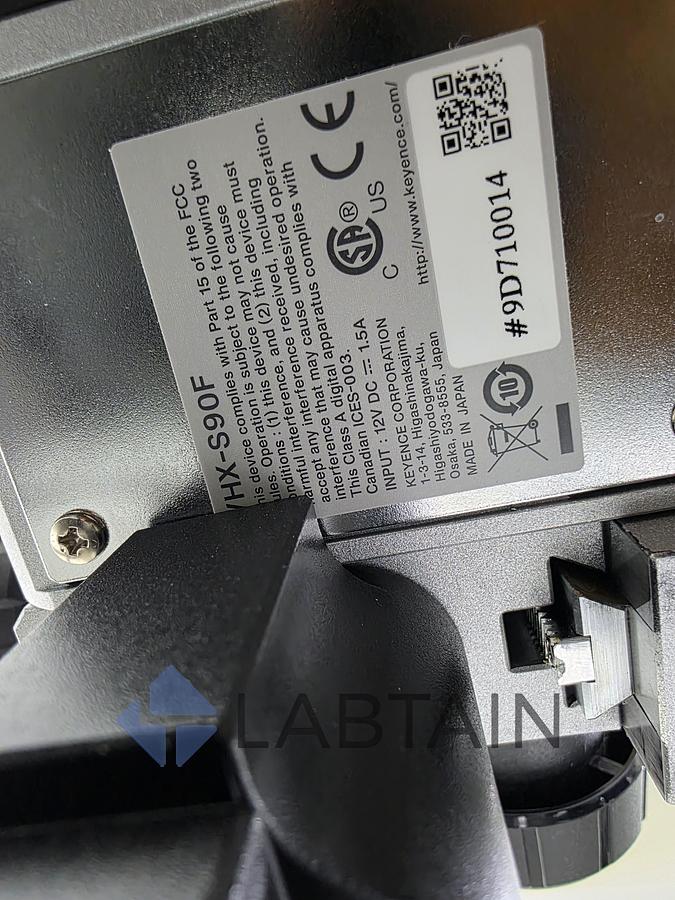

• VHX-S90F motorized free-angle stand

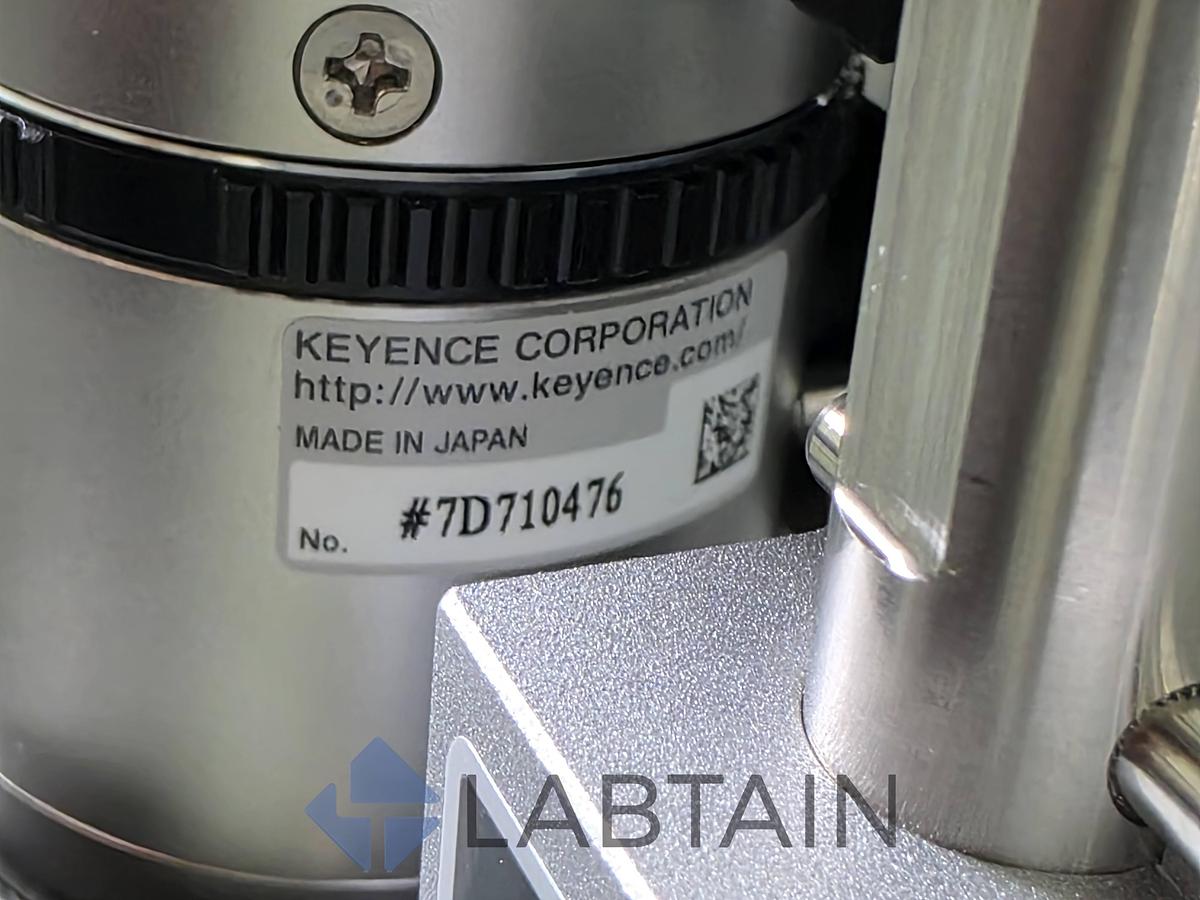

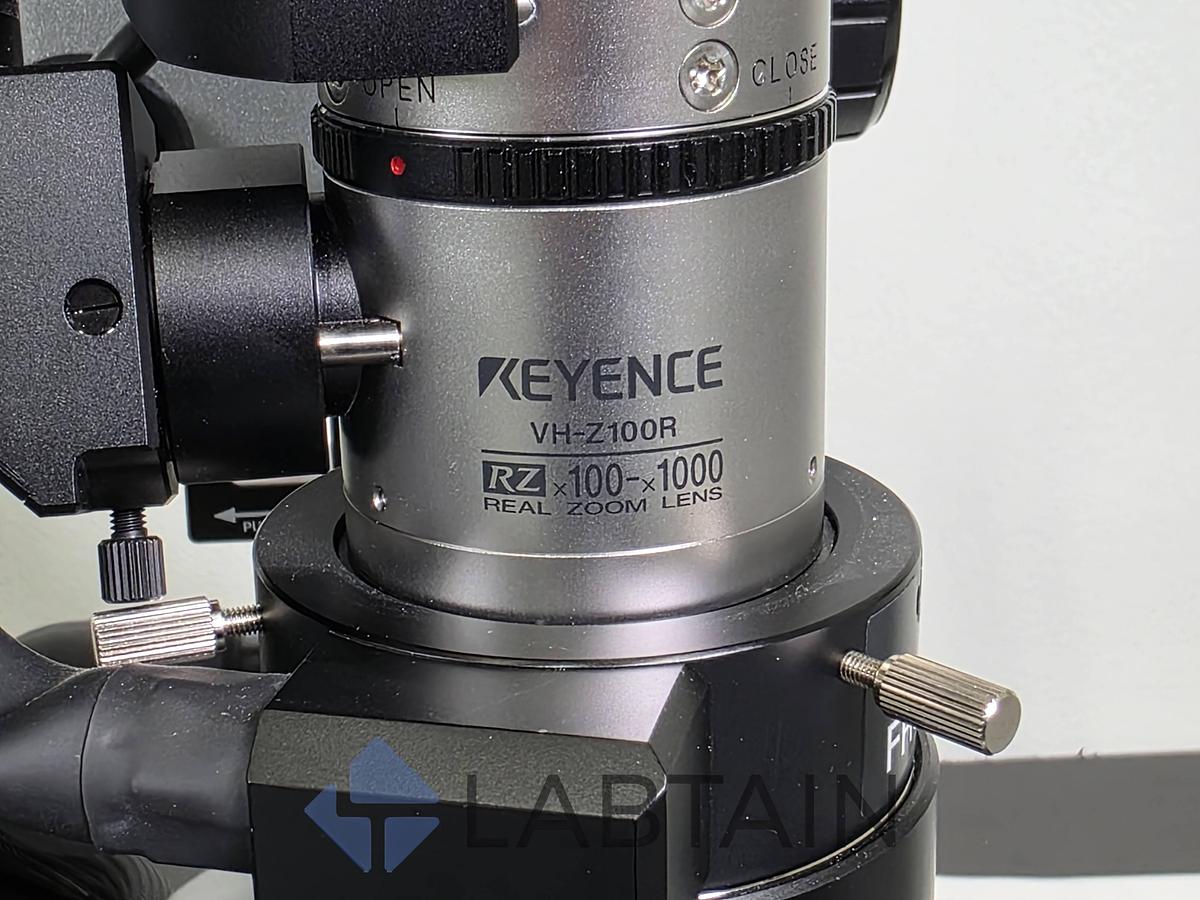

• VH-Z100R 100×–1000× zoom lens

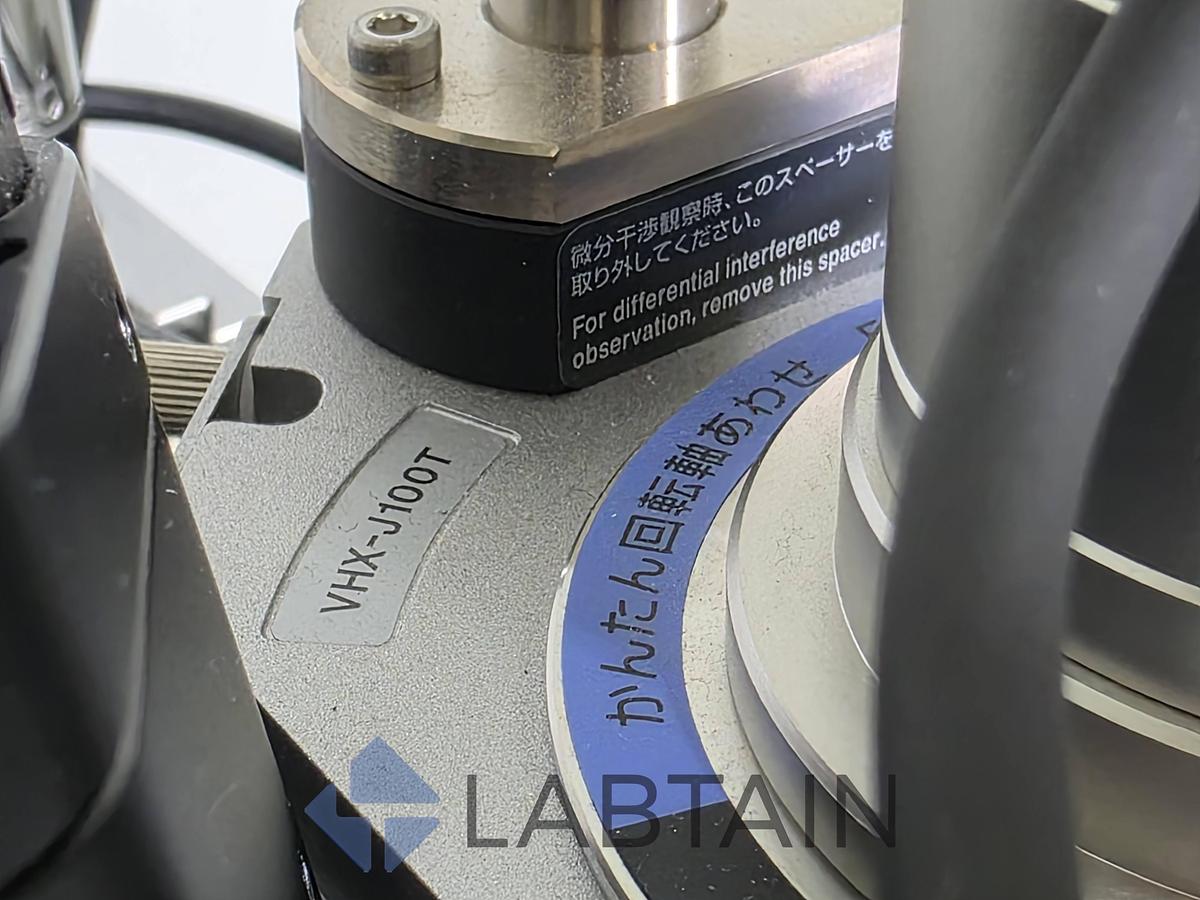

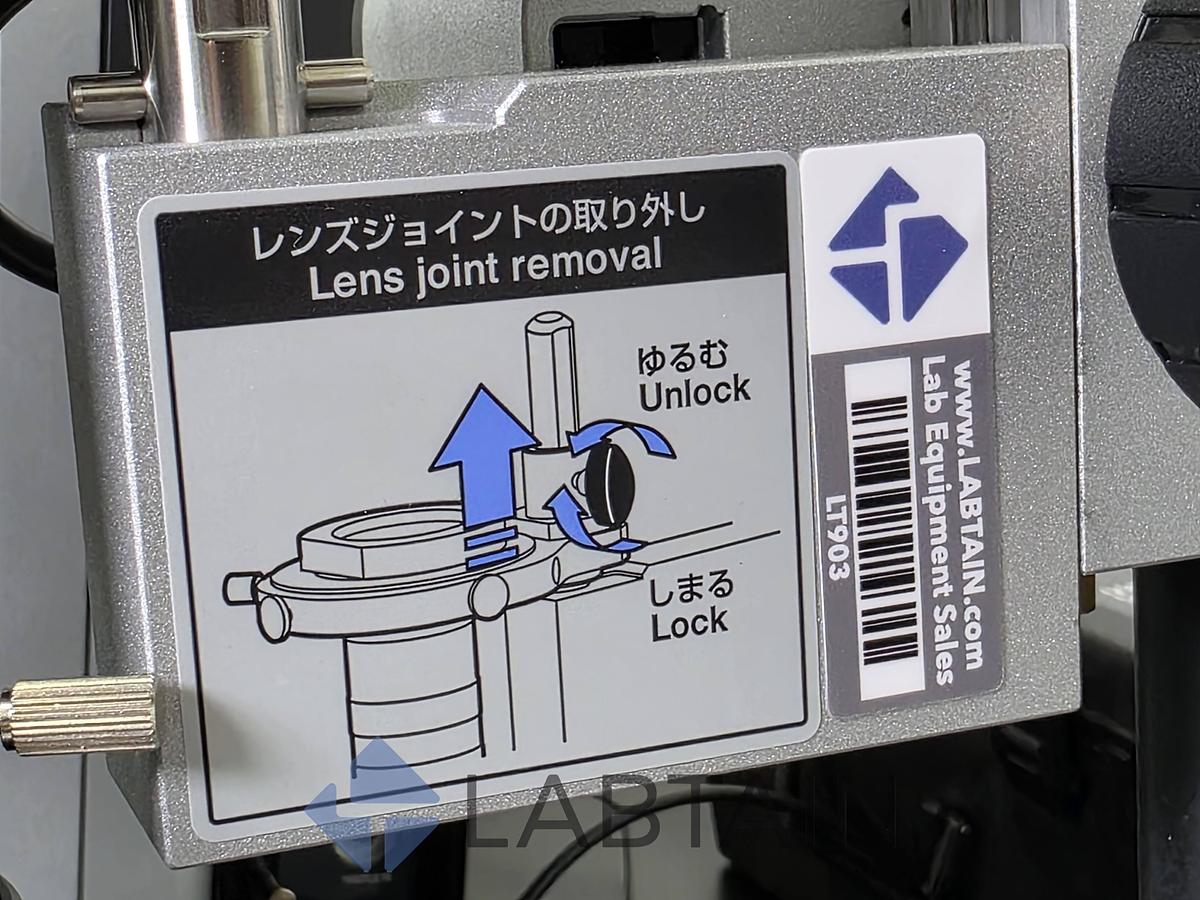

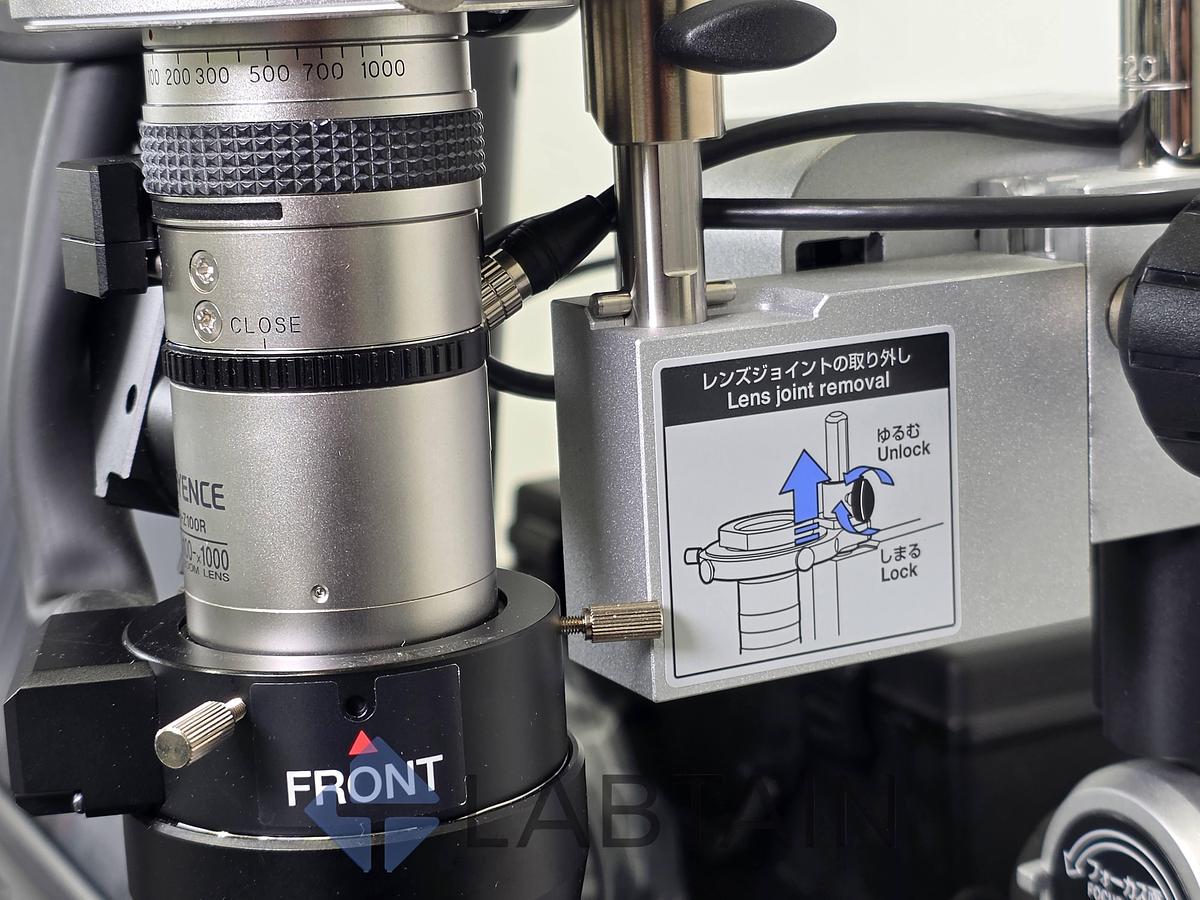

• VHX-J100T free-angle joint adapter

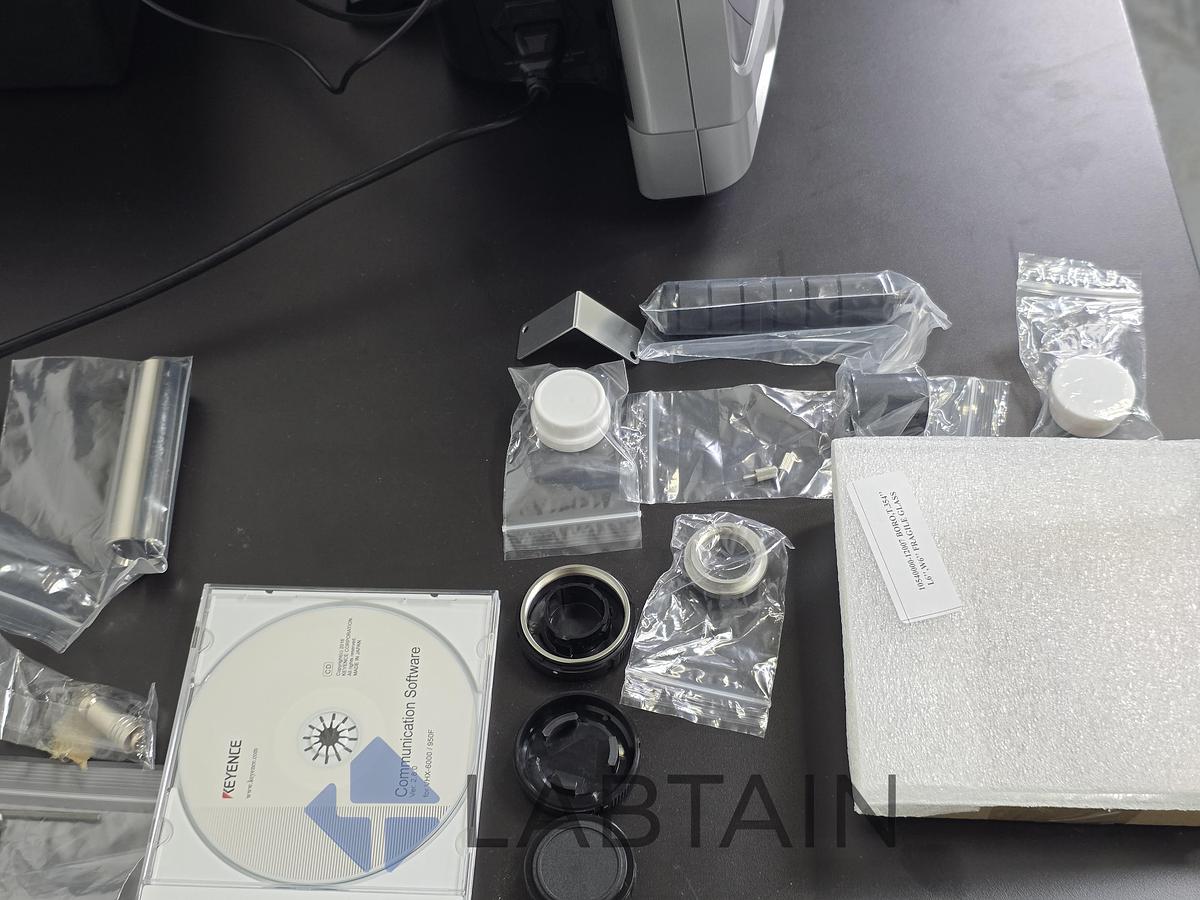

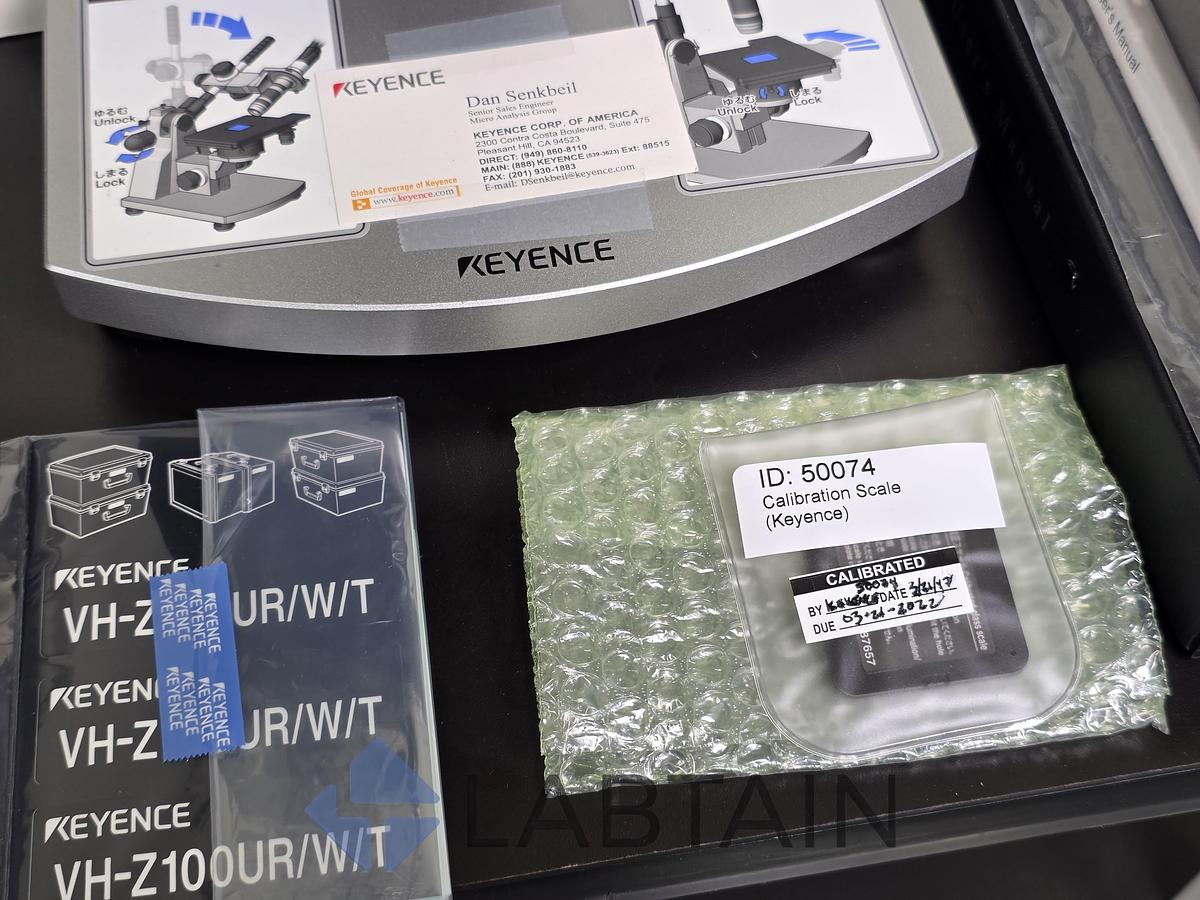

• VH-Z100UR/W/T lens adapter accessories
• Calibration scale (ID 50074)

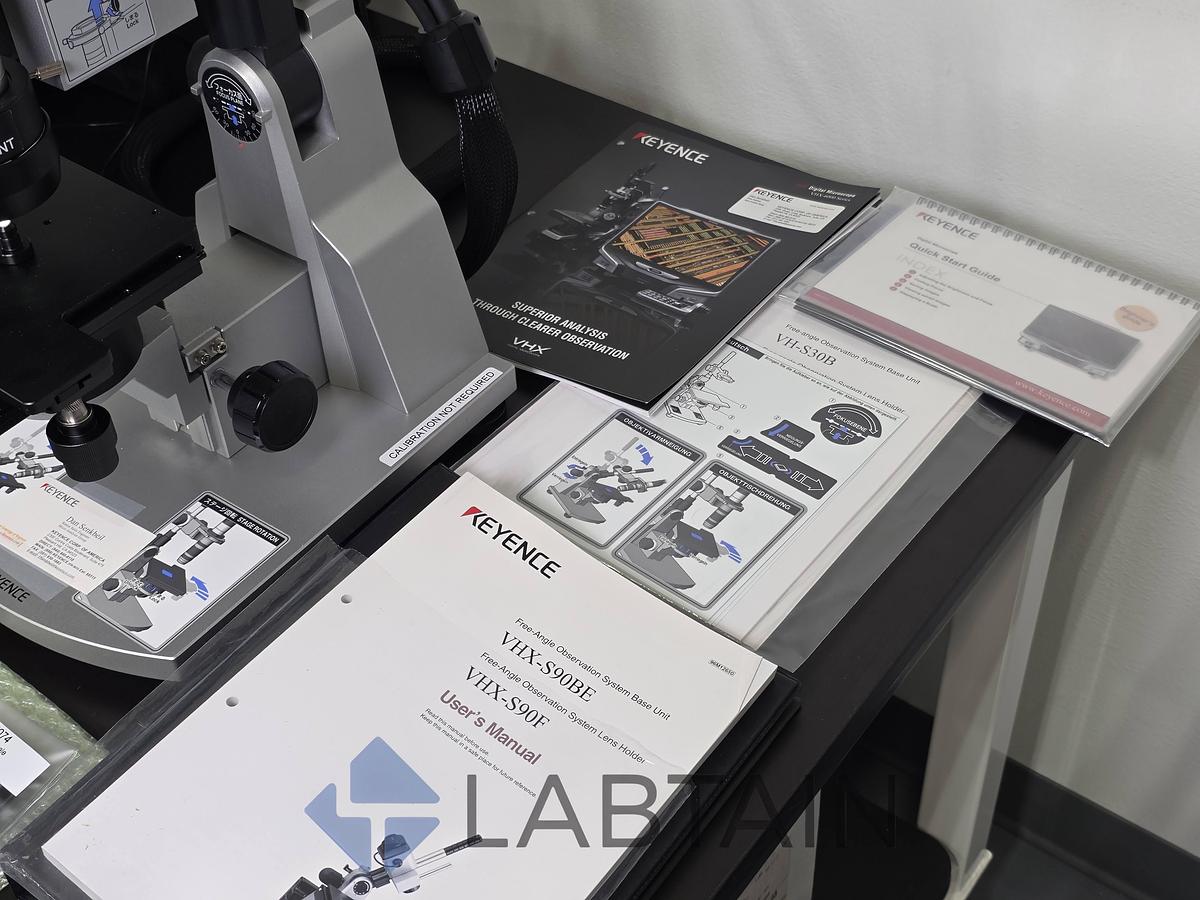

• USB mouse, power and console cables, Keyence manuals

Condition

Used / Inspected. The system powers on and produces a live captured image. Exterior is clean with light cosmetic wear from normal use. The supplied calibration scale's certification has lapsed (due 03/2022); plan for re-calibration if NIST-traceable measurement is required. Sold in as-pictured working condition.
