TECA LHP-1800CPV Solid State Heat/Cool Cold Plate (240V) Used

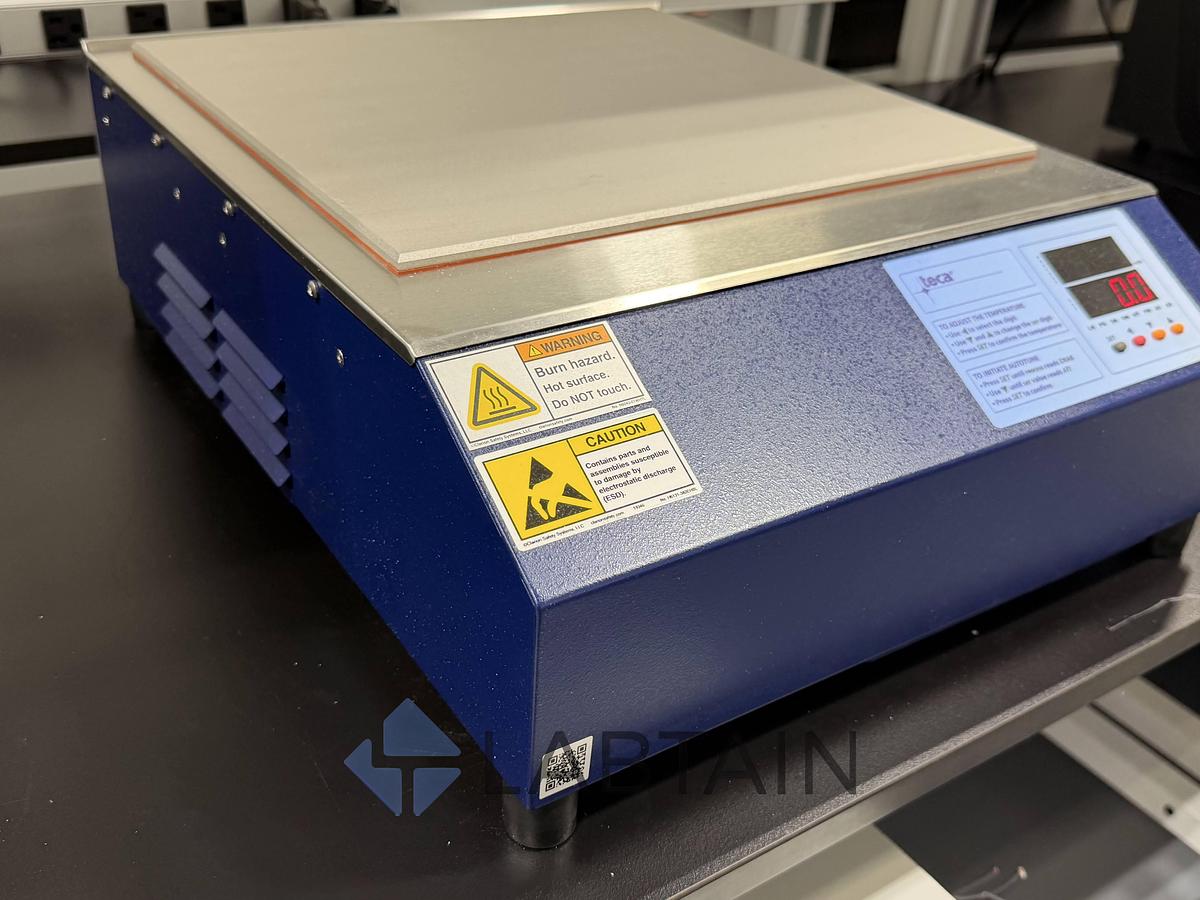

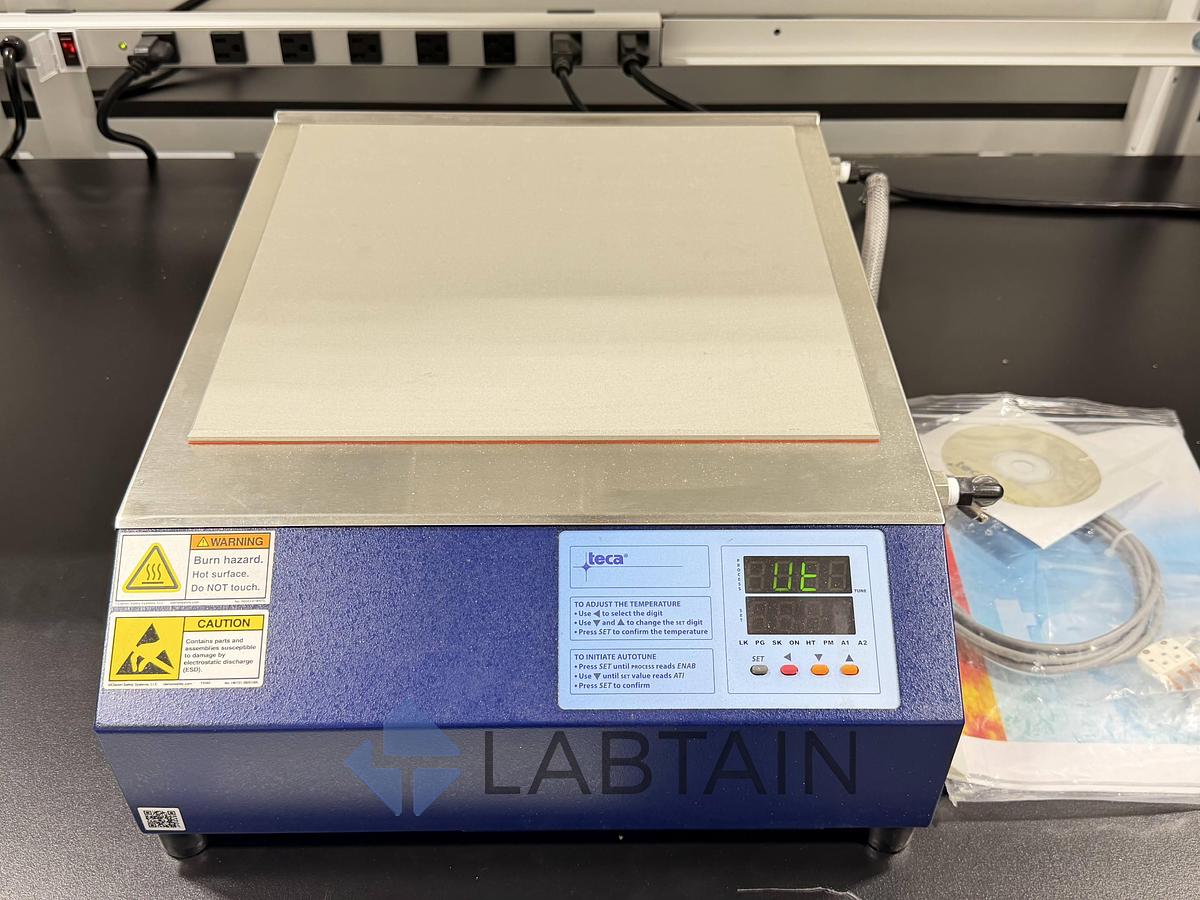

The TECA LHP-1800CPV is a high-performance, solid-state thermoelectric (Peltier) hot and cold plate designed for precise temperature control of laboratory samples, components, and flat-bottomed vessels. Engineered by ThermoElectric Cooling America Corporation, this system offers rapid temperature cycling and exceptional stability without the need for fluorocarbon refrigerants or mechanical compressors. It features a bright digital PID controller, USB connectivity for remote software monitoring, and an RTD selector switch allowing users to toggle between the internal sensor and an external RTD probe. To achieve its impressive sub-zero cooling capabilities, this high-wattage unit utilizes liquid coolant circulation to efficiently draw heat away from the internal thermoelectric modules.

Important Facility Requirement: This is a high-power industrial unit that requires 240 VAC electrical service. It will not operate on standard 115V wall outlets. Additionally, it requires an external liquid coolant source (e.g., tap water or a recirculating chiller) connected to the side ports for operation.

Condition Notes

• Condition: Used / Inspected & Power-Verified.

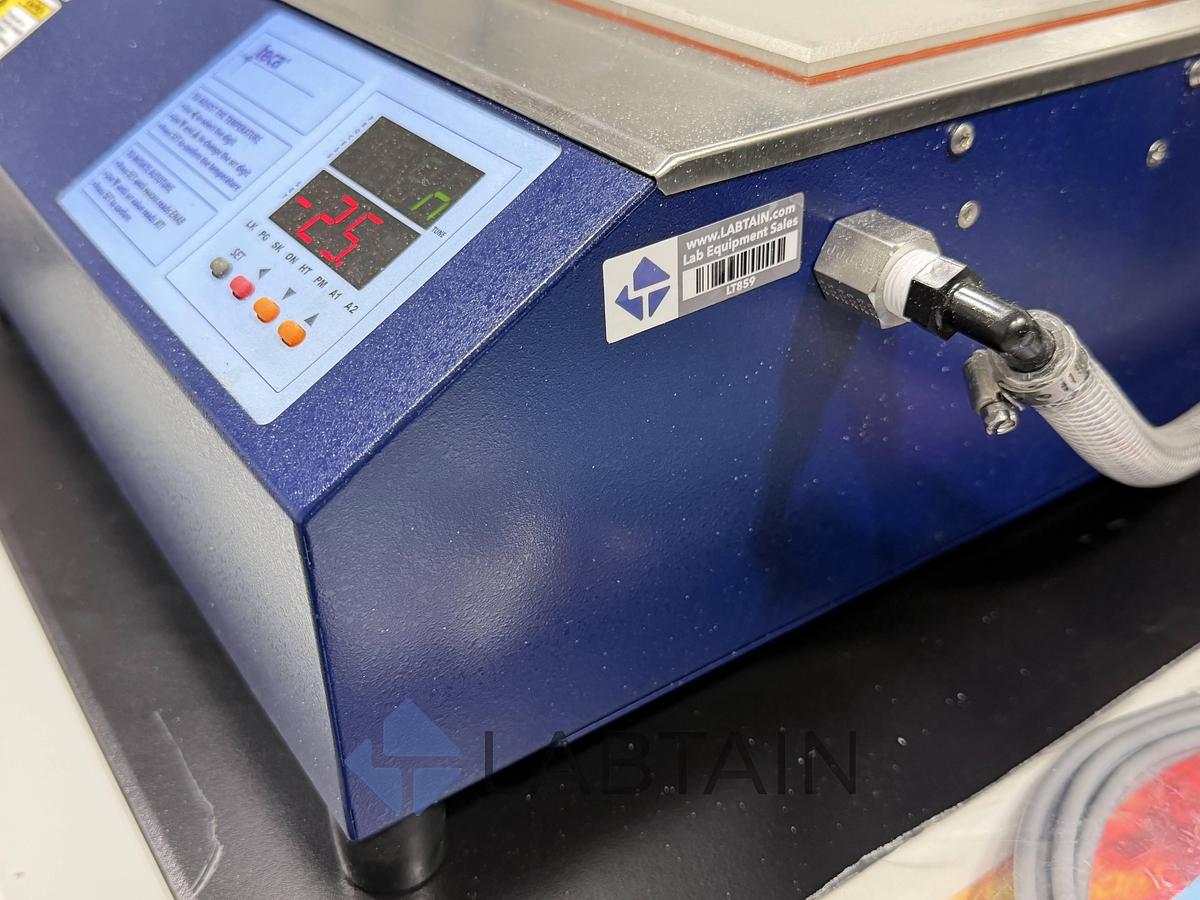

• Functional Status: Visually and mechanically inspected. The unit successfully powers on with 240V service. The front digital PID controller is bright and responsive. As shown in the gallery, the unit was briefly test-run and successfully drove the plate temperature down to -25°C.
• Cosmetic Status: Good used condition. The heavy-duty blue and grey metal casing shows standard cosmetic wear, including minor scuffs and surface scratches. The large, flat aluminum thermal plate is exceptionally clean and free of heavy gouges or pitting, ensuring optimal surface-to-surface thermal transfer.
• Serial Number: 202000587

Technical Specifications

• Brand: TECA (ThermoElectric Cooling America Corporation)
• Model: LHP-1800CPV
• Part Number: 3-05KB-1-0A0
• Equipment Type: Solid State Heat / Cool Cold Plate
• Cooling Method: Thermoelectric (Peltier) with Liquid Heat Sink
• Communications: USB interface

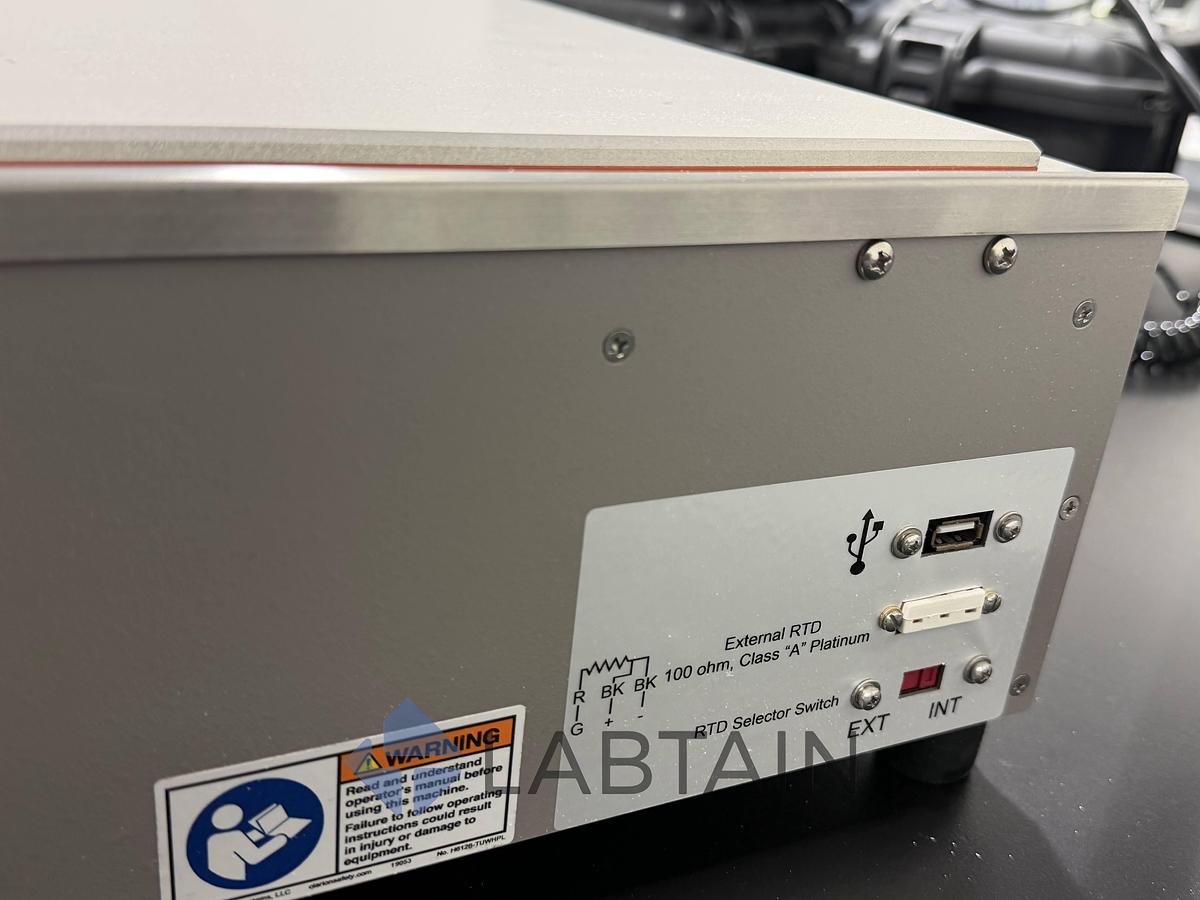

• Sensor Input: Internal / External RTD Selector (100 ohm, Class "A" Platinum)

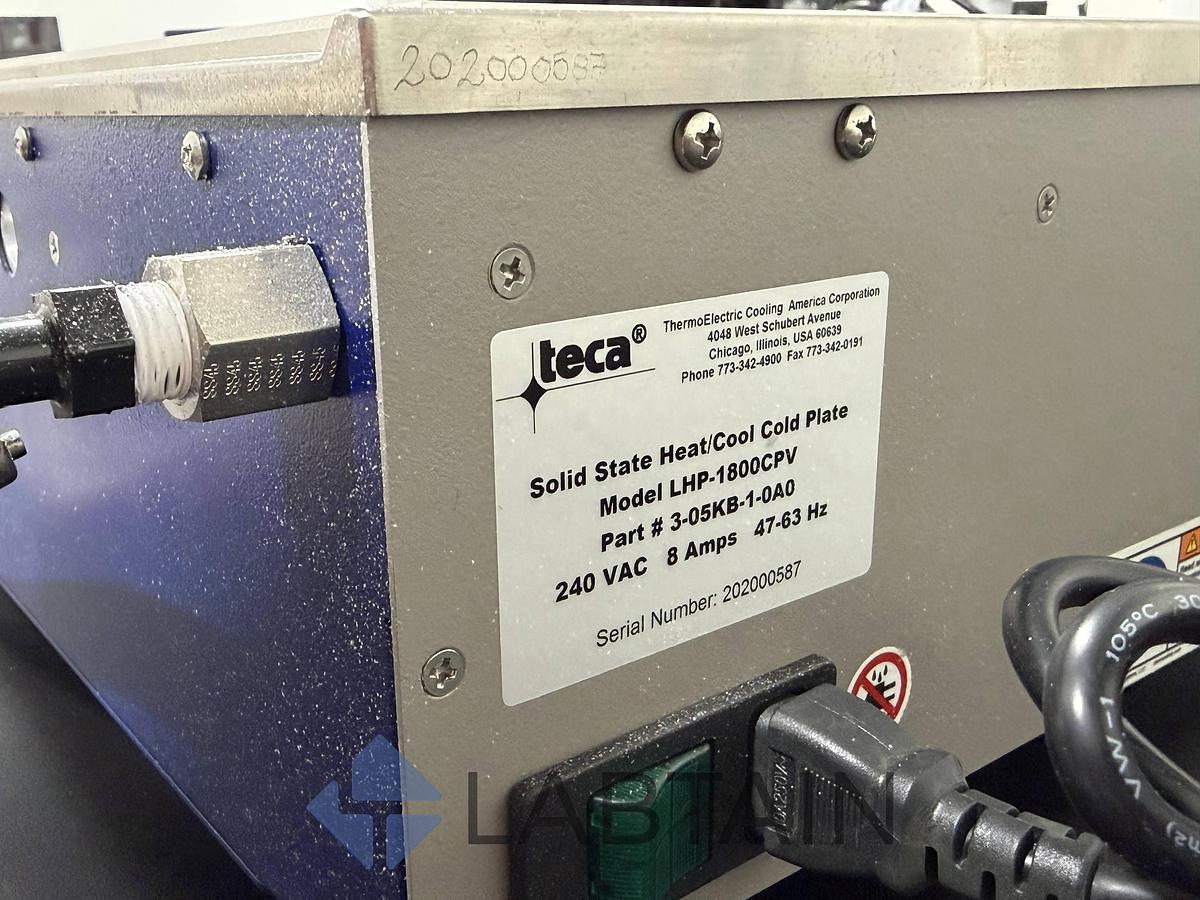

• Power Requirements: 240 VAC | 8 Amps | 47-63 Hz
• Manufacturing Origin: Made in USA (Chicago, IL)

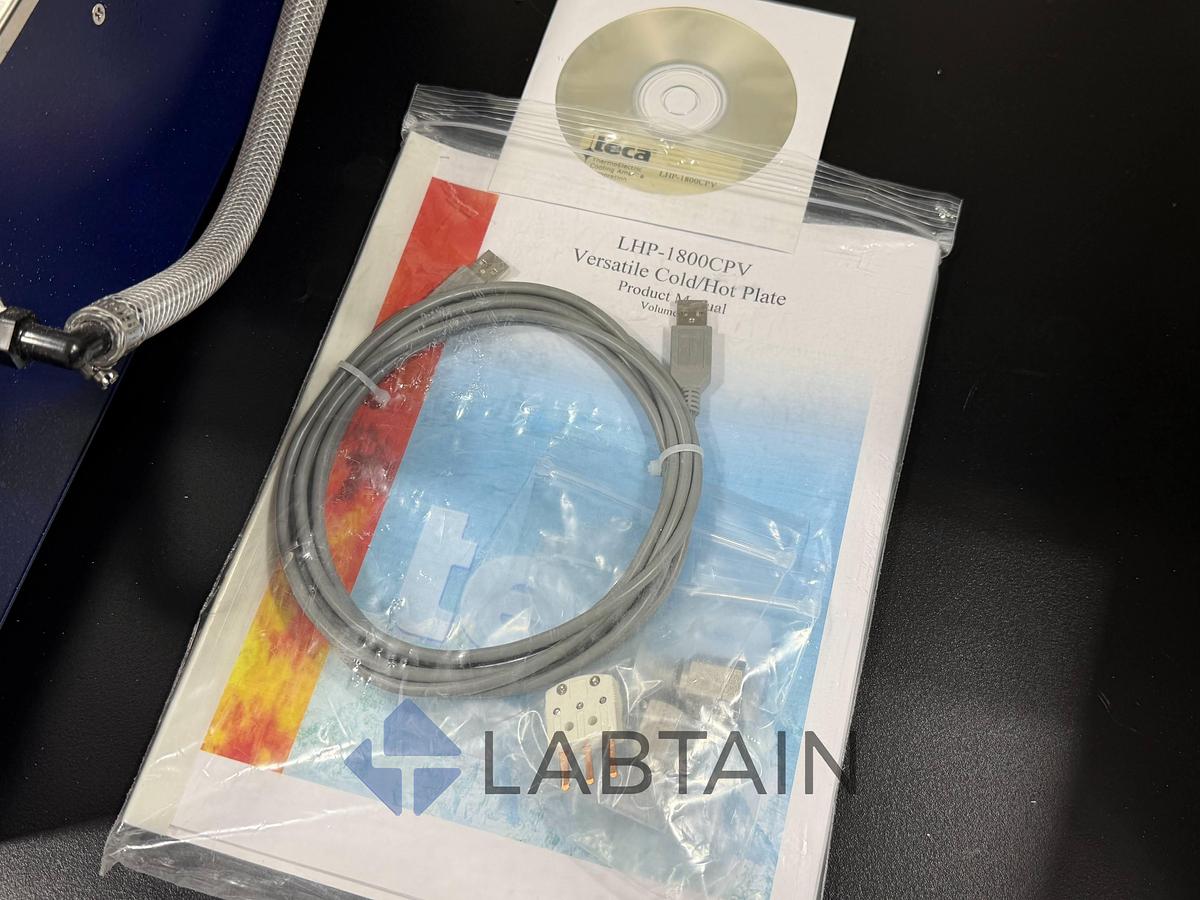

Included in this Package

• (1) TECA LHP-1800CPV Hot/Cold Plate Base Unit
• (1) TECA LHP-1800CPV Product Manual
• (1) TECA Software CD
• (1) USB Communication Cable
• (1) External RTD Connector Plug

LT859-P12
