Keyence IM-7020 Image Dimension Measurement System — 6.6MP Telecentric Optical Comparator, 200×200mm FOV, Programmable Ring Light + Light Probe — Used/Inspected

The Keyence IM-7020 Series is a next-generation, non-contact "instant measurement" system that consolidates the optical comparator, profile projector, measuring microscope, and a range of hand-tool measurements into a single push-button instrument. Place a part anywhere on the stage and press one button: the system automatically detects target orientation, performs automatic edge detection and automatic focus adjustment, and measures up to 99 dimensions on up to 100 parts with a single push of a button — in seconds, with results that don't depend on operator skill. ClarkmachinerysalesFluke

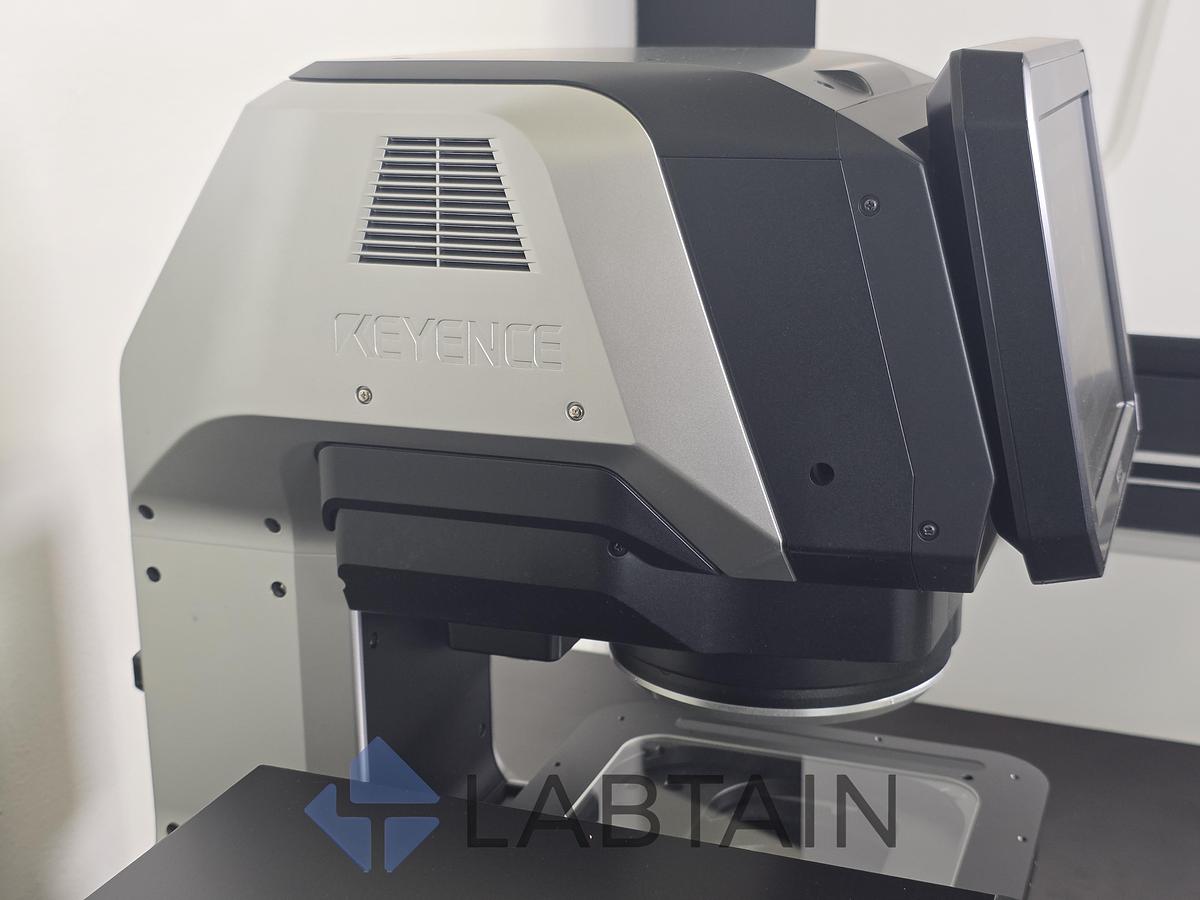

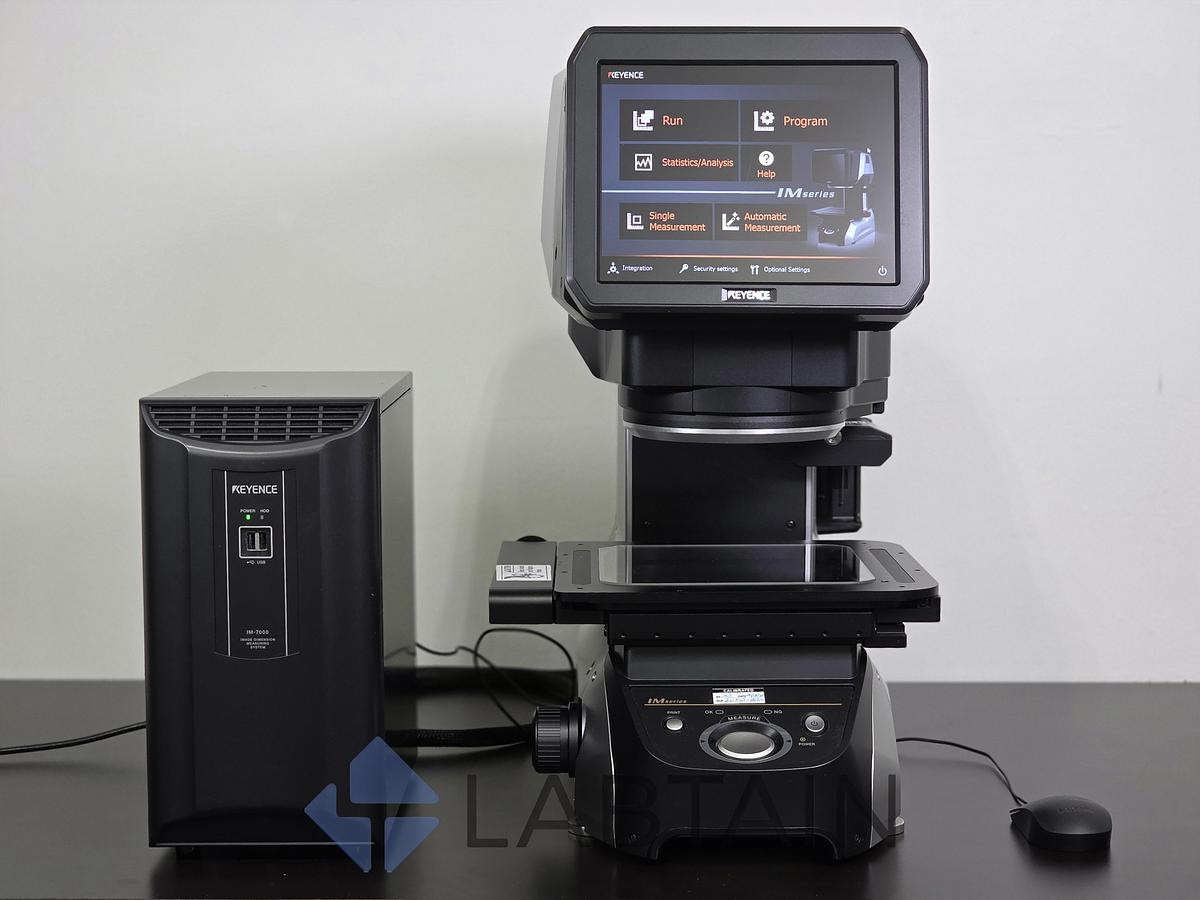

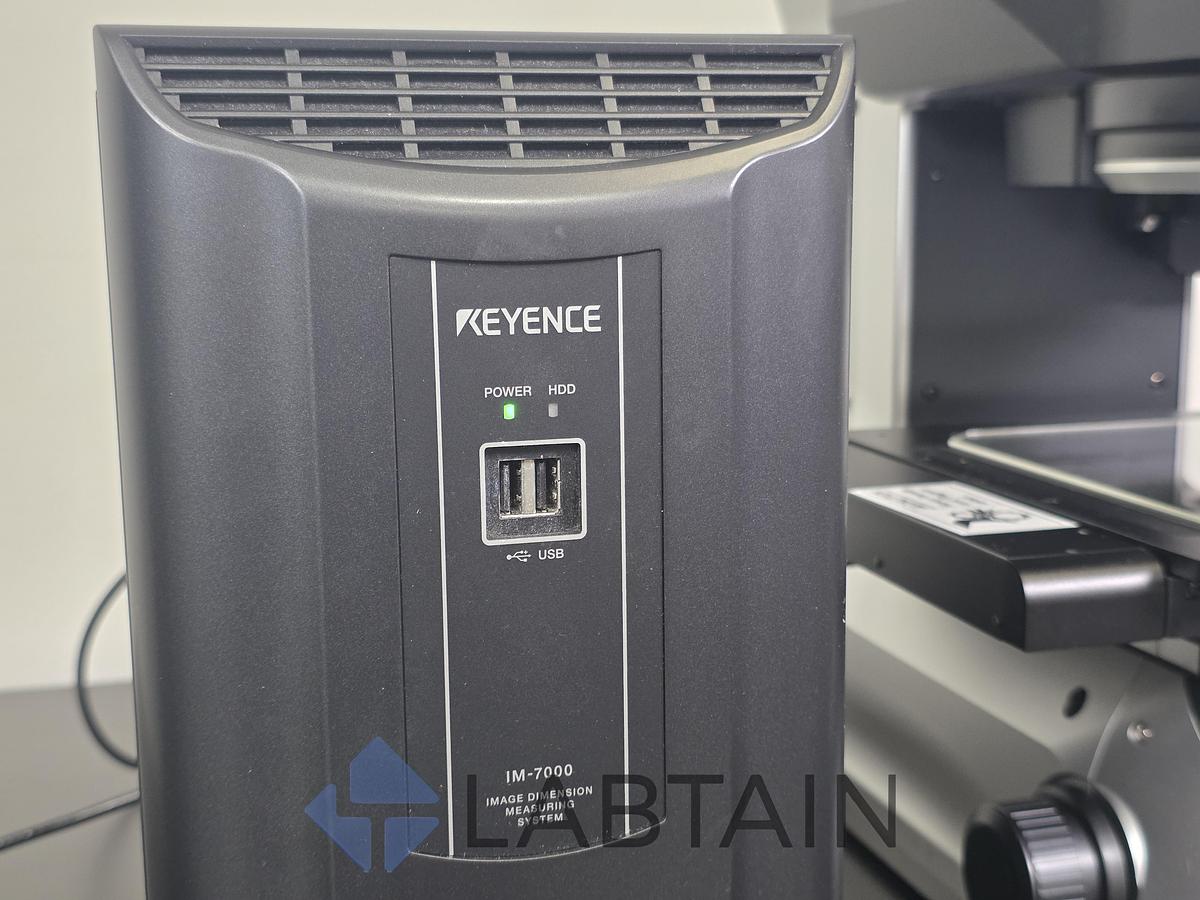

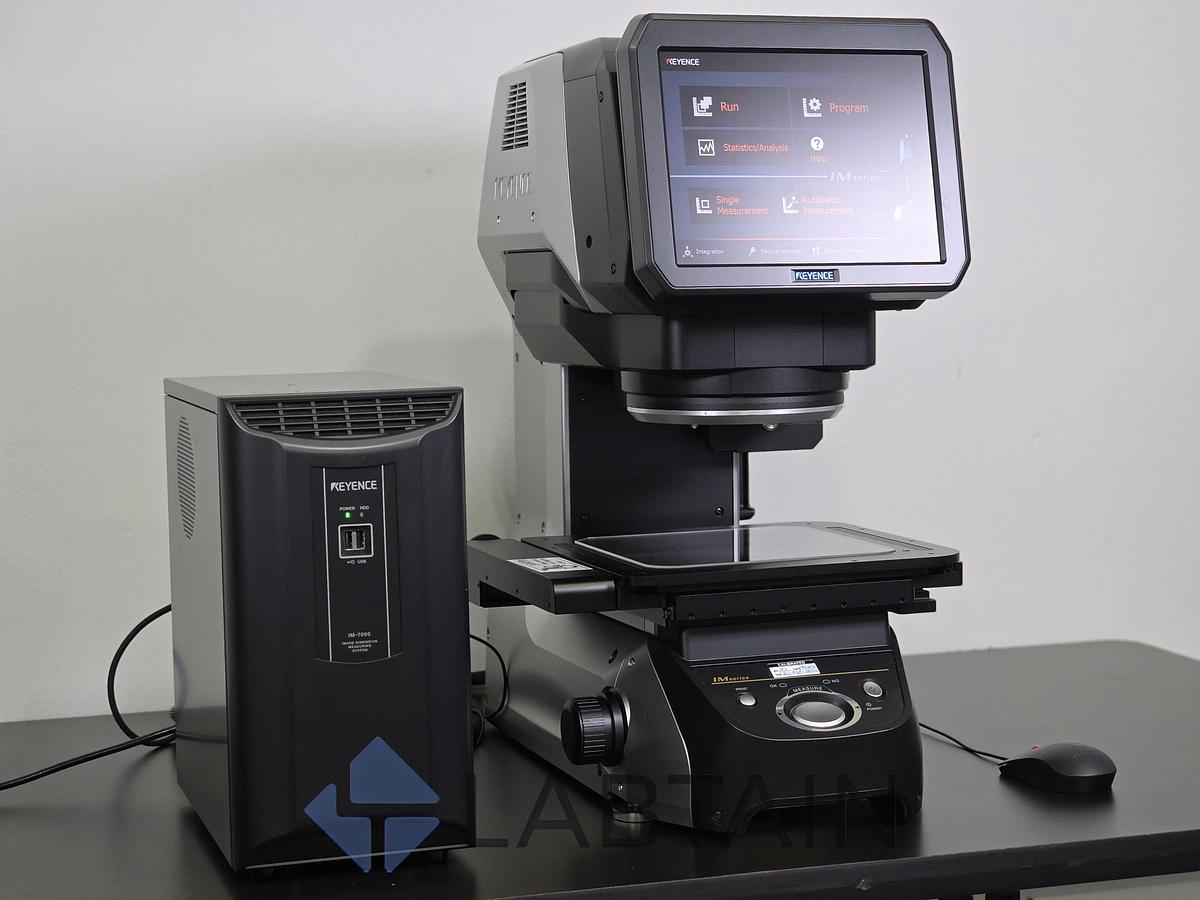

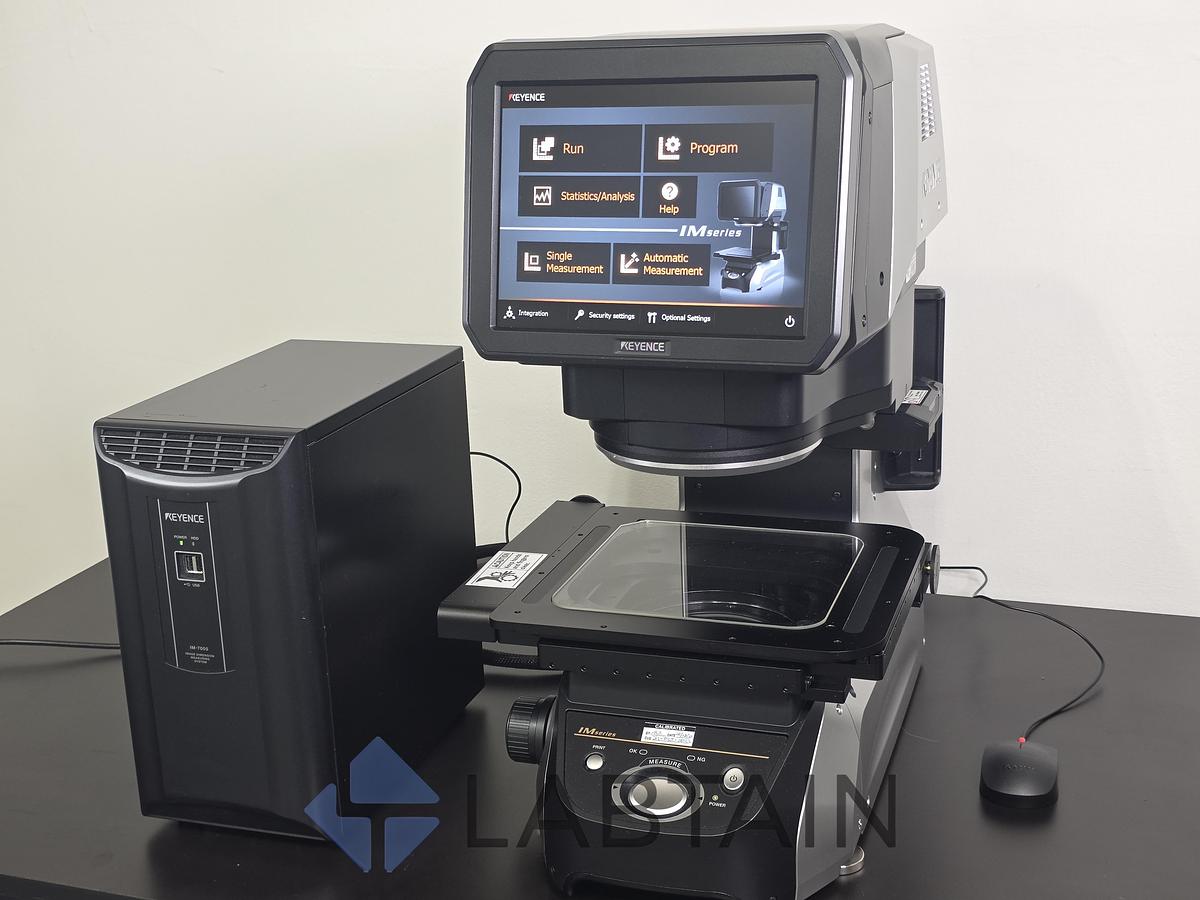

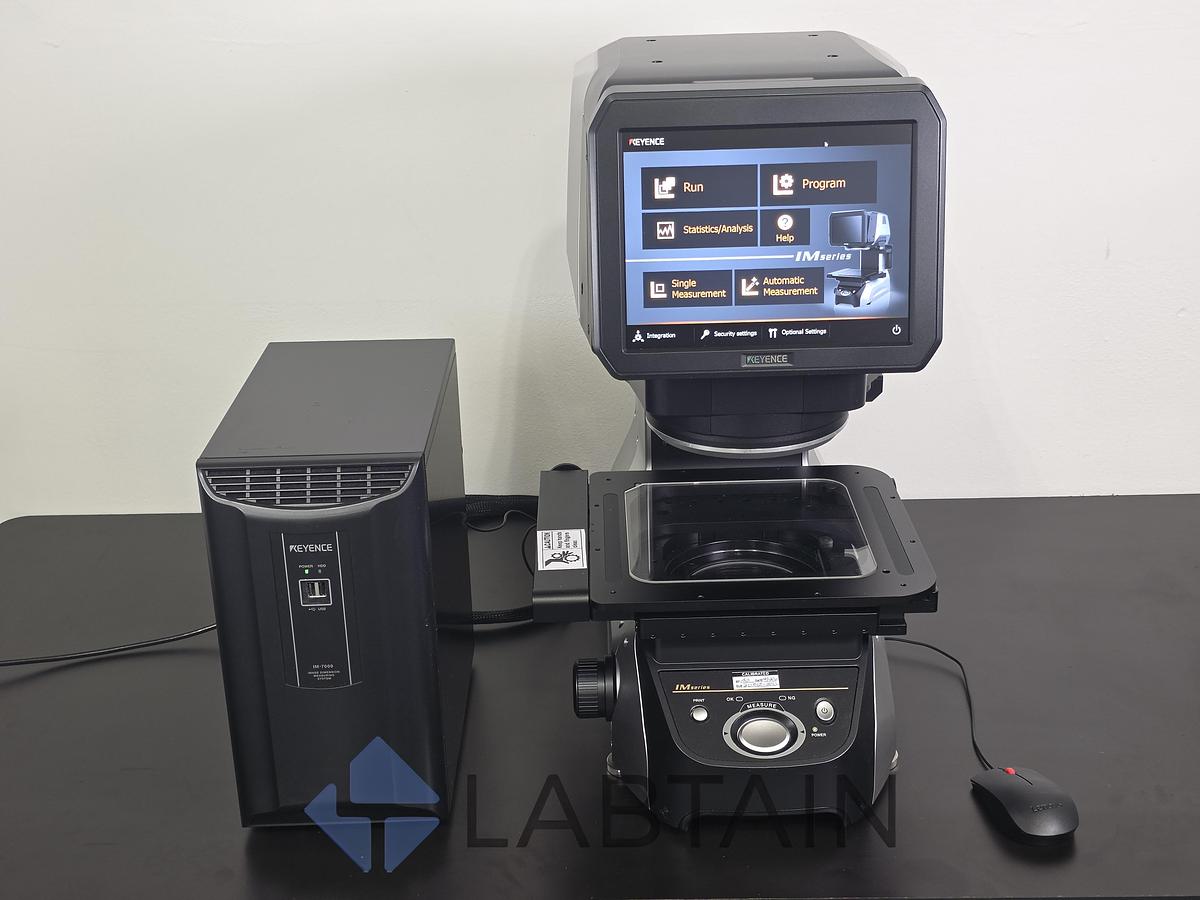

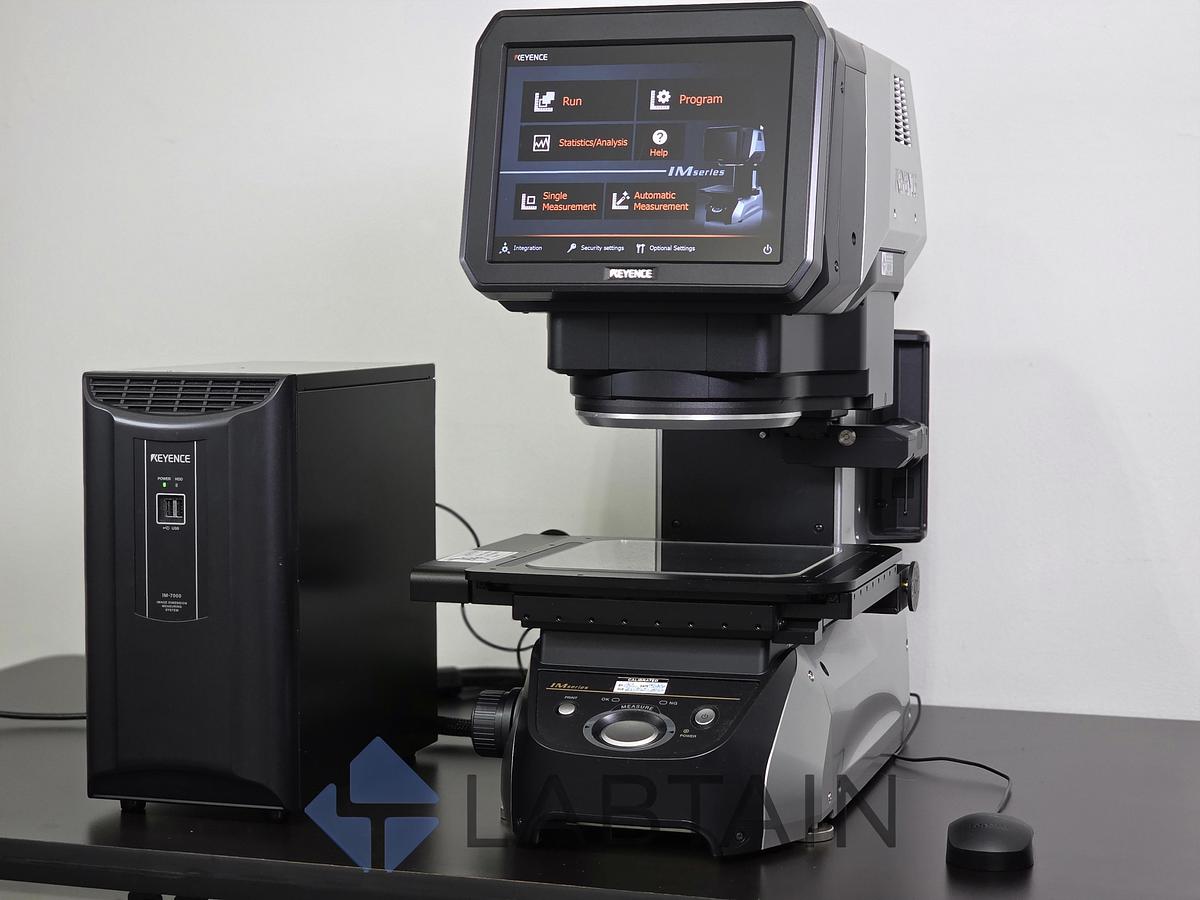

This unit pairs the IM-7020 head — the top-tier configuration with telecentric backlight, programmable ring-illumination unit, and light-probe capability — with the IM-7000 controller and an integrated 10.4″ touchscreen. A 1″ 6.6-megapixel monochrome CMOS sensor behind a double-telecentric lens delivers a 200 × 200 mm wide-field of view with a 0.1 µm minimum display unit, while sub-pixel edge fitting holds accuracy across the full field. Built-in statistics (Cp/Cpk, trend graphs, histograms) and automatic inspection-report generation make it equally suited to a QC lab or the shop floor. KEYENCE

Ideal for: machined and turned parts, stampings, molded/resin components, die-cast parts, springs, fasteners, and electronic components — anywhere fast, repeatable, traceable dimensional inspection is needed.

Condition — Used / Inspected

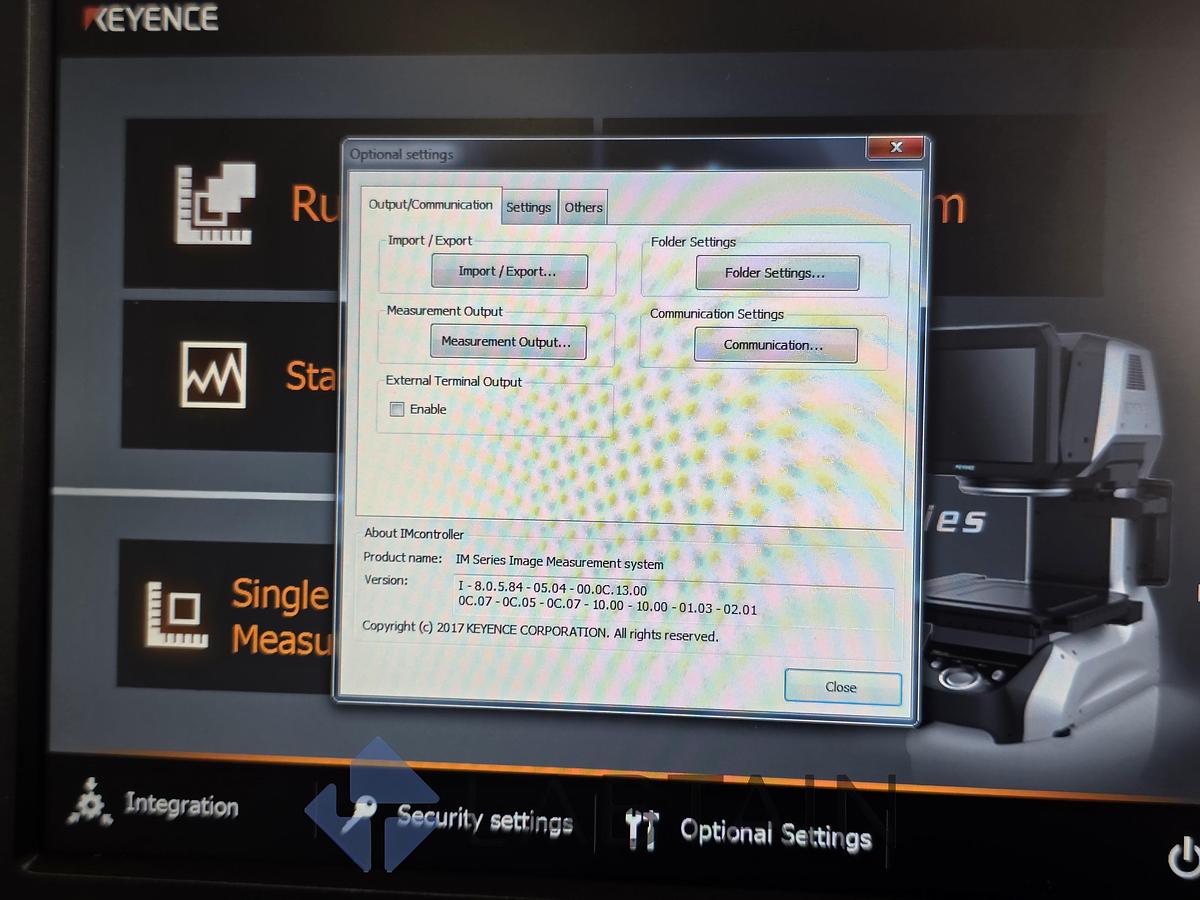

• Powers on and boots to the IM measurement software; main menu, Single/Automatic Measurement, and Run modes all display and operate (verified on-screen).

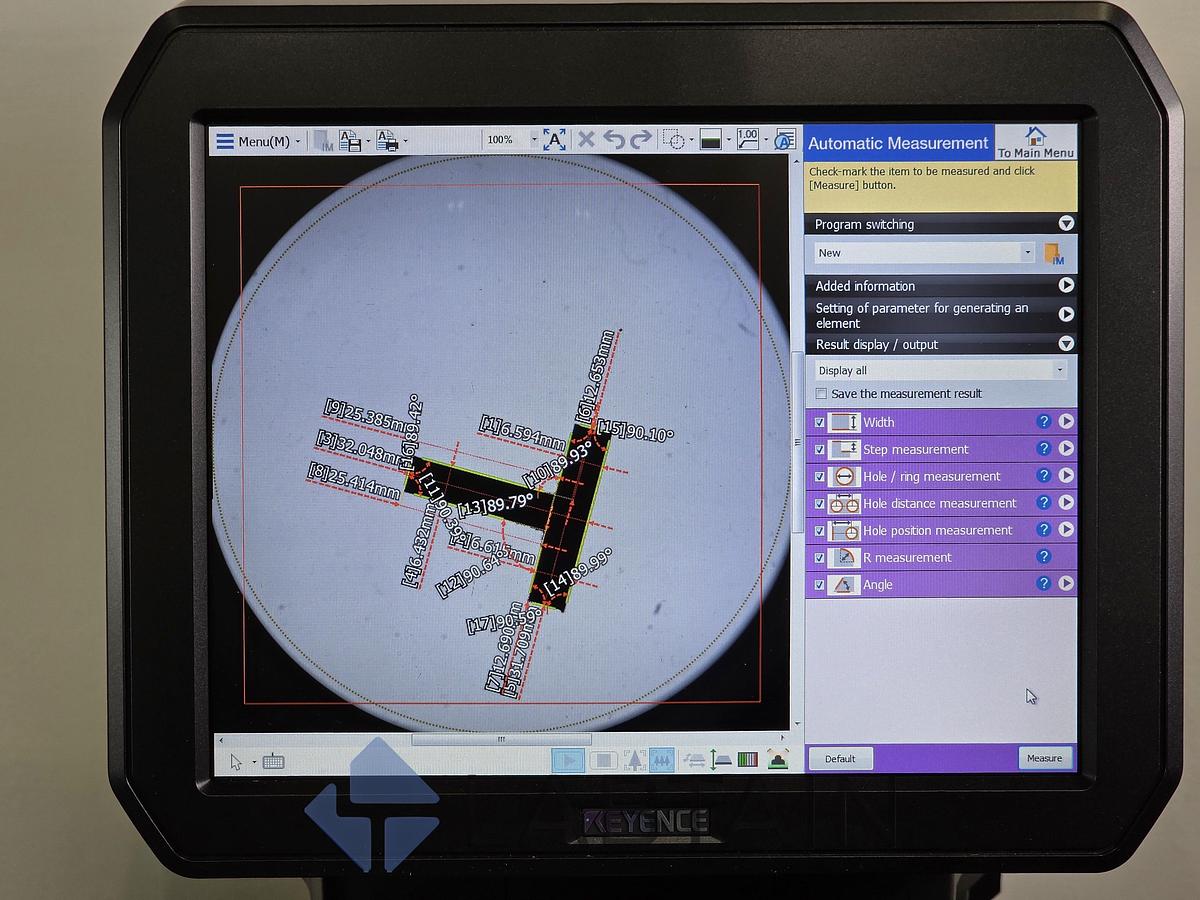

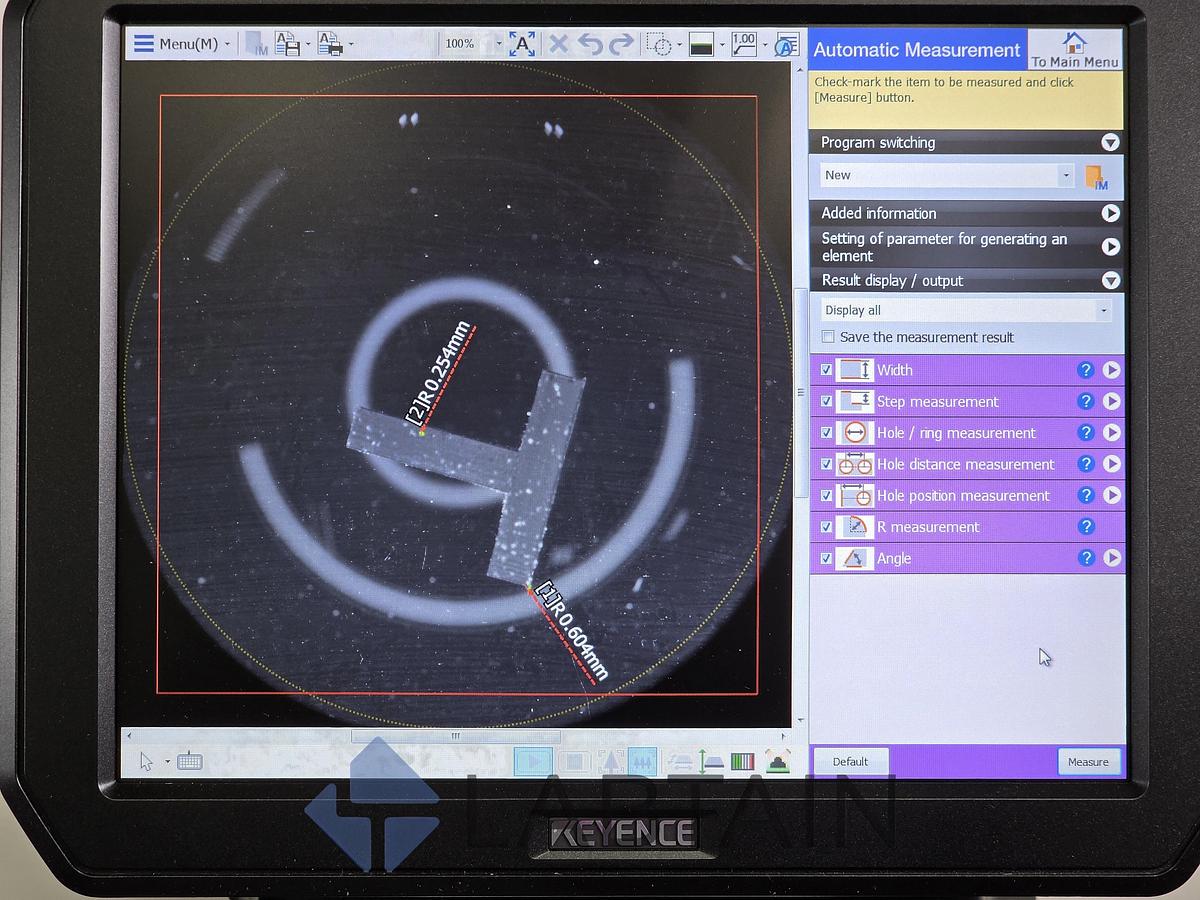

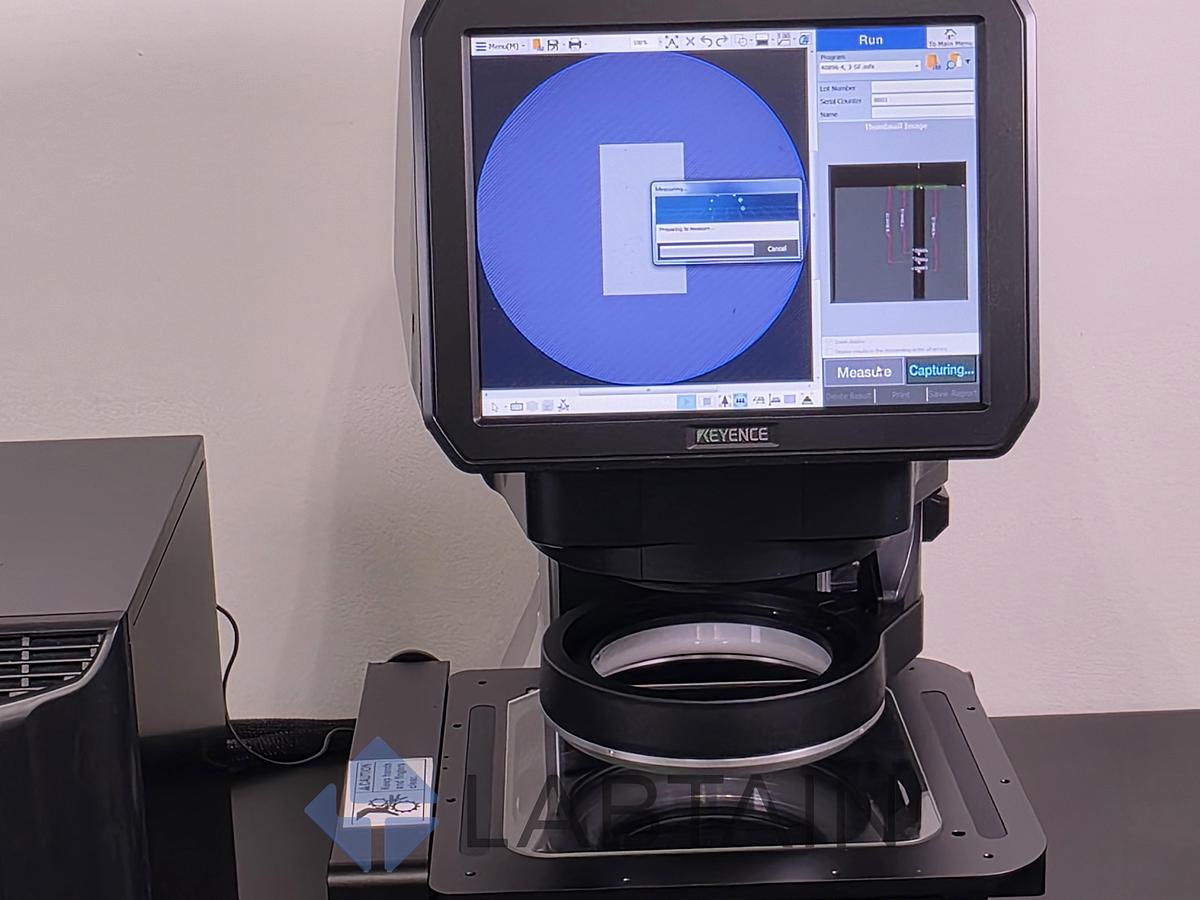

• Measurement function demonstrated live during inspection — the system captured parts and returned width, hole/ring, hole-position, radius (R), and angle results.

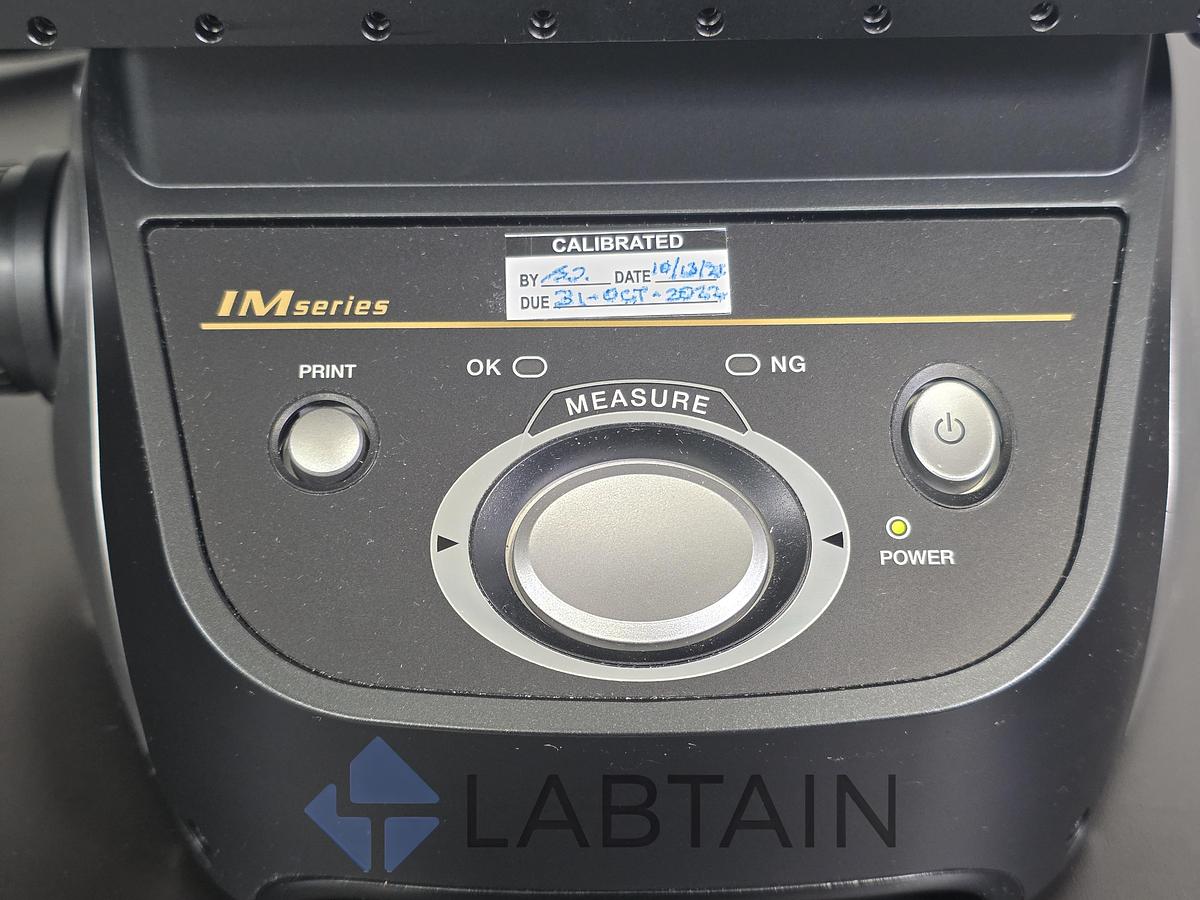

• Calibration label affixed but past due. Recommend factory or accredited recalibration before use in a controlled metrology environment. No calibration certificate included.

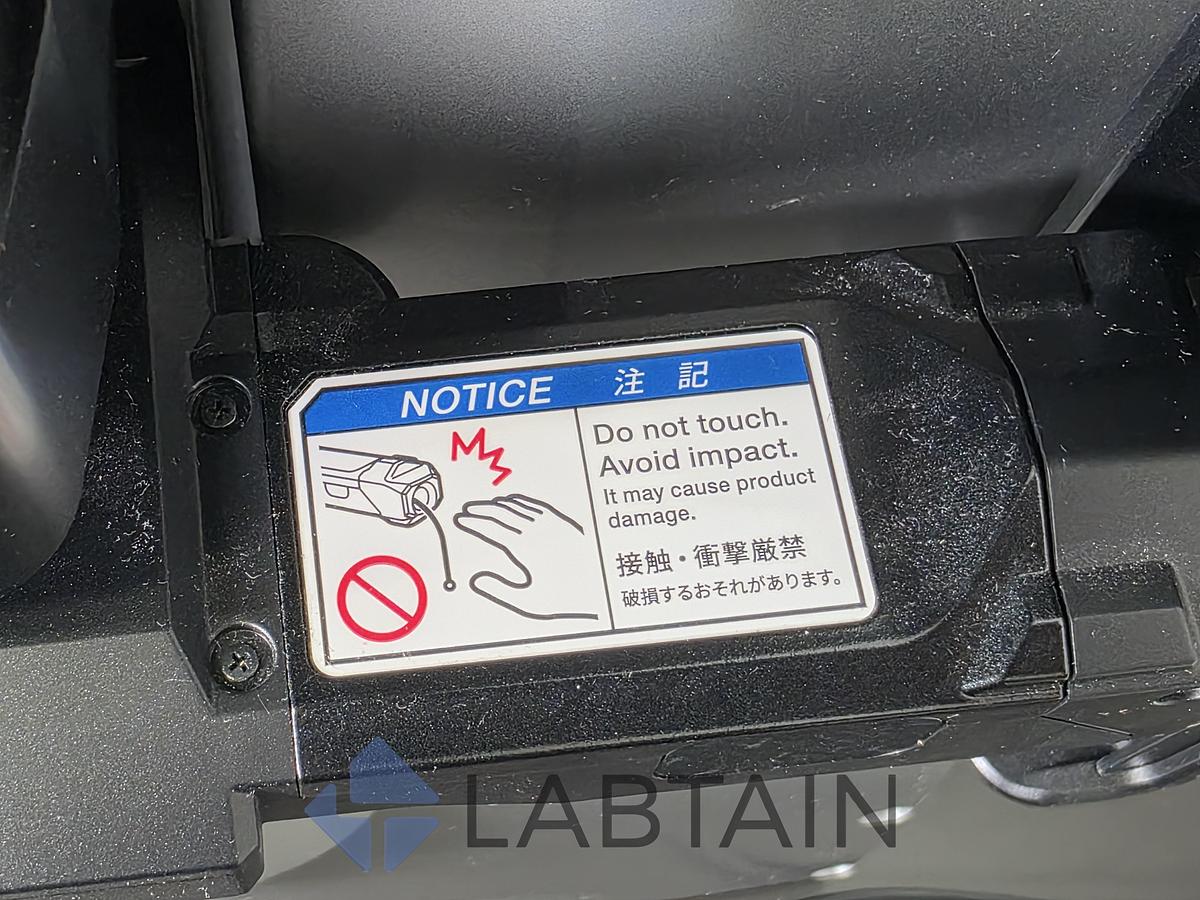

• Cosmetically clean and well-kept. The factory "Do not touch / Avoid impact" notice on the optical assembly is original to the instrument.

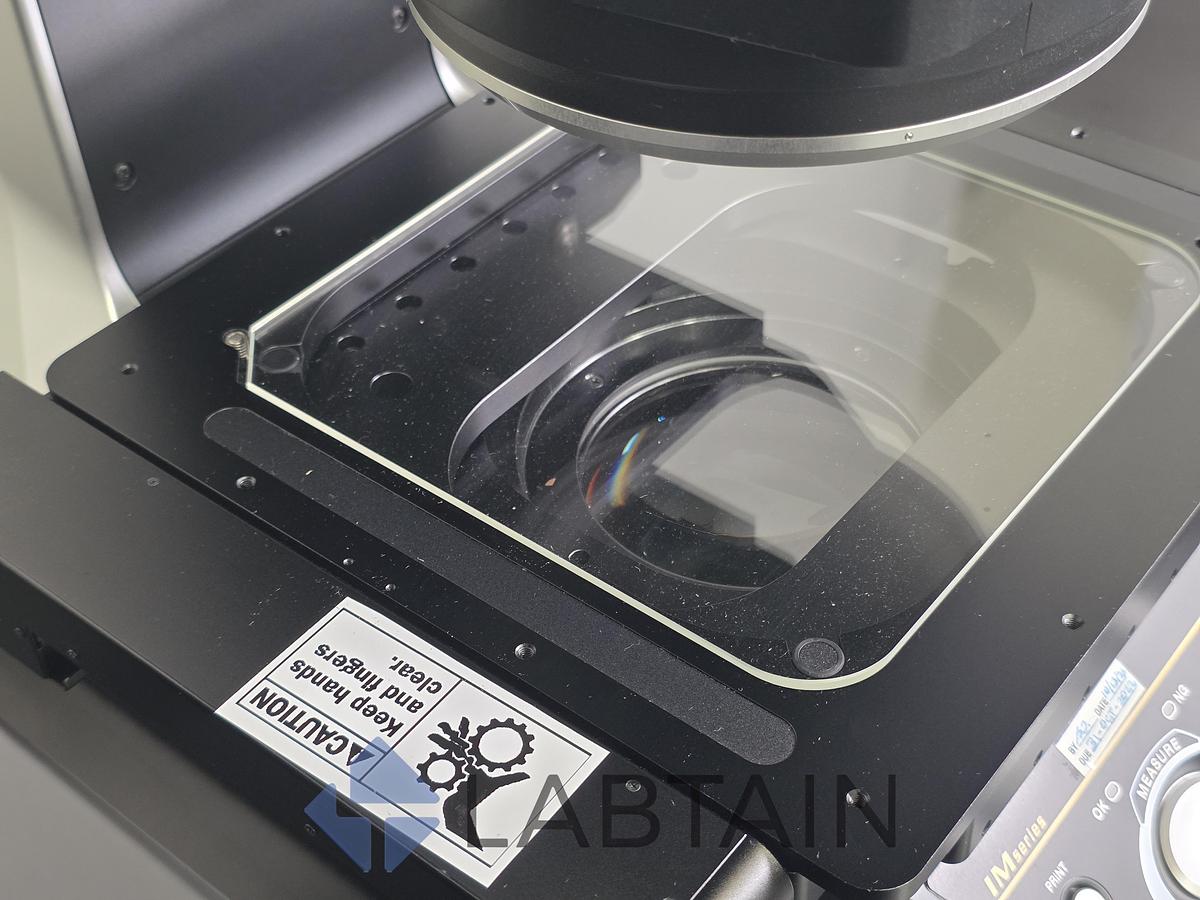

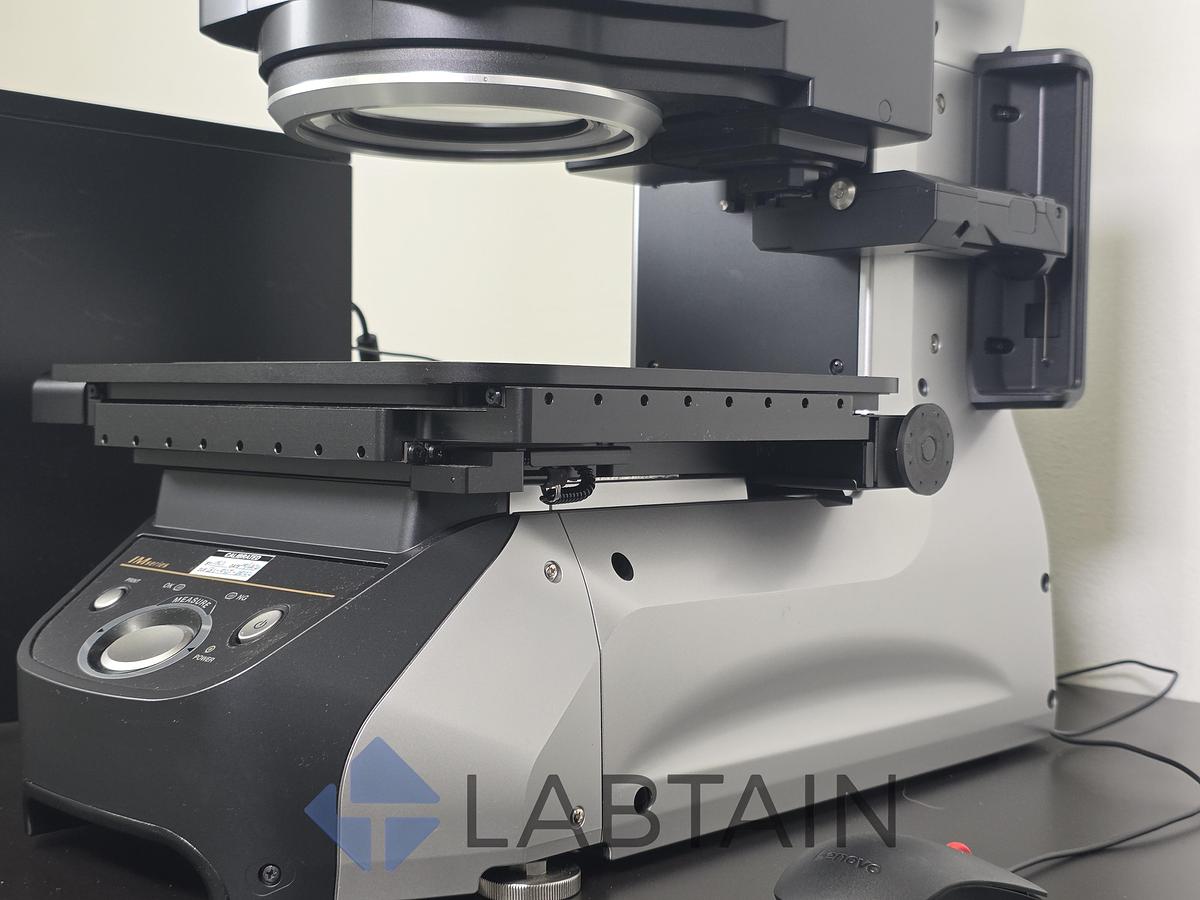

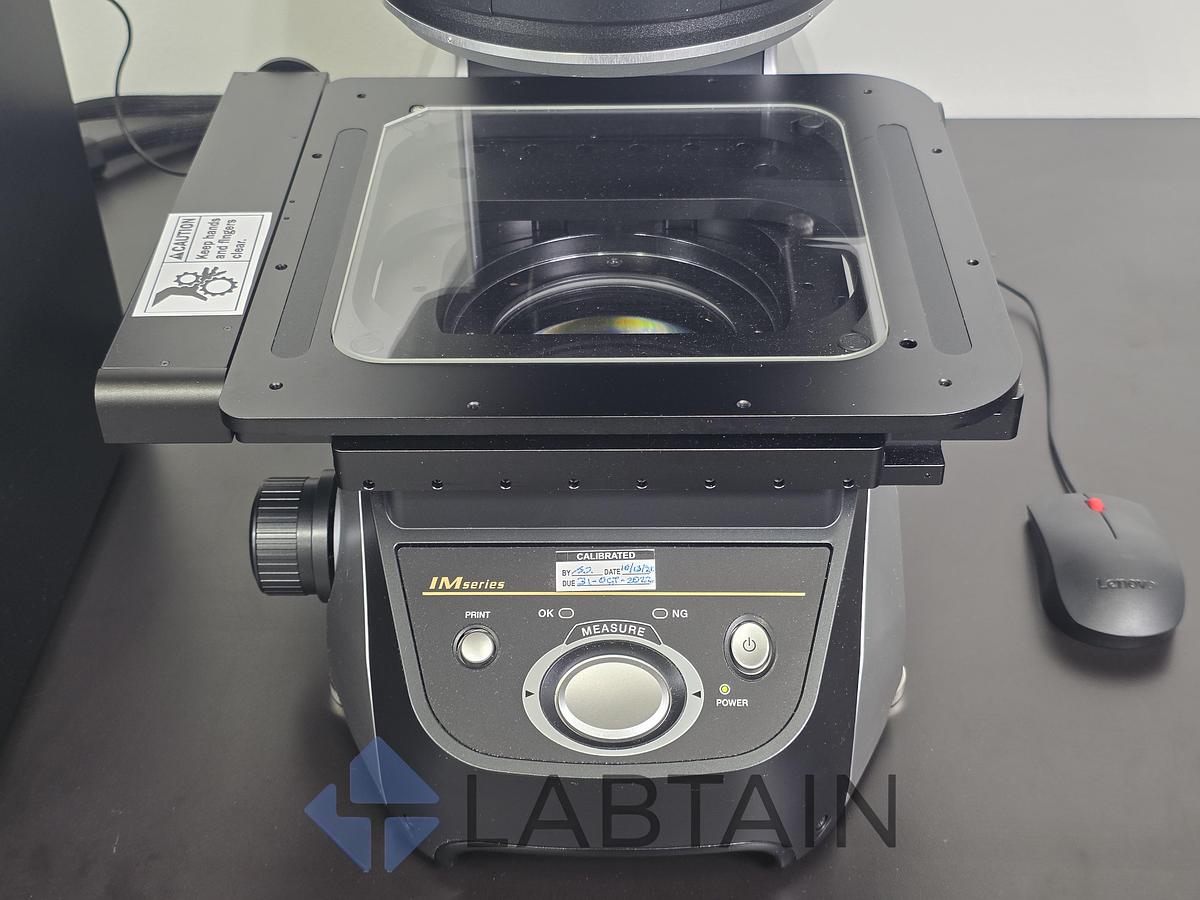

• Glass measuring stage present.
• The IM-7020 is the light-probe-equipped head variant per Keyence's configuration;

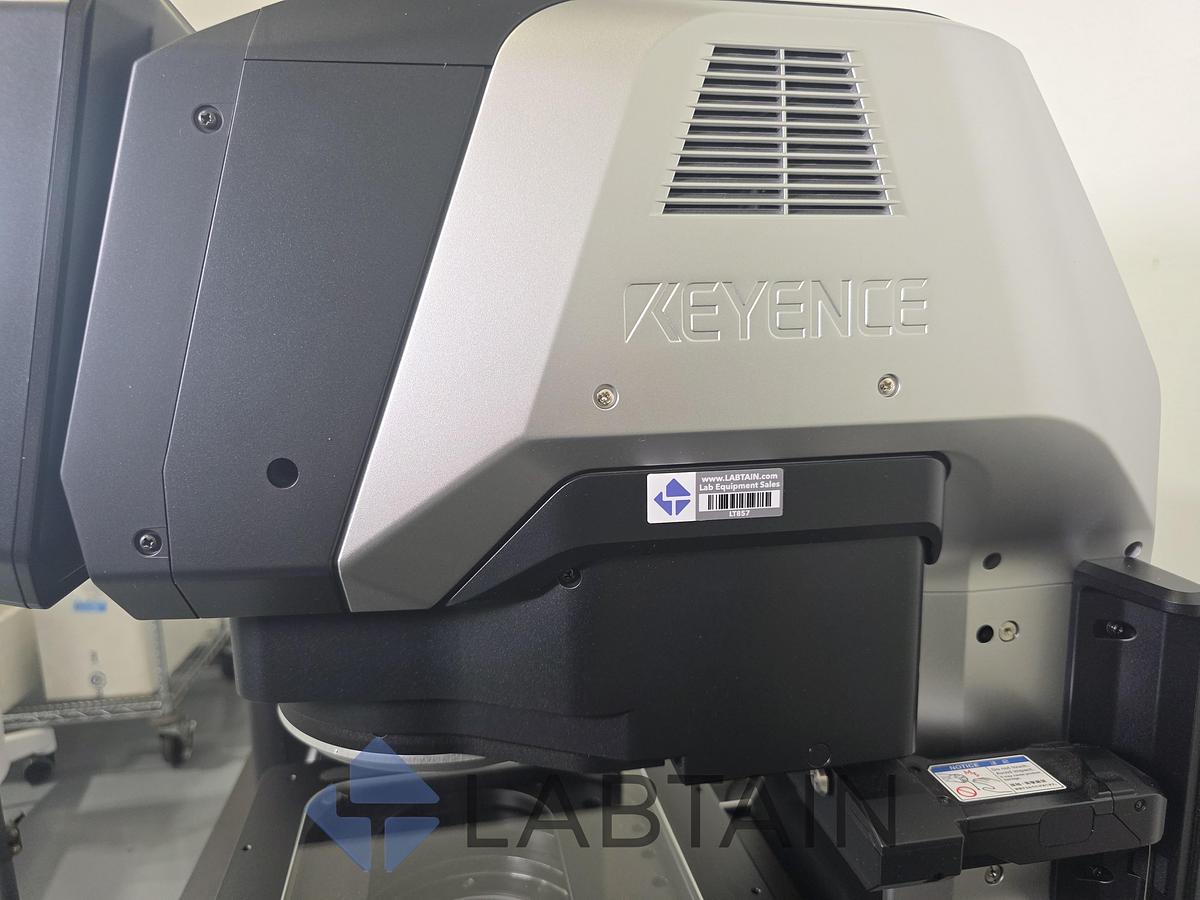

• Head serial #5C810279

Technical Specifications (per Keyence IM-7020 / IM-7000-series datasheet)

• System: IM-7000 controller + IM-7020 head (IM-7000 Series; discontinued by Keyence)
• Image sensor: 1″ 6.6 MP monochrome CMOS
• Display: 10.4″ LCD monitor (XGA 1024 × 768), touchscreen
• Receiver lens: Double telecentric lens
• Field of view: Wide-field 200 × 200 mm (4× R50); High-precision 125 × 125 mm
• Minimum display unit: 0.1 µm
• Repeatability: Wide-field ±1 µm (no stage movement) / ±2 µm (with stage movement); High-precision ±0.5 µm / ±1.5 µm
• Measurement accuracy (±2σ): Wide-field ±5 µm; High-precision ±2 µm (binding-dependent variants apply)
• XY stage: 100 × 100 mm travel (electric); withstand load 5 kg
• Z stage: 75 mm travel (electric)
• Illumination: Telecentric transmitted (backlight); programmable ring — 4-division multi-angle (electric) + slit ring directivity (electric)

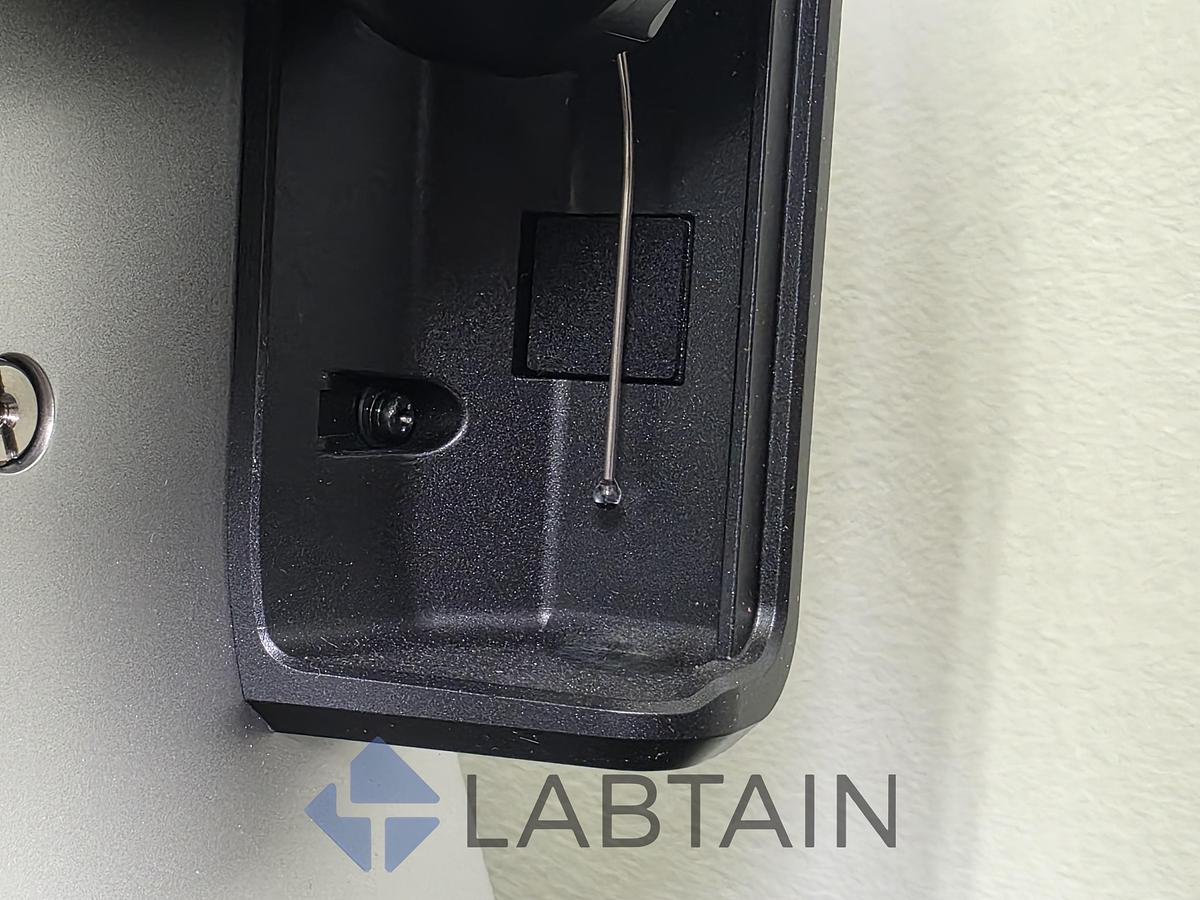

• Light probe: ø3 mm, 0.015 N measuring force, 90 × 90 mm measurable area, 30 mm max depth, ±2 µm repeatability

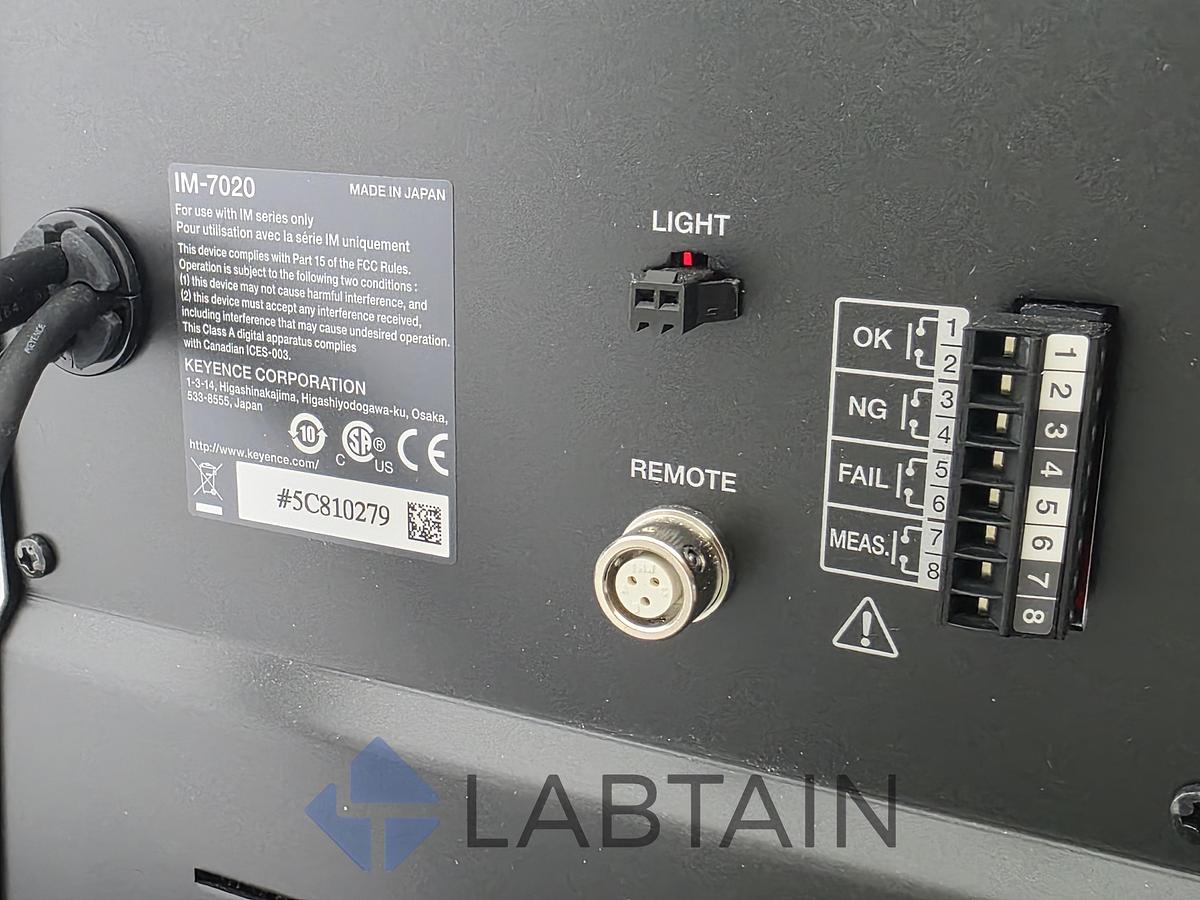

• I/O: External remote input (non-voltage); OK/NG/FAIL/MEAS PhotoMos outputs, 24 VDC 0.5 A
• Interfaces: Gigabit LAN (RJ-45 10/100/1000); 4× USB 3.1 (rear); 2× USB 2.0 (front)
• Storage: 500 GB HDD
• Power: 100–240 VAC, 50/60 Hz, ≤430 VA
• Environment: +10 to +35 °C, 20–80% RH non-condensing
• Weight: head approx. 31 kg (≈69 lb); controller approx. 8 kg
• Compliance: CE, UL/CSA (as shipped); Made in Japan
