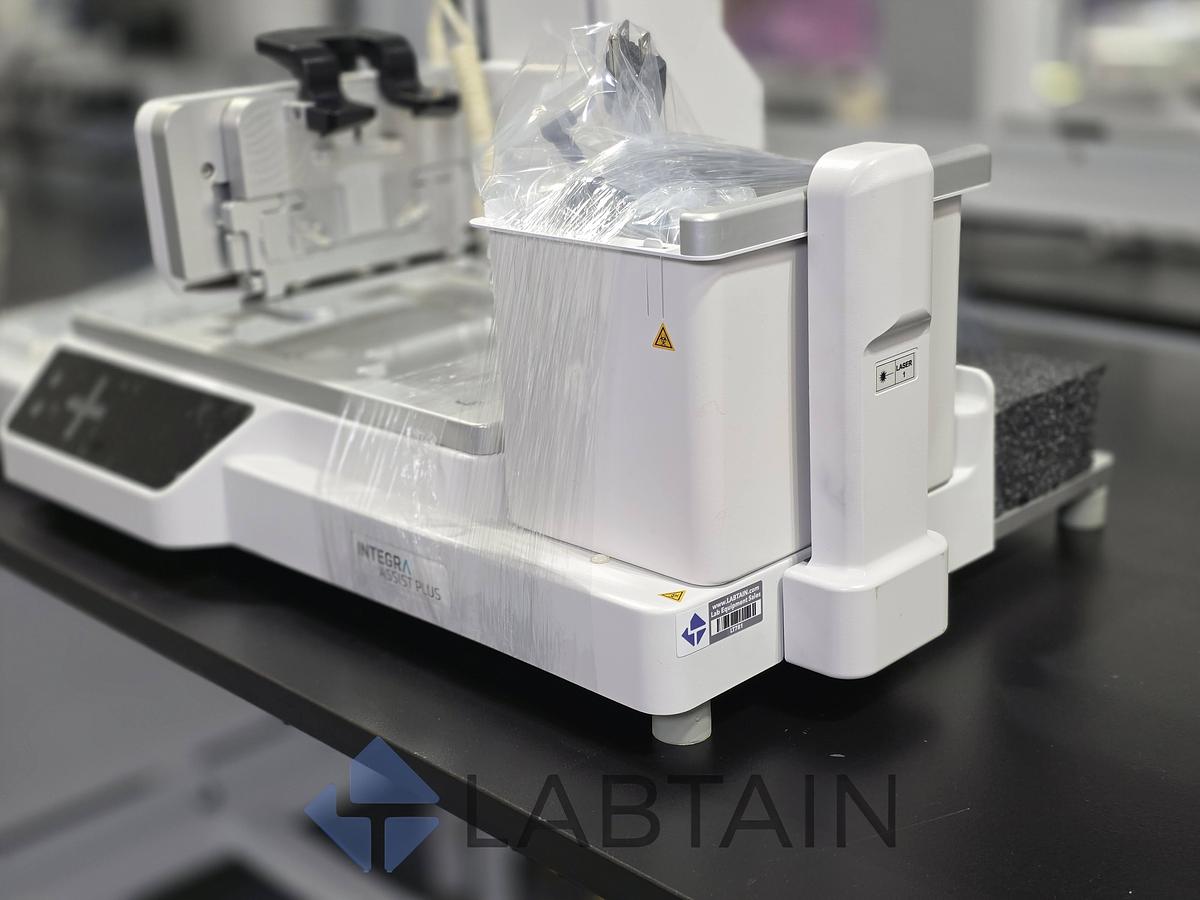

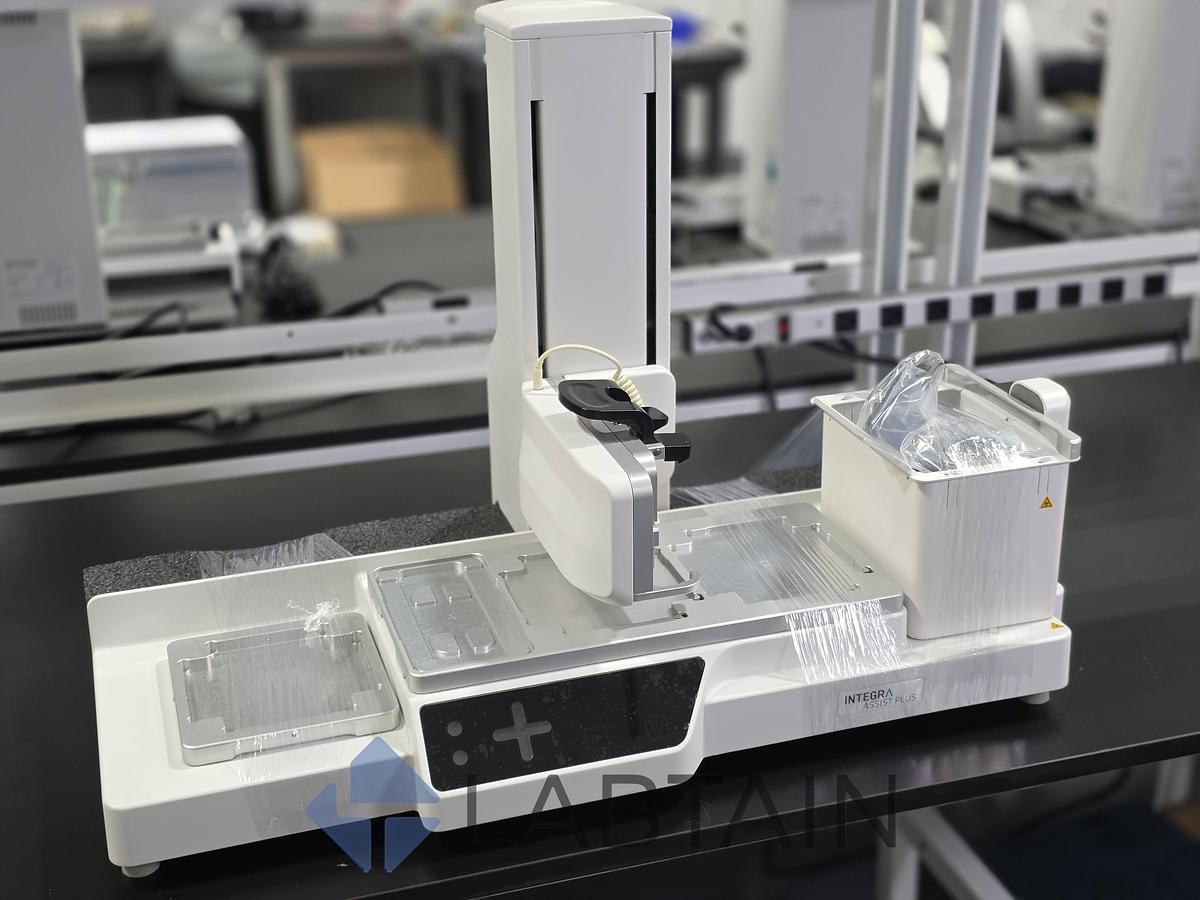

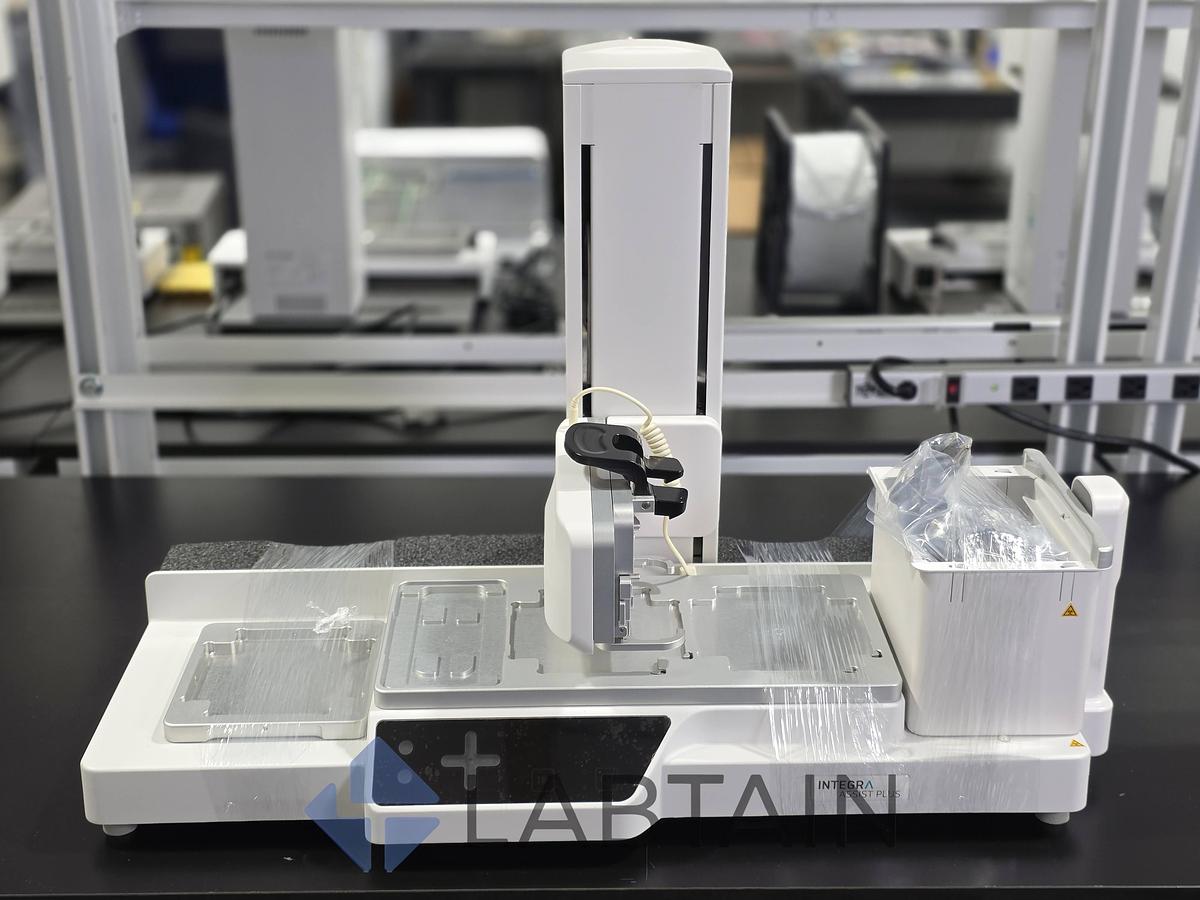

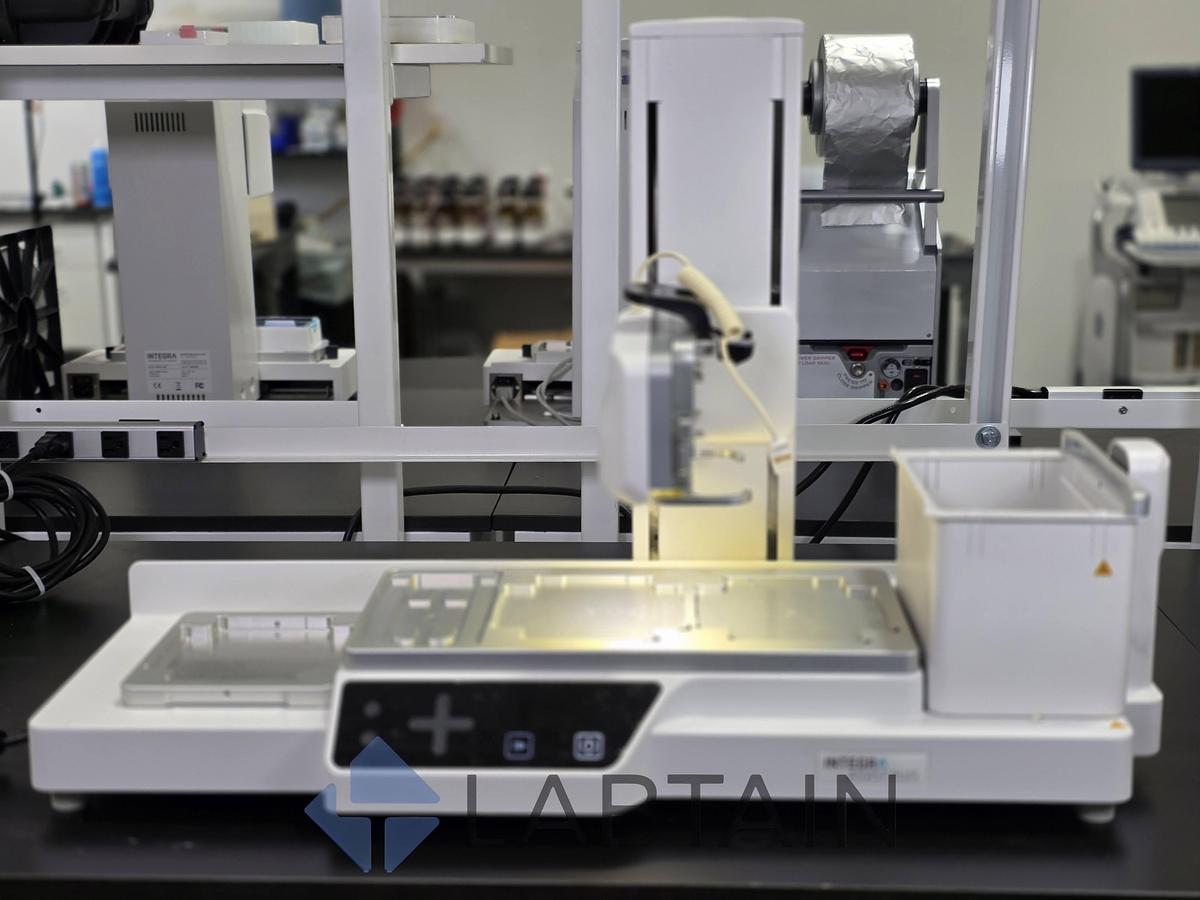

INTEGRA ASSIST PLUS Automated Pipetting Robot, 3-Position Deck, Cat #4505 — Used/Inspected

INTEGRA ASSIST PLUS Automated Pipetting Robot, 3-Position Deck, Cat #4505 — Used/Inspected

$4,500 (USD)

Shipping charges apply

Location:Vancouver, WA

Description

The INTEGRA ASSIST PLUS is a benchtop pipetting robot that automates routine liquid handling tasks while preserving the flexibility of manual multichannel pipetting. Designed to accept any INTEGRA VIAFLO or VOYAGER electronic multichannel pipette — or the D-ONE single-channel pipetting module — the ASSIST PLUS executes pre-programmed protocols directly from the pipette's onboard interface via Bluetooth pairing, eliminating the need for a dedicated PC or complex scripting.

This compact, hands-free platform is ideal for laboratories performing serial dilutions, plate reformatting, plate replication, reagent addition, qPCR/NGS setup, and assay plate preparation. By enforcing consistent pipetting angles, controlled aspiration/dispense speeds, accurate well targeting, and uniform tip immersion depths, ASSIST PLUS removes operator-to-operator variability and dramatically improves reproducibility — at a fraction of the cost and footprint of full liquid-handling workstations. The 3-position deck (A/B/C) accommodates tubes, reagent reservoirs, and plates from 96-well up to 384-well formats (portrait or landscape), with two dedicated stations for automatic tip loading and ejection.

A practical fit for academic, biotech, pharma, QC, and diagnostic labs that want to free skilled scientists from repetitive pipetting without committing to a six-figure automation platform.


CONDITION

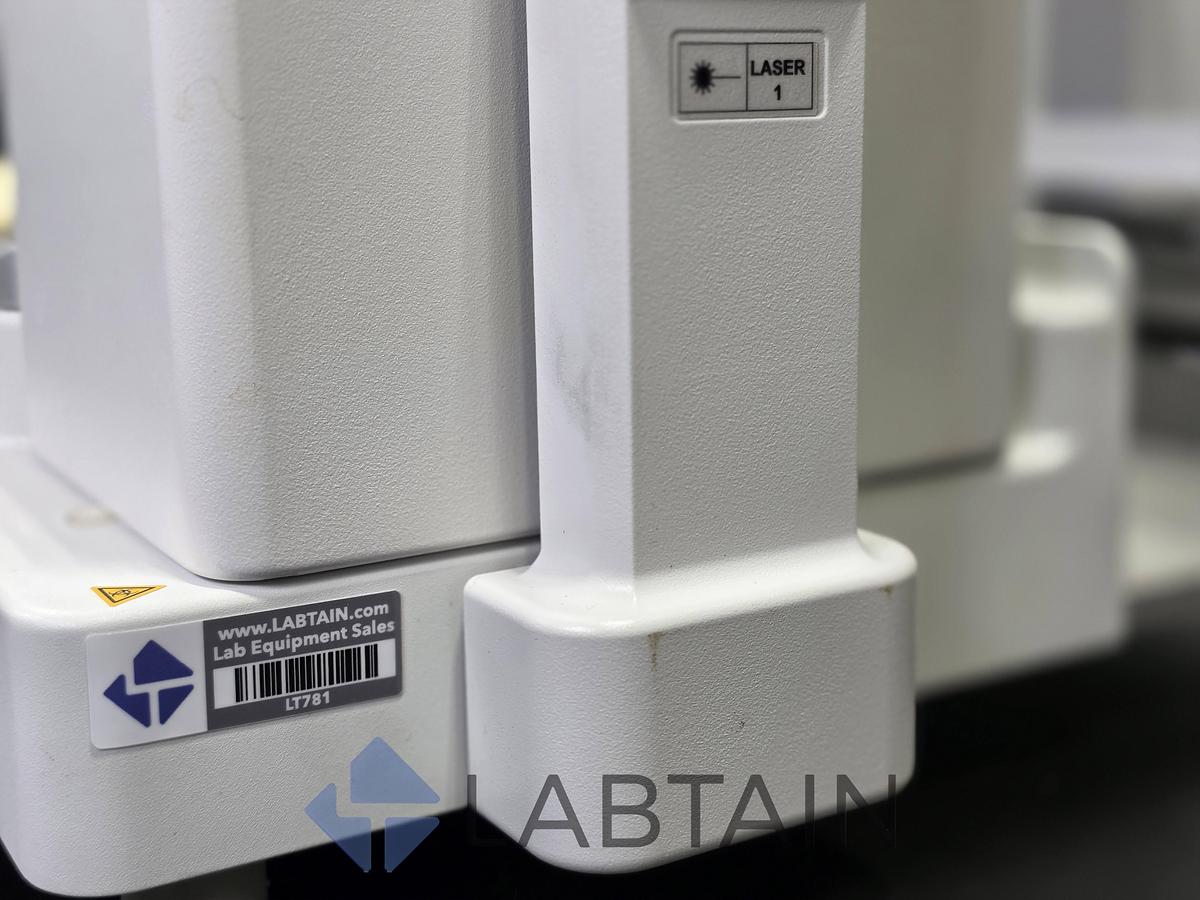

Used / Tested. Unit shows light cosmetic wear consistent with normal laboratory use. Powers on; tower, deck, and pipette holder appear fully intact. Sold as-is without operational validation by an authorized Integra service technician. Buyer is responsible for installation, calibration, and software setup. Internal asset tag LT781 present.


TECHNICAL SPECIFICATIONS

  • Brand / Manufacturer: INTEGRA Biosciences AG (Switzerland)
  • Model: ASSIST PLUS
  • Catalog Number: 4505
  • Serial Number: 21021621
  • Type: Automated pipetting robot / benchtop liquid handler
  • Compatible Pipettes: All INTEGRA VIAFLO and VOYAGER electronic multichannel pipettes (4-, 6-, 8-, 12-, and 16-channel); D-ONE single-channel pipetting module
  • Volume Range (with compatible pipettes): 0.5 µL – 1250 µL

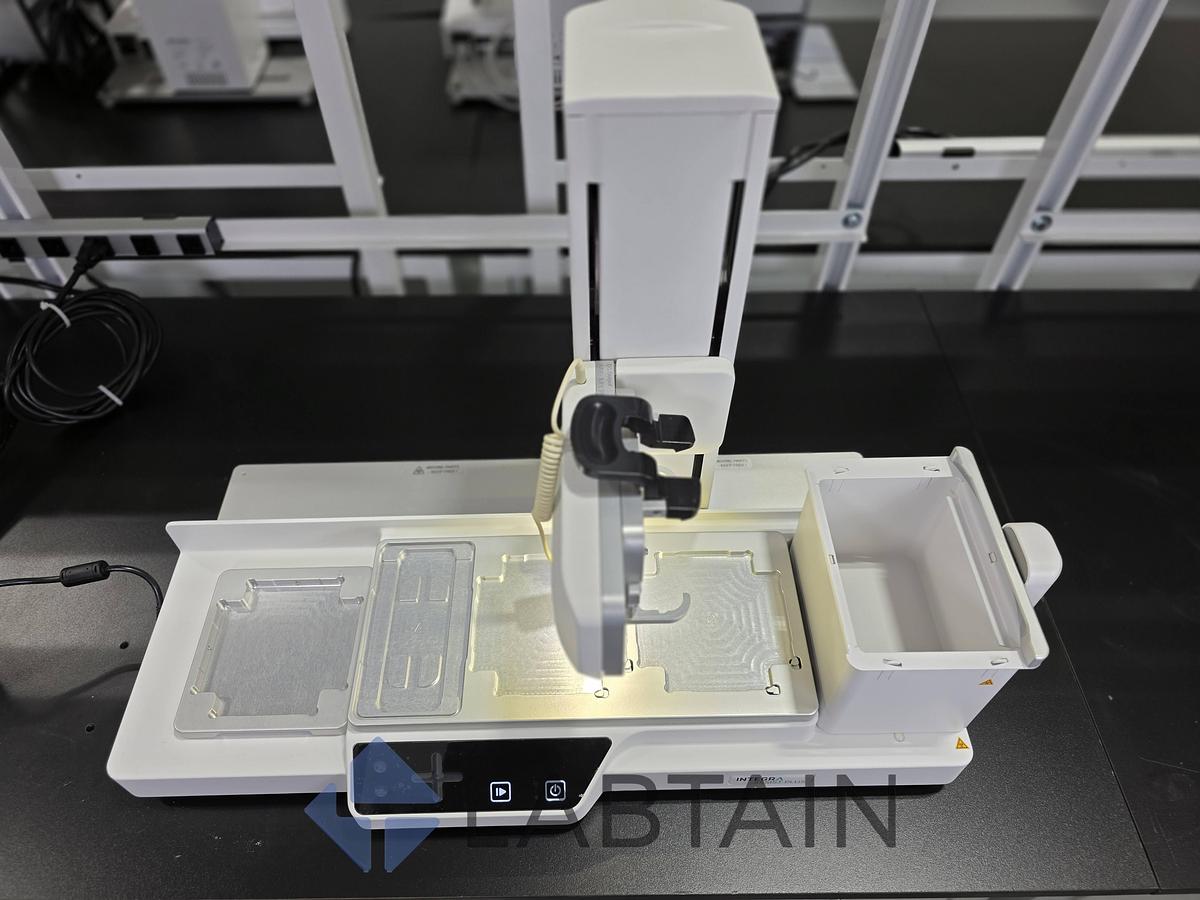

  • Deck: 3 work positions (A, B, C) for reservoirs, tube racks, and microplates; plus 2 dedicated tip-load / tip-eject positions
  • Plate Compatibility: 96-well and 384-well plates, portrait or landscape orientation

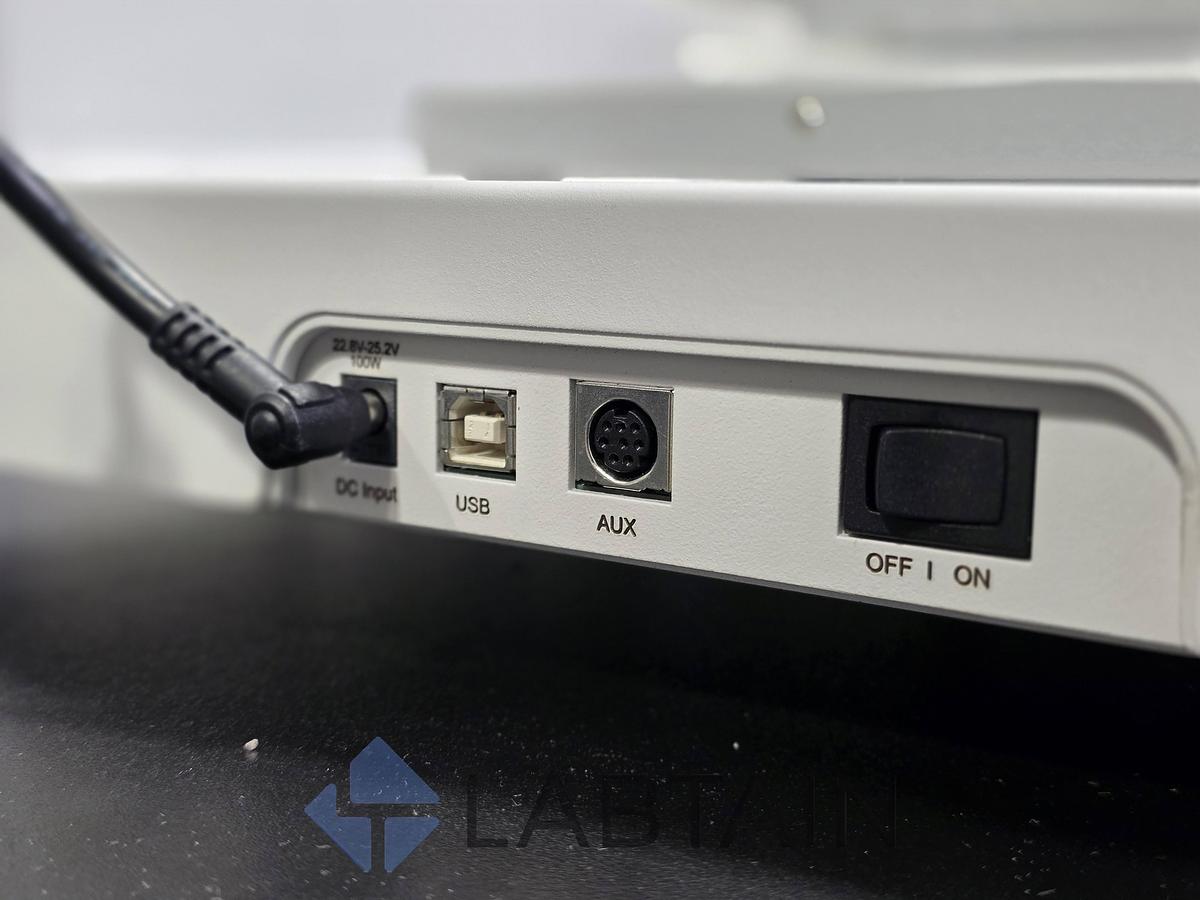

  • Communication: Bluetooth (2.400 – 2.485 GHz) to VIAFLO/VOYAGER pipette; USB-B; AUX (mini-DIN)
  • Pipetting Technology: Air displacement (via mounted electronic pipette)

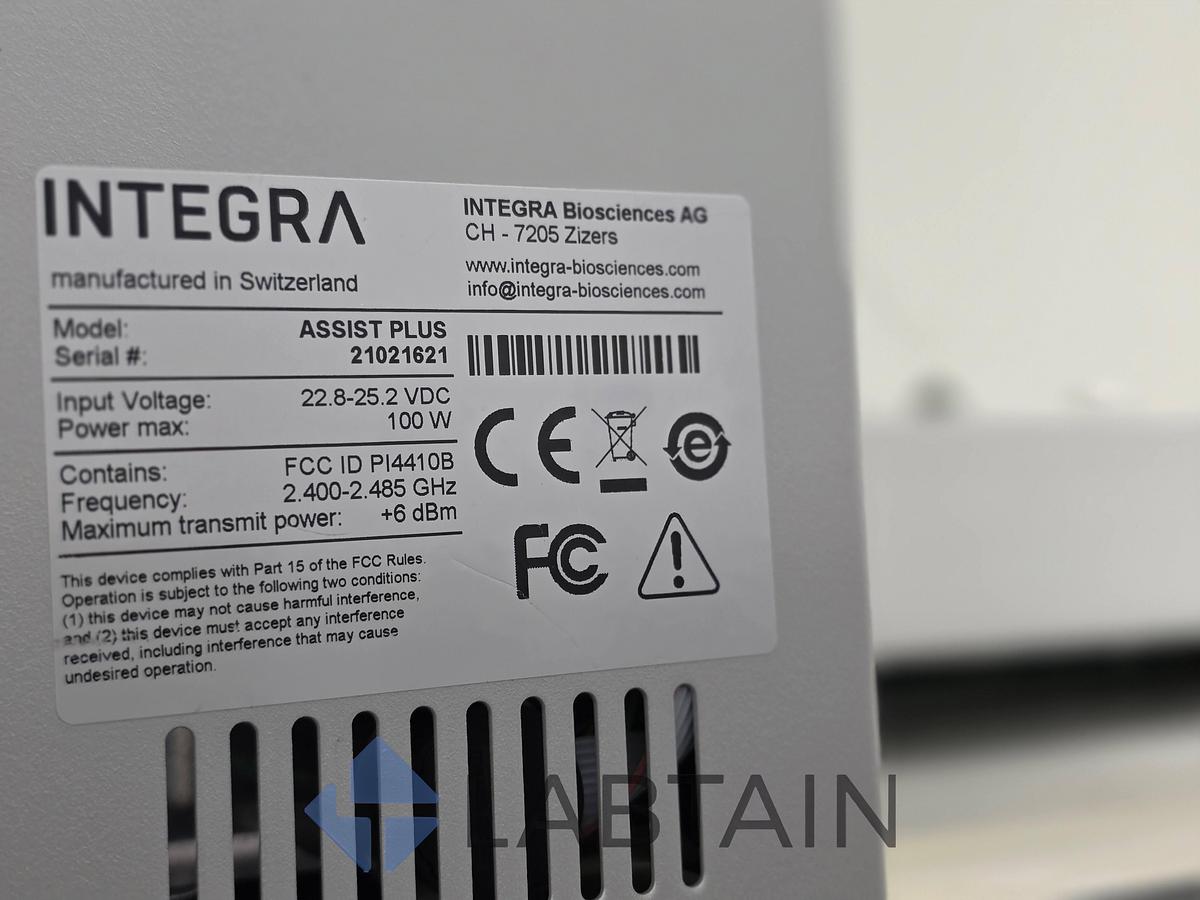

  • Input Voltage: 22.8 – 25.2 VDC
  • Auxiliary DC Output: 4.8 V – 5.2 V, 3 W
  • Power Max: 100 W
  • FCC ID: PI4410B
  • Max Transmit Power: +6 dBm
  • Operating Conditions: 5 °C – 40 °C, < 85 % RH non-condensing
  • Country of Origin: Switzerland
  • Certifications: CE, FCC


INCLUDED

  • (1) INTEGRA ASSIST PLUS Pipetting Robot base unit (Cat #4505, S/N 21021621)

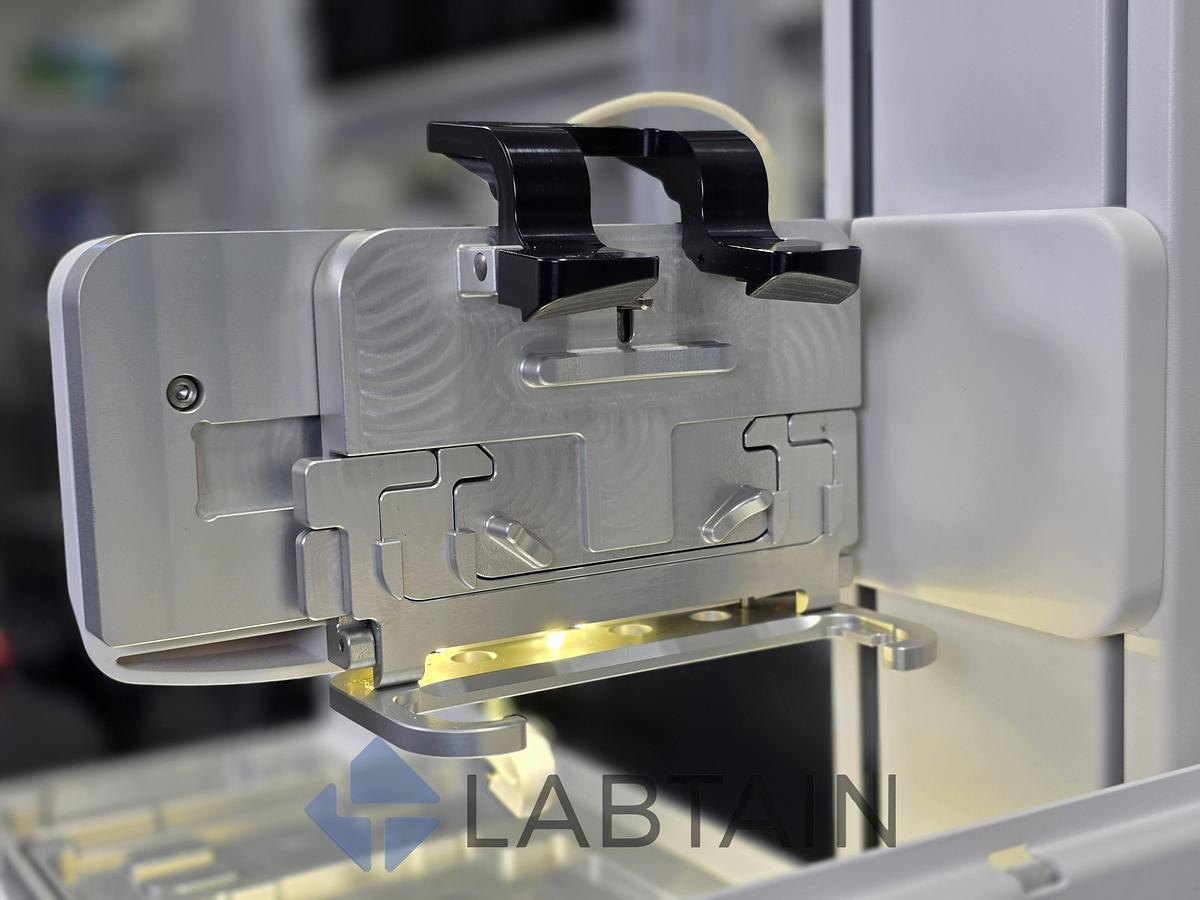

  • (1) Integrated pipette holder / Z-tower assembly
  • (1) Waste bin

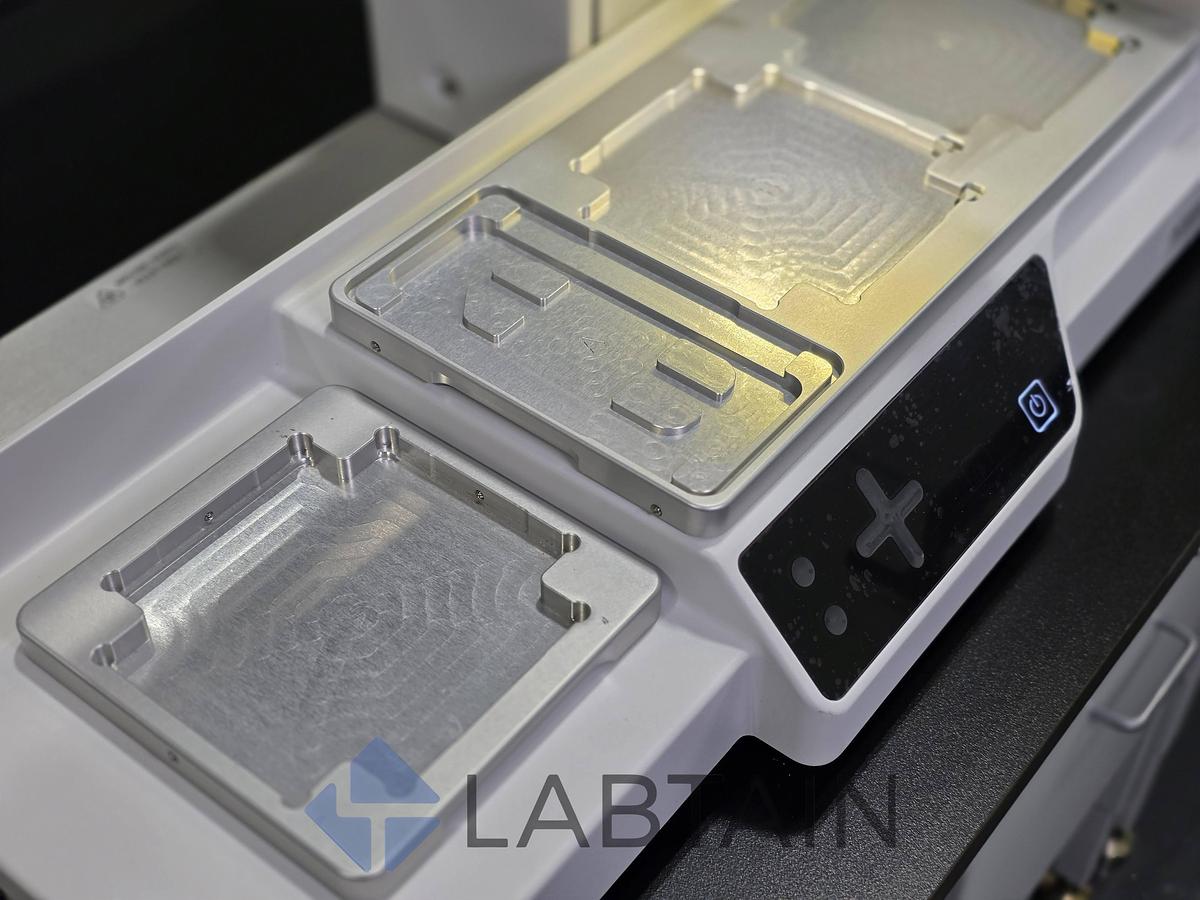

  • (1) Deck assembly with tip-rack adapter (Position A) and aluminum plate adapters (Positions A/B/C)

LT781

Specifications

ManufacturerINTEGRA
ModelASSIST PLUS
ConditionUsed
Serial Number21021621
Stock NumberLT781
* Brand / ManufacturerINTEGRA Biosciences AG (Switzerland)
* ModelASSIST PLUS
* Catalog Number4505
* Serial Number21021621
* Input Voltage22.8 – 25.2 VDC
* Power Max100 W
* FCC IDPI4410B
* Max Transmit Power+6 dBm
* Country of OriginSwitzerland
* CertificationsCE, FCC
