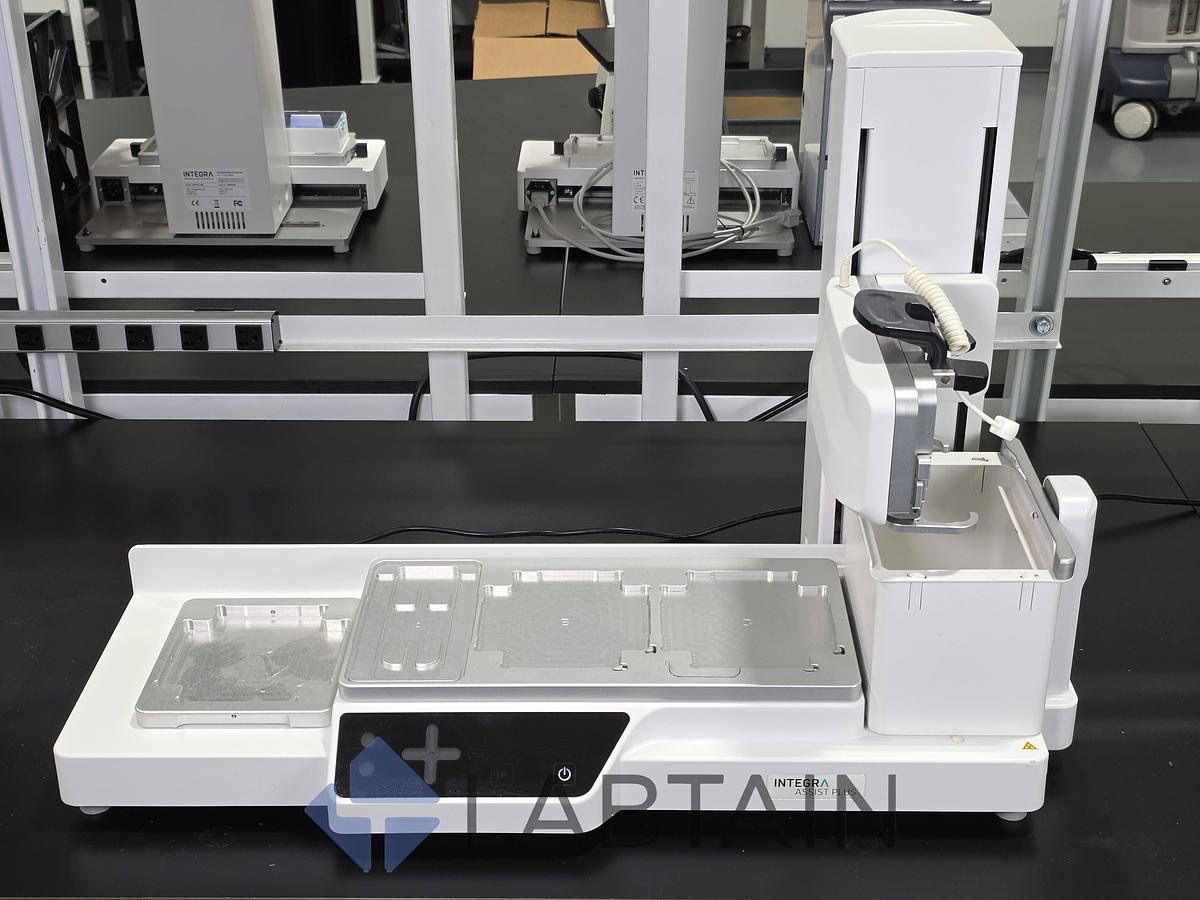

INTEGRA ASSIST PLUS Automated Pipetting Robot, 3-Position Deck, — Used/Tested

The INTEGRA ASSIST PLUS is a benchtop pipetting robot that automates routine liquid handling tasks while preserving the flexibility of manual multichannel pipetting. Designed to accept any INTEGRA VIAFLO or VOYAGER electronic multichannel pipette — or the D-ONE single-channel pipetting module — the ASSIST PLUS executes pre-programmed protocols directly from the pipette's onboard interface via Bluetooth pairing, eliminating the need for a dedicated PC or complex scripting.

This compact, hands-free platform is ideal for laboratories performing serial dilutions, plate reformatting, plate replication, reagent addition, qPCR/NGS setup, and assay plate preparation. By enforcing consistent pipetting angles, controlled aspiration/dispense speeds, accurate well targeting, and uniform tip immersion depths, ASSIST PLUS removes operator-to-operator variability and dramatically improves reproducibility — at a fraction of the cost and footprint of full liquid-handling workstations. The 3-position deck (A/B/C) accommodates tubes, reagent reservoirs, and plates from 96-well up to 384-well formats (portrait or landscape), with two dedicated stations for automatic tip loading and ejection.

A practical fit for academic, biotech, pharma, QC, and diagnostic labs that want to free skilled scientists from repetitive pipetting without committing to a six-figure automation platform.

TECHNICAL SPECIFICATIONS

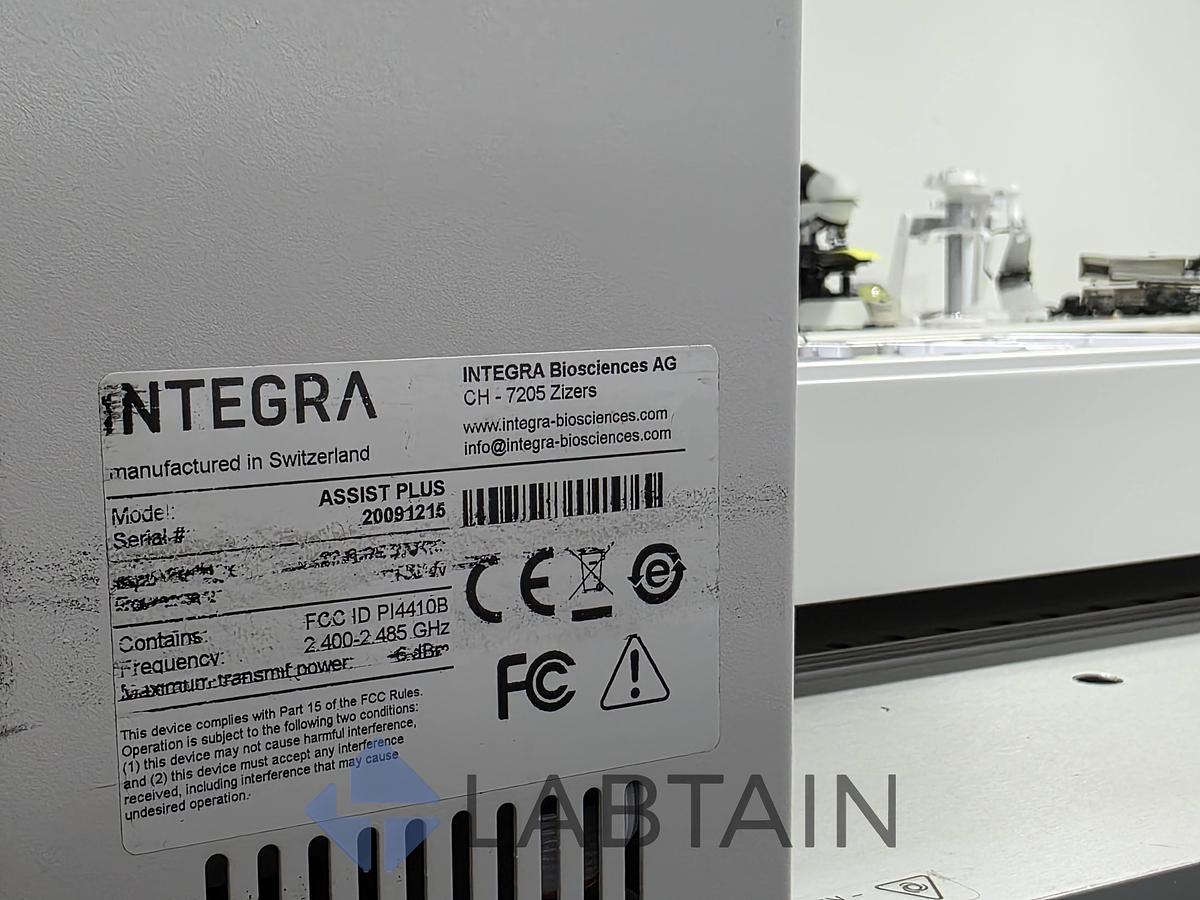

• Brand / Manufacturer: INTEGRA Biosciences AG (Switzerland)
• Model: ASSIST PLUS
• Serial Number: 20091215
• Type: Automated pipetting robot / benchtop liquid handler
• Compatible Pipettes: All INTEGRA VIAFLO and VOYAGER electronic multichannel pipettes (4-, 6-, 8-, 12-, and 16-channel); D-ONE single-channel pipetting module
• Volume Range (with compatible pipettes): 0.5 µL – 1250 µL

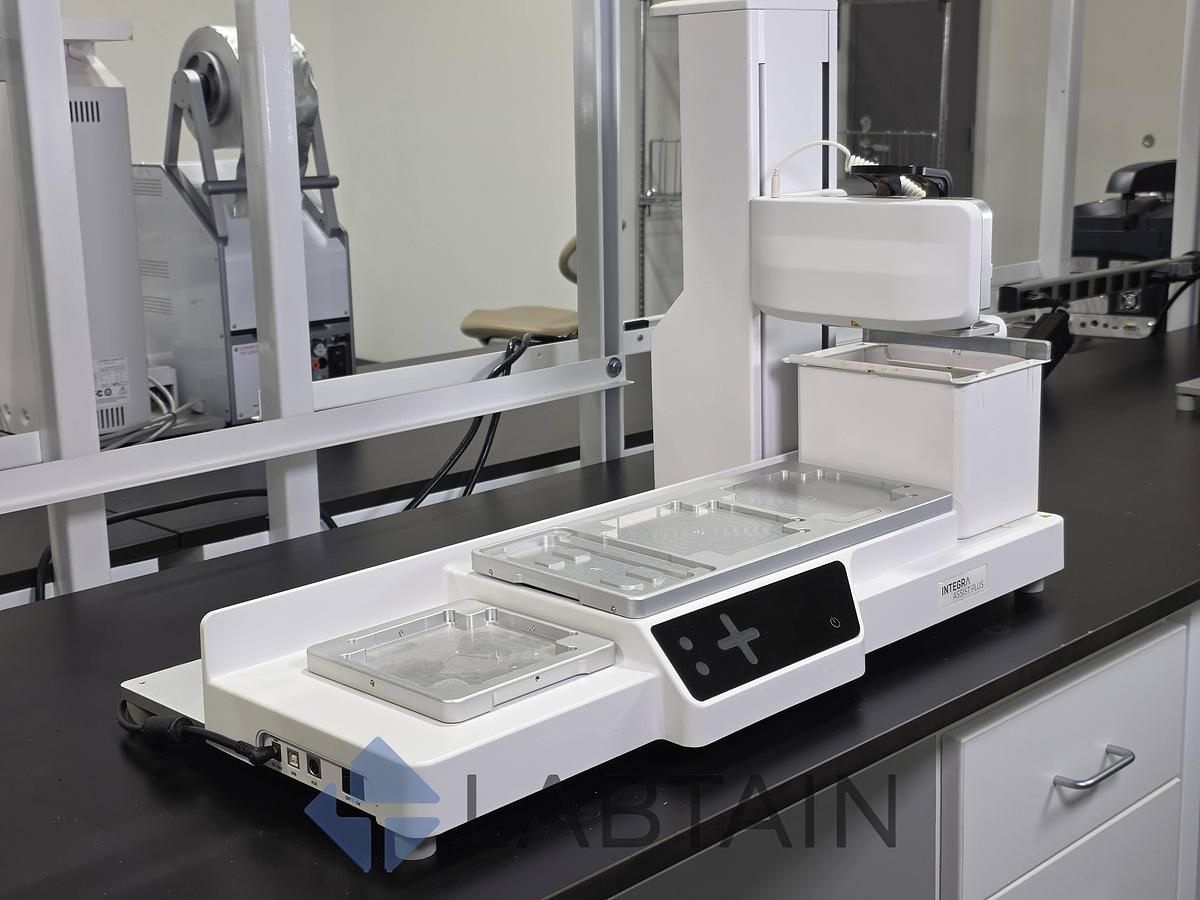

• Deck: 3 work positions (A, B, C) for reservoirs, tube racks, and microplates; plus 2 dedicated tip-load / tip-eject positions
• Plate Compatibility: 96-well and 384-well plates, portrait or landscape orientation

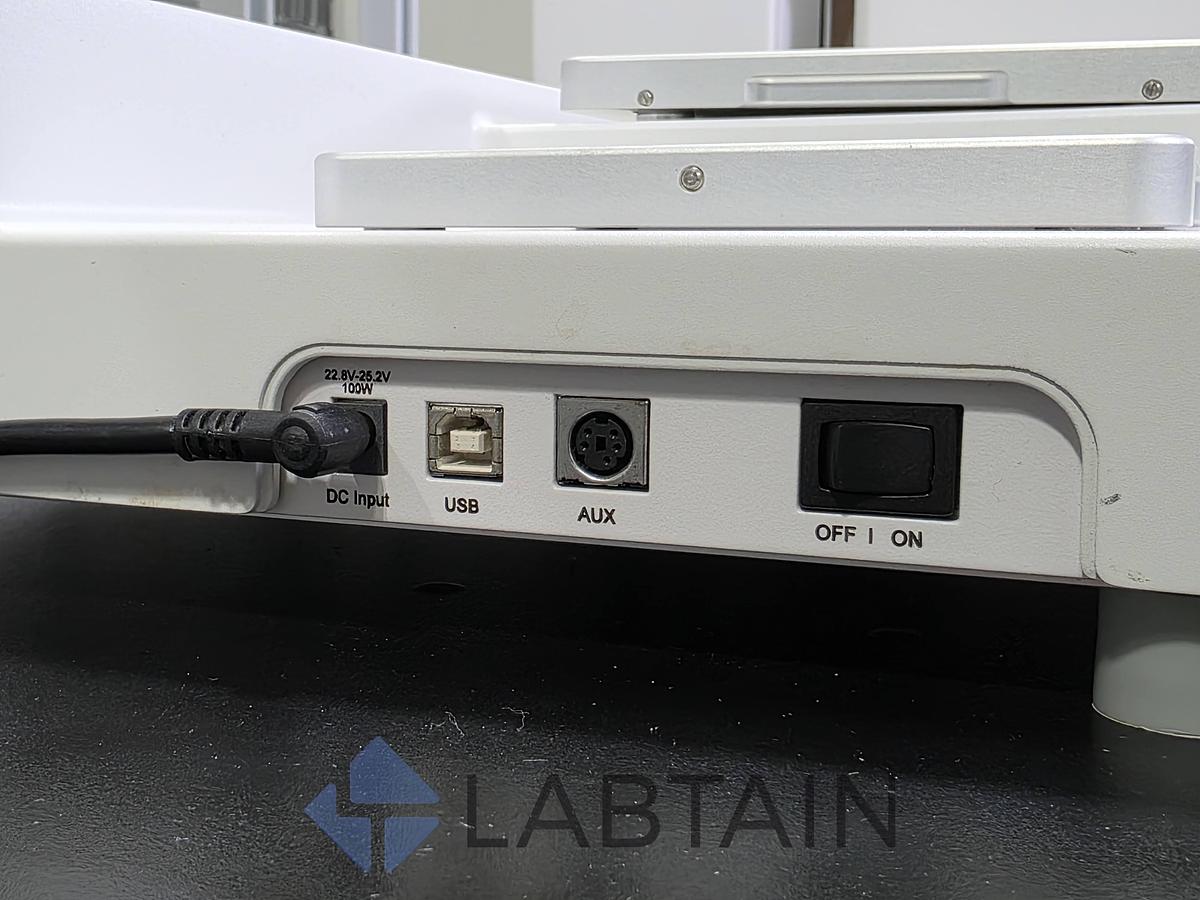

• Communication: Bluetooth (2.400 – 2.485 GHz) to VIAFLO/VOYAGER pipette; USB-B; AUX (mini-DIN)
• Pipetting Technology: Air displacement (via mounted electronic pipette)
• Input Voltage: 22.8 – 25.2 VDC

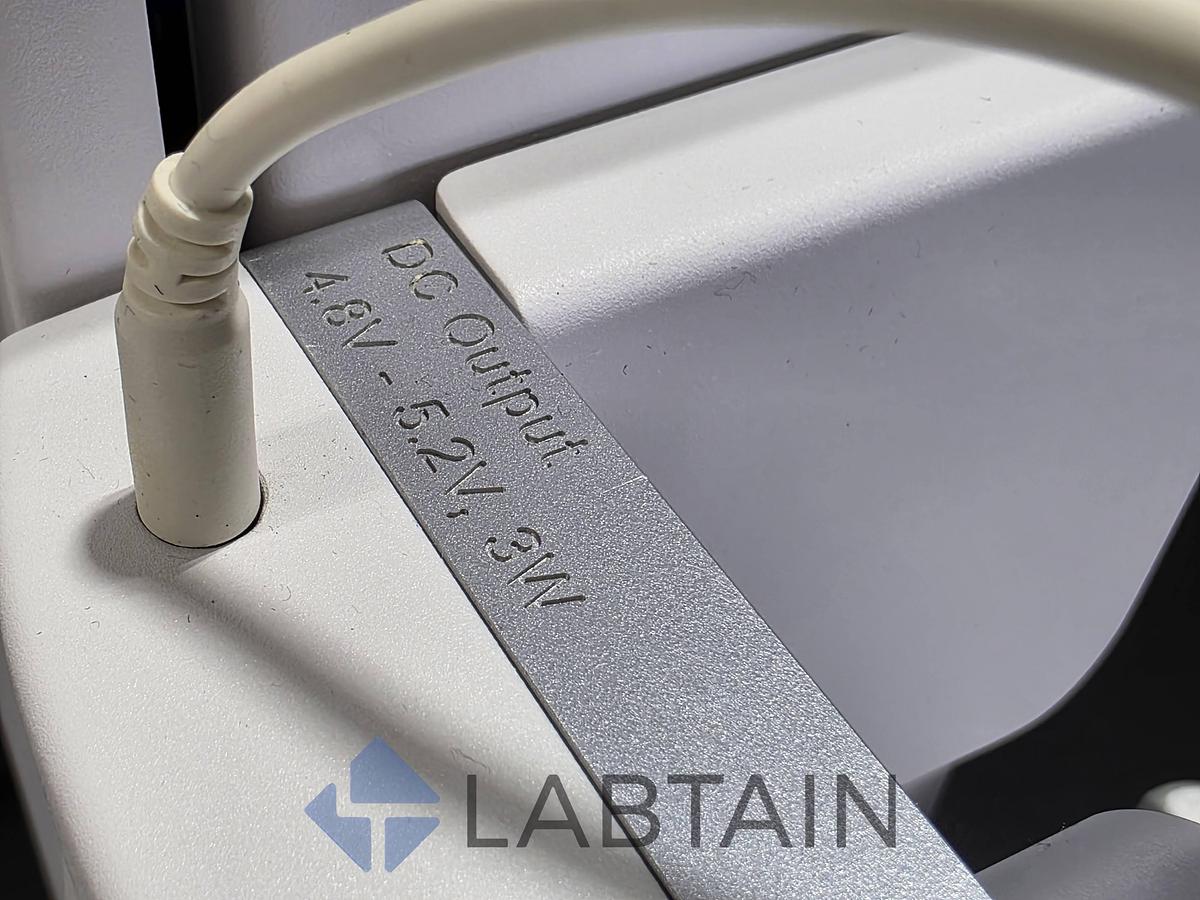

• Auxiliary DC Output: 4.8 V – 5.2 V, 3 W
• Power Max: 100 W
• Max Transmit Power: +6 dBm
• Operating Conditions: 5 °C – 40 °C, < 85 % RH non-condensing
• Country of Origin: Switzerland
• Certifications: CE, FCC

INCLUDED

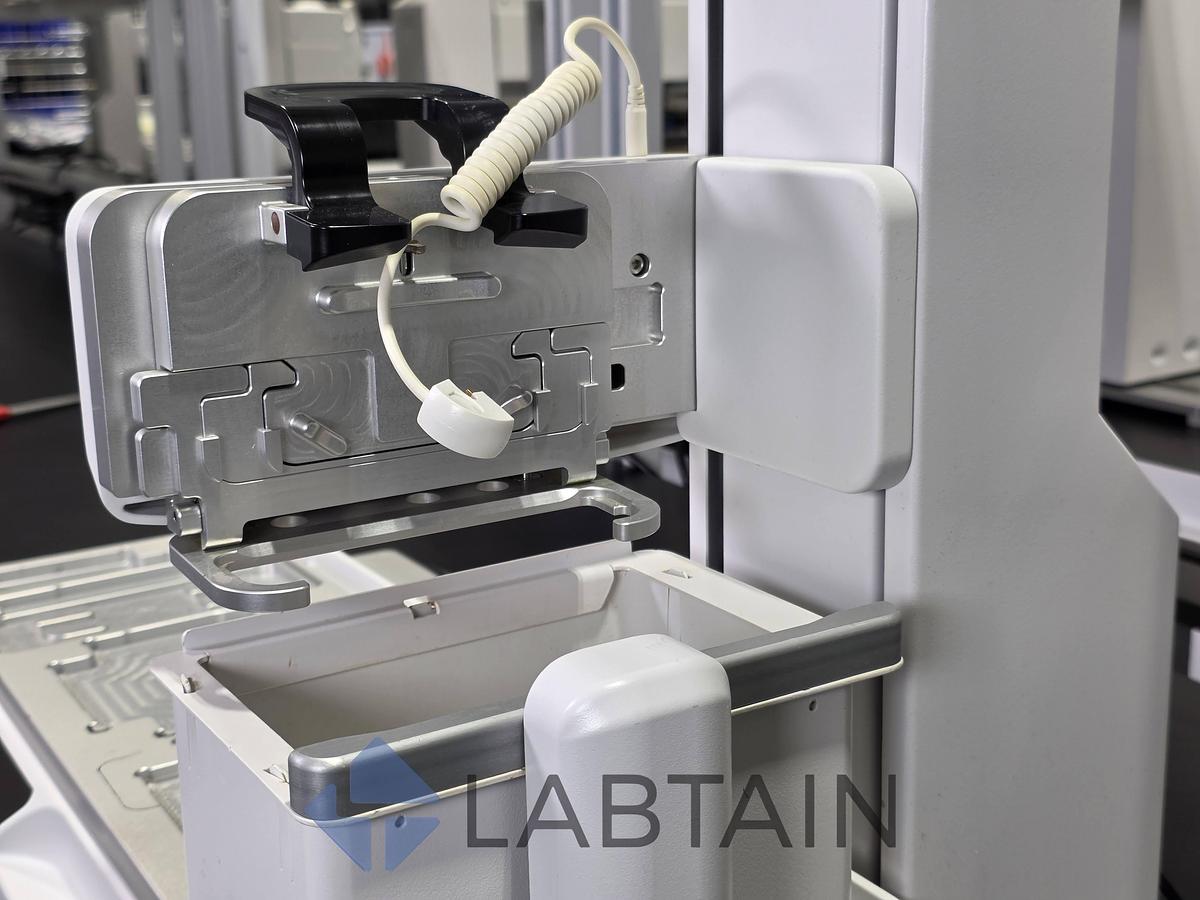

• (1) Integrated pipette holder / Z-tower assembly
• (1) Waste bin
• (1) Deck assembly with tip-rack adapter (Position A) and aluminum plate adapters (Positions A/B/C)
• (1) DC power supply / adapter
