Beckman Coulter NVT 65 Near-Vertical Ultracentrifuge Rotor 65,000 RPM 8x13.5mL

The Beckman Coulter NVT 65 is a high-performance titanium near-vertical-tube ultracentrifuge rotor engineered for isopycnic banding, rate-zonal separations, plasmid DNA purification, lipoprotein analysis, and other density-gradient applications requiring rapid separation of small particles. Tube positions are oriented at a 7.5° angle from vertical, dramatically shortening pathlength and run times compared with conventional fixed-angle rotors, while preserving sharper band resolution than true vertical rotors during reorientation at deceleration.

Constructed from solid titanium with a black polyurethane protective finish, the NVT 65 is corrosion-resistant, chemically robust against a wide range of gradient media (including CsCl up to 1.7 g/mL without speed derating), and rated to a maximum of 65,000 RPM / 402,000 × g. The 8-position fluted body holds standard Quick-Seal or Optiseal tubes (13.5 mL nominal) and is designed for use in Beckman Coulter Optima-series ultracentrifuges and other instruments classified H, R, S.

This unit ships as a complete rotor assembly kit, including original Beckman accessories required for loading, tightening, and maintenance — exactly the package molecular biology and biochemistry labs need to deploy the rotor immediately upon installation.

TECHNICAL SPECIFICATIONS

• Brand / Manufacturer: Beckman Coulter
• Model: NVT 65 (Near-Vertical Tube Titanium Rotor)
• Catalog Number: 362755 (assembly)
• Serial Number: 21U1822

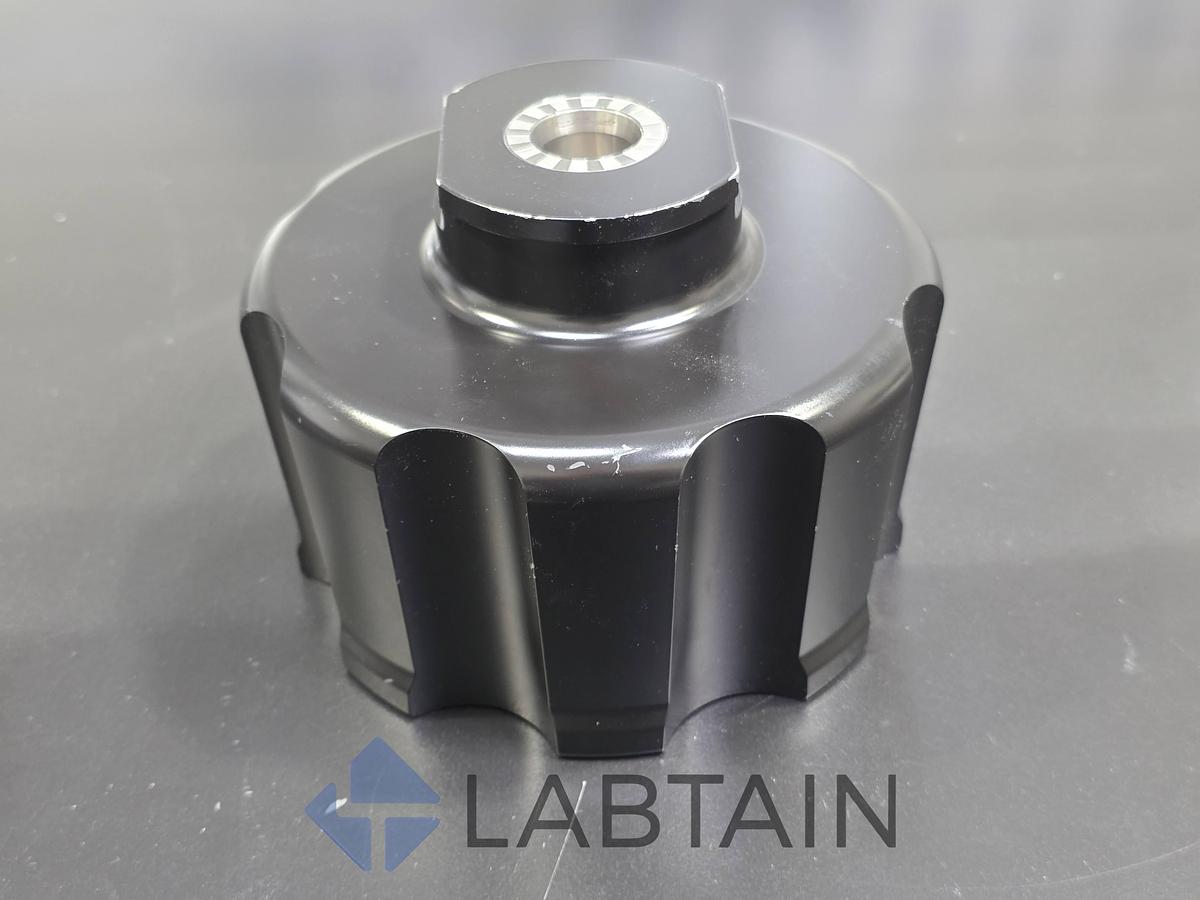

• Rotor Type: Near-vertical tube, fluted, ultracentrifuge
• Material: Titanium with black polyurethane finish
• Maximum Speed: 65,000 RPM
• Maximum RCF: 402,000 × g
• Tube Capacity: 8 × 13.5 mL
• Tube Angle: 7.5° from vertical
• k-Factor: 21
• r_max: 84.9 mm
• r_min: 59.5 mm
• r_av: 72.2 mm
• Compatible Tubes: Beckman Quick-Seal / Optiseal, 16 × 76 mm (13.5 mL nominal)
• Compatible Instruments: Beckman Coulter Optima-series ultracentrifuges; instruments classified H, R, S
• Approximate Dimensions: 7.5 × 7.5 × 5 in (L × W × H)
• Country of Origin: USA

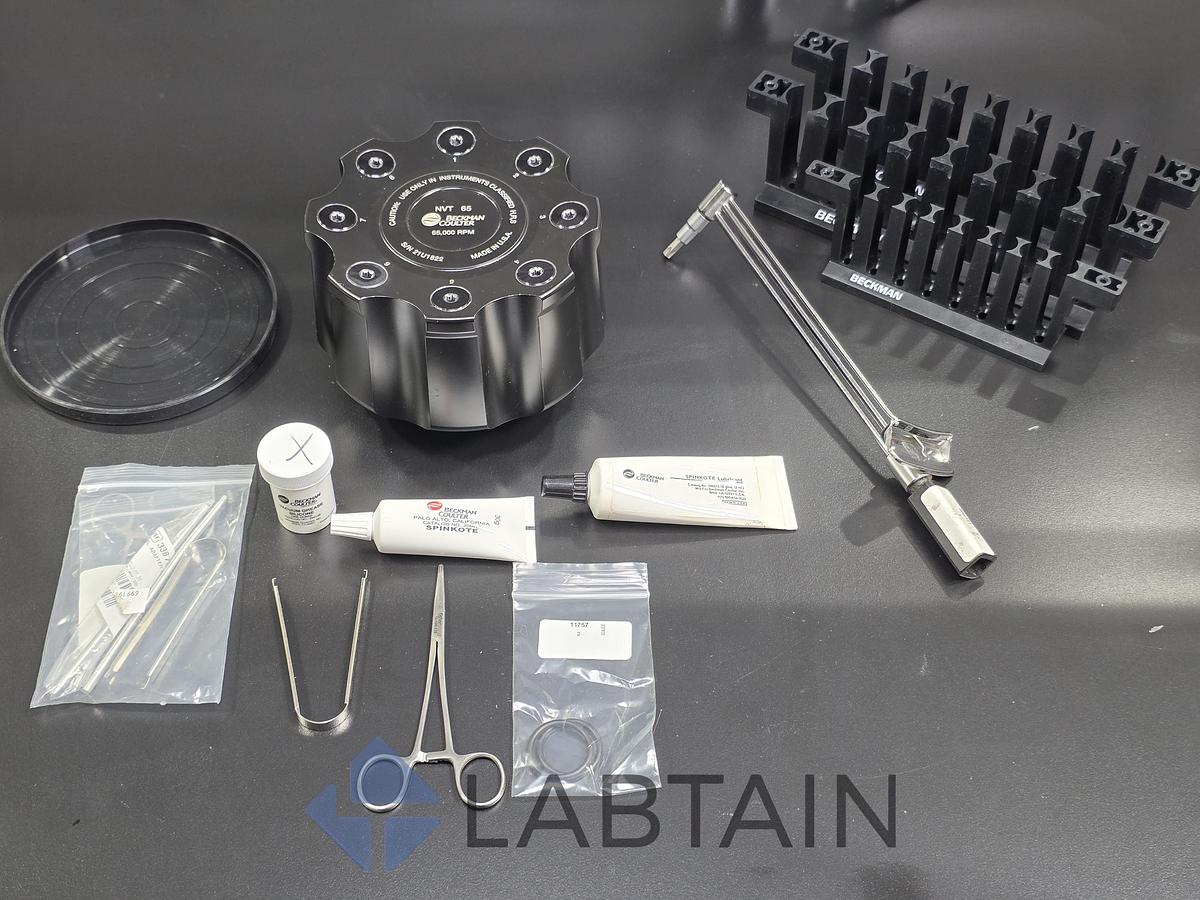

INCLUDED

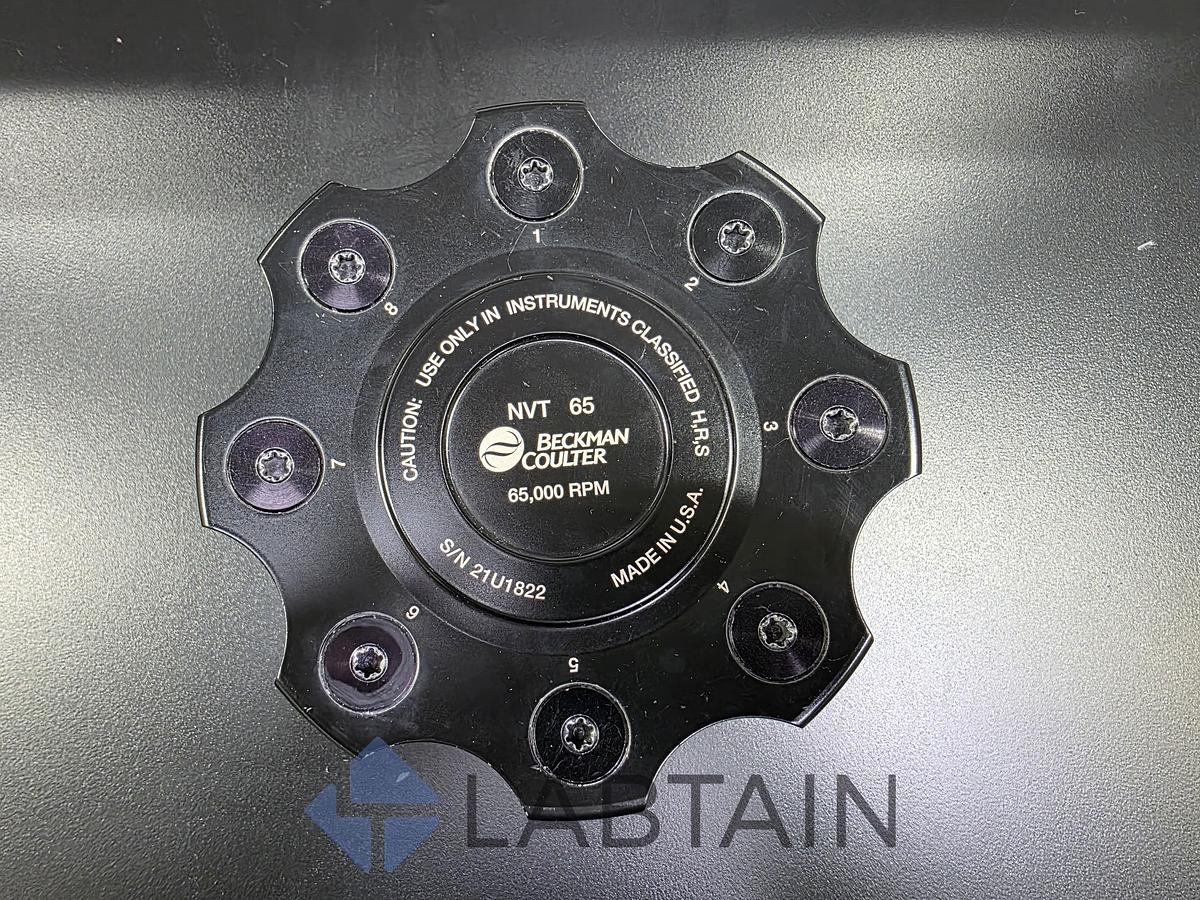

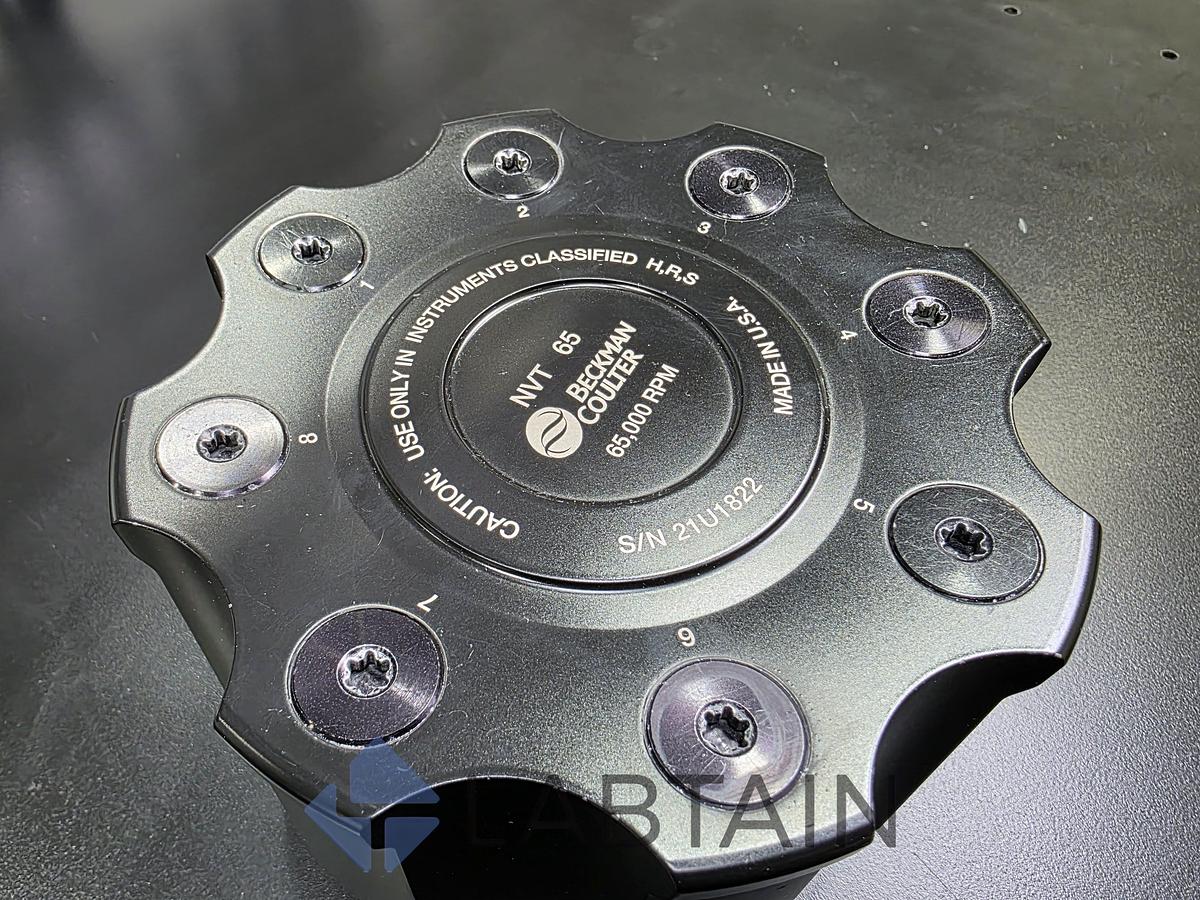

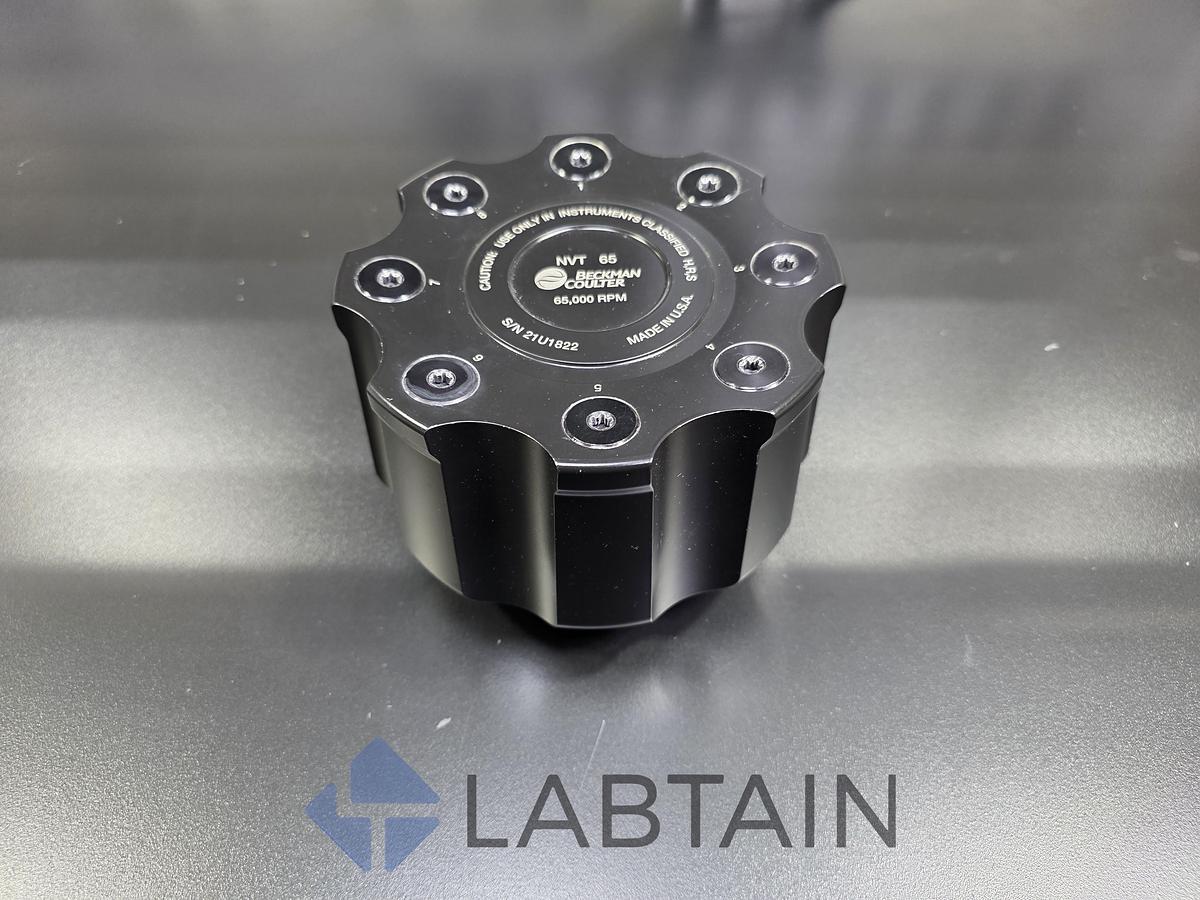

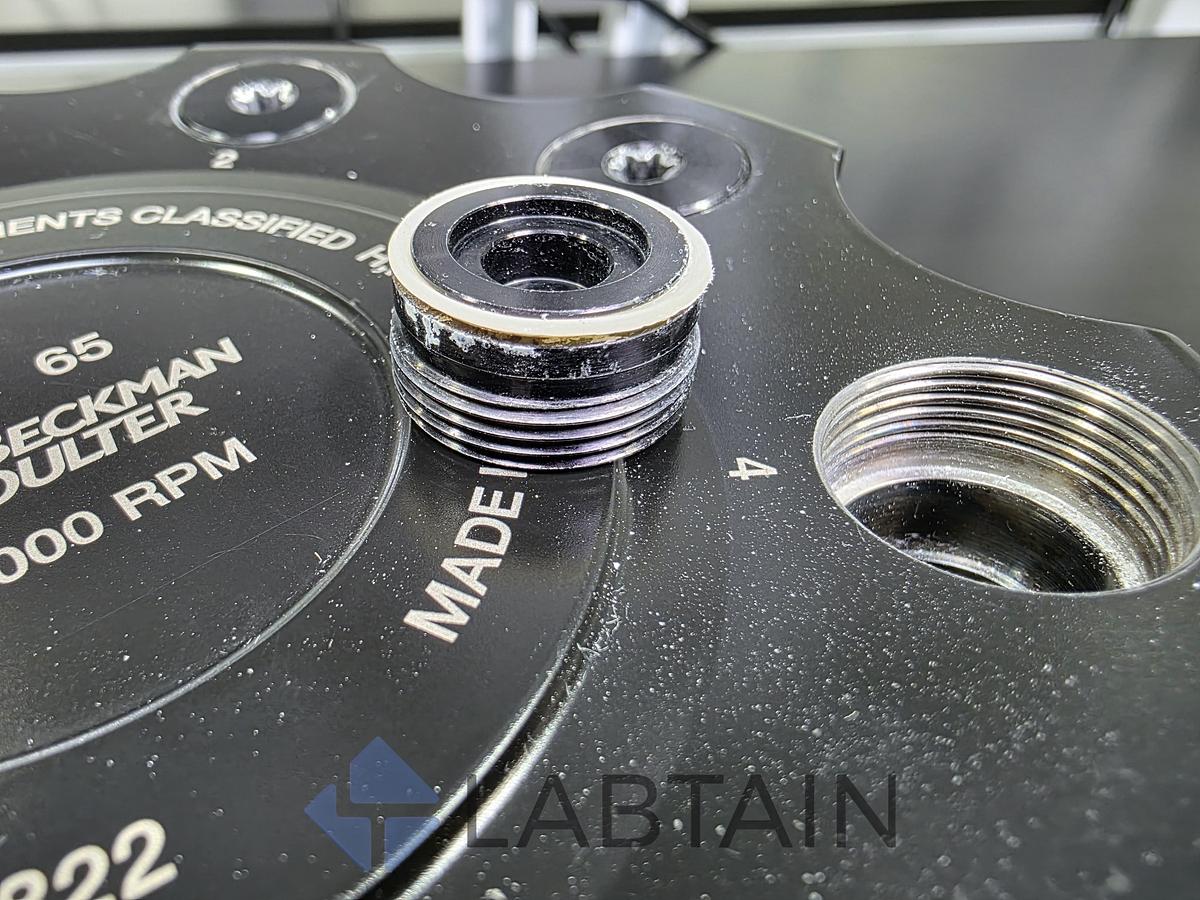

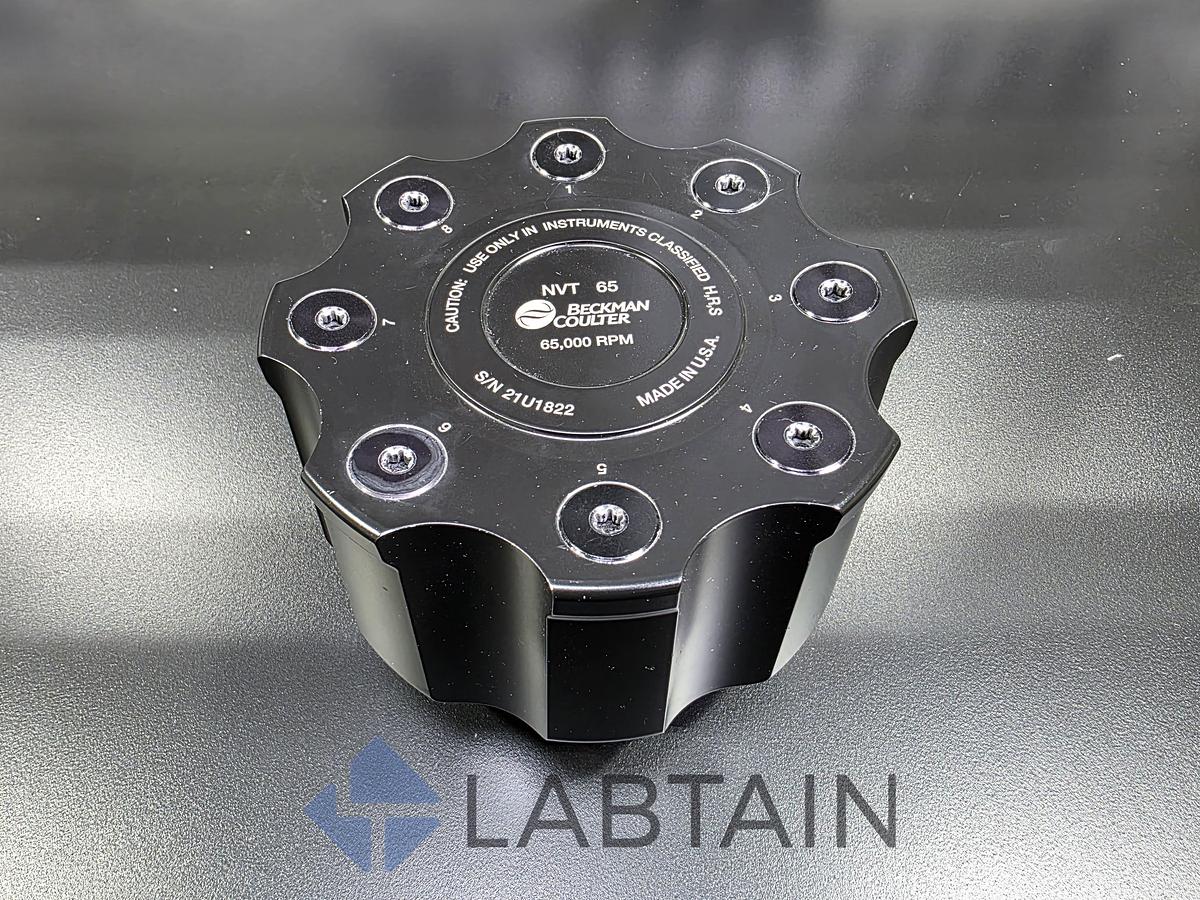

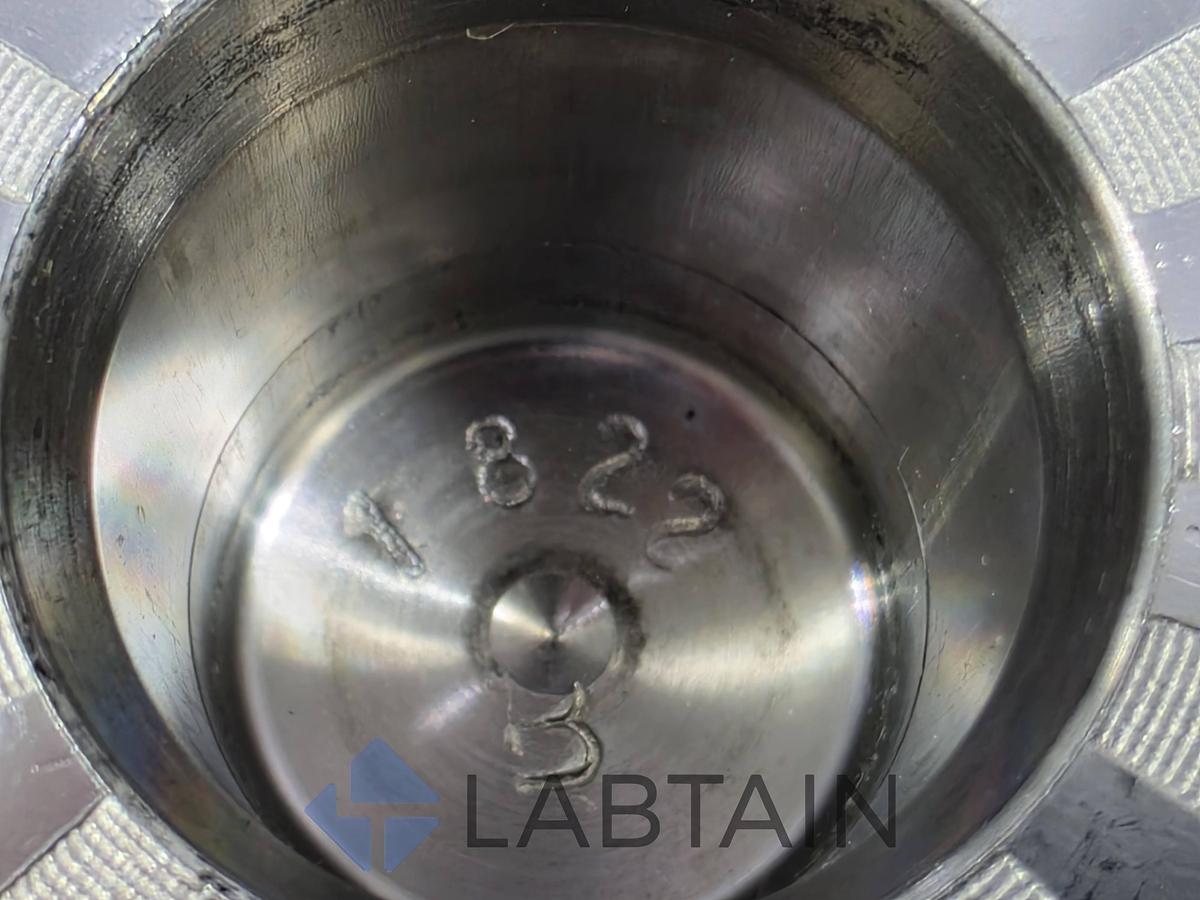

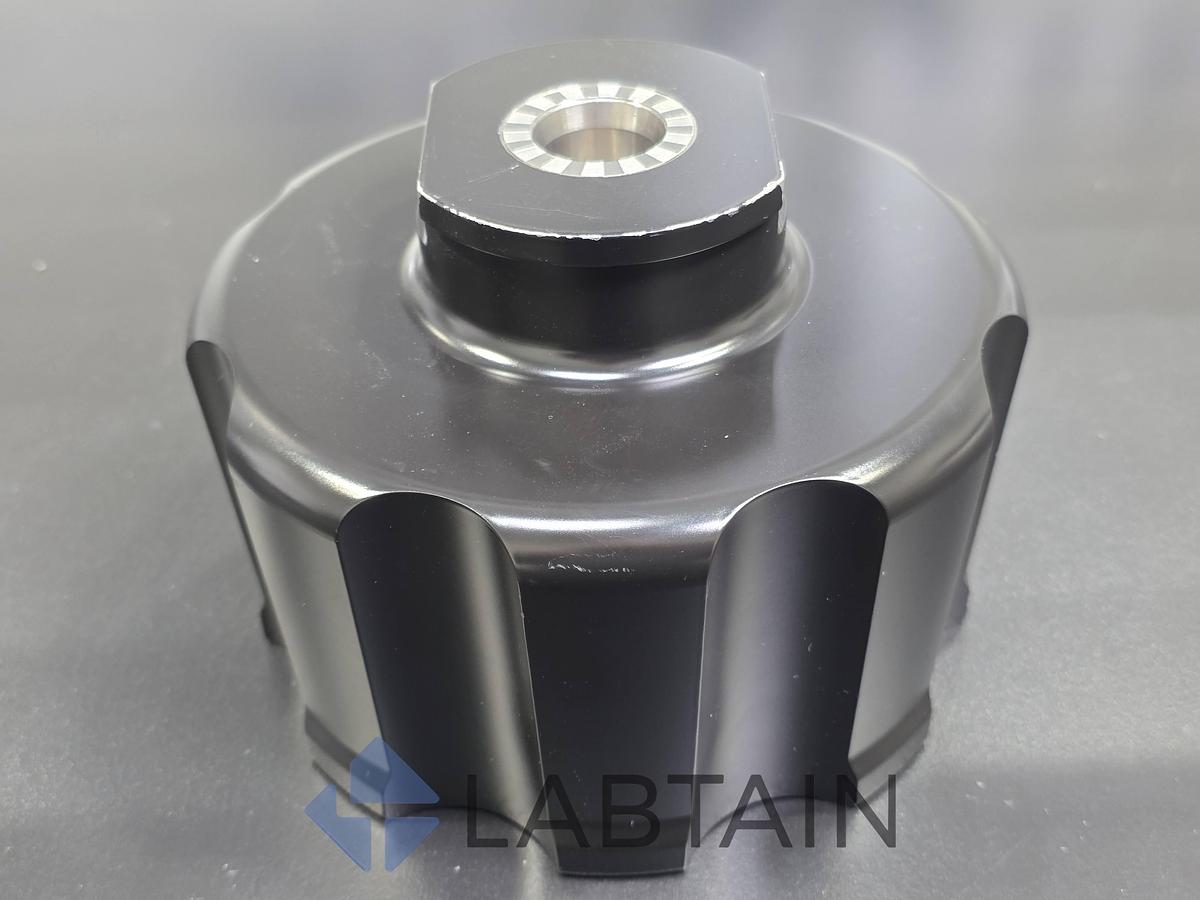

• (1) Beckman Coulter NVT 65 Near-Vertical Titanium Rotor, S/N 21U1822

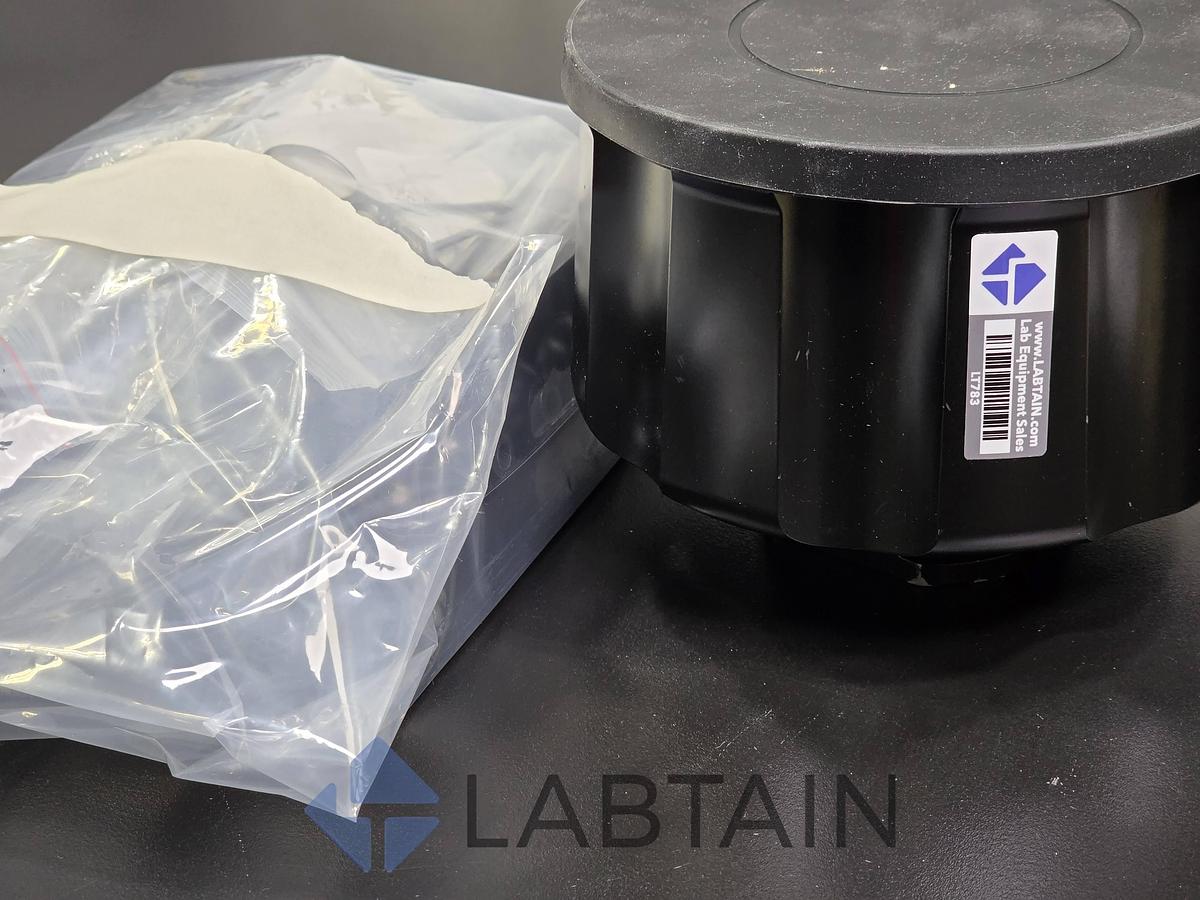

• (1) Rotor base / storage stand (black disc)

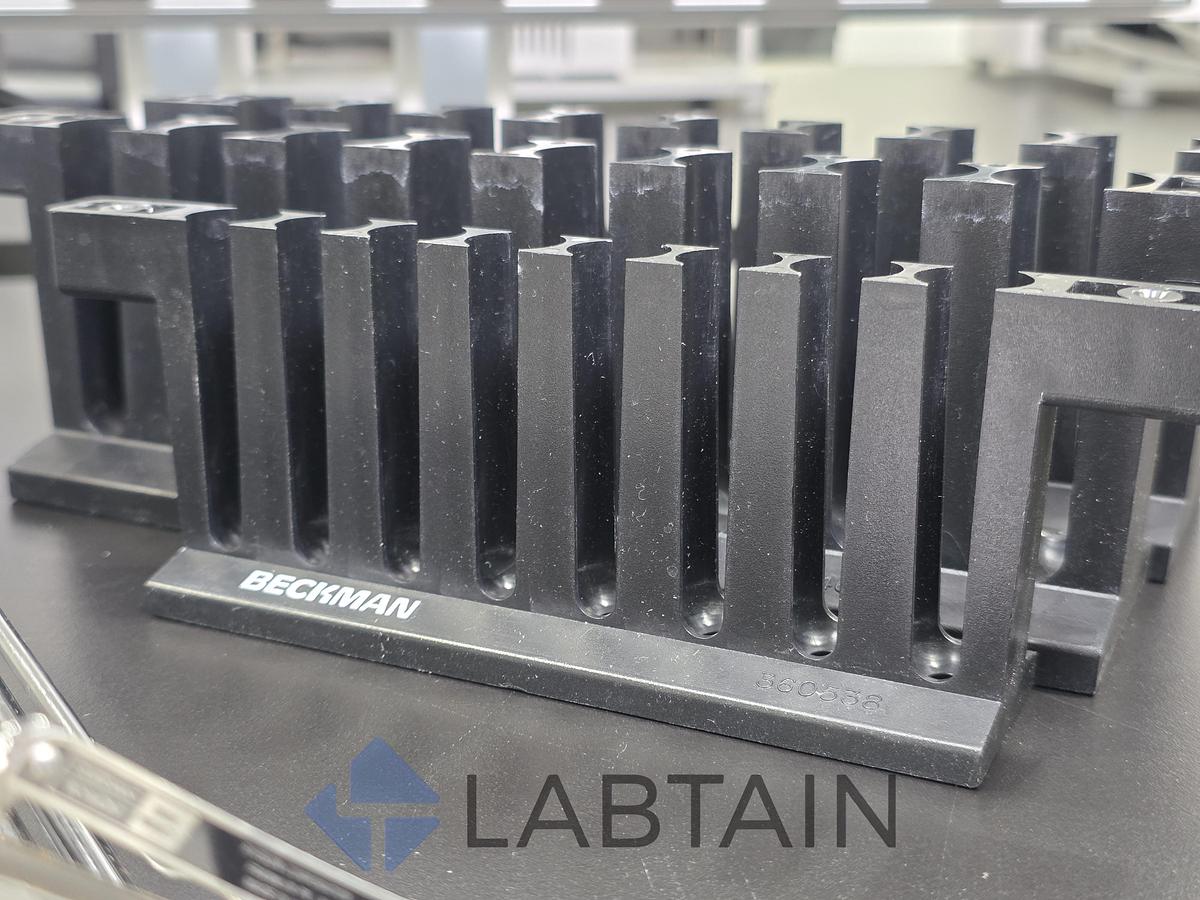

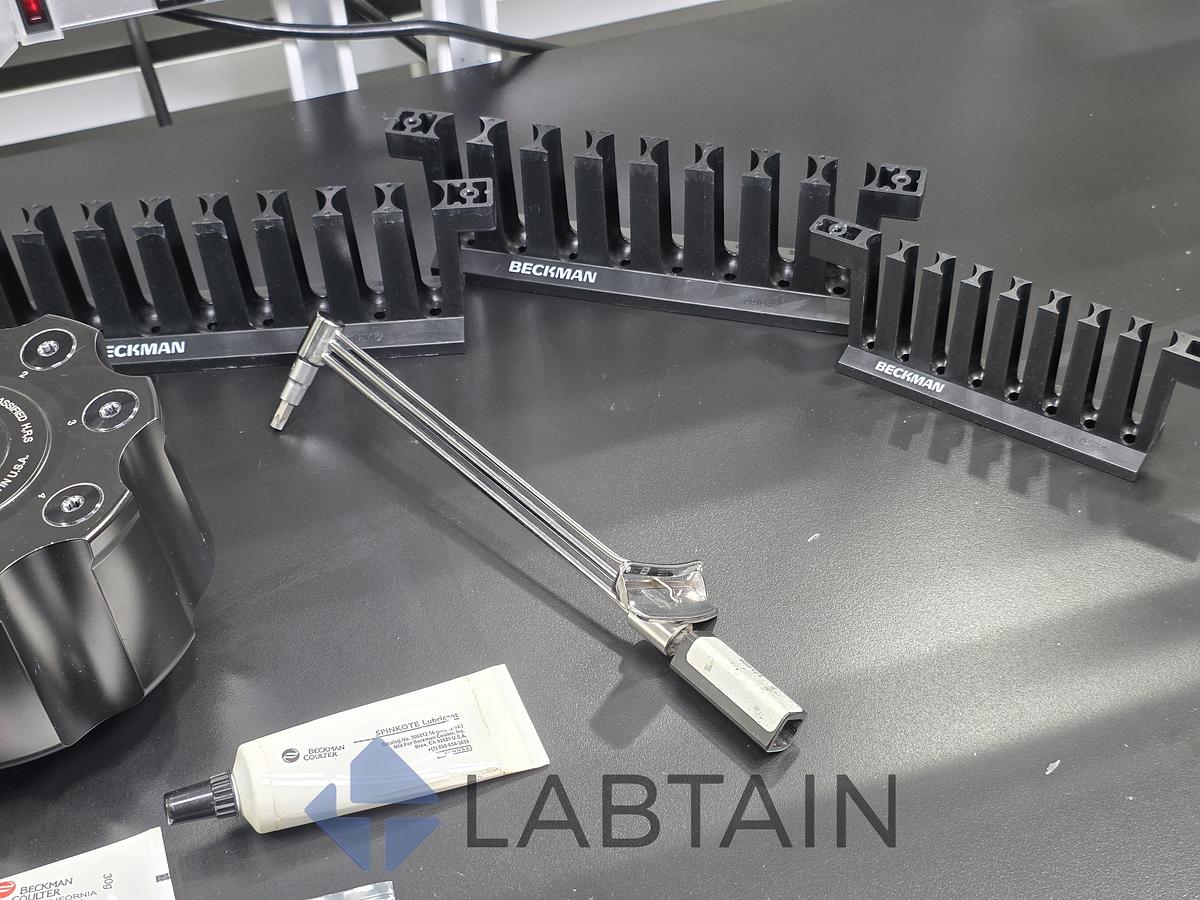

• (1) Beckman tube rack / storage holder (P/N 360538)

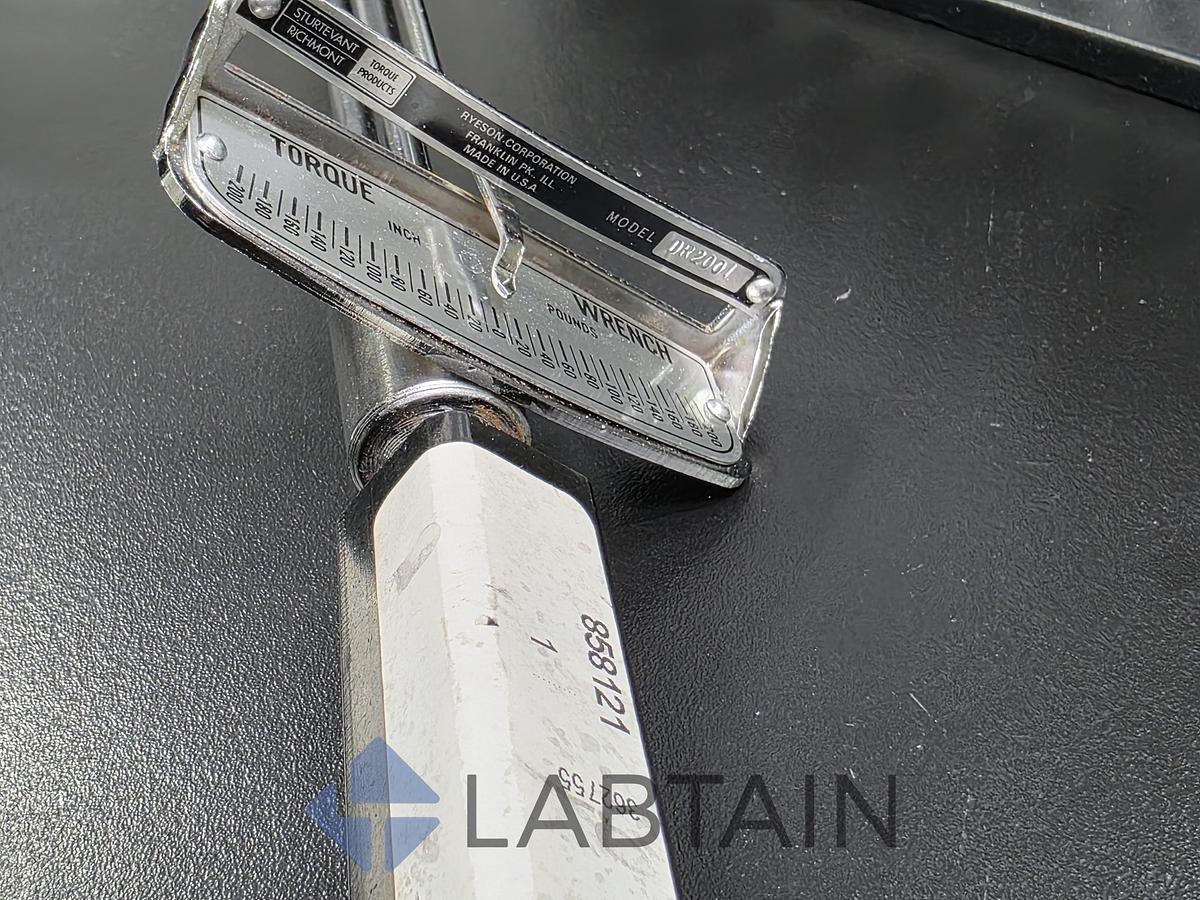

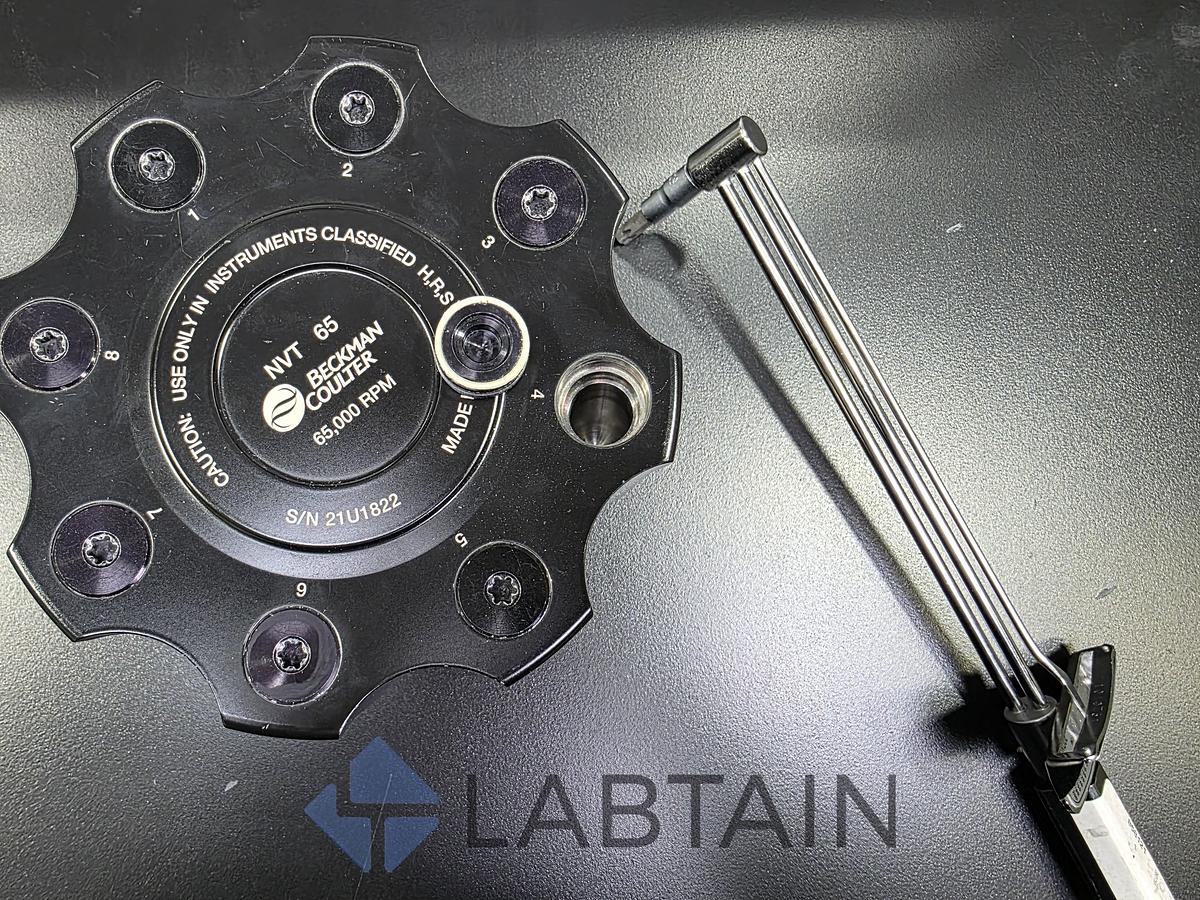

• (1) Torque Wrench, Sturtevant Richmont DR200i (Beckman P/N 858121)

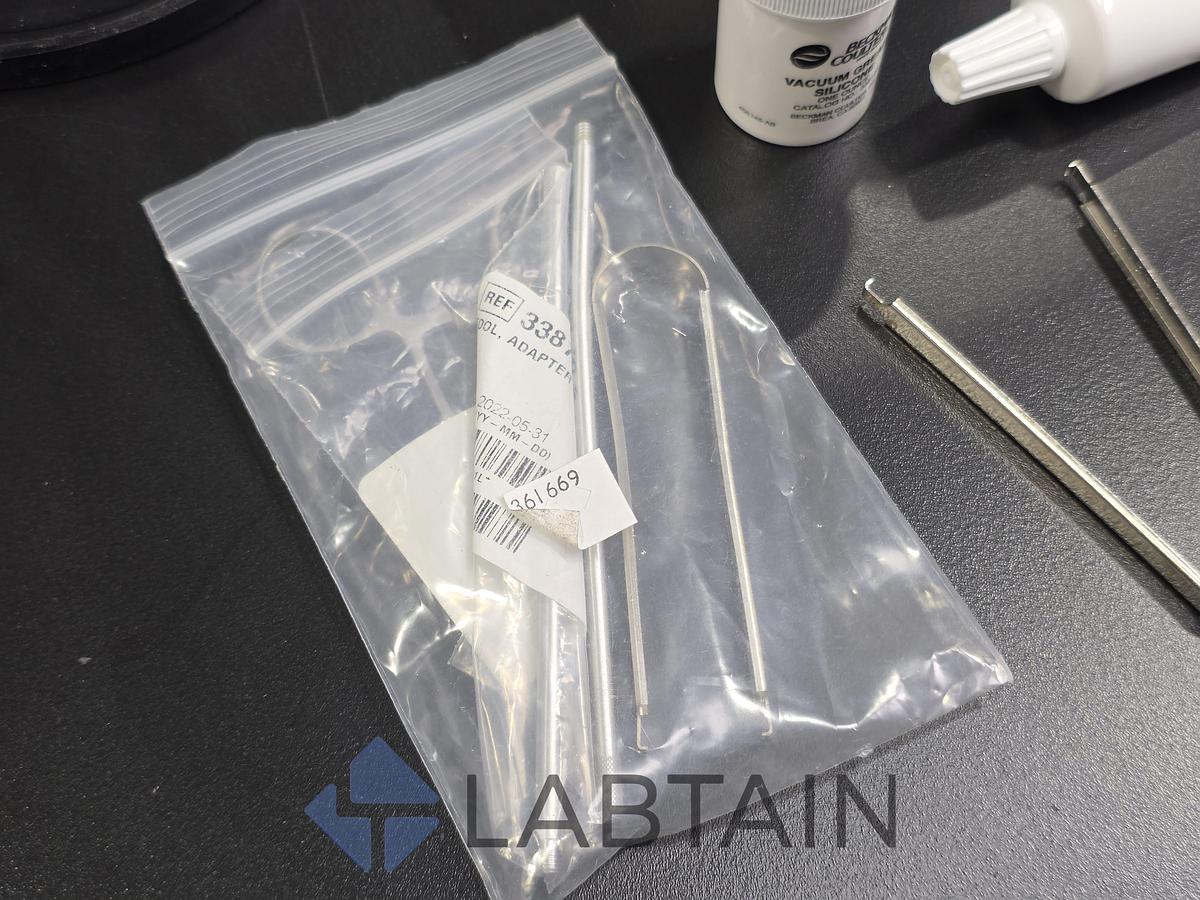

• (1) Torx Plug-Wrench Adapter (Beckman P/N 976959, REF 338... — in sealed bag)
• (1) Rotor Vise / spanner tool

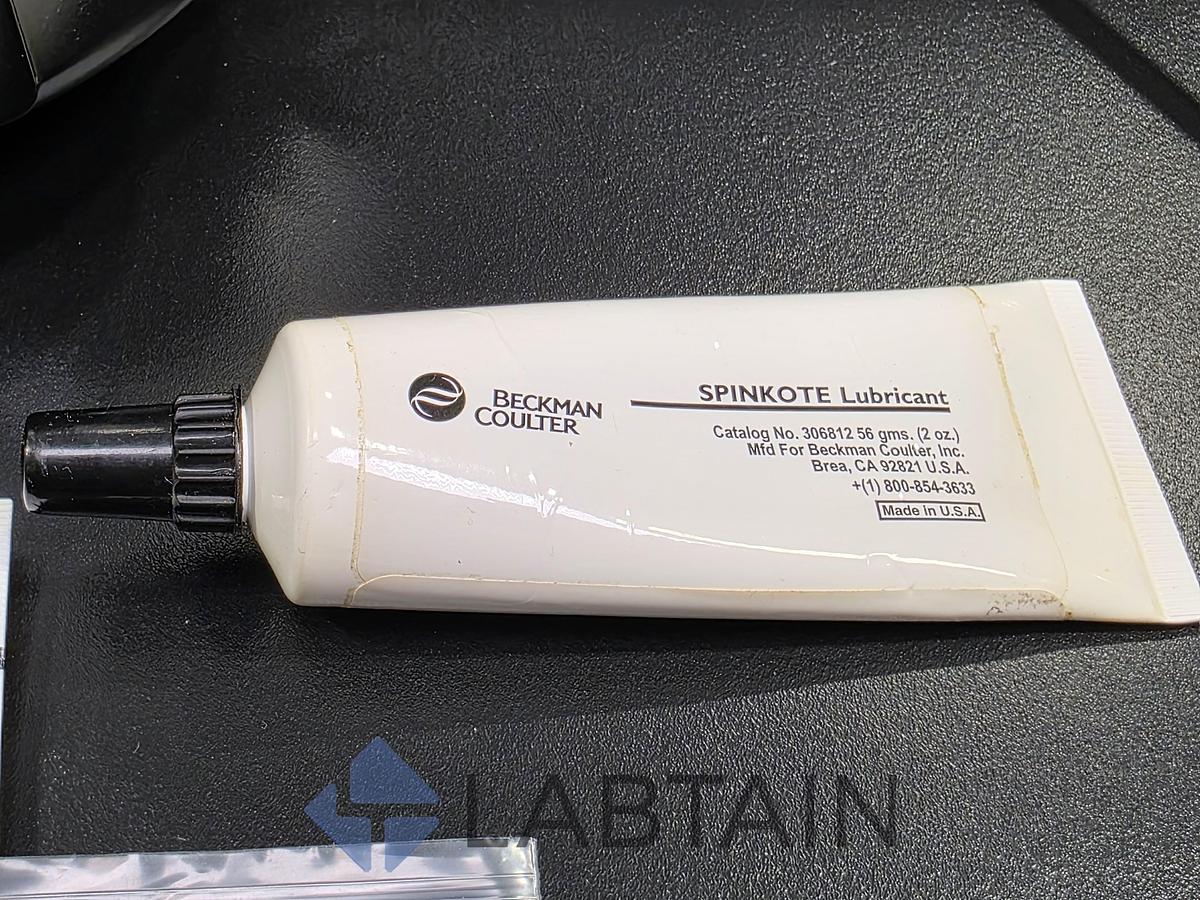

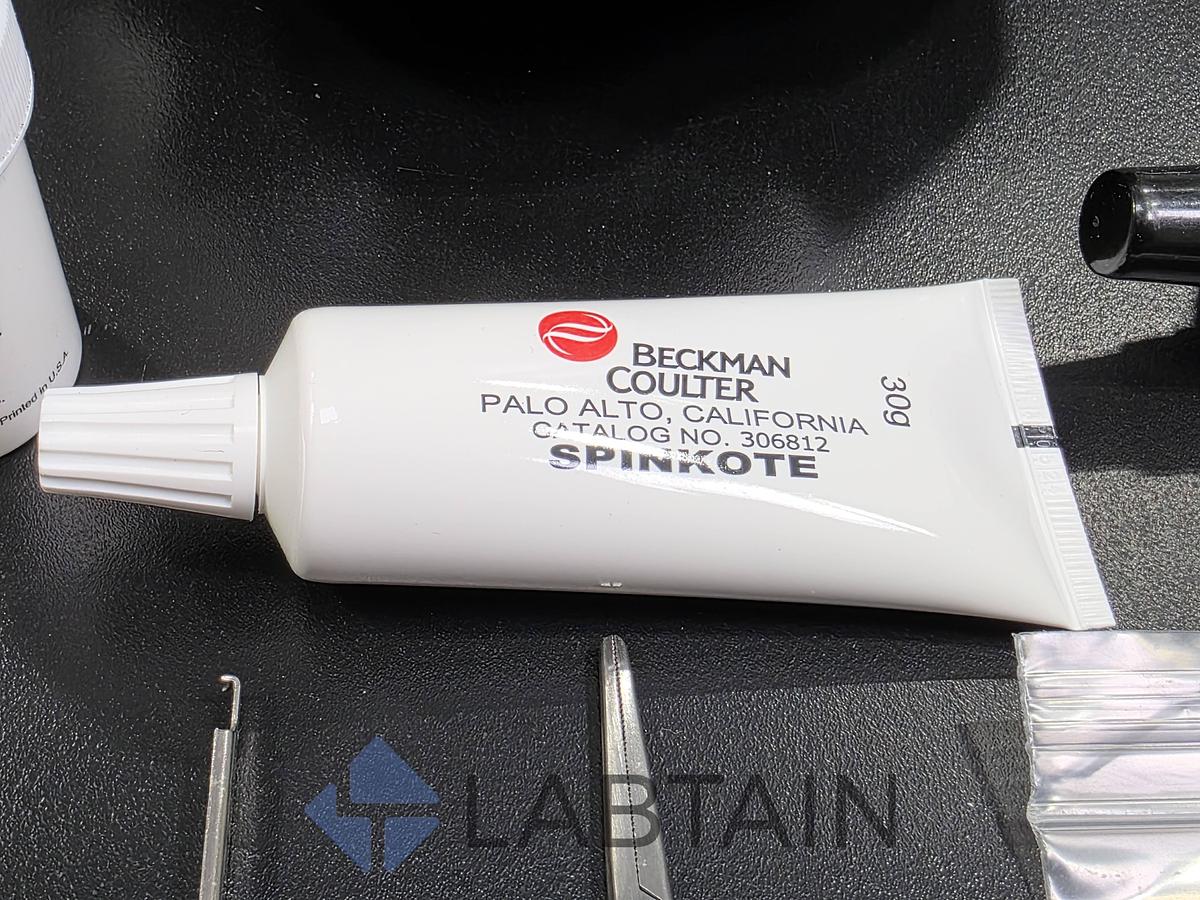

• (1) Tube of SPINKOTE Lubricant, 2 oz / 56 g

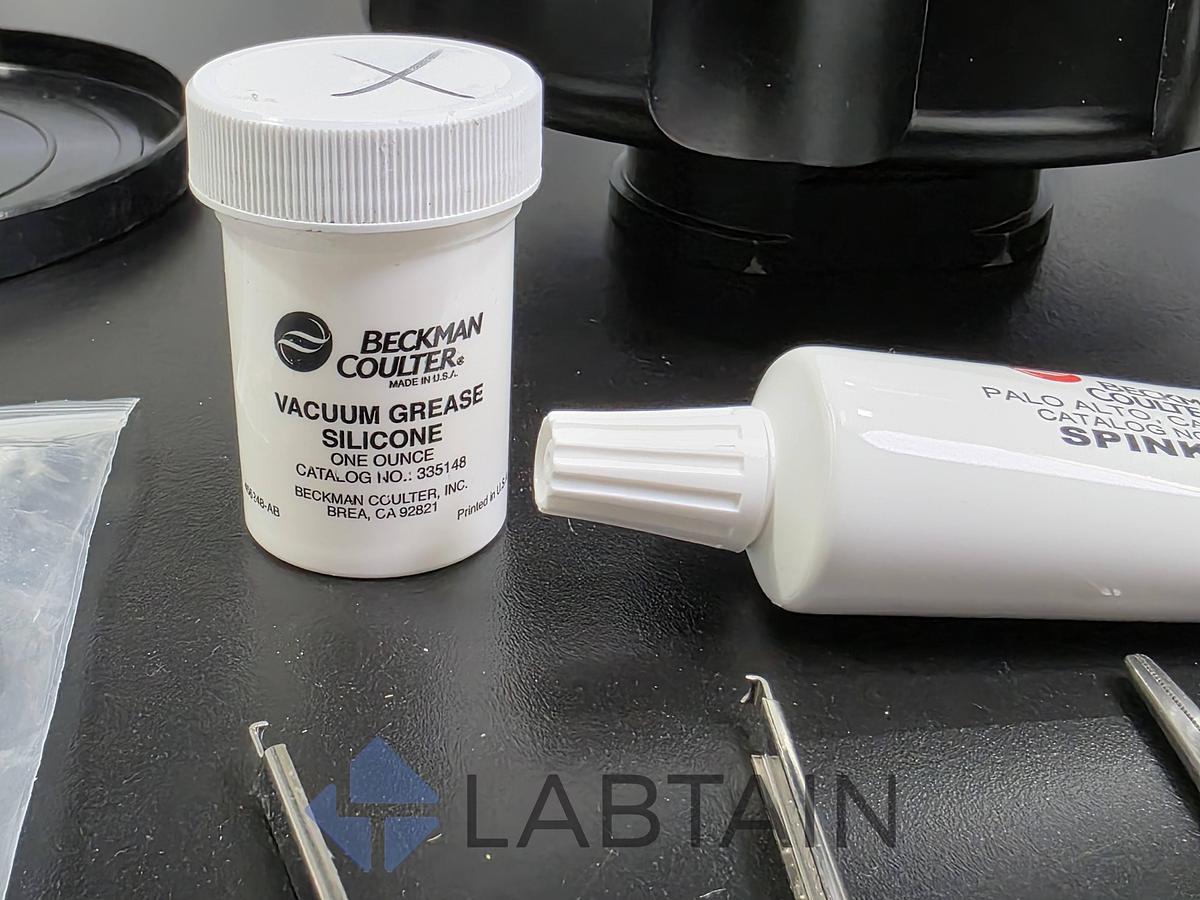

• (1) Jar of Silicone Vacuum Grease, 1 oz
• (1) Hemostat forceps

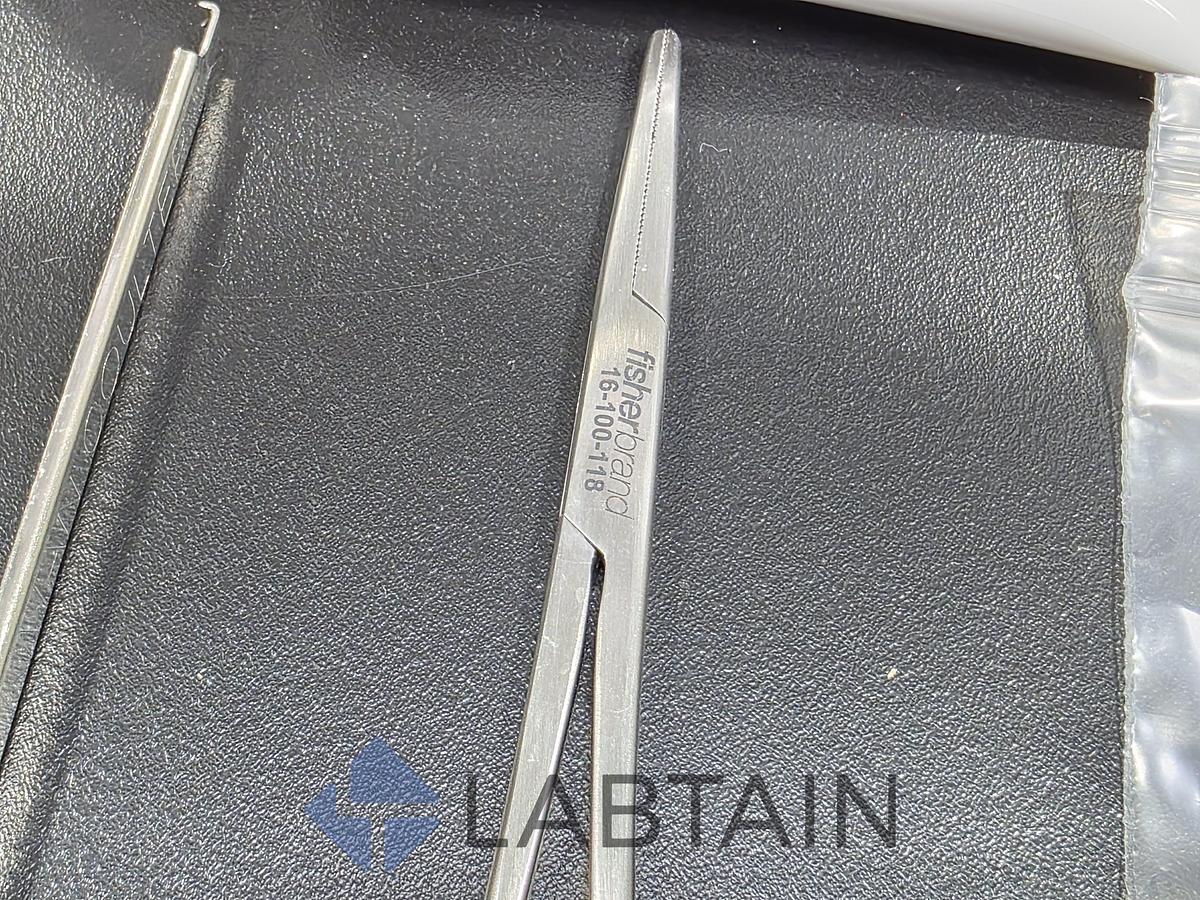

• (1) Pair of fine-tip tweezers (Fisherbrand 16-100-118)
• (1) Sealed bag of O-rings / spare gaskets (P/N 11757)

LT783-X15
