Zeiss EC Epiplan & Neofluar HD DIC 5-Objective Set 5x-100x Used/Inspected

This is a premium suite of Carl Zeiss EC Epiplan and EC Epiplan-Neofluar microscope objectives, engineered for high-contrast brightfield, darkfield (HD), and Differential Interference Contrast (DIC) applications. Designed for use with Zeiss Axio-series upright and inverted materials microscopes, these infinity-corrected objectives deliver exceptional flatness of field and superior resolution. The set provides a complete magnification range from 5x up to 100x, with the flagship 100x lens featuring fluorite glass (Neofluar) for enhanced color correction and specialized DIC compatibility. This is an ideal optical upgrade for materials science, metallurgy, semiconductor inspection, and advanced industrial research facilities.

Condition Notes

• Condition: Used/Inspected.
• General Status: The 5x, 10x, 50x, and 100x objectives are in excellent cosmetic and optical condition. The outer metal housings are clean, and the front optical elements appear clear and free of scratches.

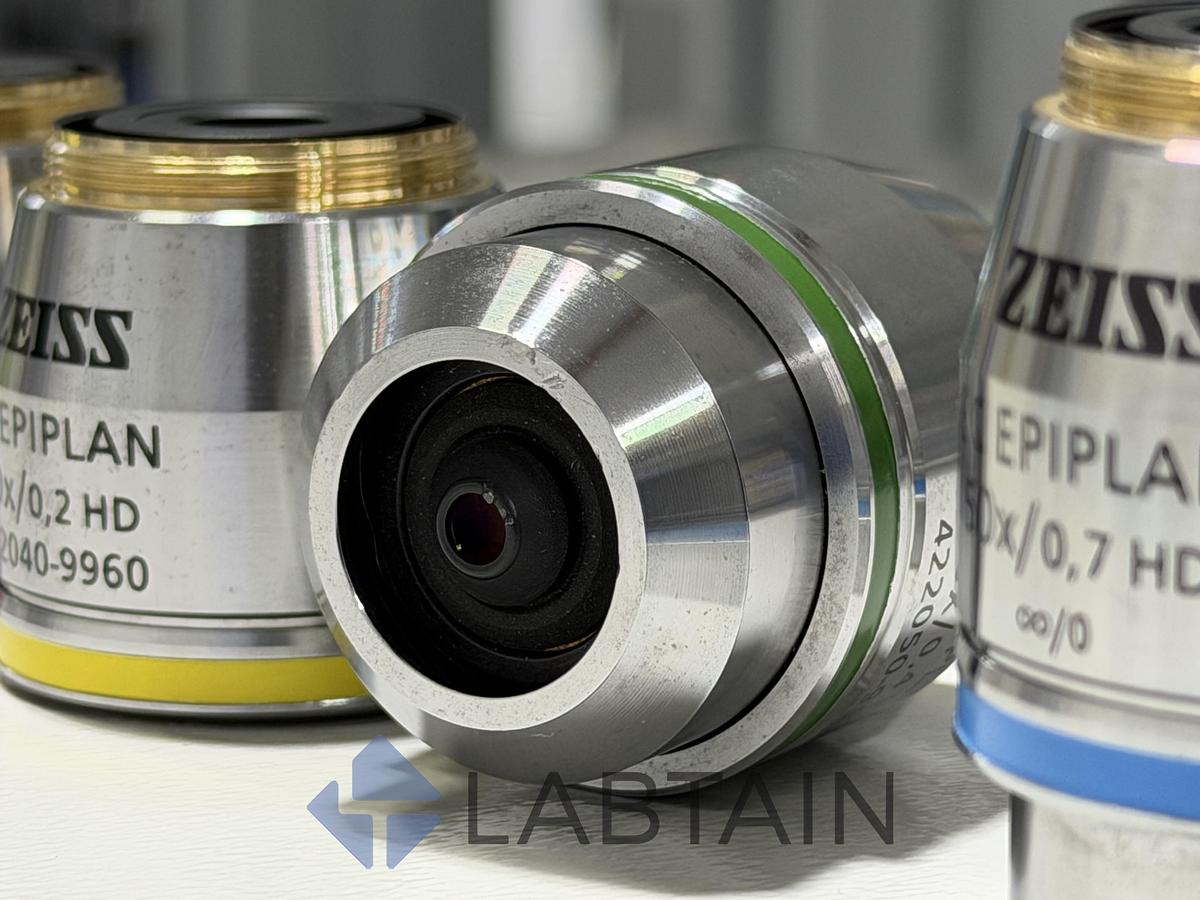

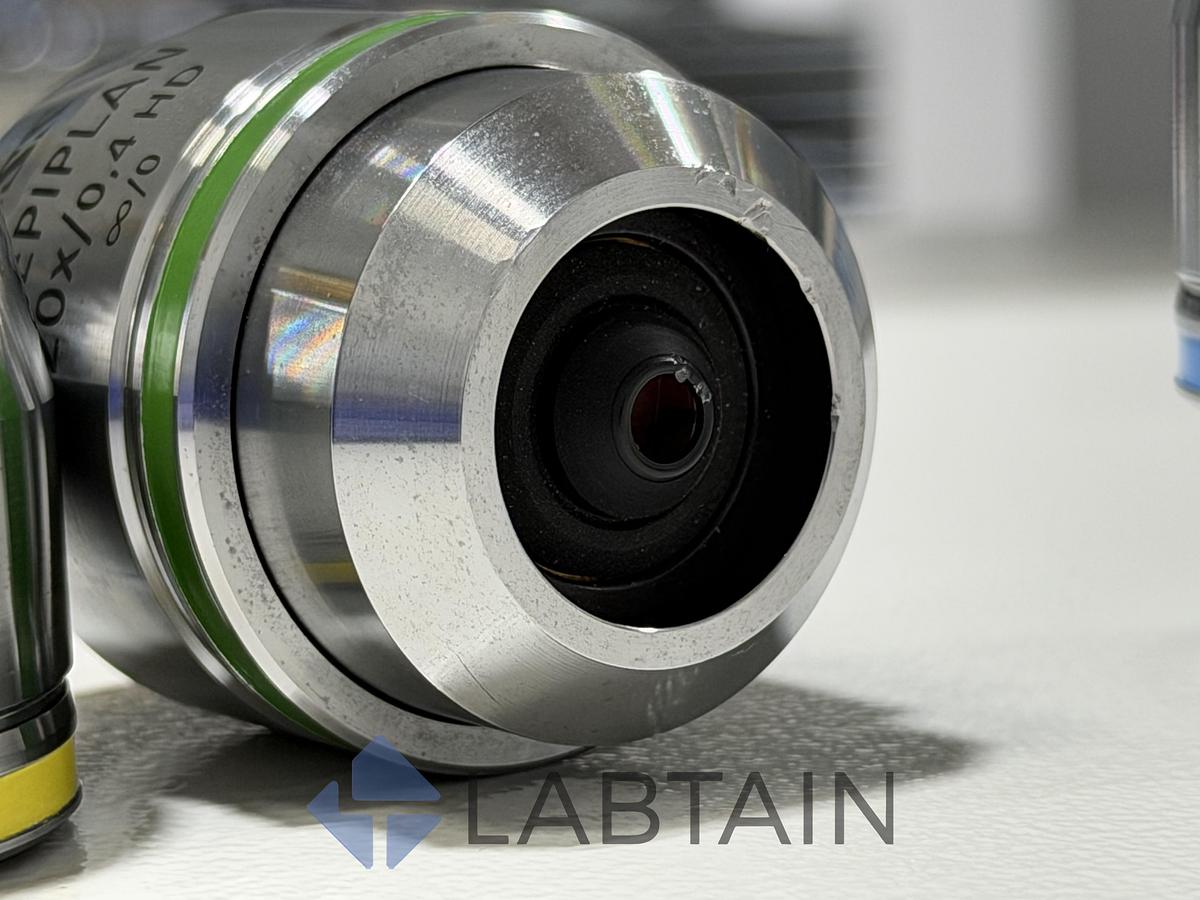

• Important Defect Notice (20x Objective): As clearly shown in the macro photographs, the 20x objective (422050-9960) has a physical nick/impact mark on the inner metal retaining ring, directly touching the edge of the front glass element.

Technical Specifications

• Brand: Carl Zeiss
• Optical Correction: Infinity Corrected (∞/0)
• Contrast Methods: Brightfield, Darkfield (HD), DIC (100x)
• Included Lenses:

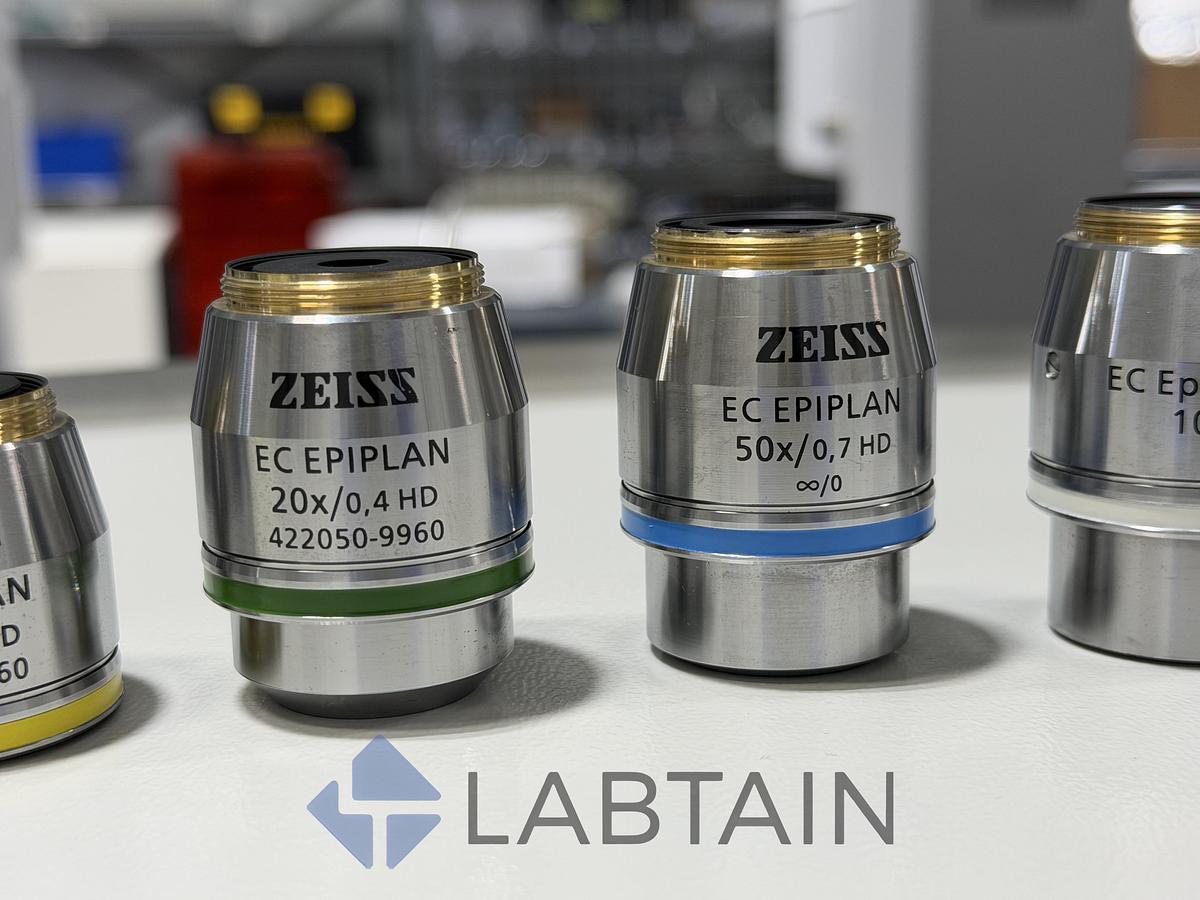

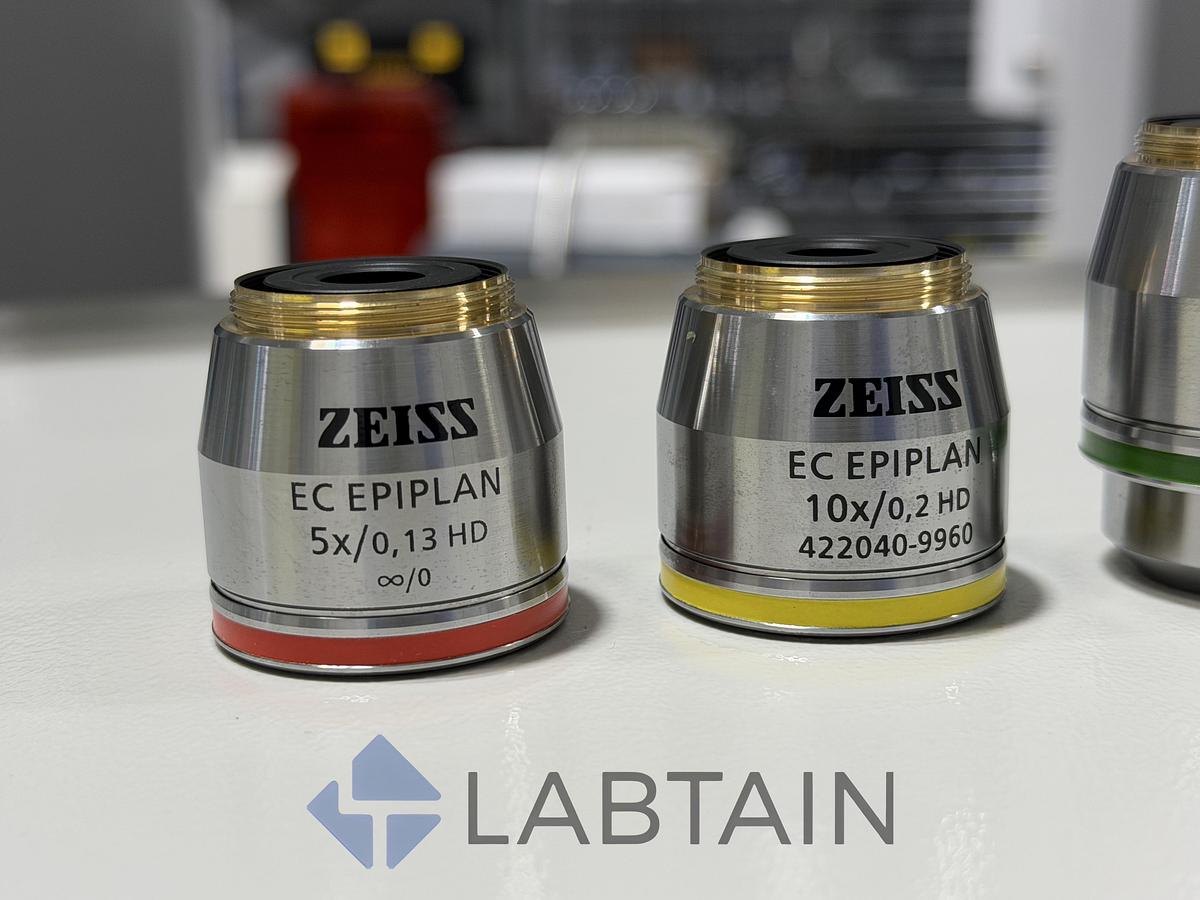

• 5x: EC EPIPLAN 5x/0,13 HD (Red Ring)
• 10x: EC EPIPLAN 10x/0,2 HD | PN: 422040-9960 (Yellow Ring)
• 20x: EC EPIPLAN 20x/0,4 HD | PN: 422050-9960 (Green Ring) [See defect note]

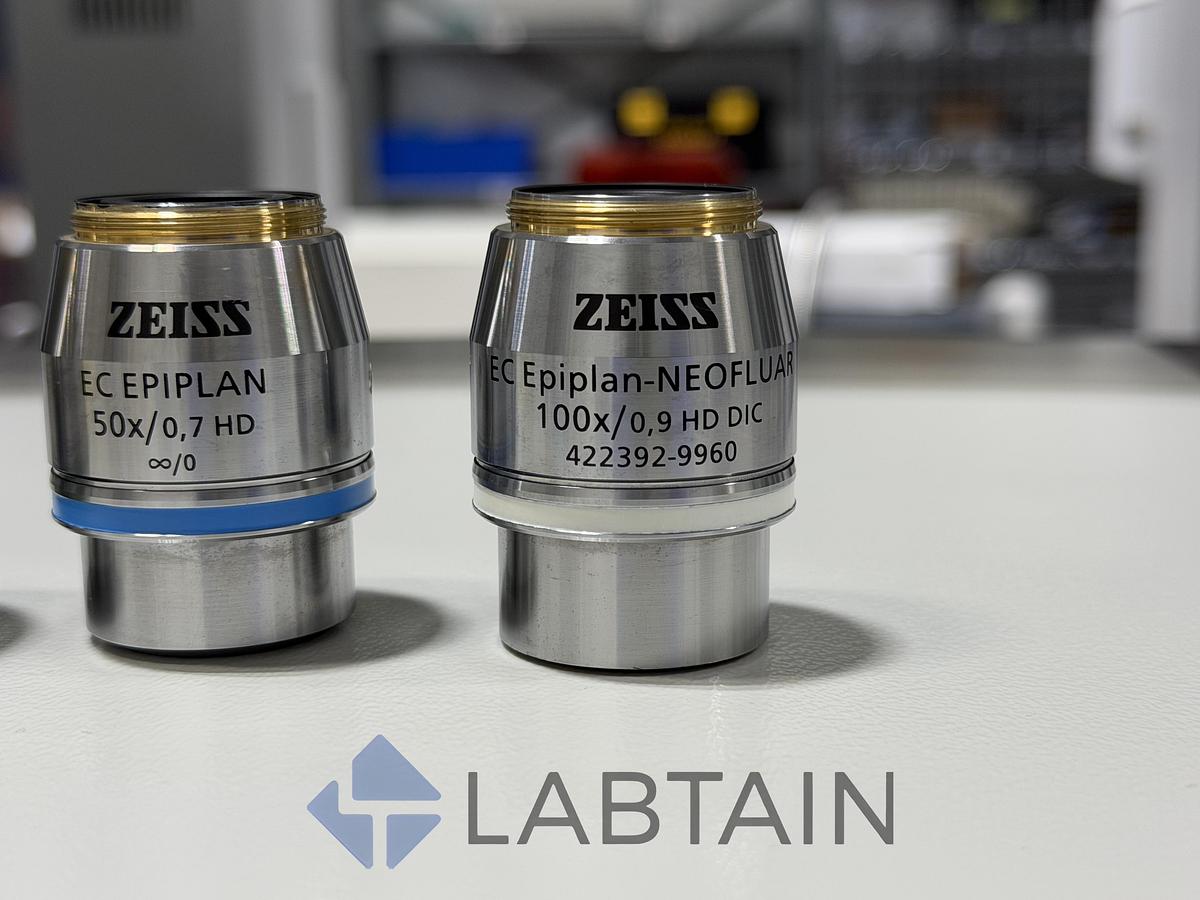

• 50x: EC EPIPLAN 50x/0,7 HD (Blue Ring)
• 100x: EC Epiplan-NEOFLUAR 100x/0,9 HD DIC | PN: 422392-9960 (White/Silver Ring)

Included

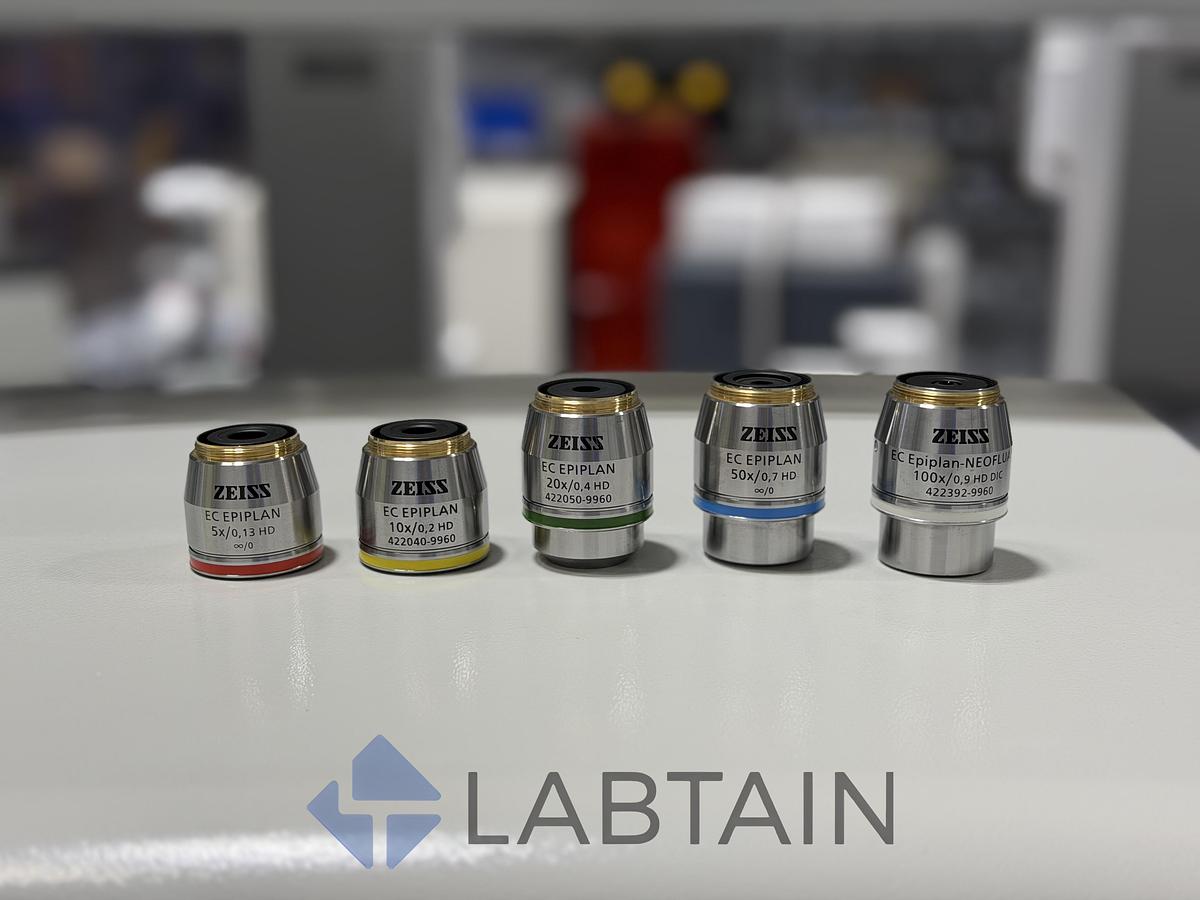

• (5) Carl Zeiss Microscope Objectives (5x, 10x, 20x, 50x, 100x)
• Note: Does not include individual plastic objective cases.

LT718-C41
