LECO GDS900 Glow Discharge AES – Bulk Metal Elemental Analyzer | Zirconium Method Only Licensed

Unit is in excellent cosmetic and working condition — acquired from a lab, tested, and ships securely packaged.

The LECO GDS900 is a glow discharge atomic emission spectrometer engineered for bulk elemental analysis of conductive solid samples such as metals, alloys, and pressed materials. It uses a glow discharge source (argon plasma) to sputter atoms from the sample surface, which are then excited and emit characteristic spectral lines measured by a CCD detector for elemental quantification.

Key Specifications & Features

• Optical detector: CCD array covering wavelengths from 160 nm to 460 nm
• Spectral resolution: ~0.050 nm
• Optical system: 0.75 m focal length grating spectrometer
• Source: Grimm-type glow discharge cathode (standard 4 mm, optional 2 mm or 7 mm)
• Sample types: bulk metals, sheet, wire, pressed or sectioned solids
• Purge gas: Argon, ultra-high purity
• Instrument cooling: Internal closed-loop water recirculation

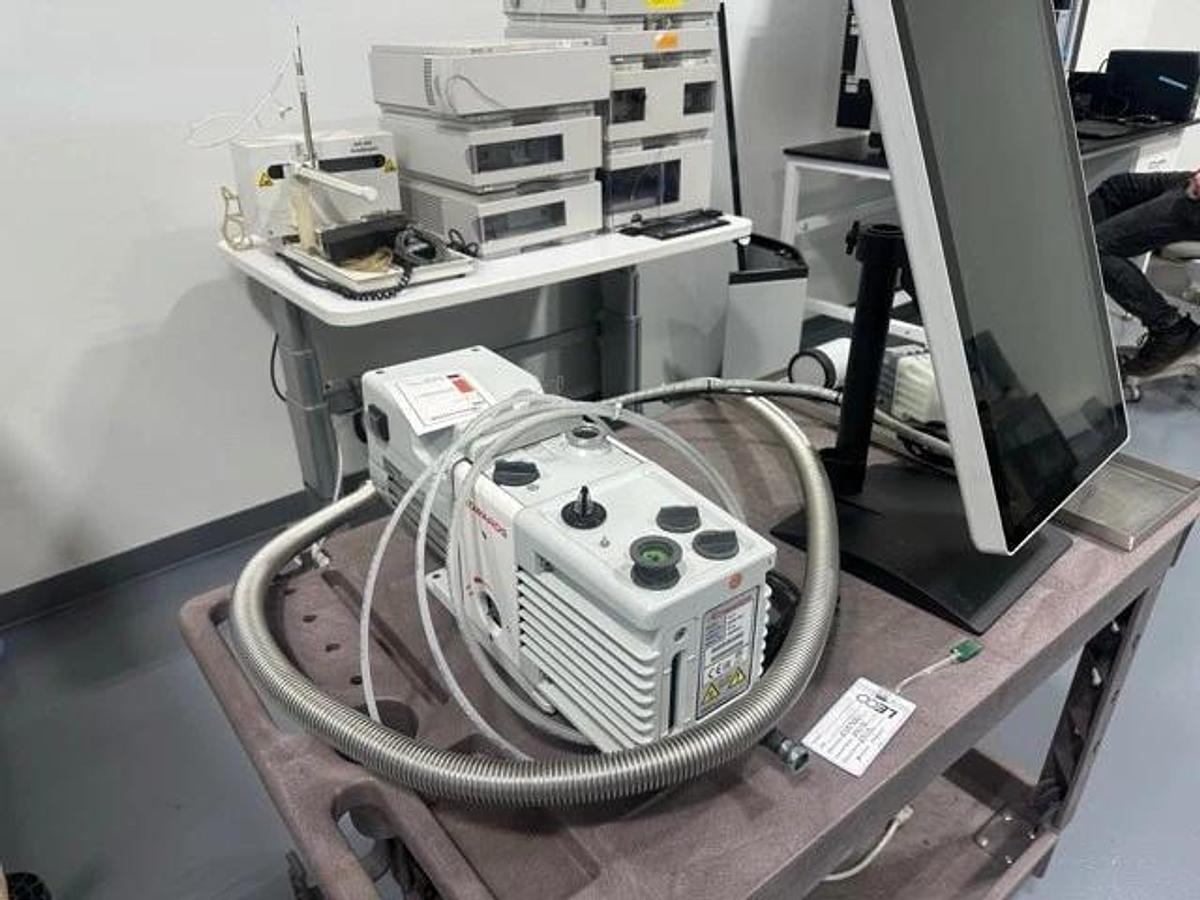

• Vacuum: External vacuum pump required
• Optional features: Nitrogen purge/recirculation systems
• Software: LECO’s Cornerstone suite with sample set and replicate grouping, method control, and diagnostics
• Power: Typically 230 V (±10 %), 50/60 Hz, ~12 A
• Operating environment: 18 °C to 30 °C, relative humidity 20–80% (non-condensing)

Special Licensing Note

This unit is licensed with only the Zirconium method enabled per serial number. No other elemental methods are currently activated.

Condition

• Fully functional for the licensed method
• Clean optics, electronics, and sources checked
• System tested with standard reference material for zirconium
• No visible damage or corrosion
• Ships securely packaged to protect delicate optics and source components
