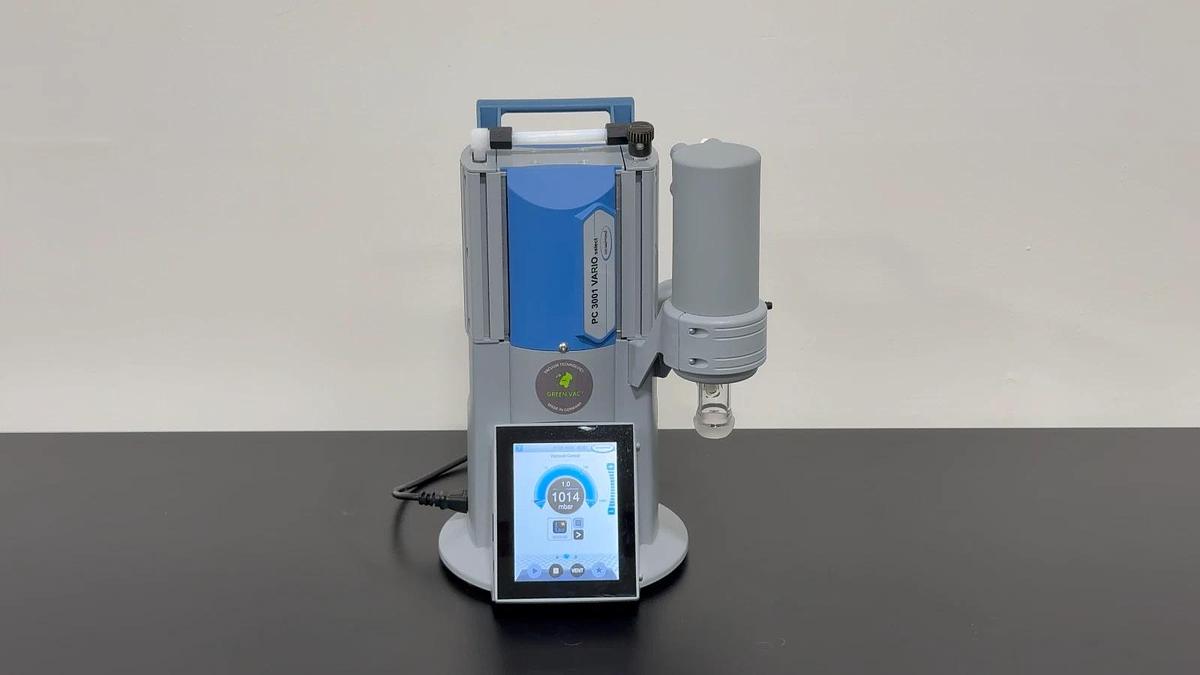

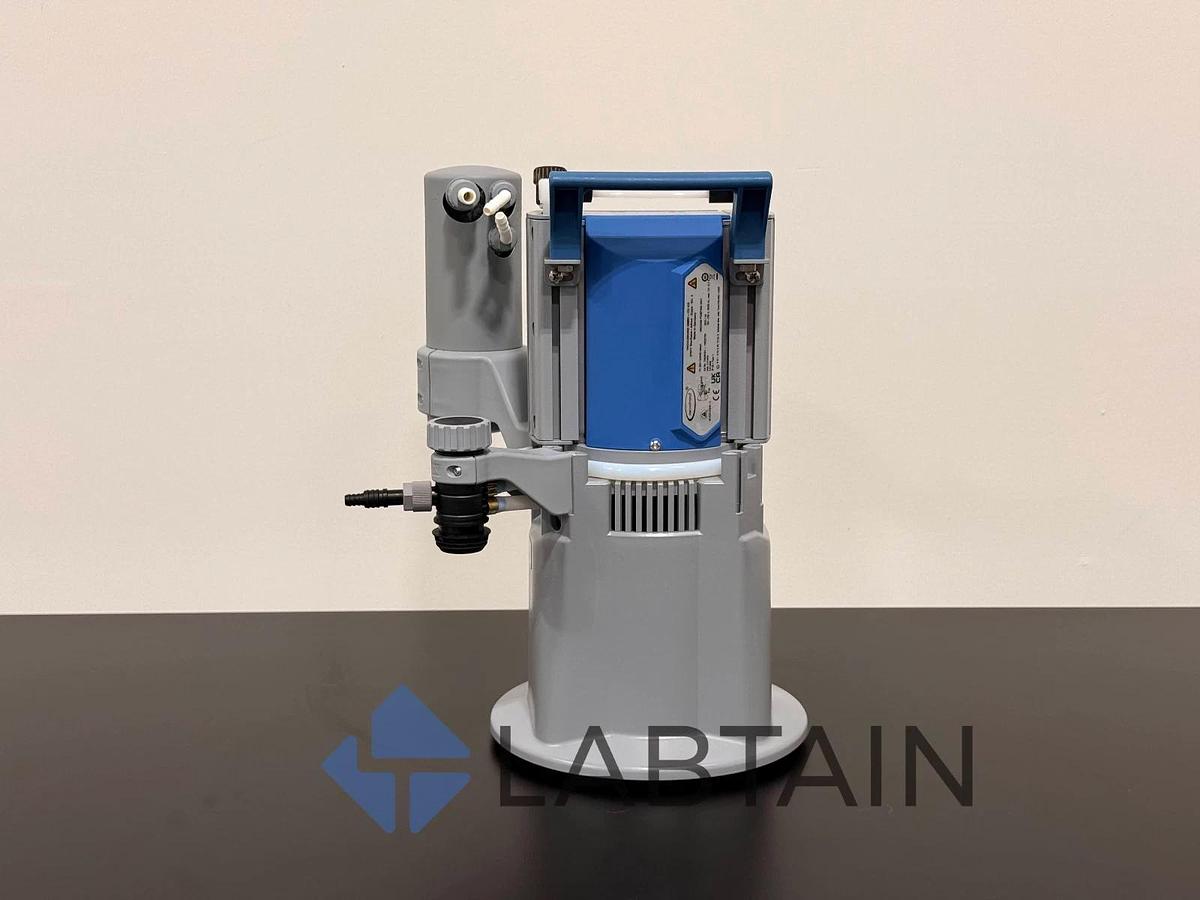

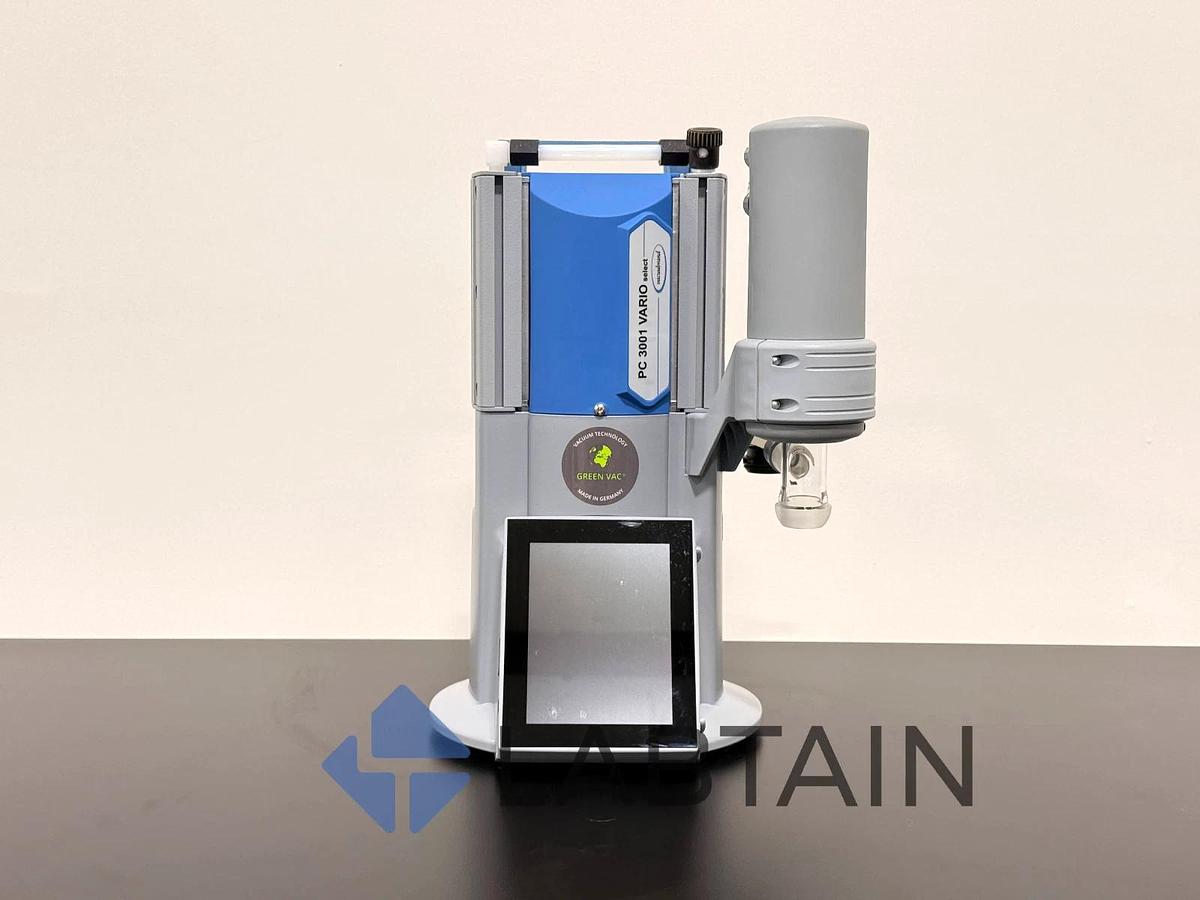

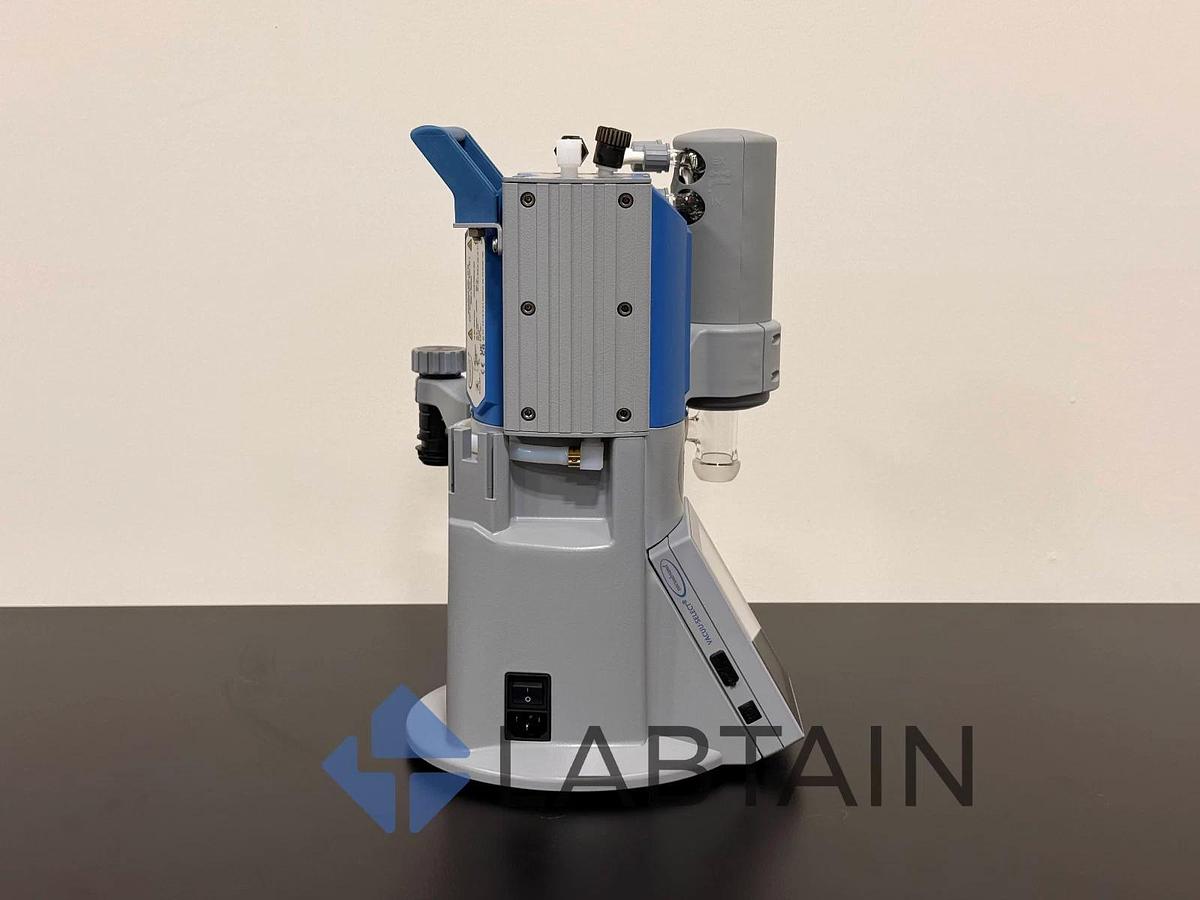

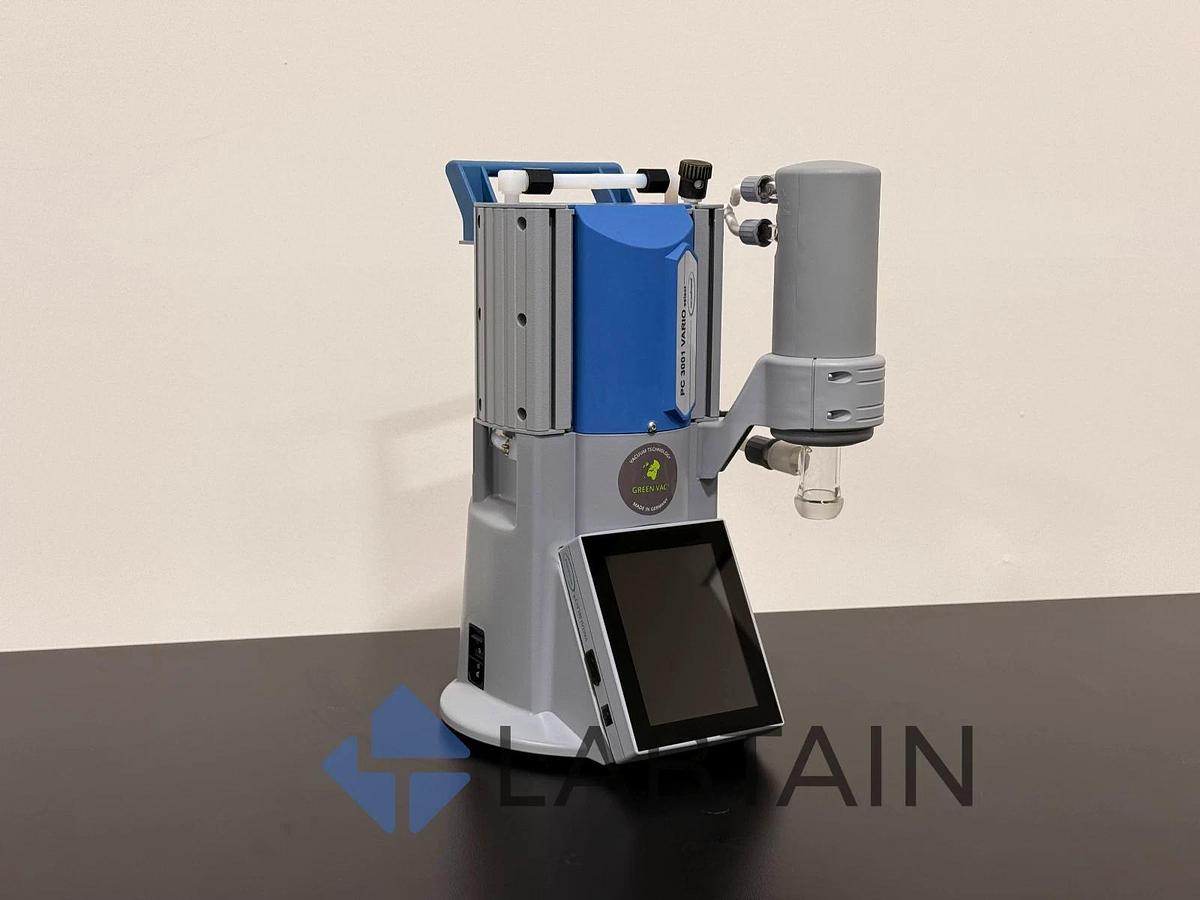

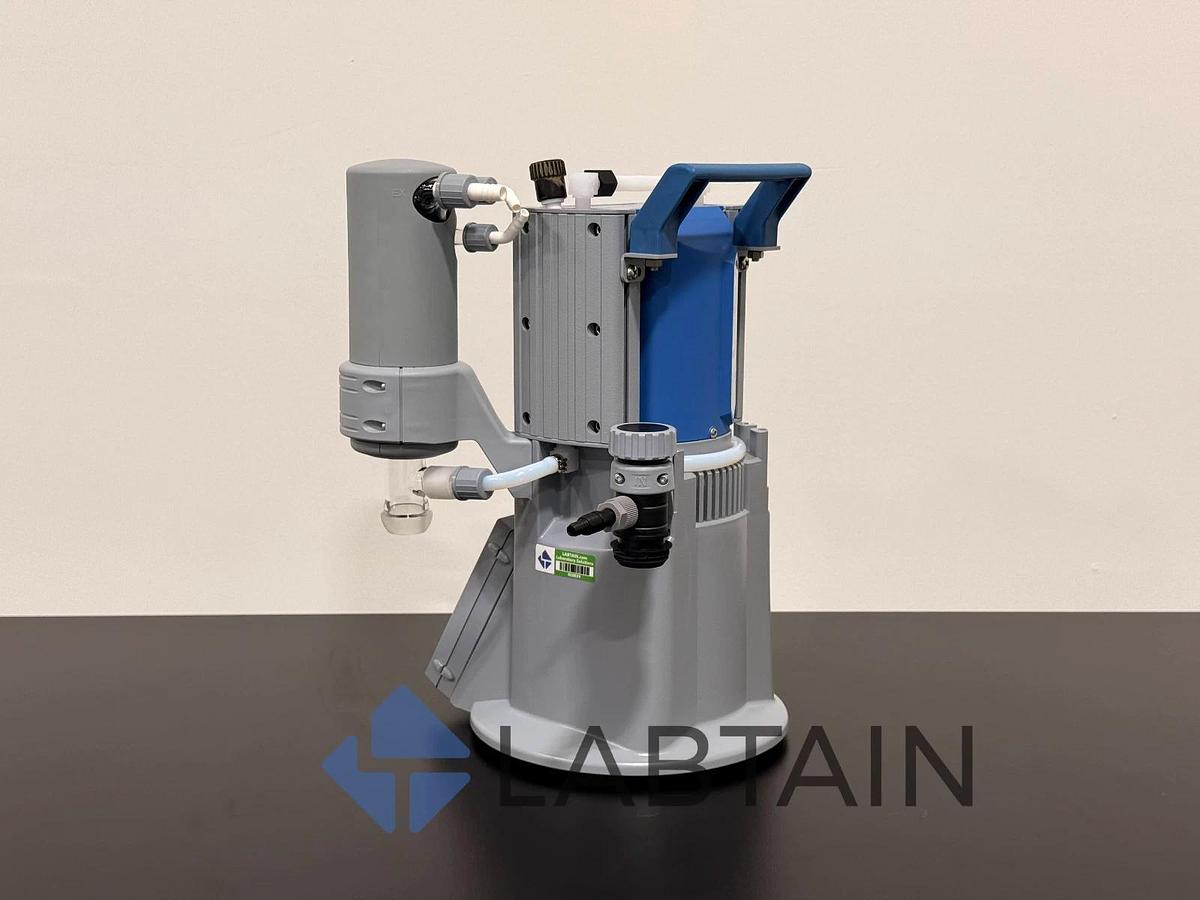

Vacuubrand PC 3001 VARIO Select Chemistry Pumping Unit – Oil-Free Diaphragm Vacuum System

Unit is in excellent cosmetic and working condition — removed from a controlled lab setting, cleaned, tested, and ships securely packaged.

This PC 3001 VARIO Select is a high-performance, oil-free diaphragm vacuum pumping unit designed for chemical and solvent applications. It features variable motor control, intelligent vacuum management, and solvent recovery capabilities.

Technical & Functional Details

• Maximum pumping speed (50 Hz): ~2.0 m³/h
• Equivalent flow (60 Hz): ~1.18 CFM
• Ultimate vacuum (dry): ~2.0 mbar (1.5 torr)
• Ultimate vacuum with gas ballast: ~4.0 mbar (3 torr)
• Number of heads: 4
• Number of stages: 3
• Rated motor power: 0.16 kW
• Noise level: ~42 dBA

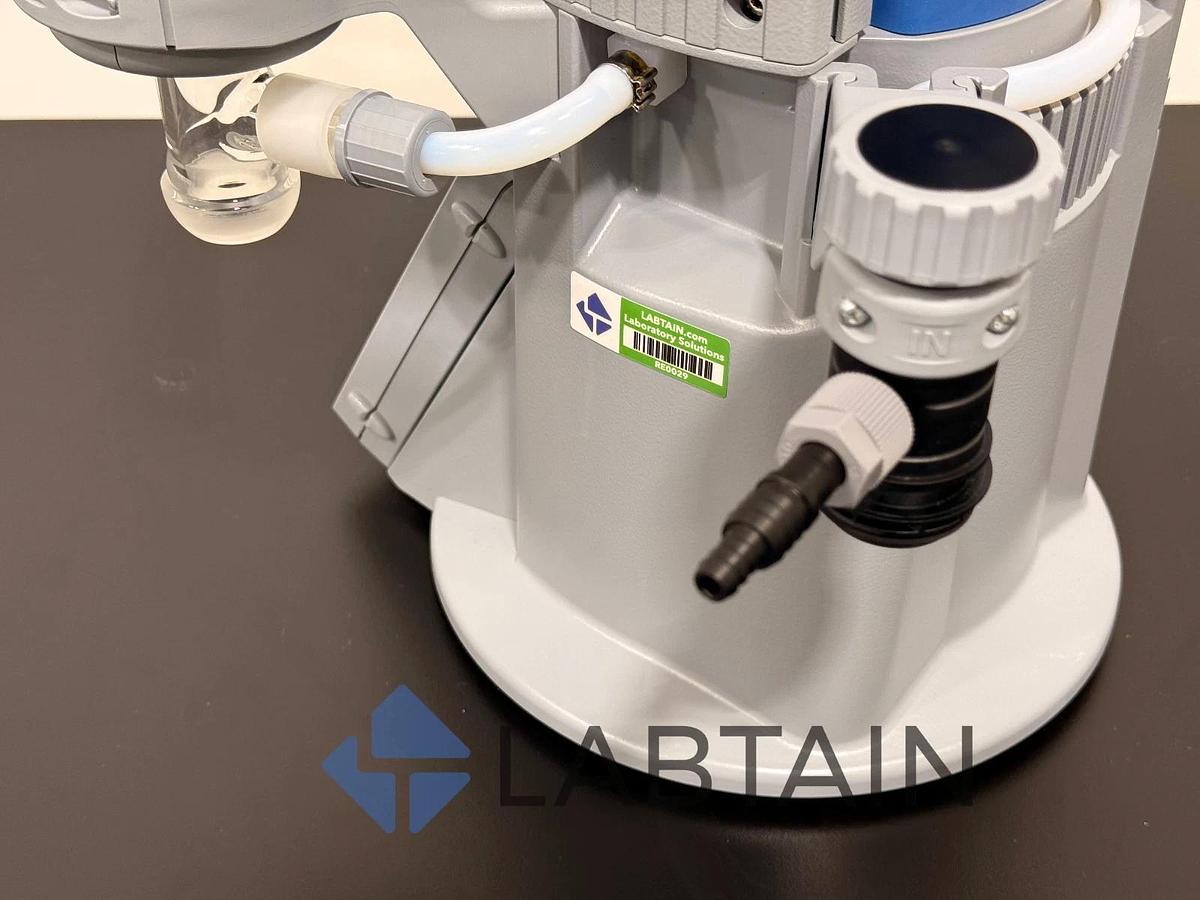

• Hose connections: Inlet DN 6–10 mm; outlet DN 8–10 mm

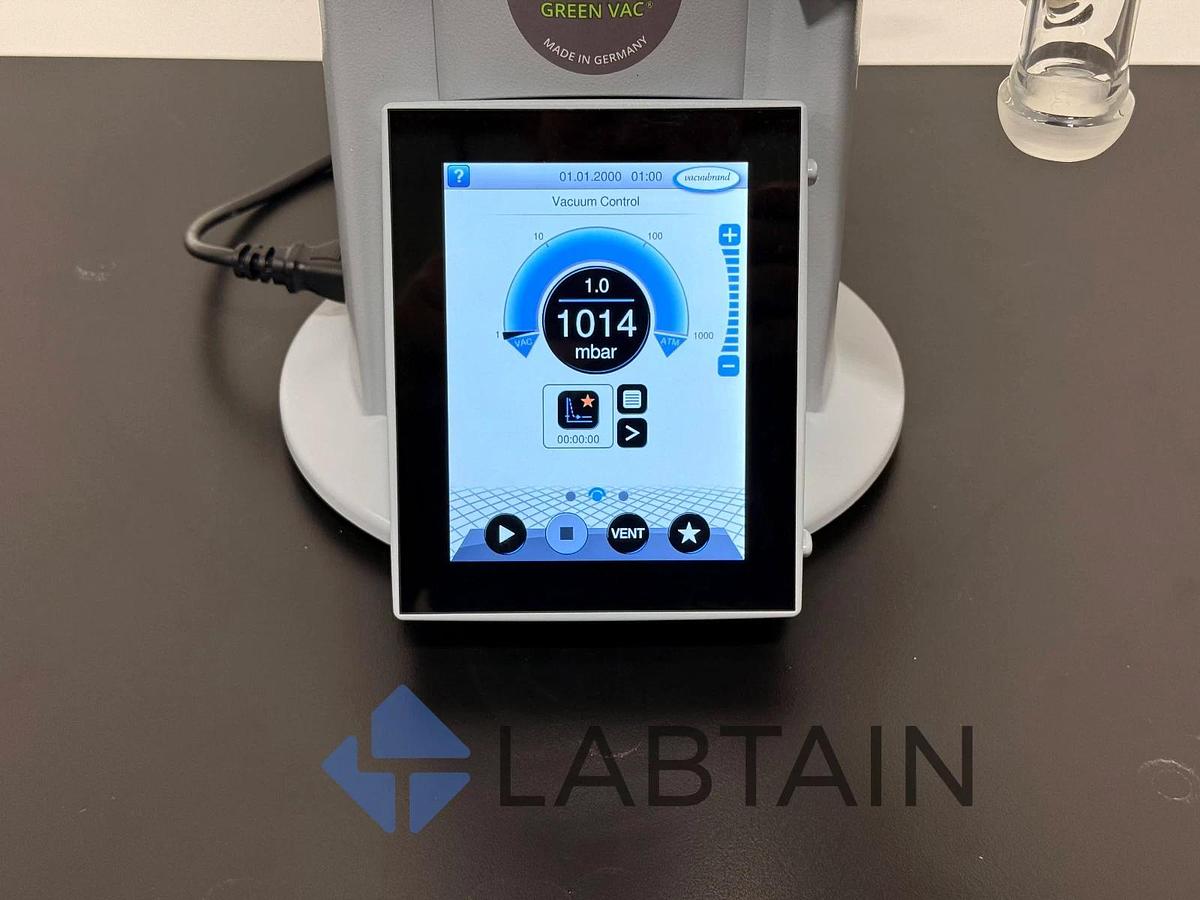

• Controller: VACUU·SELECT touch-screen interface with preset and customizable routines
• Power: Dual voltage (100–120 V / 200–230 V), 50/60 Hz
• Weight: ~8.2 kg
• Dimensions (approx.): 303 × 306 × 400 mm

Applications

• Rotary evaporation, vacuum concentration, solvent recovery
• Vacuum drying, filtration, vacuum ovens, degassing
• Use in chemical, biotech, pharmaceutical labs dealing with solvents

Features & Advantages

• Oil-free operation, eliminating maintenance and contamination risk
• Smart controller that detects boiling points and adjusts vacuum speed

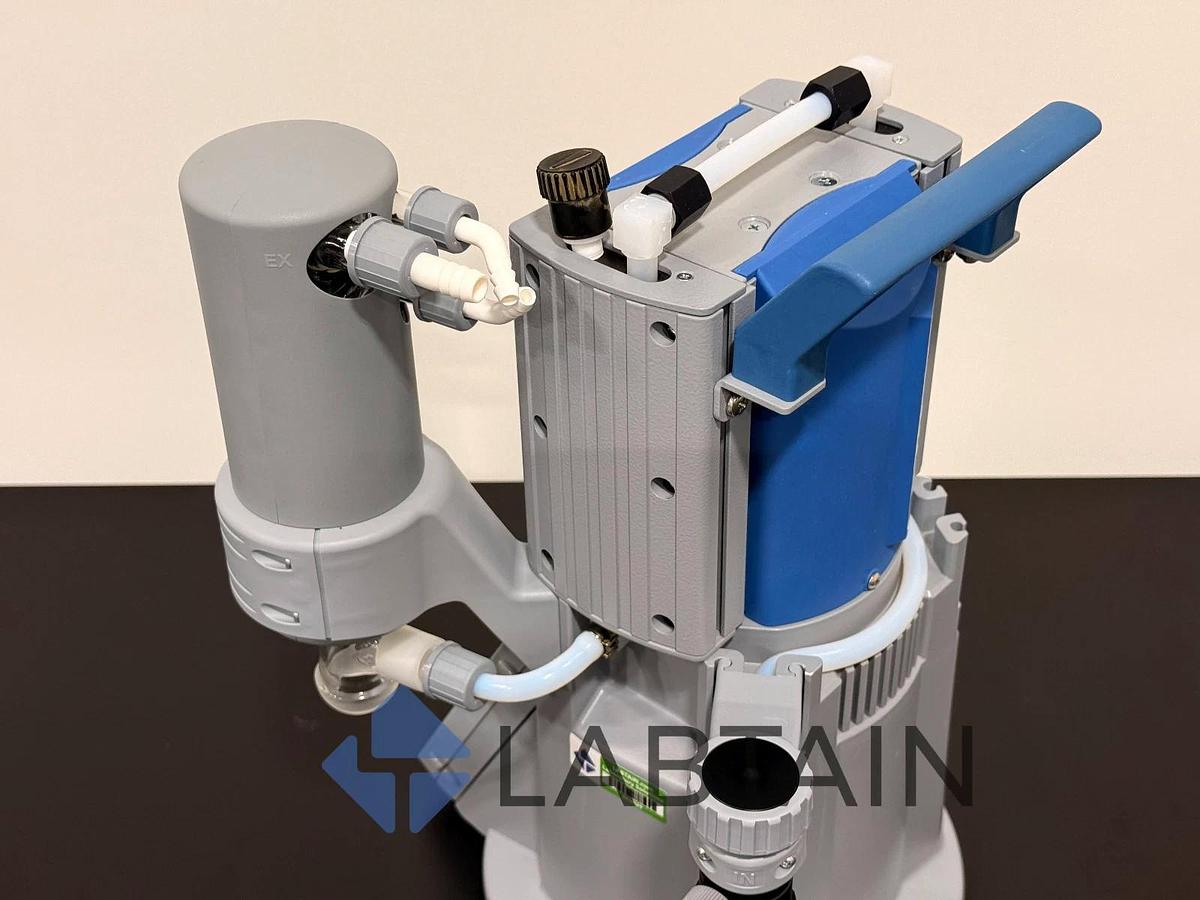

• Vapor condenser and inlet separator for solvent recovery and protection
• Quiet, stable operation with long service intervals
• Chemically resistant materials in contact with process fluids

Condition

• Fully functional and verified for performance
• Clean, no visible damage or corrosion
• Ships securely packaged to protect delicate components
