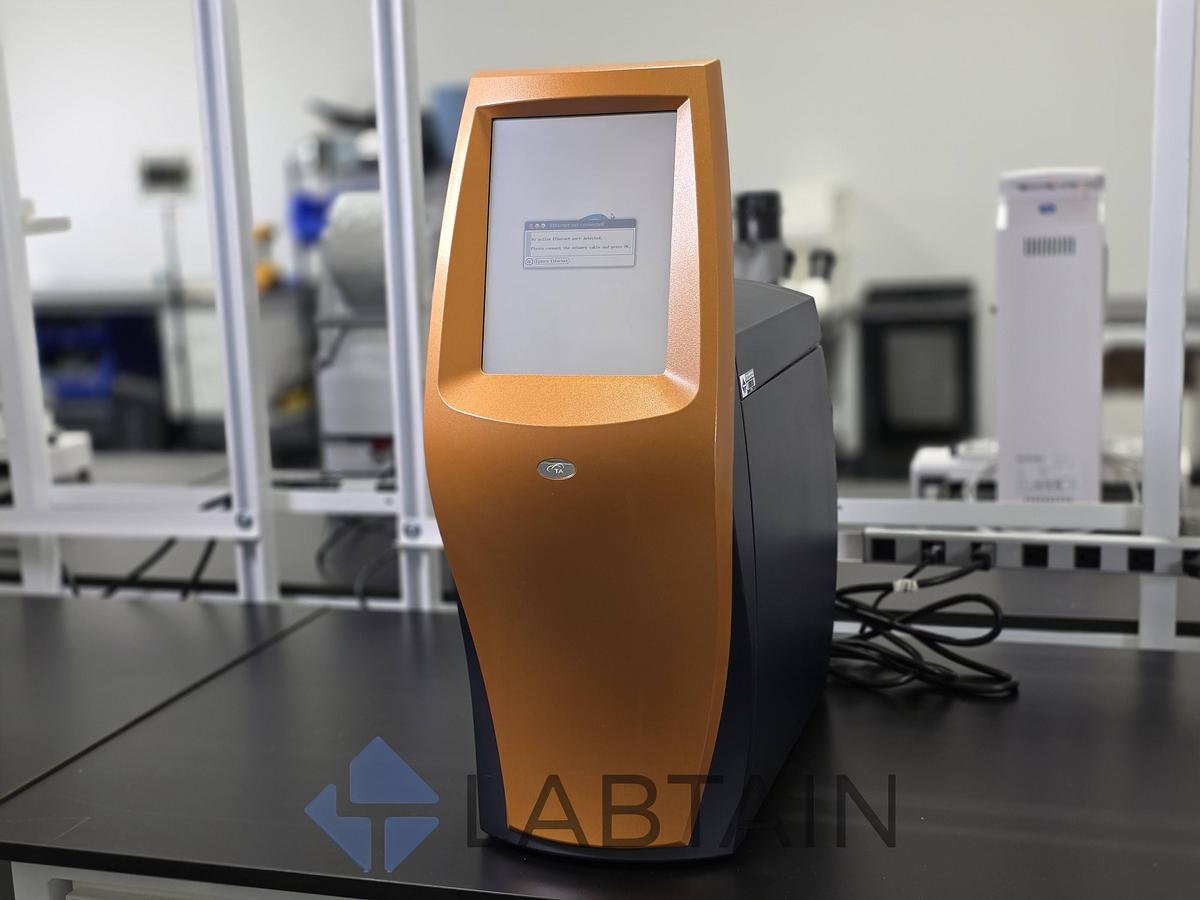

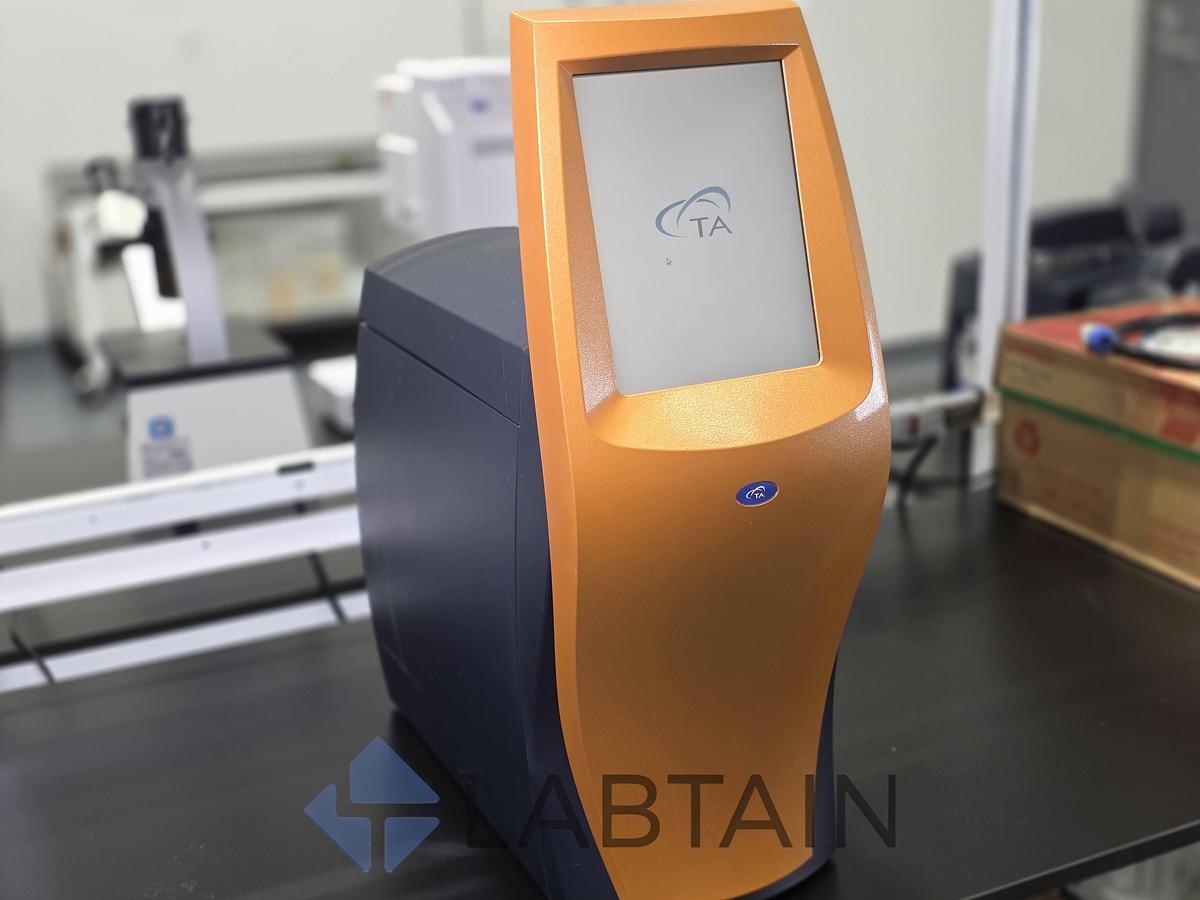

TA Instruments Discovery Common Cabinet DCC1 Touchscreen Controller 922000.901

The TA Instruments Discovery Common Cabinet (DCC) serves as the central command, control, and communication hub for the premier Discovery series of thermal analyzers. Rather than housing the electronics within the heated analytical modules (such as the DSC or TGA), TA Instruments engineered this standalone cabinet to process data, provide an intuitive touchscreen interface, and supply dedicated power to the transducers. This specific unit features dual-output control architecture, meaning it has the capacity to operate and switch between up to two separate analytical modules simultaneously (via Furnace Power / Control Out 1 and 2), saving valuable bench space and streamlining workflow.

Condition Notes

• Condition: Used / Power-Tested.
• Functional Status: The unit has been successfully power-tested. The internal computer boots properly, and the large capacitive touchscreen is fully responsive.

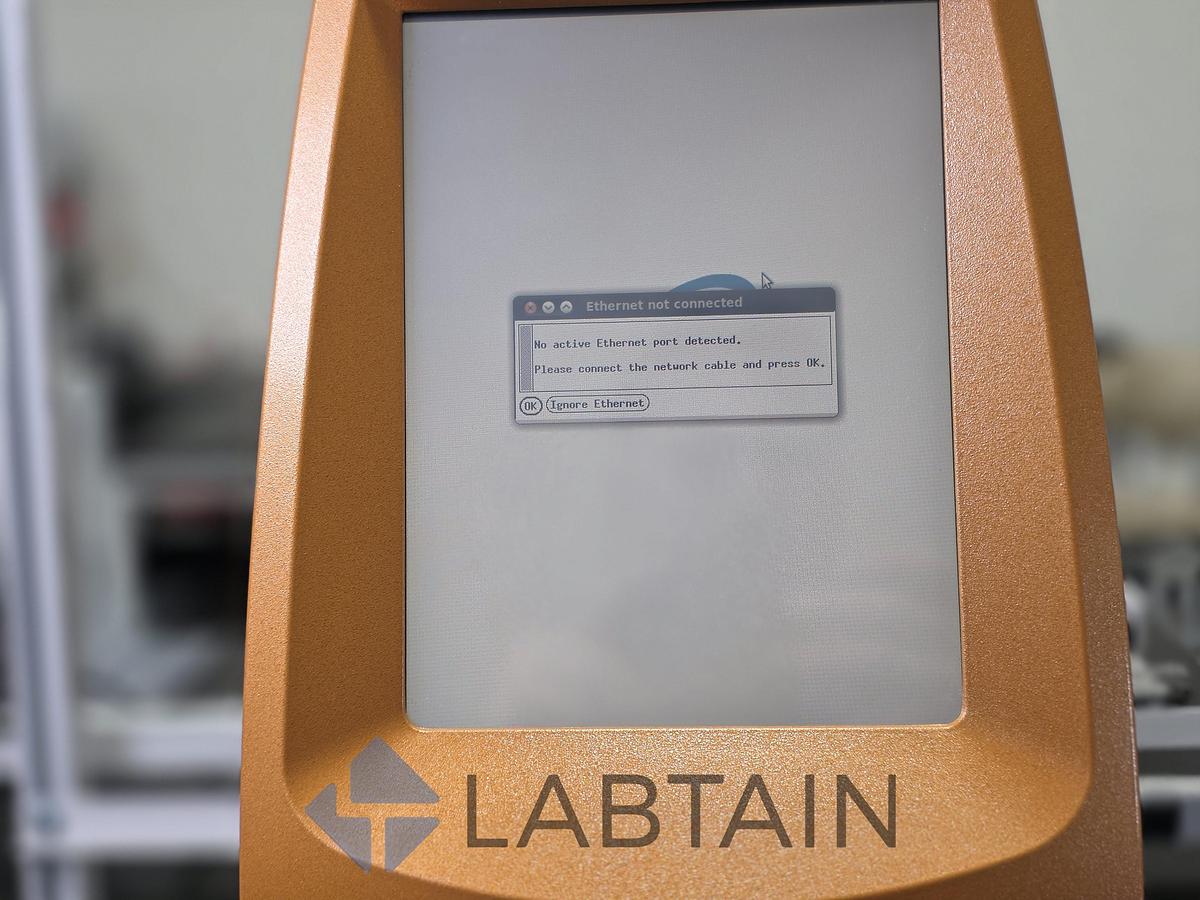

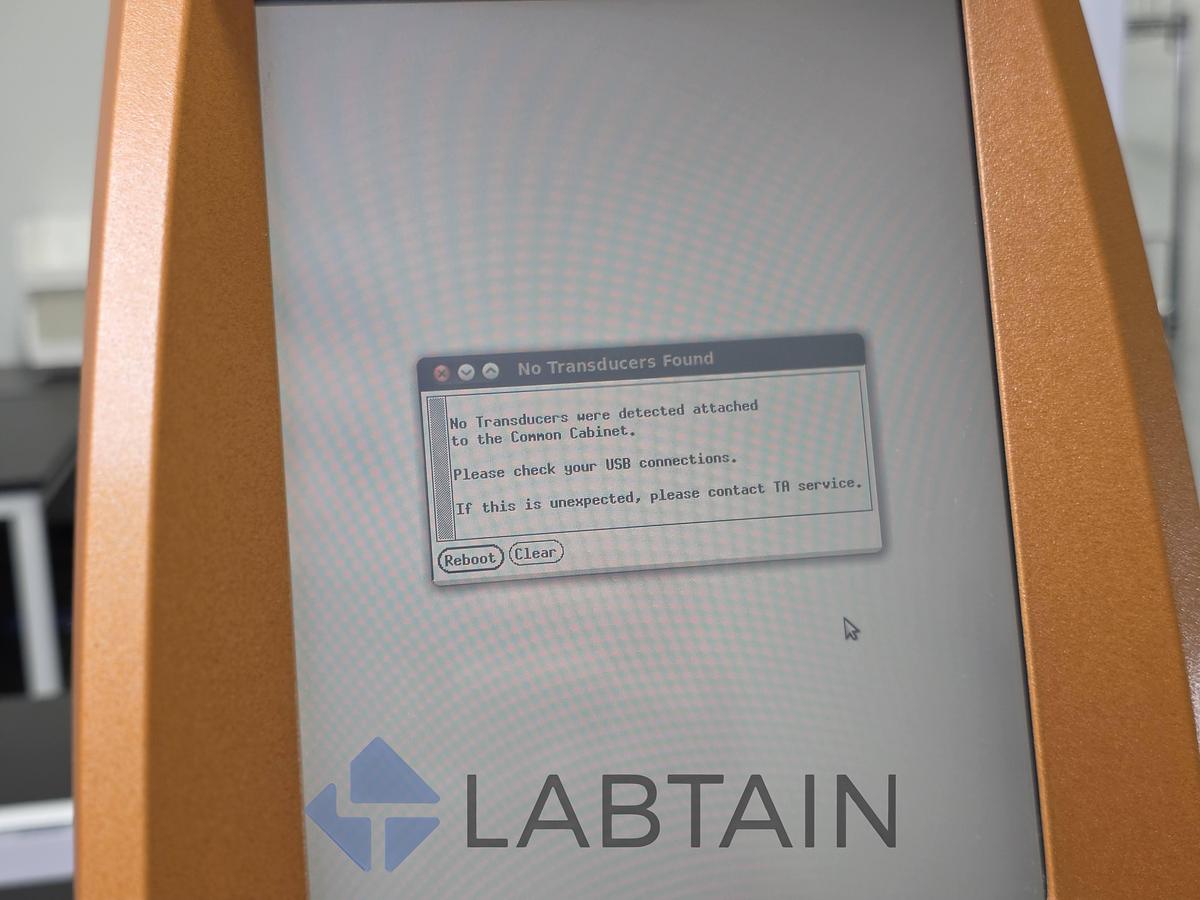

• Diagnostic Notes: As documented in the photos, the unit displays "Ethernet not connected" and "No Transducers Found" upon booting. This is the correct and expected behavior because the unit is currently powered on without an active network cable and without an external analytical module (transducer) plugged into the rear control ports.

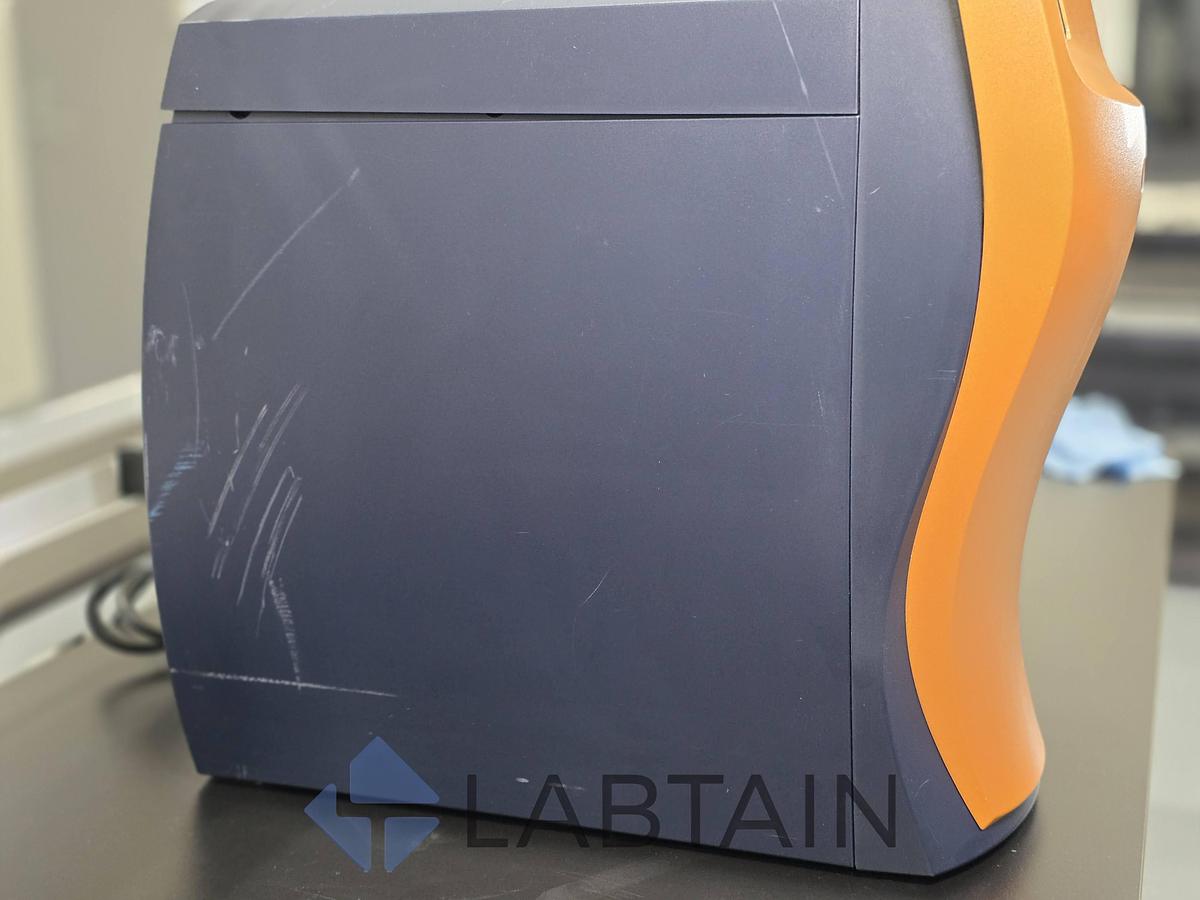

• Cosmetic Status: Fair to Good used condition. The front orange fascia and touchscreen glass are clean and highly presentable. The left dark-blue side panel exhibits moderate to heavy surface scratches and scuffing from previous laboratory mounting, which is strictly cosmetic and does not impact functionality.

• Serial Number: DCC1-00554
• Part Number: 922000.901

Technical Specifications

• Brand: TA Instruments (Waters)
• Model: Discovery Common Cabinet (DCC1)
• Equipment Type: Thermal Analysis Controller Cabinet
• Module Capacity: Supports up to 2 Discovery Series Modules (e.g., DSC, TGA, SDT)

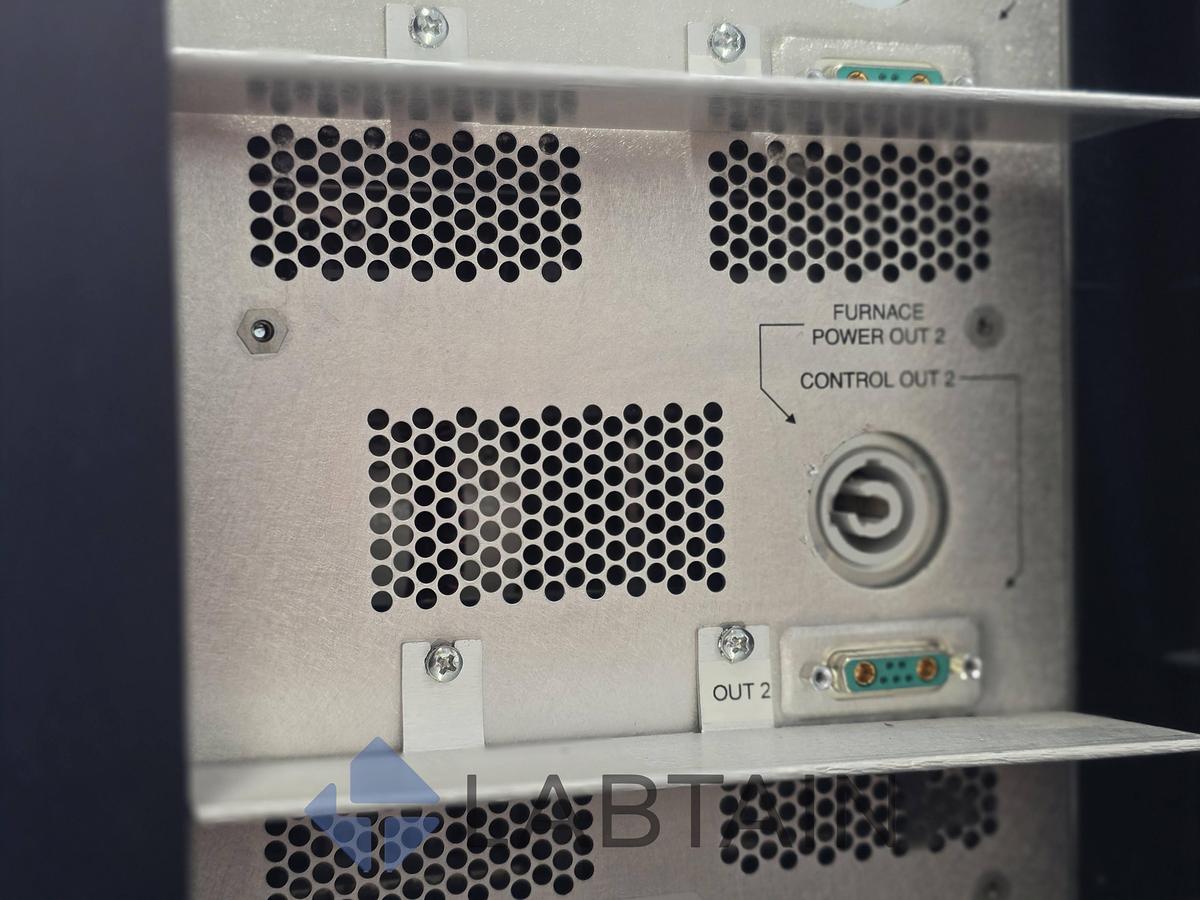

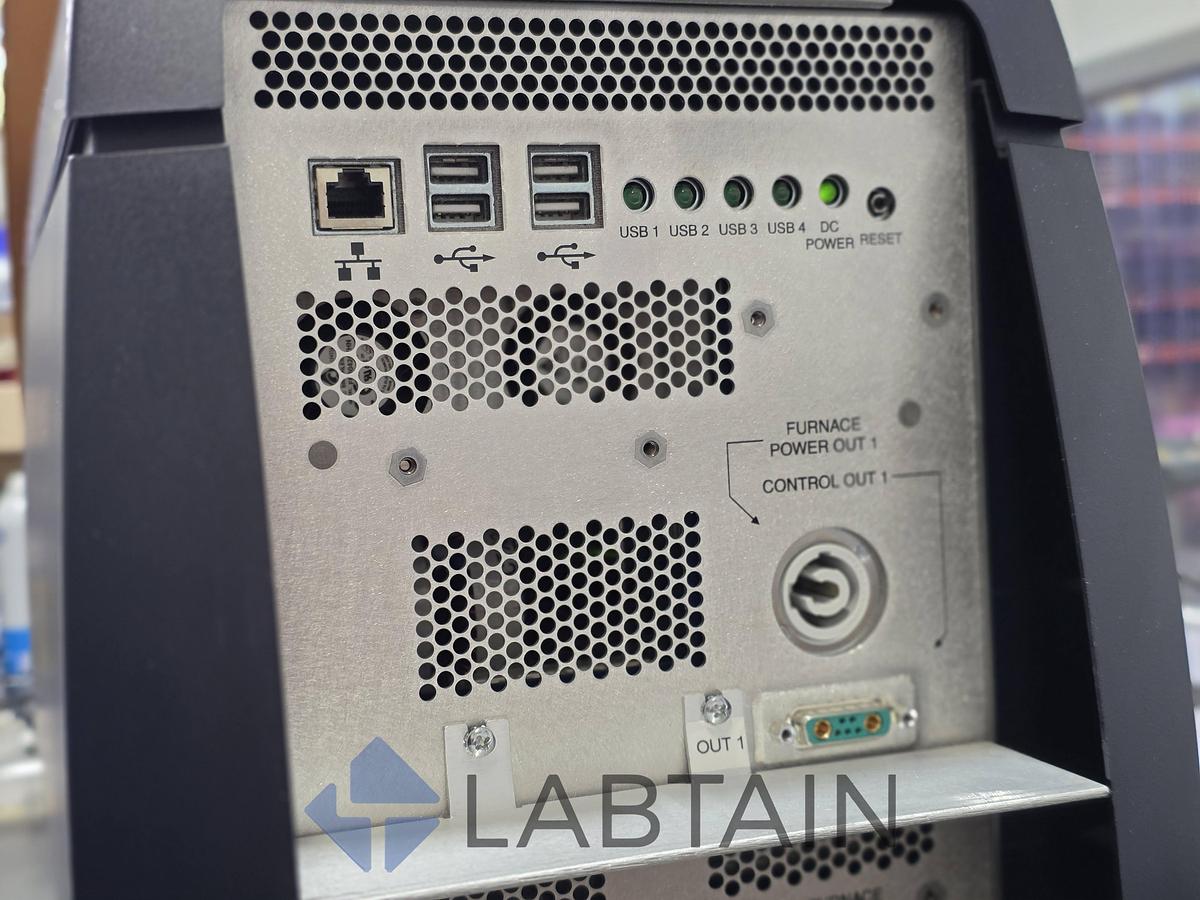

• Rear Connections:
• (1) Ethernet Port
• (4) USB Hub Ports
• (2) Furnace Power Outputs
• (2) Control Outputs

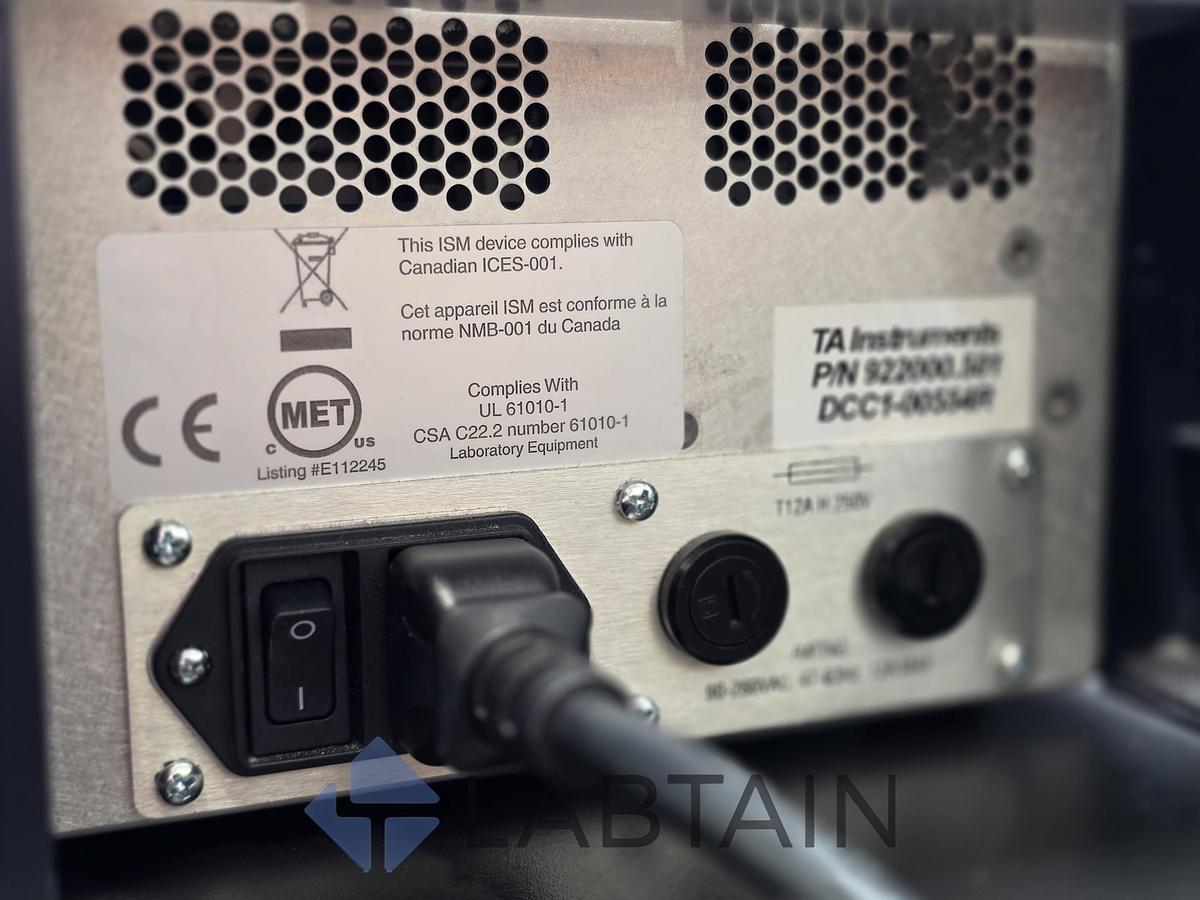

• Input Power: 100-240V AC

Included in this Package

• (1) TA Instruments Discovery Common Cabinet (DCC1)
• (1) Standard AC Power Cord
• (Note: This listing is for the control cabinet only. No analytical modules, transducers, communication cables, or external software are included).
